[2.3.1] Cascade UI Animator - A Keyframe based UI Animator

BerDeryaDev1010 · January 26, 2026, 9:02am

Thanks! Hope the plugin and the runtime can be of help!

BerDeryaDev1010 · February 5, 2026, 10:43pm

MAJOR UPDATE! v2.0.0 - Has breaking changes!

Please read the change log before updating!

Dual-Paradigm

The engine now supports two workflows, Service-Only and a Track-Based allowing for a high-level or low-level control depending on the prefered way of working.

Service-Only

Retains the same high-level API as the previous version. Functions like Play and Stop operate by accepting a GuiObject and a Config.

New Added Functions: Pause and Resume have been added directly to the service and allows pausing and resuming from paused state.
Play/Batch returns a proxy signal as previous version that fires the status strings: Completed, Looped, Cancelled.

Track-Based

Using CreateTrack or CreateBatchedTrack now generates a dedicated AnimTrack or BatchedAnimTrack object.

Control: The returned object provides direct access to the animation state. Methods such as :SetSpeed(), :Scrub(), or :Pause() can be called directly on the track instance.
*Instead of firing strings the track objects exposes specific events as: Completed, Looped, Cancelled and MarkerReached.

Removed Functions

BindToEvent & GetRunner have been removed since they were redundant. Call play inside your own event connections
SetToStart has been removed since SetToTime can handle all cases.
SetLoop/Batch loop settings should only be handled with TrackOptions (Previously PlayOptions) by setting Loop=true or Loop = 4 (loop 4 time) or manipulating the track object itself.

New Functions

Function	Status	Description
`SetFrame` / `Batch`	New	Snaps a UI element to a specific frame number (calculated automatically using the FPS defined in the config).
`Pause` / `Resume`	New	Added to both the Service (global instance access) and the Track objects (local access).
`ClearInstance` / `Batch`	Enhanced	Resets cache values and halts active tracks and resets every single property defined in the animation configuration (e.g., Rotation, Size, Color) back to its cached base state.
`Stop` / `StopBatch`	Updated	Handles `ResetToStart` logic.
`Suspend`	New	A master switch to disconnect the service from `RunService`, effectively pausing the entire engine globally - used for Editor.

Lifecycle Examples

Service-Only

local MyFrame = script.Parent.Frame
local Config = require(config)

-- Play using the service. The service manages the track internally.
AnimationService.Play(MyFrame, Config, { Reset = true })

task.wait(1)
-- New Feature: Pause via the service without needing a track variable
AnimationService.Pause(MyFrame, Config)

task.wait(1)
-- Cleanup: Stops animations and resets ALL properties defined in 'Config'
-- (e.g., Rotation, Size, Transparency) back to their original state.
AnimationService.ClearInstance(MyFrame)

Track-Based

local MyFrame = script.Parent.Frame
local Config = require(config)

-- Create the track manually
local track = AnimationService.CreateTrack(MyFrame, Config)

-- Connect to track events
local con = track.Completed:Connect(function()
    print("UI Transition Finished")
end)

con:Disconnect()

track:Play()

task.wait(0.5)
track:SetSpeed(2) -- Speed up the UI animation dynamically
track:Scrub(0)    -- Instant rewind to the start

-- Cleanup: The Service automatically detects destruction and performs cleanup
track:Destroy()

I’m really happy with this rewrite and I hope it will help you too!

And As always if you have any feedback or questions, let me know!

winpol · February 5, 2026, 10:56pm

FastCatCatExcitedGIF
Nice update!!

BerDeryaDev1010 · February 5, 2026, 11:09pm

Thank you and thanks for the help testing before release!

BerDeryaDev1010 · February 9, 2026, 6:57pm

Changelog

2.0.1

2026-02-09

Fixed:

Import bug where the FPS wasn’t loaded from the config.

BerDeryaDev1010 · February 17, 2026, 8:02pm

UI Rework Dev Update!

I need a couple of volunteers to test the new UI Rework! Please comment here or write me if you would like to test the update before release!

The only condition for testing is that you own a copy of the plugin!

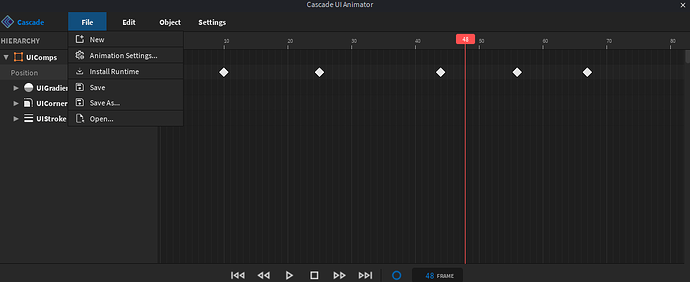

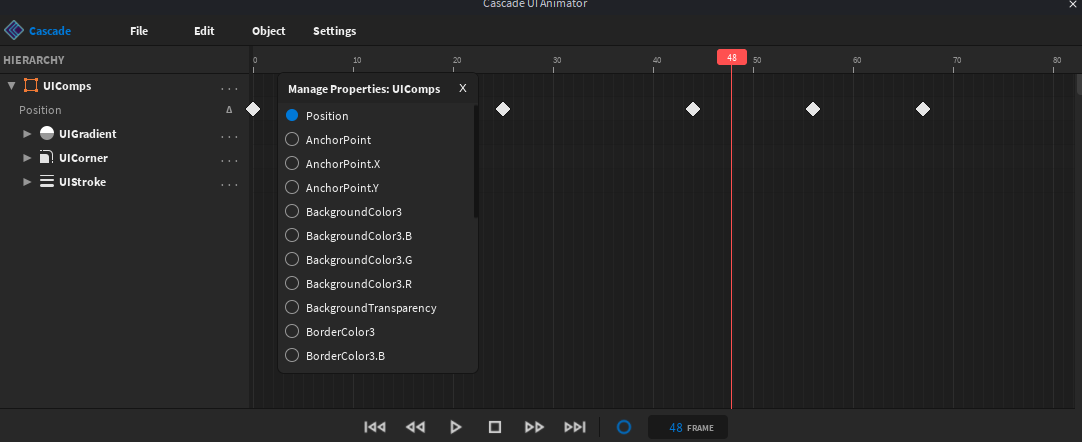

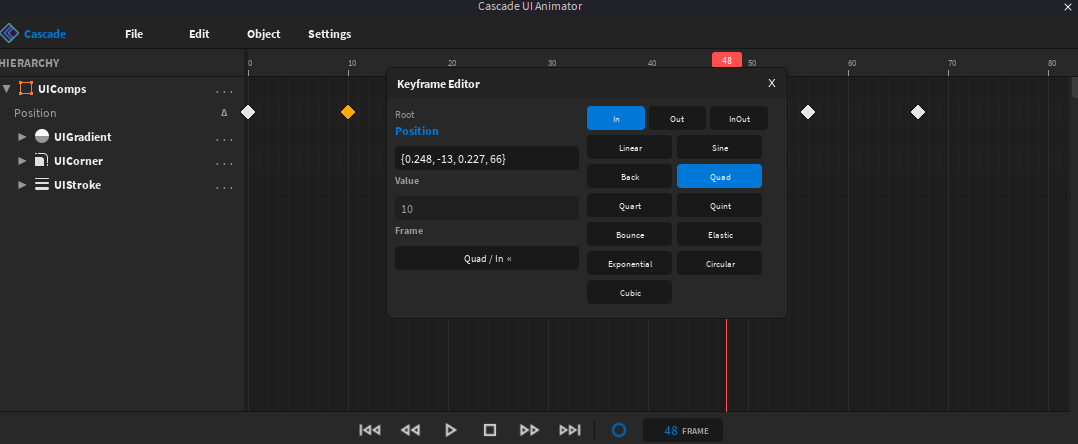

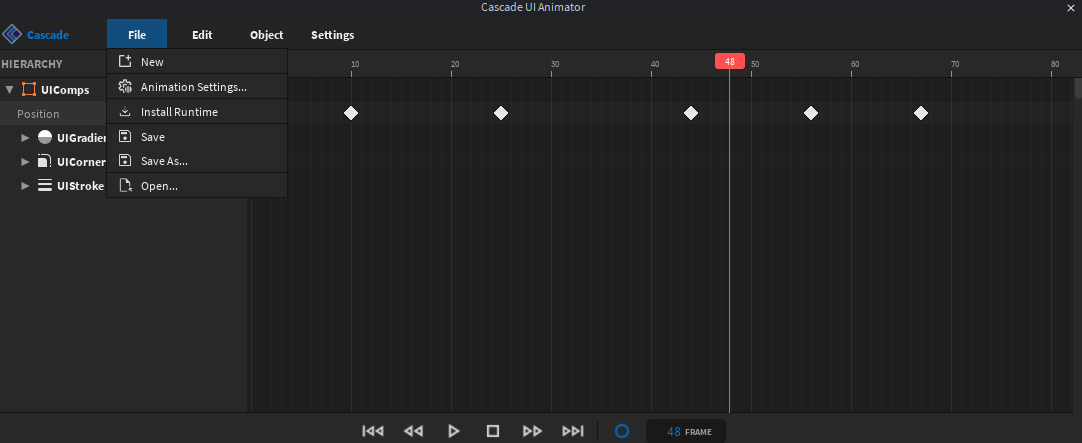

Here a couple of images of how the new UI looks.

All help is appreciated, thanks!

WatchaM3an · February 18, 2026, 12:06pm

roui3

also btw I like this project alot, the interface looks great, functionality looks great.

asdjnasdasdljkalkjkjladasdadasdasdsdaq

BerDeryaDev1010 · February 24, 2026, 8:02am

Next release is really close! The release will have a surprise as well! Probably this week or early next week!

BerDeryaDev1010 · February 24, 2026, 9:20pm

Changelog

2.0.2

2026-02-24

Fixed:

Import bug were loading animations could fail when having the FPS property.

BerDeryaDev1010 · February 26, 2026, 9:21pm

I promised animation events early this year… And.

Change log v2.1.0

Features a fully reworked UI with a lot of quality of life keybinds and a design that will make working with the plugin easier. Go through the keybinds to see all the available actions.
Animation Events - Right now you can use the datatypes - String, number and boolean. You can toggle the events track inside of the Animation Settings popup.
Themes - you can cycle between - Dark,. Blue, Light and Orange.
Keybinds - Can be set to new input, can be set with modifiers and are saved between sessions.

A big thanks to @winpol who helped with testing during the test phase!

Enjoy!

Cascade Animation Events — Usage Examples

This guide below is a bit of a repeat from the v2.0.0 post but I figure it might be needed. the guide shows how to use Animation Events (markers) with Cascade’s runtime engine.
Events are fired during playback when the animation reaches a specific frame, letting you
trigger sounds, particles, logic, or any game behaviour in sync with your animations.

Setup

local ReplicatedStorage = game:GetService("ReplicatedStorage")
local AnimationService = require(ReplicatedStorage:WaitForChild("CascadeRuntimeEngine").AnimationService)
local MyAnim = require(ReplicatedStorage:WaitForChild("CascadeAnimations").MyAnimation)

1. Service-Only Approach — `AnimationService.Play()`

Play an animation on a single instance. Returns a proxy signal — a single
signal that fires for every event type. The first argument is always the event
type string ("Completed", "Looped", "Cancelled", or "MarkerReached"),
followed by any type-specific arguments.

local myFrame = script.Parent.MyFrame

local signal = AnimationService.Play(myFrame, MyAnim)

signal:Connect(function(eventType, ...)
    if eventType == "MarkerReached" then
        local name, eventData = ...
        if name == "PlaySound" then
            local soundId = eventData.Data
            local sound = Instance.new("Sound")
            sound.SoundId = soundId
            sound.Parent = myFrame
            sound:Play()
            sound.Ended:Once(function() sound:Destroy() end)

        elseif name == "ToggleVisibility" then
            myFrame.Visible = not myFrame.Visible
        end

    elseif eventType == "Completed" then
        print("Animation finished!")

    elseif eventType == "Looped" then
        print("Animation looped!")
    end
end)

With Options

local signal = AnimationService.Play(myFrame, MyAnim, {
    Loop = true,
    Delay = 0.5,
    Reset = true,
})

signal:Connect(function(eventType, ...)
    if eventType == "MarkerReached" then
        local name, eventData = ...
        if name == "LoopPulse" then
            print("Pulse!")
        end

    elseif eventType == "Looped" then
        print("Animation looped!")
    end
end)

2. Service-Only Approach — `AnimationService.PlayBatch()`

Play the same animation on multiple instances at once. Same proxy signal pattern
as Play(), but MarkerReached events include a fourth value: the specific
instance that triggered the event.

local buttons = {
    script.Parent.Button1,
    script.Parent.Button2,
    script.Parent.Button3,
}

local signal = AnimationService.PlayBatch(buttons, MyAnim, {
    Stagger = 0.1,
})

signal:Connect(function(eventType, ...)
    if eventType == "MarkerReached" then
        local name, eventData, instance = ...
        if name == "Highlight" then
            print(instance.Name .. " reached the Highlight marker")
            instance.BackgroundColor3 = Color3.fromRGB(255, 200, 0)
        end

    elseif eventType == "Completed" then
        print("All instances finished!")
    end
end)

3. Track-Based Approach — `AnimationService.CreateTrack()`

Create a track for full playback control (play, pause, resume, scrub, speed).
Unlike Play()/PlayBatch(), tracks expose separate signals for each
event type: Completed, Looped, Cancelled, and MarkerReached.

local myFrame = script.Parent.MyFrame

local track = AnimationService.CreateTrack(myFrame, MyAnim, {
    Loop = 3,
    Reset = true,
})

track.MarkerReached:Connect(function(name, eventData)
    if name == "Damage" then
        local amount = tonumber(eventData.Data) or 10
        print("Deal " .. amount .. " damage!")
    elseif name == "ScreenShake" then
        shakeCamera(0.2)
    end
end)

track.Completed:Connect(function()
    print("Track finished all loops")
    track:Destroy()
end)

track.Looped:Connect(function()
    print("Loop iteration complete")
end)

track:Play()

Track Control

track:Pause()
task.wait(1)
track:Play()

track:SetSpeed(2)
track:SetSpeed(0.5)
track:SetSpeed(-1)

track:Scrub(1.5)

track:Stop()

track:Destroy()

4. Track-Based Batch — `AnimationService.CreateBatchedTrack()`

Full track control over multiple instances with staggered playback.
MarkerReached receives a third argument: the instance that triggered the event.

local cards = {
    script.Parent.Card1,
    script.Parent.Card2,
    script.Parent.Card3,
    script.Parent.Card4,
}

local track = AnimationService.CreateBatchedTrack(cards, MyAnim, {
    Stagger = 0.15,
    Loop = false,
    Reset = true,
})

track.MarkerReached:Connect(function(name, eventData, instance)
    if name == "FlipSound" then
        playSound("rbxassetid://123456", instance)
    elseif name == "Glow" then
        applyGlow(instance)
    end
end)

track.Completed:Connect(function()
    print("All cards finished animating")
    track:Destroy()
end)

track:Play()

5. Event Data Types

Events support three data types set in the editor. The eventData table
contains Name, Time, DataType, and Data.

String Events

-- Track-based (separate signal)
track.MarkerReached:Connect(function(name, eventData)
    -- eventData.DataType == "String"
    -- eventData.Data is a string
    if name == "PlaySound" then
        local soundId = eventData.Data -- e.g. "rbxassetid://123456"
        playSound(soundId)
    end
end)

-- Service-only (proxy signal)
signal:Connect(function(eventType, ...)
    if eventType == "MarkerReached" then
        local name, eventData = ...
        if name == "PlaySound" then
            playSound(eventData.Data)
        end
    end
end)

Number Events

track.MarkerReached:Connect(function(name, eventData)
    -- eventData.DataType == "Number"
    -- eventData.Data is a number
    if name == "SetAlpha" then
        local alpha = eventData.Data -- e.g. 0.5
        myFrame.BackgroundTransparency = alpha
    end
end)

Boolean Events

track.MarkerReached:Connect(function(name, eventData)
    -- eventData.DataType == "Boolean"
    -- eventData.Data is a boolean
    if name == "ToggleHUD" then
        local show = eventData.Data -- true or false
        hudFrame.Visible = show
    end
end)

6. Example Use — UI Intro Sequence

A complete example using track-based batch: an intro animation that fades in
cards one by one, plays sounds at key moments, and enables interaction when done.

local ReplicatedStorage = game:GetService("ReplicatedStorage")
local AnimationService = require(ReplicatedStorage.CascadeRuntimeEngine.AnimationService)
local IntroAnim = require(ReplicatedStorage.CascadeAnimations.IntroSequence)

local menuFrame = script.Parent.MenuFrame
local cards = menuFrame.CardContainer:GetChildren()

for _, card in cards do
    card.Active = false
    card.Interactable = false
end

local track = AnimationService.CreateBatchedTrack(cards, IntroAnim, {
    Stagger = 0.12,
    Reset = false,
})

track.MarkerReached:Connect(function(name, eventData, instance)
    if name == "Whoosh" then
        local sound = Instance.new("Sound")
        sound.SoundId = eventData.Data
        sound.PlaybackSpeed = 0.9 + math.random() * 0.2
        sound.Parent = instance
        sound:Play()
        sound.Ended:Once(function() sound:Destroy() end)

    elseif name == "EnableInteraction" then
        instance.Active = true
        instance.Interactable = true
    end
end)

track.Completed:Connect(function()
    print("Intro complete — menu is ready")
    track:Destroy()
end)

track:Play()

BerDeryaDev1010 · March 1, 2026, 8:33pm

Patch for the UI!

Partly because of a bug where keyframes were disappearing, the further down the hierarchy they were and partly the expand/collapse on each track made it impossible to work with larger hierarchies for a cutscene or some larger intro animation.

Changelog

v2.1.1

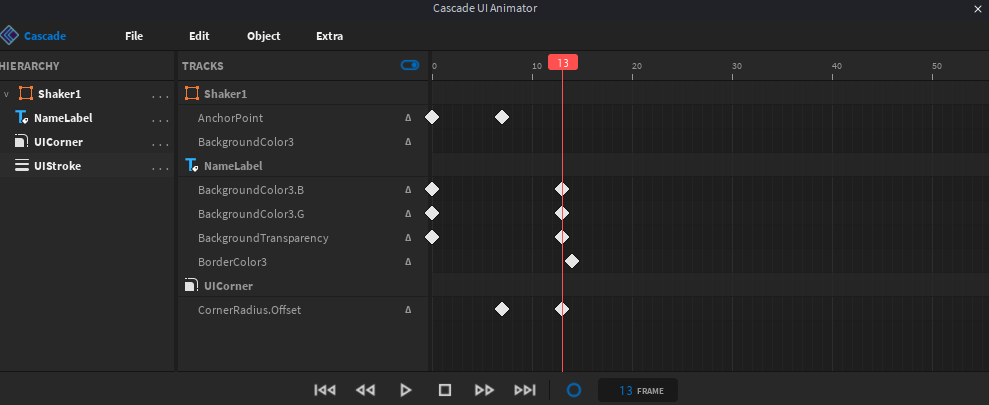

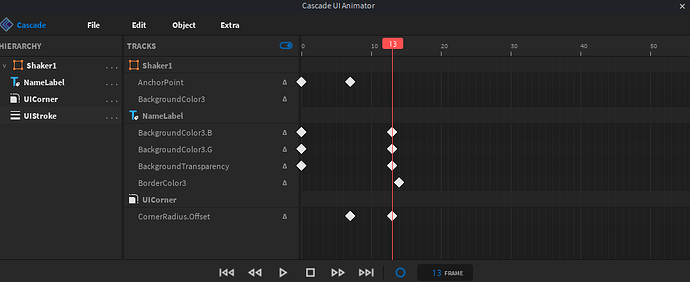

Split hierarchy browser and property tracklist into separate panels
Hierarchy viewer is toggleable from the tracklist header
Tracklist now only shows animated properties, grouped by object
Fixed timeline grid clipping bug where keyframes disappeared on scroll

Let me know if you have any feedback on this!

BerDeryaDev1010 · March 2, 2026, 9:39pm

Changelog

I was a bit trigger happy yesterday, a couple of more fixes!

v2.1.2

Fixed animation not playing past a certain frame when FPS < 60 (duration was capped at LengthSeconds instead of actual animation length. Plugin only, no effects on AnimationService)
Fixed track ordering so parent objects always appear above their children
Fixed box selection not aligning with the new tracklist row layout
Clicking an object in the hierarchy viewer now selects it in the Explorer
Changing FPS no longer changes TotalFrames — length in seconds adjusts instead
Property popup filter auto-focuses on open for faster searching
Fixed so Length is updated in the config when changing FPS or TotalFrames

Neuroticxs · March 3, 2026, 3:01am

New UI looking pretty good! It’s getting more intuitive.

BerDeryaDev1010 · March 3, 2026, 6:16am

I’m glad to hear that! Have you tried the new additions to the API?

BerDeryaDev1010 · March 8, 2026, 6:08pm

Changelog

Re-install the runtime to get the fix for relative tracks!

v2.1.3

Fixed a crash when playing animations with relative mode enabled on isolated axis tracks (e.g. animating only Position.X.Scale). Relative tracks now correctly offset from the instance’s base value without affecting untouched axes.
Fixed the Open dialog not listing animations stored inside subfolders of CascadeAnimations. All animations are now shown recursively with their folder path (e.g. UI/FadeIn).
Save and Save As now support subfolder paths — entering UI/FadeIn as the animation name will create the UI folder automatically if it doesn’t exist.

BerDeryaDev1010 · March 12, 2026, 10:07am

Changelog

Re-install the runtime to get the new fixes for animation events!

v2.1.4

Events now fire correctly on the first and last frame of every animation
Events work in both forward and reverse play
Events fire at the correct time per-instance in staggered batch animations
Looping animations fire events on every loop pass, not just the first

BerDeryaDev1010 · March 15, 2026, 11:38am

Changelog

Re-install the runtime to get the new fixes type annotations

v2.1.5

Fixed the type annotations on Play and PlayBatch functions. Now they have the correct class and gives auto-complete.

Also… a teaser from my upcoming tutorials on creating UI Animations…

BerDeryaDev1010 · March 17, 2026, 9:51pm

Changelog

Re-install the runtime to getthe fixes for Axis Isolation!

v2.1.6

Fixed axis isolation locking non-animated axes to their capture-time values — animating Position.X no longer prevents moving the object on Y.

BerDeryaDev1010 · April 2, 2026, 11:44pm

Just posted a tutorial series on animating game UI with the plugin — two episodes up so far covering the basics and building a full main menu. More on the way.

BerDeryaDev1010 · April 7, 2026, 9:33am

Change log

Re-install the runtime to get Step easing support!

v2.2.0

Visual overhaul

Redesigned panel layout with clear borders between hierarchy, tracklist, and timeline
New alternating row colors for better readability across all themes
Smoother hover and selection transitions on track rows
Refined toolbar with matching header color and active button highlights
Selected keyframes now have a subtle glow halo
Timeline ruler shows more frame numbers at different zoom levels
Polished “Select an object” start screen

New features

Step easing — new “Step” option in the easing picker. Holds the previous value and snaps instantly at the keyframe, like a hold/constant keyframe. Works in forward play, reverse, and preview scrubbing. (Suggested by @winpol)
Track visibility toggle — eye icon on each track row to hide/show individual tracks from preview and playback without deleting them
Hierarchy visibility toggle — toggle switch on each object in the hierarchy to collapse all of its tracks from the timeline view
Name animation on creation — prompted to name your animation when starting or creating new, shown in the toolbar
Unsaved changes indicator — asterisk (*) next to the animation name when there are unsaved edits
Version number — fetched from the marketplace, displayed in the License popup and stamped on the installed runtime
Smart runtime replacement — installing the runtime now checks the existing version and prompts before replacing

Improvements

Saving is now allowed with no tracks (empty/template animations)
Removed unnecessary metadata (CreatedAt) from saved animation files
Default values (Delay=0, Loop=false) are no longer written to saved files
Fixed hierarchy viewer child indentation — leaf and branch children at the same depth now align correctly

[2.3.1] Cascade UI Animator - A Keyframe based UI Animator

MAJOR UPDATE! v2.0.0 - Has breaking changes!

Please read the change log before updating!

Dual-Paradigm

Service-Only

Track-Based

Removed Functions

New Functions

Lifecycle Examples

Service-Only

Track-Based

I’m really happy with this rewrite and I hope it will help you too!

And As always if you have any feedback or questions, let me know!

Changelog

2.0.1

UI Rework Dev Update!

I need a couple of volunteers to test the new UI Rework! Please comment here or write me if you would like to test the update before release!

All help is appreciated, thanks!

Next release is really close! The release will have a surprise as well! Probably this week or early next week!

Changelog

2.0.2

I promised animation events early this year… And.

Change log v2.1.0

A big thanks to @winpol who helped with testing during the test phase!

Enjoy!

Cascade Animation Events — Usage Examples

Setup

1. Service-Only Approach — AnimationService.Play()

With Options

2. Service-Only Approach — AnimationService.PlayBatch()

3. Track-Based Approach — AnimationService.CreateTrack()

Track Control

4. Track-Based Batch — AnimationService.CreateBatchedTrack()

5. Event Data Types

String Events

Number Events

Boolean Events

6. Example Use — UI Intro Sequence

Patch for the UI!

Partly because of a bug where keyframes were disappearing, the further down the hierarchy they were and partly the expand/collapse on each track made it impossible to work with larger hierarchies for a cutscene or some larger intro animation.

Changelog

v2.1.1

Let me know if you have any feedback on this!

Changelog

I was a bit trigger happy yesterday, a couple of more fixes!

v2.1.2

Changelog

Re-install the runtime to get the fix for relative tracks!

v2.1.3

Changelog

Re-install the runtime to get the new fixes for animation events!

v2.1.4

Changelog

Re-install the runtime to get the new fixes type annotations

v2.1.5

Also… a teaser from my upcoming tutorials on creating UI Animations…

Changelog

Re-install the runtime to getthe fixes for Axis Isolation!

v2.1.6

Change log

Re-install the runtime to get Step easing support!

v2.2.0

As always, let me know if you have any feedback on the update!

Also a reminder that I have released a couple of tutorials for the plugin!

1. Service-Only Approach — `AnimationService.Play()`

2. Service-Only Approach — `AnimationService.PlayBatch()`

3. Track-Based Approach — `AnimationService.CreateTrack()`

4. Track-Based Batch — `AnimationService.CreateBatchedTrack()`
