Billboardgui Problem

Help and Feedback Art Design Support
1
  1. What do you want to achieve?

Custom Health Bar Above Player Head

  1. What is the issue?
    close

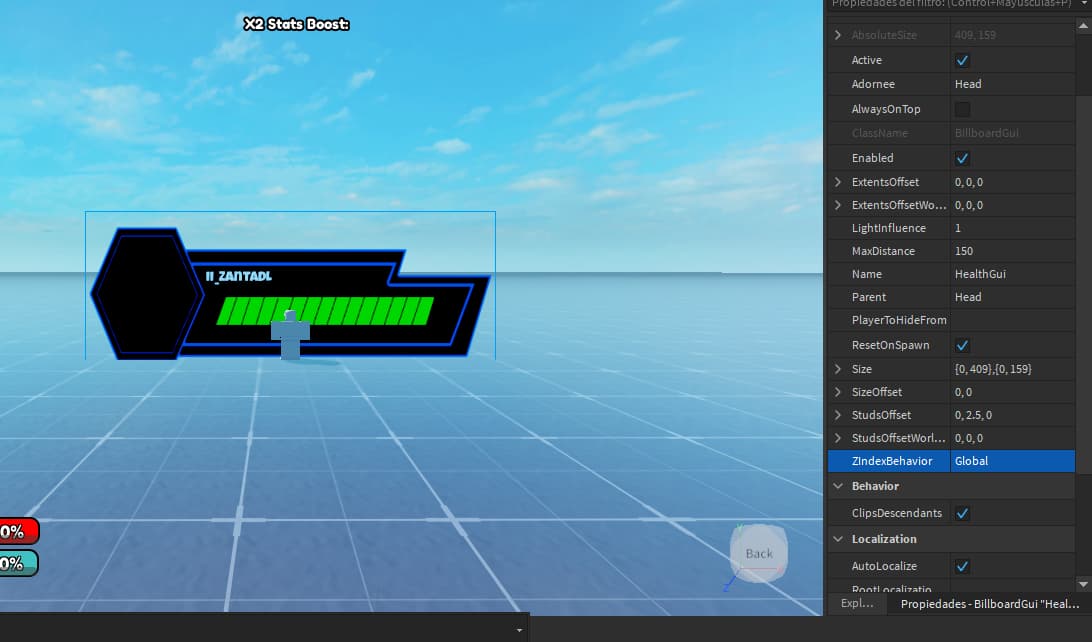

    close1059×721 481 KB

    giant

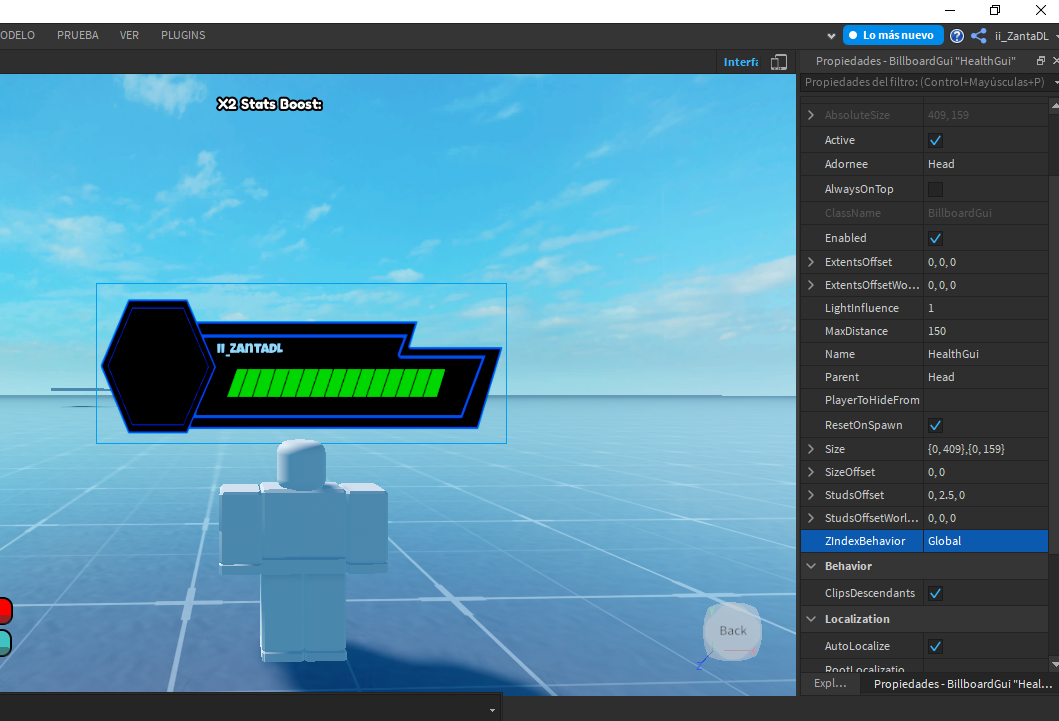

    giant1092×642 52.1 KB

The size goes giant when the zoom is far and small when the zoom is close

  1. What solutions have you tried so far? Change the Offset , size etc

Anyone can help? tsm

2

Basically, the size gets bigger whenever going far due to MaxDistance. Therefore, I would recommend you change the value to approximately 10-15.

1 Like
3

Already tried that and dont works

1 Like
4

Did you change the value of MaxDistance? If not, you are still going to see the GUI until 150 studs.

https://developer.roblox.com/en-us/api-reference/property/BillboardGui/MaxDistance

5

Use Scale for your Size instead of Offset.

Try like {0.3,0},{0.1,0}

Play with those numbers on the left (the 0.3 and the 0.1), those are Scale.

1 Like
6

You need to make the Size use Scale, not Offset. {Scale, Offset}, {Scale, Offset}

Because “Offset” is an absolute size in Pixels, it will stay the same size on your screen.

Edit: And for reference, 0.3/0.1 would be tiny with the way BillboardGui scale works.
Use larger numbers like 4 and 1

7

Screenshot_13
when i use the scale instead OffSet

8

Show me the properties of that image label inside the BillboardGui real quick (Besides the image id, just the Size is fine)

9

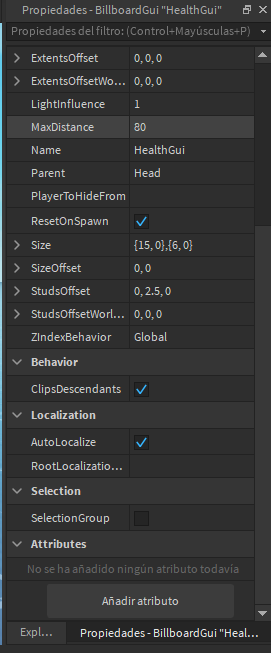

Screenshot_15
Screenshot_15271×653 22.1 KB

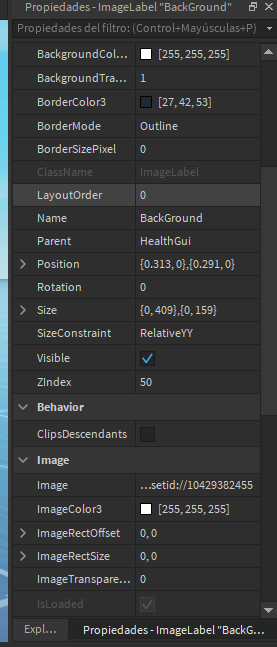

Screenshot_16
Screenshot_16277×647 26.6 KB

10

Make the ImageLabel size 1,0,1,0

Also: Offset is harmful to GUI Design in a lot of situations, consider using primarily Scale.
Only use case for offset should be along the lines of:

  • Padding list items (adding a space between them)
  • Making frames slightly smaller (Size: 1, -5, 1, -5)
  • Some other things I’m too tired to think about.
11

Thank you so much bro this works perfectly

1 Like
12

Thanks to all who helped me in this problem.
