- What do you want to achieve? Keep it simple and clear!
I want to build a simple chassis that only contains the wheel, main part (transparent and no collide) and a vehicle seat, and can be put in any car body with small tweaking and without changing the main script.
- What is the issue? Include screenshots / videos if possible!
When being run, and trying to turn, the wheel behaves weirdly and sometimes the car accelerates weirdly without throttling it

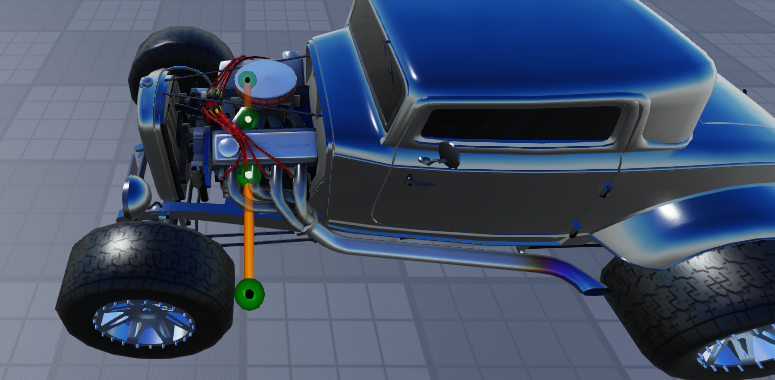

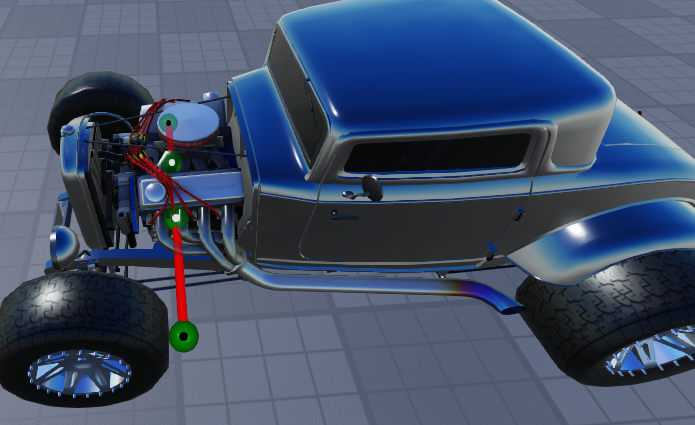

This is the whole car
- What solutions have you tried so far? Did you look for solutions on the Creator Hub?
1.I tried connecting the steering hinge directly into the main part but it just locked the wheel.
2.I tried moving the attachment to inside the wheel but it also didn’t worked
3.I also tried making a Motor6D but since i never made one, the front wheel just collapsed.
After that, you should include more details if you have any. Try to make your topic as descriptive as possible, so that it’s easier for people to help you!
This is the setup script
-- setup
if script.Parent.Part.Anchored == false then
warn("DEV, PART MUST ANCHORED")
end
local part = script.Parent.Part
local wheelNames = {"FR", "FL", "RR", "RL"}
for i, wheelName in wheelNames do
local wheel = script.Parent:FindFirstChild(wheelName)
if not wheel then
warn(wheelName .. " MISSING PART IN " .. script.Parent:GetFullName())
else
if wheelName == "RR" or wheelName == "RL" then
local wheelAttachment = Instance.new("Attachment")
wheelAttachment.Parent = wheel
wheelAttachment.Name = "AT2" .. wheelName
if wheelName == "RL" then
wheelAttachment.CFrame = CFrame.new(-0.5, 0, 0)
else
wheelAttachment.CFrame = CFrame.new(0.5, 0, 0)
end
local partAttachment = Instance.new("Attachment")
partAttachment.Parent = part
partAttachment.Name = "AT1" .. wheelName
partAttachment.WorldCFrame = wheelAttachment.WorldCFrame
local hinge = Instance.new("HingeConstraint")
hinge.Parent = part
hinge.Attachment0 = partAttachment
hinge.Attachment1 = wheelAttachment
else
local Pivot = Instance.new("Part")
Pivot.Parent = wheel
--part.Transparency = 1
Pivot.Size = Vector3.new(0.5, 0.5, 0.5)
Pivot.CFrame = wheel.CFrame
Pivot.CanCollide = false
if wheelName == "FL" then
Pivot.CFrame = wheel.CFrame * CFrame.new(-0.6, 0, 0)
else
Pivot.CFrame = wheel.CFrame * CFrame.new(0.6, 0, 0)
end
Pivot.Parent = wheel
local steerAttachment = Instance.new("Attachment")
steerAttachment.Parent = Pivot
steerAttachment.Name = "SteerAT2" .. wheelName
--if wheelName == "FL" then
-- steerAttachment.CFrame = CFrame.new(-0.5, 0, 0) * CFrame.Angles(0, math.rad(90), 0)
--else
-- steerAttachment.CFrame = CFrame.new(0.5, 0, 0) * CFrame.Angles(0, math.rad(90), 0)
--end
steerAttachment.CFrame = steerAttachment.CFrame * CFrame.Angles(0, 0, math.rad(90))
local steerPartAttachment = Instance.new("Attachment")
steerPartAttachment.Parent = part
steerPartAttachment.Name = "SteerAT1" .. wheelName
steerPartAttachment.WorldCFrame = steerAttachment.WorldCFrame
local steerHinge = Instance.new("HingeConstraint")
steerHinge.Parent = part
steerHinge.Attachment0 = steerAttachment
steerHinge.Attachment1 = steerPartAttachment
steerHinge.Name = "SteerHinge"
local wheelAttachment = Instance.new("Attachment")
wheelAttachment.Parent = wheel
wheelAttachment.Name = "AT2" .. wheelName
if wheelName == "FL" then
wheelAttachment.CFrame = CFrame.new(-0.5, 0, 0)
else
wheelAttachment.CFrame = CFrame.new(0.5, 0, 0)
end
local partAttachment = Instance.new("Attachment")
partAttachment.Parent = Pivot
partAttachment.Name = "AT1" .. wheelName
partAttachment.WorldCFrame = wheelAttachment.WorldCFrame
local hinge = Instance.new("HingeConstraint")
hinge.Parent = part
hinge.Attachment0 = partAttachment
hinge.Attachment1 = wheelAttachment
end
end
end
for _, descendant in pairs(script.Parent:GetDescendants()) do
if descendant:IsA("BasePart") then
descendant.Anchored = false
end
end
script.Parent.control.Enabled = true
this is on the control script
local Vseat = script.Parent.VehicleSeat
-- VARIABLES --
local MaxSpeed = 50 -- if this was set to 1 it will mean 1 full rotation of an wheel (RPM). changing the size of the wheel will affect the actual speed.
local Acceleration = 10
local ReverseSpeed = 10
local DirtSpeed = 25
local GrassSpeed = 10
local MinimumTurn = -45
local MaximumTurn = 45
-- END
Vseat.MaxSpeed = MaxSpeed
for _, descendant in script.Parent.Part:GetChildren() do
if descendant.Name == "HingeConstraint" then
descendant.ActuatorType = Enum.ActuatorType.Motor
descendant.MotorMaxTorque = 100000
descendant.MotorMaxAcceleration = Acceleration
end
end
for _, descendant in script.Parent.Part:GetChildren() do
if descendant.Name == "SteerHinge" then
descendant.ActuatorType = Enum.ActuatorType.Servo
descendant.ServoMaxTorque = 100000
descendant.AngularSpeed = 10
descendant.LimitsEnabled = true
descendant.LowerAngle = MinimumTurn
descendant.UpperAngle = MaximumTurn
end
end
-- Function to check if the vehicle is on ground material
local function getGroundSpeed()
local mainPart = script.Parent.Part
if not mainPart then
return MaxSpeed
end
local origin = mainPart.Position
local direction = Vector3.new(0, -5, 0)
local params = RaycastParams.new()
params.FilterDescendantsInstances = {script.Parent}
params.FilterType = Enum.RaycastFilterType.Exclude
local result = workspace:Raycast(origin, direction, params)
if result and result.Instance then
if result.Instance:IsA("BasePart") then -- Check material
local mat = result.Instance.Material
if mat == Enum.Material.Ground or mat == Enum.Material.Mud or mat == Enum.Material.Sand then
return DirtSpeed
elseif mat == Enum.Material.Grass then
return GrassSpeed
end
end
end
return MaxSpeed
end
while true do
local currentSpeed = getGroundSpeed()
if Vseat.Throttle == 1 then
for _, descendant in script.Parent.Part:GetChildren() do
if descendant.Name == "HingeConstraint" then
descendant.AngularVelocity = currentSpeed
end
end
elseif Vseat.Throttle == -1 then
for _, descendant in script.Parent.Part:GetChildren() do
if descendant.Name == "HingeConstraint" then
descendant.AngularVelocity = -ReverseSpeed
end
end
elseif Vseat.Throttle == 0 then
for _, descendant in script.Parent.Part:GetChildren() do
if descendant.Name == "HingeConstraint" then
descendant.AngularVelocity = 0
end
end
end
if Vseat.Steer == -1 then
for _, descendant in script.Parent.Part:GetChildren() do
if descendant.Name == "SteerHinge" then
descendant.TargetAngle = MaximumTurn
end
end
elseif Vseat.Steer == 1 then
for _, descendant in script.Parent.Part:GetChildren() do
if descendant.Name == "SteerHinge" then
descendant.TargetAngle = MinimumTurn
end
end
elseif Vseat.Steer == 0 then
for _, descendant in script.Parent.Part:GetChildren() do
if descendant.Name == "SteerHinge" then
descendant.TargetAngle = 0
end
end
end
task.wait(0.1)
end

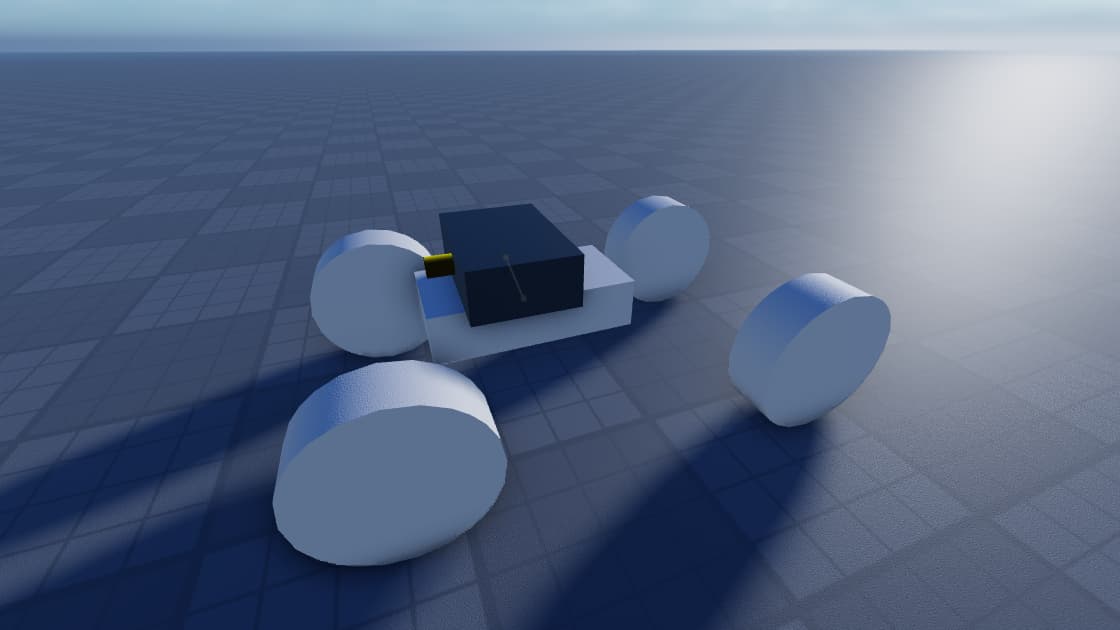

This is the whole car:
Any help appriciated!
