Hi Creators, we are releasing an extension to the CollectionService called Collections. A Collection is like a set of tagged instances except that the tag is a query that defines the set.
Collections
We think of collections as a souped-up version of tags. Collections use a query instead of a tag; the collection automatically includes any instance that matches the query. Collections also have an interface for bulk-binding callbacks to events on instances and RunService.
Benefits
- Powerful extension to tags: Simple declarative interface for managing groups of instances, fulfilling feature requests like this.
- Reduces Boilerplate: Eliminates the need to track per-Instance signal connections, and lets you avoid manual Instance set management.
- Easy Streaming: Collections only include streamed-in instances – they work like the Tags + Streaming workflow but are far more expressive.
- Reduces Leaks (maids): Collections manage signals on instances automatically as instances enter and leave a collection.
- Efficient DataModel Searching: Collections reduce the need to FindFirstChild and WaitForChild, because the query searches entirely in-engine.
Example
-- Creates a Collection of all BaseParts named KillOnTouch
local collection = CollectionService:CreateCollection("BasePart#KillOnTouch")
--OnAdded will fire whenever a DataModel change causes an instance to join a collection
function collection.OnAdded(killBrick: BasePart)
killBrick.BrickColor = BrickColor.new("Neon orange")
killBrick.Material = Enum.Material.Neon
end
-- Any signal on any type of instance can be bound to by name, with the “On” prefix.
function collection.OnTouched(killBrick: BasePart, otherPart: BasePart)
local parentPart = otherPart.Parent
local humanoid = parentPart:FindFirstChild("Humanoid")
if humanoid then
humanoid.Health = 0
end
end
Query Syntax Reference [Instance:QueryDescendants]
-- Parts Named Wall
"Part#Wall"
-- Children of any Model with a CollectionService tag “SwordPart”
"Model > .SwordPart"
-- Descendants of any Meshpart with an attribute "OnFire" set to true
"MeshPart >> [$OnFire = true]"
-- MeshParts with no SurfaceAppearance or Texture children
"MeshPart:has(> :not(SurfaceAppearance, Texture))"
-- Players within 30 studs of TargetBuilding
"Model:has(> #HumanoidRootPart:in-radius(30, .targetBuilding))"
Why Collections
At a high level Collections solve the problem of binding code to groups of instances. If you want every enemy NPC with 1 health point to enter rage mode, you write a query that matches only those instances (“.NPC.Enemy[$health = 1]”). Code attached to this collection runs only on instances while they match that criterion. The alternative is to track two tags and wait on attribute changed events to check health.
We think Collections can help with multiple error-prone patterns on the platform today. Memory leaks are a common problem when connecting callbacks to instance events. Collections automatically manage connections so their callbacks are leak-free. DataModel searching with FindFirstChild and WaitForChild requires boilerplate for error checking as well as a working knowledge of Streaming. Collections populate automatically when instances match their query, so you don’t need to check whether an instance exists.
Details
Collections use engine queries which are also supported in our Style Engine and QueryDescendents. You can set a root Instance for the Collection, and it will only query for Instances descending from that root.
Collections can bulk bind callbacks to engine and instance events. In the KillBrick example every BasePart in the collection has the OnTouched function connected to the BaseParts Touched event. The first argument to every callback is the Instance the event fired on in the Collection. Connections are managed automatically. When an instance is added to a Collection, callbacks are connected to its events (and disconnected when it is removed).
Collections have permissive typing. A Collection with an OnTouched function containing both Folder and BasePart instances will connect the OnTouched function to the Touched events of BaseParts and ignore Folders. Generic Events like Added/Removed or RunService Events are always bound to all Instances.
Full API
CollectionService
- CreateCollection(query: string, rootInstance : Instance) : Collection
- query uses QueryDescendents selector syntax
- query only applies to the subtree under rootInstance (default workspace)
Collection
- Collection:ForEach(function(instance) end) – Calls the function on each Instance in the Collection, passing that Instance as the first and only argument
- Collection:Destroy() – Removes every instance from the collection and stops tracking the collections query.
Valid Callbacks
Events on any Instance type can be hooked into a collection by defining a function with the event’s name prefixed by On: function OnTouched(collectionPart :Part, otherPart :Part) … end. The first argument is the Instance the event is firing on. This instance is always in the collection. The signature of every event callback is modified to include this instance.
Collections bind Instance Events to callback but do not use calls to Connect or return an ScriptSignal. When Instances are added and removed from the collection they are automatically connected to the callbacks defined by the Collection. Property and Attribute changed events are all available under the OnAttributeChanged and OnPropertyChanged namespaces. You cannot assign to a callback more than once (but we’d love some feedback on this point)
Callback API
- function Collection.OnAdded(instance)
- Fires when an Instance starts matching the Collection’s query
- When assigned, this also fires on all Instances currently in the Collection (we’ll take feedback on this)
- function Collection.OnRemoved(instance)
- Fires when an Instance stops matching the Collection’s query
- function Collection.OnHeartbeat(instance, dt: number)
- Connects to RunService.Heartbeat
- All non-deprecated RunService signals are supported (such as OnPostSimulation, OnPreRender, etc.)
- function Collection.OnSimulate(instance, dt: number)
- Works like BindToSimulation()
- function Collection.OnPropertyChanged.{PropertyName}(instance)
- Works like GetPropertyChangedSignal(“X”)
- function Collection.OnAttributeChanged.{AttributeName}(instance)
- Works like GetAttributeChangedSignal(“X”)
- function Collection.On{EventName}(instance, …Args)
- Connects to “EventName” on every Instance with “EventName” in their API (i.e., Touched, Pressed, etc.)
Added/Removed Semantics
Added and Removed are the backbone of Collections. These callbacks fire when an Instance matches or unmatched a Collection’s query. A Collection can exist prior to Added being set. When Added is first set it fires for all instances in the collection (see below). Remove fires for each instance when Destroy() is called.
-- Creates a Collection; All parts under folder KillBricks are killbricks.
local collection = CollectionService:CreateCollection("Folder#KillBricks > Part")
--collection is populated, but added is not assigned
function collection.OnAdded(killBrick)
killBrick.BrickColor = BrickColor.new("Neon orange")
killBrick.Material = Enum.Material.Neon
end
--added fires In immediate mode or is placed on the deferred queue here.
Query Performance
Tracking instances for Collections is not free. Each Collection adds a bit of runtime overhead when a DataModel change happens that could cause an Instance to be Added or Removed. The cost of each Query is related to what the query tracks. Below is an approximate chart of Query selectable data and its performance cost for a Collection.
Improves performance
- RootContext
- Class
Small cost
- Tag
- Property
- Name
- Attribute
- not(…)
High cost
>(child)>>(descendant)- has(…)
- in-radius(suds, …)
Using a rootContext with a small subtree of your place is the best way to maximize Collection query performance. If the context is workspace or a large part of the DataModel the Collection must watch a large number of Instances to determine what belongs in the collection.
Adding a class specifier makes queries both faster and enables better typing. For example, Part#Killbrick is preferable to #Killbrick. Including the class allows the Collection to ignore all non-Part Instances, reducing the amount of work required. It also improves the developer experience by enabling more precise autocomplete and type checking, since the query is guaranteed to return Part Instances.
Internally, a Collection tracks changes to the DataModel to determine which Instances belong to it. The specificity of the query determines which changes must be observed. For a query like #Killbrick, the Collection must listen for name changes on every Instance because any Instance could potentially match. With Part#Killbrick, only Part Instances need to be monitored for name changes, significantly reducing the amount of bookkeeping.
A similar optimization applies to some property filters. For example, [Anchored = true] implicitly limits the query to classes that inherit from BasePart, allowing the Collection to ignore all other Instance types.
In contrast, tag and attribute specifiers do not make queries faster. They cannot be used to narrow which Instances must be monitored. In fact, they make queries slightly slower because the Collection must register additional listeners to detect tag and attribute changes.
Combinators are very expensive. Each combinator adds a layer of complexity to our tracking logic. Child queries are relatively easy to evaluate while Descendent combinators require extensive tracking of an entire subtree.
The Has pseudoclass is an expensive part of a query to evaluate. Has requires multiple evaluation steps up and down the DataModel hierarchy on each DataModel modification.
The in-radius is currently expensive to evaluate. In-radius must calculate an intersecting set of instances added to, and removed from the radius to generated added and removed signals.
In-radius
In-radius is a new, experimental addition to the query syntax. It is currently supported only by collection queries. in-radius selects BaseParts that are within n studs of a selector group For example: Part#Killbrick:in-radius(10, Part#HumanoidRootPart) selects all Parts named Killbrick that are within 10 studs of any Part named HumanoidRootPart. The radius is measured from the center of the selected Part to the nearest edge of the selector Part.
Lifetime
Collections are active until Collection:Destroy is called or the Collections root is Destroyed or garbage collected. Collections are intended to be long lived. They are kept alive by the CollectionService even if their reference returned by CreateCollection goes out of scope. Unparenting a Collections root will not cause the Collection to be garbage collected or stop running.
Query Typing
The first argument of a Collection callback gets its type from the query and from the callback. If a Query has no type information the return type will be Instance. For example if the query only checks name #SomeInstance, attribute [$SomeAttribute] or tag .SomeTag no information about the instance can be learned.
Typing information can be extracted from Class filters. The query ”Part” will type all instances in the collections as Parts, ”Part, Folder” will type each instance as Part or Folder.
The has() pseudoclass can give type information to Instances children. The Query Part:has(> Part#SomePart) lets us know that the selected part will always have a child Part named SomePart. Callbacks on this typed instance can safely access the instance’s child, including on the Client. There is no need to WaitForChild() on a child specified in the query.
local collection = CollectionService:CreateCollection("Part:has(>Part#SomePart")
function collection.OnAdded(part)
part.SomePart.Position = Vector3.new(0,0,0)
end
Typing information is also extracted from Instance specific callbacks. If a collection may select many types of instances, but a callback can only be bound to a specific class that callback will get the correct typing information. For example:
local collection = CollectionService:CreateCollection(".FunnyTag")
function collection.OnAdded(instance)
--the argument here will be typed as an instance
end
function collection.OnTouched(basePart)
--the argument here is typed as a BasePart because this callback
--will only ever fire on baseParts.
end
Explorer Search

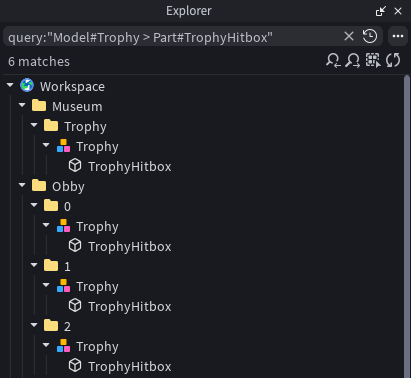

We have added query: as a bespoke filter to the studio explorer search. Query accepts our query syntax and will display every instance that matches the query as a result.
Demo Place
We have created a demo obby filled with Collection examples called CollectionObby.rbxl (227.1 KB) The collection obby has a 5 level obstacle course and a few aesthetic elements implemented with Collections. It also includes a small museum with many of the collections.
What’s Next
Performance optimizations
Collections introduce tracking overhead, we’ve designed collection tracking very close to the CSS selectors in Blink. There are multiple avenues for performance improvement taken by Blink that we can implement in collections as well. RunService calls like OnHeartbeat can also be improved to reduce overhead invoking a large number of heartbeat invocations.
Extended Query API
Our current Query API only selects individual Instances. We have plans to extend the query syntax to capture multiple Instances per query, and to only data on Instances like properties and attributes. The goal of Query extension is to give an ECS-like frontend that enables fine-grained data parallelism like flecs.
Discoverability
A common problem on Roblox is identifying what code caused something to happen. We plan to extend the Collection API to check what collections are running on an Instance example (Instance:GetCollections).
FAQ
How does this relate to server authority?
Server authority requires the coordination of predicted behavior on the Client along with authoritative behavior on the Server. We believe that collections can simplify this coordination by providing a declarative way to specify Instance behavior. We believe that writing a single collection and instantiating it on both Client and Server is a simple way to align predicted and authoritative code.
How does this work with streaming?
Collection membership is automatically managed. Instances in a collection are only present when they are streamed in. Collection code written per-Instance thus avoids wait-for-child as the code can safely assume that the Instance is streamed in. We recommend the use of Atomic Modes in conjunction with Collections to simplify writing streaming safe code.
Why not use a library to build a string query?
Go for it! Collection query syntax is heavily related to CSS selectors and there is a rich ecosystem of query wrappers for css (JQuery, React, Cheerio). The main drawback is that using a library reduces what typing information we can provide for Collection callbacks. Using a string literal directly enables strict type checking and better auto complete.
Why ForEach and not __iter?
Collections are a forward thinking API, we hope to in the future support parallel execution across collections and within them. Ideally a safely written ForEach could be dispatched in parallel to increase performance. __iter on the other hand does not allow us to make use of this future parallel scheme. We may still release an __iter in the future as it can improve serial performance and may increase the usability of Collections overall.
