Custom Blender Rig wont Animate properly, Motor6Ds have wrong rotations

[TheCaptainMajor (CaptainMajorKiyo)]

1. What do you want to achieve? Keep it simple and clear!
   I Need my animations to transfer properly from blender, to Roblox.

2. What is the issue? Include screenshots / videos if possible!
   For some reason for every model I’ve imported, while the rig seems to import relatively fine, the motor imports are usually of the wrong direction. But this seems to be different for every motor making any animations made in blender utterly meaningless unless I change the motor rotations manually which is imprecise and very time consuming.

3. What solutions have you tried so far? Did you look for solutions on the Creator Hub?
   I’ve tried changing the bone roll properties but this only SOMETIMES works and even if it does work, its not always in the right axis for all axis’.

Take a look at how it looks.

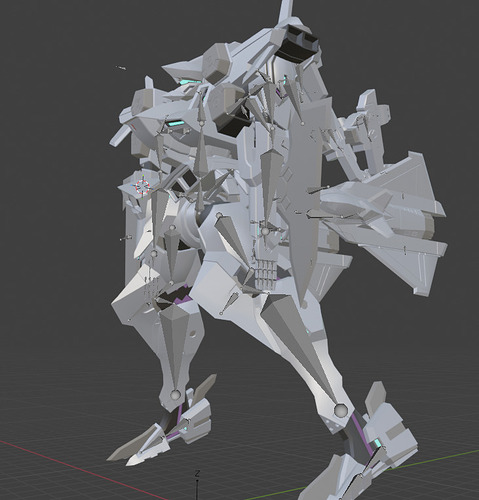

Expected Pose (Test Pose):

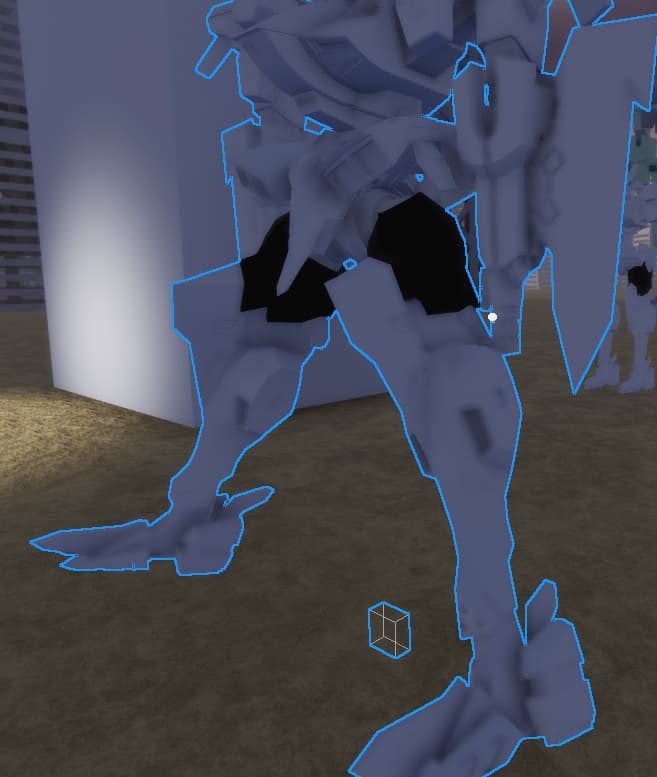

Imported Pose (Test):

As you can see, the expected pose for the legs is out and to the back.
However, on import, the legs move out and forward instead of back. This is a huge problem to animate.

The Front and Top faces are correct in Roblox, and the Blender Import axis’ are -Y and Z for Forward and Up axis’ respectively, so there is nothing wrong with the axis export/import.

The Legs are all i’ve bothered to pose at the moment since I know the arms will have a similar issue, I dont want to move forward until I fully understand how to fix this problem.

I hope someone has the answer by now because this tech has been out for years now…

Thanks

[Yarik_superpro (The_GrandOptimizer)]

Try to select all bones and press Alt+G, Alt+R, and Alt+S in Blender in pose mode.
Let’s see if you accidentally moved them in pose mode.

[TheCaptainMajor (CaptainMajorKiyo)]

That isnt the issue, it is imported normally. The issue is the Motor6 rig being generated has the wrong rotations which causes animations to play wrongly.

[Yarik_superpro (The_GrandOptimizer)]

So set rig to custom while importing and build motor6d manually?

[FREE] Bind — Ultra-Optimized Weld/Rigging Plugin with Simple UI

Introduction / TL;DR Bind is a welding/rigging plugin for Roblox Studio built for speed, clarity, and pure efficiency. It handles BasePart selections, shows weld links visually, adapts to Studio themes, and keeps everything snappy even with huge selections. If you want a straightforward, modern, no-nonsense workflow - this is it. [bind_build_joints][compiled_with_hierarchy_saver][Screenshot_bind] Downloads [GetOnMarketPlace][GetOnGitHub] Features Hyper-optimiz…

[TheCaptainMajor (CaptainMajorKiyo)]

This doesnt fix the principal issue. I have tried rebuilding the rig in Roblox but this does not solve the issue that all the Motor6D rotations by default are not properly transferred from Blender. I have painstakingly taken efforts to change most of the Motor rotations manually however some motors are simply too complicated rotationally to fix. This is my issue, sure we could animate using roblox’s built in animation editor but this defeats the point of using blender and its 10 fold harder to use.
