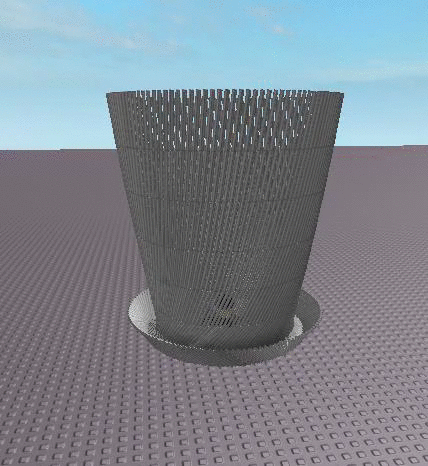

So I wanted to make some decorative rope that’s really fast. I wanted to be able to run as many ropes as I wanted to at the same time. So I made this.
160 strands of rope running at 60 frames per second.
Click for MP4 version: http://i.gyazo.com/97d26b339245401ca4e6db6fe56de8f9.mp4

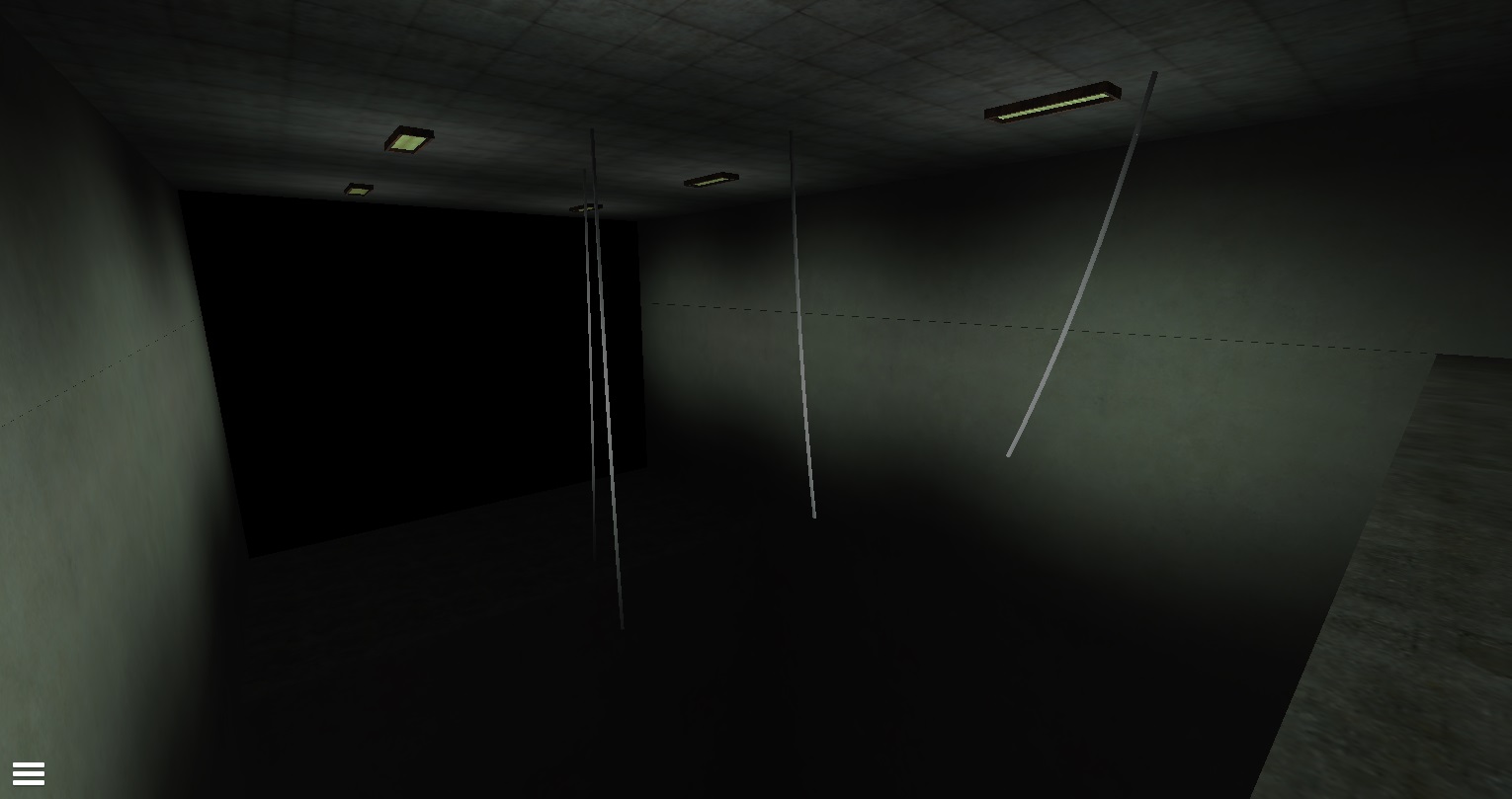

For a live demo, go here: FastRope (Press F9) - Roblox
You’ll see how it’s able to do this when you look at the code.
It uses 0 tables, other than when returning mutator functions. It uses no vector3 or CFrame library unless it’s needed or faster to do so with it. All of the code is expended as much as possible to be as fast as possible. It takes up so much memory, but that doesn’t matter because memory grows on trees and therefor even if you made a thousand ropes, you wouldn’t run out of memory.
The code, with an example, is provided below.
--[[
Documentation
Read and Write Properties:
.Length Number
Length in studs of the Rope
.Thickness Number
Thickness in studs of the Rope
.Material String
Part Material of the Rope
.Transparency Number
Part Transparency of the Rope
.Reflectance Number
Part Reflectance of the Rope
.Parent Userdata
Parent of the Rope
.FrontPosition Vector3
The Position of the front end of the Rope
.EndPosition Vector3
The Position of the end end of the Rope
.FrontAnchored Bool
Whether the front end is anchored
.EndAnchored Bool
Whether the end end is anchored
.FrontAttach Userdata Part
The Part that the front end of the Rope is attached too
.EndAttach Userdata Part
The Part that the end end of the Rope is attached too
.FrontOffset Vector3
The offset applied relative to FrontAttach
.EndOffset Vector3
The offset applied relative to EndAttach
Methods:
:Remove()
Removes the Rope --I probably need to fix this to work completely.
:PositionAtLength(Length)
Returns the Position on the Rope at the length from the front
]]
local Rope={}
do
local cf=CFrame.new
local v3=Vector3.new
local RenderStepped=game:GetService("RunService").RenderStepped
local garbagecollect=garbagecollect
local setmetatable=setmetatable
function Rope.New(Parent)
--[[Naming convention:
CurrentPosition XElementOfVector Point0 cx0
LastPosition YElementOfVector Point4 ly4
<cx0,cy,cz0> is the vector of the current position of the
zeroth point of the string.
<lx0,ly0,lz0> is the vector of the last position of the
zeroth point of the string.
r2 is the (target radius between points)^2
Attach8 is the Part Point8 is attached to
Offset0 is the offset that is applied to the CFrame of the Attach0 Part.
Part1 is the part which connectes Point0 and Point1
Mesh5 is the mesh which defines the size of Part5
The rest is self explanatory
]]
local Length=8
local Thickness=1
local Material="Plastic"
local Transparency=0
local Reflectance=0
local BrickColor=BrickColor.new("Medium grey")
local r2=1
local Attach0,Attach8
local Offset0,Offset8=v3(),v3()
local Anchored0,Anchored8=true,false
local Model=Instance.new("Model",Parent or game.Workspace)
local cx0,cy0,cz0=0,0,0
local lx0,ly0,lz0=0,0,0
local cx1,cy1,cz1=1,0,0.1
local lx1,ly1,lz1=1,0,0.1
local cx2,cy2,cz2=2,-0.1,0
local lx2,ly2,lz2=2,-0.1,0
local cx3,cy3,cz3=3,0,-0.1
local lx3,ly3,lz3=3,0,-0.1
local cx4,cy4,cz4=4,0.1,0
local lx4,ly4,lz4=4,0.1,0
local cx5,cy5,cz5=5,0,0.1
local lx5,ly5,lz5=5,0,0.1
local cx6,cy6,cz6=6,-0.1,0
local lx6,ly6,lz6=6,-0.1,0
local cx7,cy7,cz7=7,0,-0.1
local lx7,ly7,lz7=7,0,-0.1
local cx8,cy8,cz8=8,0,0
local lx8,ly8,lz8=8,0,0
local Ball0=Instance.new("Part",Model)
local BallMesh0=Instance.new("SpecialMesh",Ball0)
Ball0.Anchored=true
Ball0.CanCollide=false
Ball0.FormFactor="Custom"
Ball0.Size=v3(0.2,0.2,0.2)
BallMesh0.MeshType="Sphere"
local Part1=Instance.new("Part",Model)
local Mesh1=Instance.new("CylinderMesh",Part1)
Part1.Anchored=true
Part1.CanCollide=false
Part1.FormFactor="Custom"
Part1.Size=v3(0.2,0.2,0.2)
local Ballo=Ball0:Clone()
local Part2=Part1:Clone()
local Mesh2=Instance.new("CylinderMesh",Part2)
Part2.Parent=Model
local Ball2=Ball0:Clone()
local Part3=Part1:Clone()
local Mesh3=Instance.new("CylinderMesh",Part3)
Part3.Parent=Model
local Ball3=Ball0:Clone()
local Part4=Part1:Clone()
local Mesh4=Instance.new("CylinderMesh",Part4)
Part4.Parent=Model
local Ball4=Ball0:Clone()
local Part5=Part1:Clone()
local Mesh5=Instance.new("CylinderMesh",Part5)
Part5.Parent=Model
local Ball5=Ball0:Clone()
local Part6=Part1:Clone()
local Mesh6=Instance.new("CylinderMesh",Part6)
Part6.Parent=Model
local Ball6=Ball0:Clone()
local Part7=Part1:Clone()
local Mesh7=Instance.new("CylinderMesh",Part7)
Part7.Parent=Model
local Ball7=Ball0:Clone()
local Part8=Part1:Clone()
local Mesh8=Instance.new("CylinderMesh",Part8)
Part8.Parent=Model
local Ball8=Ball0:Clone()
local function AttachUpdate()
if Attach0 then
local p=Attach0.CFrame*Offset0
cx0,cy0,cz0=p.x,p.y,p.z
end
if Attach8 then
local p=Attach8.CFrame*Offset8
cx8,cy8,cz8=p.x,p.y,p.z
end
end
local function PhysicsUpdate()
local rx,ry,rz,lr,m,mx,my,mz--Relative x,y,z, l^2 over r^2 - 1, m is.. eh.
if not Anchored0 then
cx0,lx0=cx0*2-lx0,cx0
cy0,ly0=cy0*2-ly0,cy0+0.0545--0.0545 is for ROBLOX gravity. 9.81*20/60^2
cz0,lz0=cz0*2-lz0,cz0
end
cx1,lx1=cx1*2-lx1,cx1
cy1,ly1=cy1*2-ly1,cy1+0.0545
cz1,lz1=cz1*2-lz1,cz1
cx2,lx2=cx2*2-lx2,cx2
cy2,ly2=cy2*2-ly2,cy2+0.0545
cz2,lz2=cz2*2-lz2,cz2
cx3,lx3=cx3*2-lx3,cx3
cy3,ly3=cy3*2-ly3,cy3+0.0545
cz3,lz3=cz3*2-lz3,cz3
cx4,lx4=cx4*2-lx4,cx4
cy4,ly4=cy4*2-ly4,cy4+0.0545
cz4,lz4=cz4*2-lz4,cz4
cx5,lx5=cx5*2-lx5,cx5
cy5,ly5=cy5*2-ly5,cy5+0.0545
cz5,lz5=cz5*2-lz5,cz5
cx6,lx6=cx6*2-lx6,cx6
cy6,ly6=cy6*2-ly6,cy6+0.0545
cz6,lz6=cz6*2-lz6,cz6
cx7,lx7=cx7*2-lx7,cx7
cy7,ly7=cy7*2-ly7,cy7+0.0545
cz7,lz7=cz7*2-lz7,cz7
if not Anchored8 then
cx8,lx8=cx8*2-lx8,cx8
cy8,ly8=cy8*2-ly8,cy8+0.0545
cz8,lz8=cz8*2-lz8,cz8
end
--local asd=tick()
for i=1,32 do
local avg=0
rx,ry,rz=cx1-cx0,cy1-cy0,cz1-cz0
if Anchored0 then
lr=(rx*rx+ry*ry+rz*rz)/r2-1
avg,m=avg+lr*lr,lr/(lr*2+2)
cx1,cy1,cz1=cx1-rx*m,cy1-ry*m,cz1-rz*m
else
lr=(rx*rx+ry*ry+rz*rz)/r2-1
avg,m=avg+lr*lr,lr/(lr*4+4)
mx,my,mz=rx*m,ry*m,rz*m
cx0,cy0,cz0=cx0+mx,cy0+my,cz0+mz
cx1,cy1,cz1=cx1-mx,cy1-my,cz1-mz
end
rx,ry,rz=cx3-cx2,cy3-cy2,cz3-cz2
lr=(rx*rx+ry*ry+rz*rz)/r2-1
avg,m=avg+lr*lr,lr/(lr*4+4)
mx,my,mz=rx*m,ry*m,rz*m
cx2,cy2,cz2=cx2+mx,cy2+my,cz2+mz
cx3,cy3,cz3=cx3-mx,cy3-my,cz3-mz
rx,ry,rz=cx5-cx4,cy5-cy4,cz5-cz4
lr=(rx*rx+ry*ry+rz*rz)/r2-1
avg,m=avg+lr*lr,lr/(lr*4+4)
mx,my,mz=rx*m,ry*m,rz*m
cx4,cy4,cz4=cx4+mx,cy4+my,cz4+mz
cx5,cy5,cz5=cx5-mx,cy5-my,cz5-mz
rx,ry,rz=cx7-cx6,cy7-cy6,cz7-cz6
lr=(rx*rx+ry*ry+rz*rz)/r2-1
avg,m=avg+lr*lr,lr/(lr*4+4)
mx,my,mz=rx*m,ry*m,rz*m
cx6,cy6,cz6=cx6+mx,cy6+my,cz6+mz
cx7,cy7,cz7=cx7-mx,cy7-my,cz7-mz
rx,ry,rz=cx2-cx1,cy2-cy1,cz2-cz1
lr=(rx*rx+ry*ry+rz*rz)/r2-1
avg,m=avg+lr*lr,lr/(lr*4+4)
mx,my,mz=rx*m,ry*m,rz*m
cx1,cy1,cz1=cx1+mx,cy1+my,cz1+mz
cx2,cy2,cz2=cx2-mx,cy2-my,cz2-mz
rx,ry,rz=cx4-cx3,cy4-cy3,cz4-cz3
lr=(rx*rx+ry*ry+rz*rz)/r2-1
avg,m=avg+lr*lr,lr/(lr*4+4)
mx,my,mz=rx*m,ry*m,rz*m
cx3,cy3,cz3=cx3+mx,cy3+my,cz3+mz
cx4,cy4,cz4=cx4-mx,cy4-my,cz4-mz
rx,ry,rz=cx6-cx5,cy6-cy5,cz6-cz5
lr=(rx*rx+ry*ry+rz*rz)/r2-1
avg,m=avg+lr*lr,lr/(lr*4+4)
mx,my,mz=rx*m,ry*m,rz*m
cx5,cy5,cz5=cx5+mx,cy5+my,cz5+mz
cx6,cy6,cz6=cx6-mx,cy6-my,cz6-mz
rx,ry,rz=cx8-cx7,cy8-cy7,cz8-cz7
if Anchored8 then
lr=(rx*rx+ry*ry+rz*rz)/r2-1
avg,m=avg+lr*lr,lr/(lr*2+2)
cx7,cy7,cz7=cx7+rx*m,cy7+ry*m,cz7+rz*m
else
lr=(rx*rx+ry*ry+rz*rz)/r2-1
avg,m=avg+lr*lr,lr/(lr*4+4)
mx,my,mz=rx*m,ry*m,rz*m
cx7,cy7,cz7=cx7+mx,cy7+my,cz7+mz
cx8,cy8,cz8=cx8-mx,cy8-my,cz8-mz
end
if avg/8<0.015625 then break end
end
--local asdf=tick()-asd--Actual bad names
--print("Time to process physics: "..asdf)
end
local function DrawUpdate()
--local asd=tick()
local rx,ry,rz
Part1.CFrame=cf(v3((cx0+cx1)/2,(cy0+cy1)/2,(cz0+cz1)/2),v3(cx1,cy1,cz1))
Part2.CFrame=cf(v3((cx1+cx2)/2,(cy1+cy2)/2,(cz1+cz2)/2),v3(cx2,cy2,cz2))
Part3.CFrame=cf(v3((cx2+cx3)/2,(cy2+cy3)/2,(cz2+cz3)/2),v3(cx3,cy3,cz3))
Part4.CFrame=cf(v3((cx3+cx4)/2,(cy3+cy4)/2,(cz3+cz4)/2),v3(cx4,cy4,cz4))
Part5.CFrame=cf(v3((cx4+cx5)/2,(cy4+cy5)/2,(cz4+cz5)/2),v3(cx5,cy5,cz5))
Part6.CFrame=cf(v3((cx5+cx6)/2,(cy5+cy6)/2,(cz5+cz6)/2),v3(cx6,cy6,cz6))
Part7.CFrame=cf(v3((cx6+cx7)/2,(cy6+cy7)/2,(cz6+cz7)/2),v3(cx7,cy7,cz7))
Part8.CFrame=cf(v3((cx7+cx8)/2,(cy7+cy8)/2,(cz7+cz8)/2),v3(cx8,cy8,cz8))
rx,ry,rz=cx1-cx0,cy1-cy0,cz1-cz0
Mesh1.Scale=v3(Thickness,Thickness,5*(rx*rx+ry*ry+rz*rz)^0.5)
rx,ry,rz=cx2-cx1,cy2-cy1,cz2-cz1
Mesh2.Scale=v3(Thickness,Thickness,5*(rx*rx+ry*ry+rz*rz)^0.5)
rx,ry,rz=cx3-cx2,cy3-cy2,cz3-cz2
Mesh3.Scale=v3(Thickness,Thickness,5*(rx*rx+ry*ry+rz*rz)^0.5)
rx,ry,rz=cx4-cx3,cy4-cy3,cz4-cz3
Mesh4.Scale=v3(Thickness,Thickness,5*(rx*rx+ry*ry+rz*rz)^0.5)
rx,ry,rz=cx5-cx4,cy5-cy4,cz5-cz4
Mesh5.Scale=v3(Thickness,Thickness,5*(rx*rx+ry*ry+rz*rz)^0.5)
rx,ry,rz=cx6-cx5,cy6-cy5,cz6-cz5
Mesh6.Scale=v3(Thickness,Thickness,5*(rx*rx+ry*ry+rz*rz)^0.5)
rx,ry,rz=cx7-cx6,cy7-cy6,cz7-cz6
Mesh7.Scale=v3(Thickness,Thickness,5*(rx*rx+ry*ry+rz*rz)^0.5)
rx,ry,rz=cx8-cx7,cy8-cy7,cz8-cz7
Mesh8.Scale=v3(Thickness,Thickness,5*(rx*rx+ry*ry+rz*rz)^0.5)
--local asdf=tick()-asd--Actual bad names
--print("Time to process physics: "..asdf)
end
local RenderObject=RenderStepped:connect(function() AttachUpdate() PhysicsUpdate() DrawUpdate() end)
return setmetatable({
PositionAtLength=function(self,l)
local d=l/Length*8
if d<0 then
return v3(c0x,c0y,c0z)
elseif d<1 then
local t=d-0
return v3((cx1-cx0)*t+cx0,(cy1-cy0)*t+cy0,(cz1-cz0)*t+cz0)
elseif d<2 then
local t=d-1
return v3((cx2-cx1)*t+cx1,(cy2-cy1)*t+cy1,(cz2-cz1)*t+cz1)
elseif d<3 then
local t=d-2
return v3((cx3-cx2)*t+cx2,(cy3-cy2)*t+cy2,(cz3-cz2)*t+cz2)
elseif d<4 then
local t=d-3
return v3((cx4-cx3)*t+cx3,(cy4-cy3)*t+cy3,(cz4-cz3)*t+cz3)
elseif d<5 then
local t=d-4
return v3((cx5-cx4)*t+cx4,(cy5-cy4)*t+cy4,(cz5-cz4)*t+cz4)
elseif d<6 then
local t=d-5
return v3((cx6-cx5)*t+cx5,(cy6-cy5)*t+cy5,(cz6-cz5)*t+cz5)
elseif d<7 then
local t=d-6
return v3((cx7-cx6)*t+cx6,(cy7-cy6)*t+cy6,(cz7-cz6)*t+cz6)
elseif d<8 then
local t=d-7
return v3((cx8-cx7)*t+cx7,(cy8-cy7)*t+cy7,(cz8-cz7)*t+cz7)
else
return v3(c8x,c8y,c8z)
end
end;
Remove=function(self)
Part1:Destroy()
Part2:Destroy()
Part3:Destroy()
Part4:Destroy()
Part5:Destroy()
Part6:Destroy()
Part7:Destroy()
Part8:Destroy()
RenderObject:disconnect()
RenderObject=nil
self.Remove=nil
self.PositionAtLength=nil
PositionUpdate=nil
AttachUpdate=nil
DrawUpdate=nil
--What do I do about all of those variables I made? lol
--Do I have to set each one to nil so that GC can delete the numbers?
garbagecollect()
end;
},{
__index=function(self,i)
if i=="Length" then
return Length
elseif i=="Thickness" then
return Thickness/5
elseif i=="Material" then
return Material
elseif i=="Transparency" then
return Transparency
elseif i=="Reflectance" then
return Reflectance
elseif i=="BrickColor" then
return BrickColor
elseif i=="Parent" then
return Model.Parent
elseif i=="FrontPosition" then
return v3(cx0,cy0,cz0)
elseif i=="EndPosition" then
return v3(cx8,cy8,cz8)
elseif i=="FrontAnchored" then
return Anchored0
elseif i=="EndAnchored" then
return Anchored8
elseif i=="FrontAttach" then
return Attach0
elseif i=="EndAttach" then
return Attach8
elseif i=="FrontOffset" then
return Offset0
elseif i=="EndOffset" then
return Offset8
else
error(i.." is not a valid member of Rope")
end
end;
__newindex=function(self,i,v)
if i=="Length" then
Length=v
r2=v*v/64
elseif i=="Thickness" then
Thickness=v*5
elseif i=="Parent" then
Model.Parent=v
elseif i=="Material" then
Material=v
Part1.Material=v
Part2.Material=v
Part3.Material=v
Part4.Material=v
Part5.Material=v
Part6.Material=v
Part7.Material=v
Part8.Material=v
elseif i=="Transparency" then
Transparency=v
Part1.Transparency=v
Part2.Transparency=v
Part3.Transparency=v
Part4.Transparency=v
Part5.Transparency=v
Part6.Transparency=v
Part7.Transparency=v
Part8.Transparency=v
elseif i=="Reflectance" then
Reflectance=v
Part1.Reflectance=v
Part2.Reflectance=v
Part3.Reflectance=v
Part4.Reflectance=v
Part5.Reflectance=v
Part6.Reflectance=v
Part7.Reflectance=v
Part8.Reflectance=v
elseif i=="BrickColor" then
BrickColor=v
Part1.BrickColor=v
Part2.BrickColor=v
Part3.BrickColor=v
Part4.BrickColor=v
Part5.BrickColor=v
Part6.BrickColor=v
Part7.BrickColor=v
Part8.BrickColor=v
elseif i=="FrontPosition" then
cx0,cy0,cz0=v.x,v.y,v.z
Attach0=nil
elseif i=="EndPosition" then
cx8,cy8,cz8=v.x,v.y,v.z
Attach8=nil
elseif i=="FrontAnchored" then
Anchored0=v
if not v then
Attach0=nil
Offset0=v3()
end
elseif i=="EndAnchored" then
Anchored8=v
if not v then
Attach8=nil
Offset8=v3()
end
elseif i=="FrontAttach" then
Attach0=v
if v then
Anchored0=true
else
Offset0=v3()
end
elseif i=="EndAttach" then
Attach8=v
if v then
Anchored8=true
else
Offset8=v3()
end
elseif i=="FrontOffset" then
Offset0=v
elseif i=="EndOffset" then
Offset8=v
else
error(i.." is not a valid member of Rope")
end
end;
})
end
end
--Example:
for i=1,12 do
wait(0.1)
local r=Rope.New()
r.Length=1
r.Thickness=0.1
r.FrontAttach=game.Players.LocalPlayer.Character.Torso
r.FrontOffset=Vector3.new(math.cos(i/12*6.28318)*0.75,2,math.sin(i/12*6.28318)*0.75)
r.EndAnchored=false
endWell, have fun!
