Hi everyone. My current game in development has a Fuel System. Every car that is purchased by a player has an attribute named “FuelAmount”. The max fuel in each vehicle is 25, but the default fuel level is 15, giving players a little over half a tank when purchasing a vehicle. I’m running into some issues with the GUI, etc, but I’ll get to that later. My main issue appears to be very simple, but I just can’t figure out what is going on.
As a player drives their vehicle, the car attribute properly decreases as the vehicle drives. (Starting at 15.00, it decreases going down like 14.99 to 14.01 etc). Whenever the number hits 14.00, the “Fuel” text label in the GUI is supposed to change to 14, then to 13, 12, 11 so on and so forth as the car attribute changes. Whenever the amount hits 5.00, a image label “YellowGas” is supposed to become visible. The problem is, I cannot figure out why, but the Fuel text label does not update no matter what the FuelAmount attribute number is.
All of the labels for this are located at CarModel > A-Chassis Tune > Plugins > Gauge (image label), all of them are below Gauge.
I have even ran my scripts through ChatGPT to see if maybe ChatGPT could help me figure it out and no matter what it’s tried, we still cannot get the Fuel label to update.
There is 3 scripts for the Fuel System to function, FuelHandler (ServerScriptService), FuelPumpGUIScript (StarterPlayerScripts) and FuelScript (located in the Vehicle’s Plugins folder). I’m pretty sure all of this would be an issue inside of FuelScript, but maybe there’s an issue in the other 2? I’ve been scratching my head for 2 days, if anyone could review this and give me an idea on what’s going on I’d be so grateful!

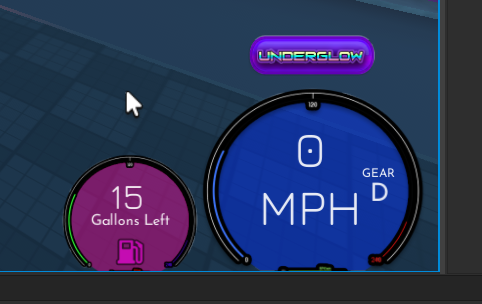

The Gauge with the “Fuel” text label which is stuck at 15:
Also, for reference:
Thank you in advanced for any assistance!
FuelScript (vehicle plugins folder) this most recent script also was run through ChatGPT multiple times FYI - All 3 scripts are below, FuelScript is the top script:
FuelScript
Place this script in: CarModel > A-Chassis Tune > Plugins > FuelScript
This script updates the vehicle’s dashboard fuel gauge based on the car’s "FuelAmount" attribute.
--]]
-- Services
local RunService = game:GetService("RunService")
local TweenService = game:GetService("TweenService")
-----------------------------------------------------
-- Configuration Constants
-----------------------------------------------------
local DEFAULT_FUEL = 15 -- Default starting fuel (gallons)
local MAX_FUEL = 25 -- Maximum fuel capacity
local CONSUMPTION_RATE = 0.1 -- Gallons consumed per second at full throttle
local LOW_FUEL_THRESHOLD = 5 -- When fuel warnings begin
local NORMAL_TEXT_COLOR = Color3.new(1, 1, 1) -- White
local WARNING_TEXT_COLOR = Color3.fromRGB(189, 42, 42) -- Red (Similar to old script)
-----------------------------------------------------
-- References & Setup
-----------------------------------------------------
local pluginsFolder = script.Parent
local gauge = pluginsFolder:WaitForChild("Gauge")
local fuelTextLabel = gauge:WaitForChild("Fuel")
local yellowGasImage = gauge:WaitForChild("YellowGas")
-- Use this print to verify which instance of the car is being used.
local car = pluginsFolder.Parent.Parent
print("FuelScript running on car instance:", car:GetFullName())
if not car then
warn("FuelScript: Car model not found!")
return
end
-- Initialize FuelAmount attribute if not set.
if car:GetAttribute("FuelAmount") == nil then
car:SetAttribute("FuelAmount", DEFAULT_FUEL)
end
-----------------------------------------------------
-- Helper: Recursively find the DriveSeat by name and class.
-----------------------------------------------------
local function findDriveSeat(model)
for _, obj in ipairs(model:GetDescendants()) do
if obj.Name == "DriveSeat" and obj:IsA("VehicleSeat") then
return obj
end
end
return nil
end
-- Wait for the DriveSeat to exist (up to 10 seconds)
local driveSeat = findDriveSeat(car)
local waited = 0
while not driveSeat and waited < 10 do
wait(0.1)
waited = waited + 0.1
driveSeat = findDriveSeat(car)
end
if not driveSeat then
warn("FuelScript: No DriveSeat found in car " .. car.Name)
else
print("FuelScript: DriveSeat found in car " .. car.Name .. " after waiting " .. waited .. " seconds.")
end
-----------------------------------------------------
-- Helper Functions for Fuel Amount
-----------------------------------------------------
local function getFuel()
return car:GetAttribute("FuelAmount") or DEFAULT_FUEL
end
local function setFuel(newFuel)
car:SetAttribute("FuelAmount", newFuel)
end
-----------------------------------------------------
-- Update Dashboard Gauge Function
-----------------------------------------------------
local function updateGaugeUI()
local fuel = getFuel()
-- Display fuel as a whole number (e.g. "15")
fuelTextLabel.Text = tostring(math.floor(fuel))
-- Show the low-fuel warning image if fuel is at or below threshold.
yellowGasImage.Visible = (fuel <= LOW_FUEL_THRESHOLD)
-- Debug: print current fuel
print("updateGaugeUI: Fuel =", fuel)
-- Tweening effect when fuel is low
if fuel <= LOW_FUEL_THRESHOLD then
local phase = math.sin(tick() * 3)
if phase > 0 then
fuelTextLabel.TextColor3 = WARNING_TEXT_COLOR
else
fuelTextLabel.TextColor3 = NORMAL_TEXT_COLOR
end
else
fuelTextLabel.TextColor3 = NORMAL_TEXT_COLOR
end
end
-- Do an initial update.
updateGaugeUI()
-- Listen for changes to FuelAmount.
car:GetAttributeChangedSignal("FuelAmount"):Connect(function()
updateGaugeUI()
end)
-----------------------------------------------------
-- Main Fuel Consumption Loop (Dashboard consumption)
-----------------------------------------------------
RunService.Heartbeat:Connect(function(deltaTime)
if not driveSeat then return end
local throttle = math.abs(driveSeat.Throttle)
local fuel = getFuel()
if throttle > 0 and fuel > 0 then
local consumption = CONSUMPTION_RATE * throttle * deltaTime
fuel = math.max(fuel - consumption, 0)
setFuel(fuel)
-- updateGaugeUI() will be triggered by the attribute change.
end
if fuel <= 0 and driveSeat then
driveSeat.Throttle = 0
end
updateGaugeUI()
end)
-----------------------------------------------------
-- Listen for FuelUpdateEvent from server
-----------------------------------------------------
local FuelUpdateEvent = game.ReplicatedStorage:WaitForChild("FuelUpdateEvent")
FuelUpdateEvent.OnClientEvent:Connect(function(newFuelAmount)
setFuel(newFuelAmount) -- Update the fuel attribute on the car.
updateGaugeUI() -- Refresh the UI with the new fuel value.
end)```
*OTHER SCRIPTS BELOW:*
***FuelHandler:***
```local Players = game:GetService("Players")
local ReplicatedStorage = game:GetService("ReplicatedStorage")
local DataStoreService = game:GetService("DataStoreService")
local RunService = game:GetService("RunService")
local FuelEvent = ReplicatedStorage:WaitForChild("FuelEvent")
local FuelUpdateEvent = ReplicatedStorage:WaitForChild("FuelUpdateEvent") -- Added FuelUpdateEvent
local DataStore = DataStoreService:GetDataStore("PlayerFuelData")
local MAX_FUEL = 25
local PRICE_PER_GALLON = 6.75
local CONSUMPTION_RATE = 0.1 -- Gallons consumed per second at full throttle
-----------------------------------------------------
-- Save fuel data for the player's spawned cars
-----------------------------------------------------
local function saveFuelData(player)
local spawnedCarsFolder = workspace:FindFirstChild("SpawnedCars")
local data = {}
if spawnedCarsFolder then
for _, car in ipairs(spawnedCarsFolder:GetChildren()) do
if car:GetAttribute("owner") == player.Name then
local fuel = car:GetAttribute("FuelAmount") or MAX_FUEL
table.insert(data, {Name = car.Name, Fuel = fuel})
end
end
end
local success, errorMessage = pcall(function()
DataStore:SetAsync(player.UserId, data)
end)
if not success then
warn("Failed to save fuel data for", player.Name, errorMessage)
end
end
-----------------------------------------------------
-- Load fuel data and update spawned cars
-----------------------------------------------------
local function loadFuelData(player)
local success, data = pcall(function()
return DataStore:GetAsync(player.UserId)
end)
if success and data then
local spawnedCarsFolder = workspace:FindFirstChild("SpawnedCars")
if spawnedCarsFolder then
for _, carData in pairs(data) do
local car = spawnedCarsFolder:FindFirstChild(carData.Name)
if car then
car:SetAttribute("FuelAmount", carData.Fuel)
end
end
end
else
warn("Failed to load fuel data for", player.Name)
end
end
-----------------------------------------------------
-- FuelEvent handling (refuel/consume from pump)
-----------------------------------------------------
FuelEvent.OnServerEvent:Connect(function(player, car, action)
-- Ensure we work on the actual spawned vehicle (search recursively for DriveSeat)
if not car or not car:FindFirstChild("DriveSeat", true) then return end
local fuel = car:GetAttribute("FuelAmount") or MAX_FUEL
if action == "Refuel" then
if player.NewkCash.Value >= PRICE_PER_GALLON and fuel < MAX_FUEL then
player.NewkCash.Value = player.NewkCash.Value - PRICE_PER_GALLON
car:SetAttribute("FuelAmount", math.min(fuel + 1, MAX_FUEL))
end
elseif action == "Consume" then
if fuel > 0 then
car:SetAttribute("FuelAmount", math.max(fuel - 1, 0))
else
local driveSeat = car:FindFirstChild("DriveSeat", true)
if driveSeat then
driveSeat.Throttle = 0
end
end
end
-- After changing fuel, notify the client via FuelUpdateEvent
local updatedFuel = car:GetAttribute("FuelAmount")
FuelUpdateEvent:FireClient(player, updatedFuel)
end)
-----------------------------------------------------
-- Continuous Fuel Consumption Loop for spawned cars
-----------------------------------------------------
RunService.Heartbeat:Connect(function(deltaTime)
local spawnedCarsFolder = workspace:FindFirstChild("SpawnedCars")
if spawnedCarsFolder then
for _, car in ipairs(spawnedCarsFolder:GetChildren()) do
local owner = car:GetAttribute("owner")
if owner then
local driveSeat = car:FindFirstChild("DriveSeat", true)
if driveSeat then
local throttle = math.abs(driveSeat.Throttle)
if throttle > 0 then
local fuel = car:GetAttribute("FuelAmount") or MAX_FUEL
local consumption = CONSUMPTION_RATE * throttle * deltaTime
fuel = math.max(fuel - consumption, 0)
car:SetAttribute("FuelAmount", fuel)
if fuel <= 0 then
driveSeat.Throttle = 0
end
end
end
end
end
end
end)
-----------------------------------------------------
-- Player Data Events
-----------------------------------------------------
Players.PlayerAdded:Connect(function(player)
loadFuelData(player)
player.CharacterAdded:Connect(function()
local spawnedCarsFolder = workspace:FindFirstChild("SpawnedCars")
if spawnedCarsFolder then
for _, car in ipairs(spawnedCarsFolder:GetChildren()) do
if car:GetAttribute("owner") == player.Name then
car:SetAttribute("FuelAmount", car:GetAttribute("FuelAmount") or MAX_FUEL)
end
end
end
end)
end)
Players.PlayerRemoving:Connect(saveFuelData)
game:BindToClose(function()
for _, player in ipairs(Players:GetPlayers()) do
saveFuelData(player)
end
end)```
***FuelPumpGUIScript:***
```-- Services
local Players = game:GetService("Players")
local RunService = game:GetService("RunService")
local MarketplaceService = game:GetService("MarketplaceService")
local Workspace = game:GetService("Workspace")
local ReplicatedStorage = game:GetService("ReplicatedStorage")
local player = Players.LocalPlayer
-- GUI Elements
local playerGui = player:WaitForChild("PlayerGui")
local fuelPumpGui = playerGui:WaitForChild("FuelPumpGui")
local pumpFrame = fuelPumpGui:WaitForChild("PumpFrame")
local fuelFrame = pumpFrame:WaitForChild("FuelFrame")
local fuelAmountFrame = fuelFrame:WaitForChild("FuelAmount")
local clickToFuel = pumpFrame:WaitForChild("ClickToFuel")
local instantFuel = pumpFrame:WaitForChild("InstantFuel")
local vehicleNameLabel = pumpFrame:WaitForChild("VehicleName")
local currentFuelLabel = pumpFrame:WaitForChild("CurrentFuel")
local instantFuelPriceLabel = pumpFrame:WaitForChild("InstantFuelPrice")
local pricePerGalLabel = pumpFrame:WaitForChild("PricePerGal")
local confirmationLabel = pumpFrame:WaitForChild("Confirmation")
-- Variables
local car
local fuelPricePerGallon = 6.75
local gamePassID = 994621107
local fuelDepletedShown = false
-- RemoteEvent for receiving fuel updates
local FuelUpdateEvent = ReplicatedStorage:WaitForChild("FuelUpdateEvent")
local function debugLog(message)
print("[FuelPumpGUIScript]: " .. message)
end
-----------------------------------------------------
-- Enhanced Car Search: Look in character, player.Cars, and SpawnedCars.
-----------------------------------------------------
local function findCar()
-- 1. Check player's character for a VehicleSeat
local character = player.Character
if character then
local seat = character:FindFirstChildWhichIsA("VehicleSeat")
if seat and seat.Parent and seat.Parent:GetAttribute("owner") == player.Name then
debugLog("Found player's car via character seat: " .. seat.Parent.Name)
return seat.Parent
end
end
-- 2. Check player's Cars folder (the placeholder)
local playerCars = player:FindFirstChild("Cars")
if playerCars then
for _, vehicle in ipairs(playerCars:GetChildren()) do
if vehicle:GetAttribute("owner") == player.Name then
debugLog("Found player's car in player.Cars: " .. vehicle.Name)
-- Note: This is the placeholder; we want the spawned version.
-- So, do not return this.
end
end
end
-- 3. Check Workspace.SpawnedCars (the actual vehicle)
local spawnedCarsFolder = Workspace:FindFirstChild("SpawnedCars")
if spawnedCarsFolder then
for _, vehicle in ipairs(spawnedCarsFolder:GetChildren()) do
if vehicle:GetAttribute("owner") == player.Name then
debugLog("Found player's car in SpawnedCars: " .. vehicle.Name)
return vehicle
end
end
end
debugLog("No car found for player.")
return nil
end
-----------------------------------------------------
-- Fuel amount getter/setter
-----------------------------------------------------
local function getFuelAmount()
return car and car:GetAttribute("FuelAmount") or 0
end
local function setFuelAmount(newValue)
if car then
car:SetAttribute("FuelAmount", newValue)
end
end
-----------------------------------------------------
-- Update Fuel Pump GUI
-----------------------------------------------------
local function setConfirmation(message, color)
confirmationLabel.Text = message
confirmationLabel.TextColor3 = color
confirmationLabel.Visible = true
task.wait(2)
confirmationLabel.Visible = false
end
local function updateFuelUI()
if car then
local driveSeat = car:FindFirstChildOfClass("VehicleSeat")
if not driveSeat then
debugLog("ERROR: DriveSeat not found in car: " .. car.Name)
return
end
local fuelLevel = getFuelAmount()
local maxFuel = driveSeat:GetAttribute("MaxFuel") or 15
local fuelPercentage = fuelLevel / maxFuel
fuelAmountFrame.Size = UDim2.new(fuelPercentage, 0, 1, 0)
currentFuelLabel.Text = string.format("%.2f gal.", fuelLevel)
local remainingFuelCost = math.ceil((maxFuel - fuelLevel) * fuelPricePerGallon)
instantFuelPriceLabel.Text = "$" .. tostring(remainingFuelCost)
debugLog("Fuel UI updated successfully.")
if fuelLevel <= 0 then
driveSeat.Throttle = 0
if not fuelDepletedShown then
setConfirmation("Fuel Depleted! Car shut off.", Color3.fromRGB(255, 0, 0))
fuelDepletedShown = true
end
else
fuelDepletedShown = false
end
else
debugLog("Car is nil. Cannot update Fuel UI.")
end
end
-----------------------------------------------------
-- Fueling Functions
-----------------------------------------------------
local function beginFueling()
if car then
local driveSeat = car:FindFirstChildOfClass("VehicleSeat")
if not driveSeat then
debugLog("ERROR: DriveSeat not found in car: " .. car.Name)
return
end
local fuelLevel = getFuelAmount()
local maxFuel = driveSeat:GetAttribute("MaxFuel") or 15
if fuelLevel >= maxFuel then
setConfirmation("Gas Tank Full!", Color3.fromRGB(0, 255, 0))
return
end
local fuelingConnection
fuelingConnection = RunService.Heartbeat:Connect(function(deltaTime)
if fuelLevel < maxFuel and player.NewkCash.Value >= fuelPricePerGallon then
fuelLevel = math.min(fuelLevel + (0.5 * deltaTime), maxFuel)
setFuelAmount(fuelLevel)
player.NewkCash.Value = player.NewkCash.Value - fuelPricePerGallon
updateFuelUI()
elseif fuelLevel >= maxFuel then
setConfirmation("Gas Tank Full!", Color3.fromRGB(0, 255, 0))
fuelingConnection:Disconnect()
elseif player.NewkCash.Value < fuelPricePerGallon then
setConfirmation("Not Enough NewkCash!", Color3.fromRGB(255, 0, 0))
fuelingConnection:Disconnect()
end
end)
clickToFuel.MouseButton1Up:Connect(function()
if fuelingConnection then
fuelingConnection:Disconnect()
end
end)
else
debugLog("No car detected for fueling.")
end
end
local function instantRefuel()
if car then
local driveSeat = car:FindFirstChildOfClass("VehicleSeat")
if not driveSeat then
debugLog("ERROR: DriveSeat not found in car during instant refuel.")
return
end
local fuelLevel = getFuelAmount()
local maxFuel = driveSeat:GetAttribute("MaxFuel") or 15
if fuelLevel >= maxFuel then
setConfirmation("Gas Tank Full!", Color3.fromRGB(0, 255, 0))
return
end
local cost = math.ceil((maxFuel - fuelLevel) * fuelPricePerGallon)
MarketplaceService:UserOwnsGamePassAsync(player.UserId, gamePassID):andThen(function(ownsPass)
if ownsPass then
if player.NewkCash.Value >= cost then
setFuelAmount(maxFuel)
player.NewkCash.Value = player.NewkCash.Value - cost
updateFuelUI()
setConfirmation("Instant Refuel Successful!", Color3.fromRGB(0, 255, 0))
else
setConfirmation("Not Enough NewkCash!", Color3.fromRGB(255, 0, 0))
end
else
MarketplaceService:PromptGamePassPurchase(player, gamePassID)
end
end):catch(function(err)
debugLog("Game pass check failed: " .. tostring(err))
end)
else
debugLog("No car detected for instant refuel.")
end
end
-----------------------------------------------------
-- Event Connections
-----------------------------------------------------
clickToFuel.MouseButton1Down:Connect(function()
debugLog("ClickToFuel button pressed.")
beginFueling()
end)
instantFuel.MouseButton1Click:Connect(function()
debugLog("InstantFuel button clicked.")
instantRefuel()
end)
fuelPumpGui.Enabled = false
-- Listen for fuel updates from the server
FuelUpdateEvent.OnClientEvent:Connect(function(newFuelAmount)
debugLog("FuelUpdateEvent received. New Fuel Amount: " .. tostring(newFuelAmount))
-- Update the fuel value when the server sends a new value
setFuelAmount(newFuelAmount)
updateFuelUI()
end)
local function showFuelGUI()
debugLog("Attempting to show FuelPumpGui...")
car = findCar()
if car then
local driveSeat = car:FindFirstChildOfClass("VehicleSeat")
if driveSeat then
local vehicleMake = driveSeat:FindFirstChild("Make") and driveSeat.Make.Value or car.Name
local vehicleModel = driveSeat:FindFirstChild("Model") and driveSeat.Model.Value or ""
vehicleNameLabel.Text = vehicleMake .. " " .. vehicleModel
else
vehicleNameLabel.Text = car.Name
end
pricePerGalLabel.Text = string.format("$%.2f / gal.", fuelPricePerGallon)
updateFuelUI()
fuelPumpGui.Enabled = true
else
debugLog("No car found. FuelPumpGui will not be displayed.")
end
end
pumpFrame.Close.MouseButton1Click:Connect(function()
fuelPumpGui.Enabled = false
debugLog("FuelPumpGui closed.")
end)
return showFuelGUI```
