Get neighbors on hex grid

[CaptCommando24 (Moo)]

Hello! I recently made a simple hex grid. However, I want each Tile to be able to know which tiles are adjacent to it.

The code is:

local function AddTile(xPos : number, zPos: number)
	xPos *= tileWidth

	if zPos % 2 == 0 then
		xPos += tileWidth * 0.5
	end
	zPos *= tileHeight * 0.75

	local tile = tile:Clone()
	tile.CFrame = CFrame.new(Vector3.new(xPos, 0, zPos)) * CFrame.fromEulerAngles(0, math.rad(30), 0)
	tile.Parent = workspace.Terrain.Tiles
end

GenerateMap.Generate = function(mapWidth : number, mapHeight : number)
	gridWidth = mapWidth
	gridHeight = mapHeight

	for zPos = 1, gridWidth do
		for xPos = 1, gridHeight do
			AddTile(xPos,zPos)
		end
	end
end

[cakeycocoa (StarvinMarvin)]

This site has 25 years worth of hex grid resources and a whole section about neighbors which should help you:

Red Blob Games: Hexagonal Grids

You can probably find some code that you can copy from stackOverFlow or something like that as well if you don’t want to bother with figuring this out.

[2112Jay]

There is a maze technique called Who’s Your Neighbor. That may help with this thinking also.

[CaptCommando24 (Moo)]

This has helped a lot, but I’m a little confused on something. Maybe you can help me out.

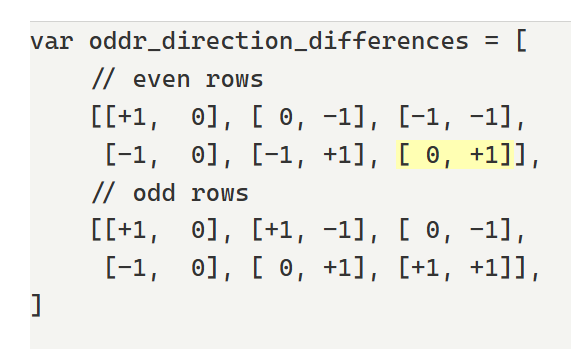

I have my array here:

local direction_differences = {
	{1, 0}, {1, -1}, {0, -1}, {-1, 0}, {0, 1}, {1, 1}
}

corresponding to this:

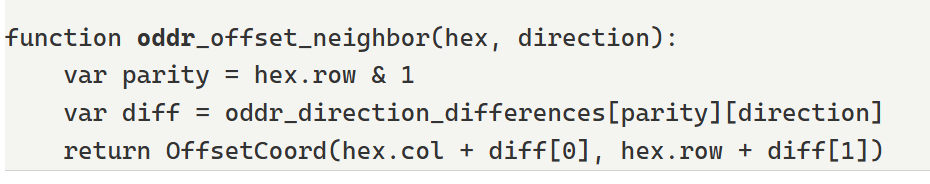

However in their code they have “direction”, I’m not quite sure what I should put there.

local parity = bit32.band(zPos)
local diff = direction_differences[parity][]

Trying to convert this all to Roblox has been a little confusing haha, but very useful resource!

Edit: I’m also not sure if I did the array exactly right.

[cakeycocoa (StarvinMarvin)]

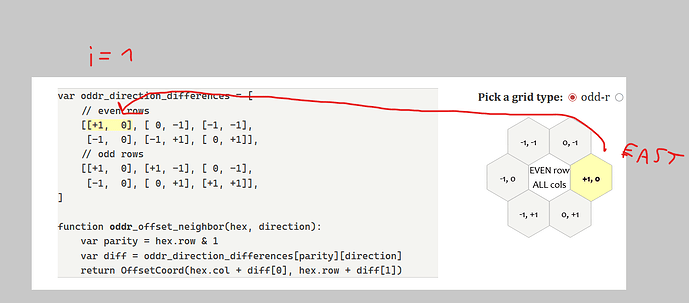

The direction is a number from 1-6. 1 would be east and it would go counterclockwise (2 would be north-east, 3 would be north-west etc)

You can hover over the directions and the correct table will get highlighted in the website, that might help you get that “click” in your brain.

(not sure if this picture is useful at all, but I believe it’s easier to understand something if it’s visually brought out)

[CaptCommando24 (Moo)]

Thank you, that helps a lot actually.
I gotta run to the dentist, but I’ll do this when I get back!
Thanks again for all the help.
