Helicopter Physics HELPP

[Sherlock_999ALT]

PLEASE READ BEFORE RESPONDING

Context:
I have created a working helicopter, but I have an issue with the cyclic (the joystick thingy).

The joystick control how the helicopter moves and is implemented through an Angular Velocity. The vertical thrust is implemented through a Vector Force.

Problem:
When the joystick is held forward on a real life helicopter, the helicopter will move forward without falling into a front flip.

My helicopter will fall into a front flip no matter how far the joystick is pushed forward. I want the helicopter to fly normally with the joystick held forward, but then do a front flip if the joystick is pushed too far forward.

I don’t want to use an Align Orientation because it will be impossible for the helicopter to do a front flip.

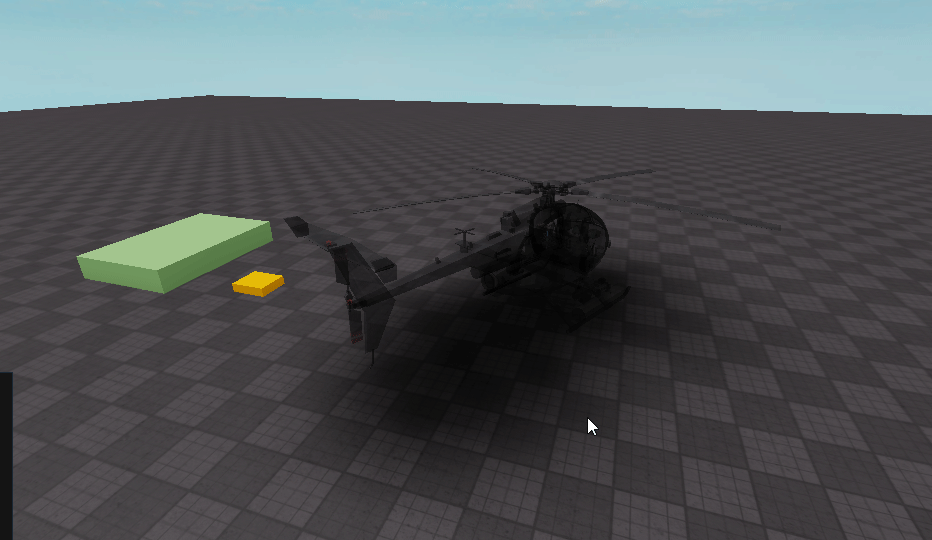

This is basically what happens:

My code:

-- Services
local Players = game:GetService("Players")
local RunService = game:GetService("RunService")
local ContextActionService = game:GetService("ContextActionService")
local UserInputService = game:GetService("UserInputService")

-- Variables
local localPlayer = game:GetService("Players").LocalPlayer
local character = localPlayer.Character or localPlayer.CharacterAdded:Wait()
local humanoid = character:WaitForChild("Humanoid")
local heliGui = localPlayer.PlayerGui.HelicopterGui

local camera = workspace.CurrentCamera

local helicopter
local vectorForce
local dragForce
local angularVelocity

local collectivePercentage = 0
local turnForce = 0
local goingUp = false
local goingDown = false
local turningLeft = false
local turningRight = false

-- Controls


-- Main Functions
function inputControl(actionName, inputState, inputObject)
	if inputObject.KeyCode == Enum.KeyCode.W then
		goingUp = inputState == Enum.UserInputState.Begin
	end
	if inputObject.KeyCode == Enum.KeyCode.S then
		goingDown = inputState == Enum.UserInputState.Begin
	end
	if inputObject.KeyCode == Enum.KeyCode.A then
		turningLeft = inputState == Enum.UserInputState.Begin
	end
	if inputObject.KeyCode == Enum.KeyCode.D then
		turningRight = inputState == Enum.UserInputState.Begin
	end
end

function addDrag()
	local velocity = helicopter.PrimaryPart.AssemblyLinearVelocity
	local speed = velocity.Magnitude
	local dragDirection = -velocity.Unit
	local dragMagnitude = 6 * (speed ^ 2)

	dragForce.Force = dragDirection * dragMagnitude
end

function addCollective()
	if goingUp then
		collectivePercentage += 1
	elseif goingDown then
		collectivePercentage -= 1
	end

	collectivePercentage = math.clamp(collectivePercentage, 0, 100)
	local collectiveForce = helicopter.PrimaryPart.AssemblyMass * workspace.Gravity * collectivePercentage / 100 * 1.4

	vectorForce.Force = Vector3.new(0, collectiveForce, 0)

	heliGui.Collective.Text = collectivePercentage .. "%"

	local hinge = helicopter.Rotor.RotorShaft.HingeConstraint

	hinge.AngularVelocity = collectivePercentage / 2
end

function addAngular()
	local mousePosition = UserInputService:GetMouseLocation()
	local mouseX = (mousePosition.X - camera.ViewportSize.X / 2) / camera.ViewportSize.X * 2
	local mouseY = -(mousePosition.Y - camera.ViewportSize.Y / 2) / camera.ViewportSize.Y * 2

	if turningRight then
		turnForce = -50
	elseif turningLeft then
		turnForce = 50
	else
		turnForce = 0
	end

	angularVelocity.AngularVelocity = Vector3.new(-mouseY, turnForce, -mouseX)

	heliGui.Cyclic.Text = math.round(mouseX) .. ", " .. math.round(mouseY)
end

-- Connection Event
humanoid.Seated:Connect(function(isSeated, seat)
	if isSeated and seat.Name == "VehicleSeat" then
		helicopter = seat.Parent

		vectorForce = seat.Parent.VectorForce
		dragForce = seat.Parent.DragForce
		angularVelocity = seat.Parent.AngularVelocity

		ContextActionService:BindAction("InputControl", inputControl, true, Enum.KeyCode.W, Enum.KeyCode.S, Enum.KeyCode.A, Enum.KeyCode.D)
	else
		ContextActionService:UnbindAction("InputControl")
	end
end)

RunService.RenderStepped:Connect(function(step)
	if vectorForce then
		addCollective()
		addDrag()
		addAngular()
	end
end)

[mynameisjeb2018]

Could you just clamp the forward rotation depending on how much the forward stick is held down? Like if the forward stick is held 50%, lock the forward rotation at a maximum of 45 degrees, just as an example.

You could try do this manually with if statements, or figure out your own formula to work it out.

[Sherlock_999ALT]

Thanks for the help. I gave up and just used align orientation. It works fine but no flips
