Hello, I have these to functions in Roblox and I’d like to improve the performance of them.
I actually have a RunService Heartbeat event that calls these functions, and at the moment I think the performance for it is a bit too instense due to lots of raycasts, maths and for loops, would there be any way to improve performance while keeping the same functionality?
The RaycastPantograph function does check to make sure it is raised and not yet but will make sure the train is actually moving before calling this function, it then sets the CFrame of 3 different parts using the numbers that this function returns.
The CheckDerailmentStatus function, there is a for loop looping through each bogie and then calling, passing that bogie as a argument, again before calling the for loop, it’ll check if the train is moving before calling this function.
I’m trying not to have a inbetween time of each call due to when the train has suspension the pantograph may lose contact with the wire above, and for the CheckDerailmentStatus function, I want to apply the emergency brake as soon as it derails.

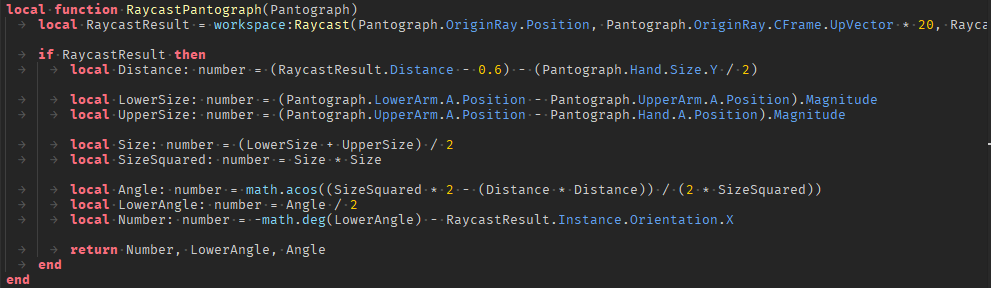

local function RaycastPantograph(Pantograph)
local RaycastResult = workspace:Raycast(Pantograph.OriginRay.Position, Pantograph.OriginRay.CFrame.UpVector * 20, RaycastParameters)
if RaycastResult then
local Distance: number = (RaycastResult.Distance - 0.6) - (Pantograph.Hand.Size.Y / 2)
local LowerSize: number = (Pantograph.LowerArm.A.Position - Pantograph.UpperArm.A.Position).Magnitude
local UpperSize: number = (Pantograph.UpperArm.A.Position - Pantograph.Hand.A.Position).Magnitude
local Size: number = (LowerSize + UpperSize) / 2
local SizeSquared: number = Size * Size
local Angle: number = math.acos((SizeSquared * 2 - (Distance * Distance)) / (2 * SizeSquared))
local LowerAngle: number = Angle / 2
local Number: number = -math.deg(LowerAngle) - RaycastResult.Instance.Orientation.X
return Number, LowerAngle, Angle
end
end

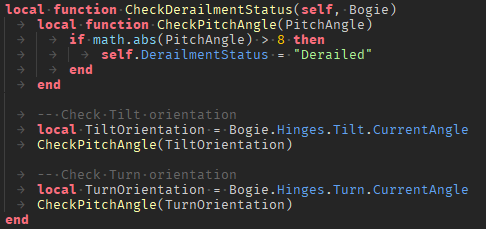

local function CheckDerailmentStatus(self, Bogie)
local function CheckPitchAngle(PitchAngle)
if math.abs(PitchAngle) > 8 then
self.DerailmentStatus = "Derailed"
end
end
-- Check Tilt orientation
local TiltOrientation = Bogie.Hinges.Tilt.CurrentAngle
CheckPitchAngle(TiltOrientation)
-- Check Turn orientation
local TurnOrientation = Bogie.Hinges.Turn.CurrentAngle
CheckPitchAngle(TurnOrientation)
end
Can shorten it up and even cut out a few lines but, overall pretty much what you have here. No way to really test this for me and I can’t PM you so … looks good to me.
I don’t think so … Not really much optimization possible here. You’re pretty tight as is. I can’t see how you’re calling this stuff so just going off what I can see.
self.Connections.Heartbeat = game["Run Service"].Stepped:Connect(function()
if self.Unit:GetAttribute("PantographState") == "Raised" then
local HandAngle, LowerAngle, UpperAngle = RaycastPantograph(Pantograph)
Pantograph.Hand.Motor.C1 = CFrame.Angles(math.rad(HandAngle), 0, 0)
Pantograph.LowerArm.Motor.C1 = CFrame.Angles(-LowerAngle, 0, 0)
Pantograph.UpperArm.Motor.C1 = CFrame.Angles(UpperAngle, 0, 0)
end
for _, Bogie in self.Bogies do
CheckDerailmentStatus(self, Bogie)
end
if self.DerailmentStatus == "Derailed" then
self.Train.TrainInformation["Derailment Status"].Value = self.DerailmentStatus
local Driver = game.Players[self.Train:GetAttribute("Driver")]
TrainServiceEvent:FireClient(Driver, "ApplyEmergencyBrake")
end
end)
