Hello! Im making a snake game, and im using mesh deformation to do so, im using parts to guide the bones, and ive run into a problem!
The issue is that for some reason the bones just wont rotate right, i think its because roblox’s bones have properties that make it quite hard to line up with parts cframe, and this is causing issues.

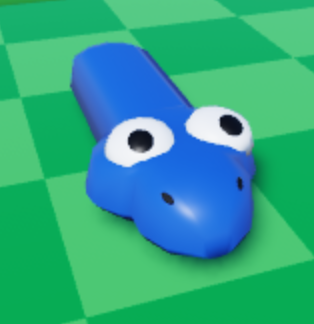

This is what is should look like:
vs what it actually looks like once i try to implement rotation
as you can see it spazzes out, causing several issues
ive tried modifying the worldcframe, world rotation, ect. nothing seems to be working, my code is down below
local rootPart = snake.RootPart
local function getWorldOrientation(bone, offset)
local defaultCFrame = rootPart.CFrame:Inverse() * bone.WorldCFrame
local rotBase = rootPart.CFrame * CFrame.Angles(0, math.rad(offset), 0)
local newRotationWorldSpace = (rotBase * defaultCFrame).Rotation
local test = bone.Parent.WorldCFrame:Inverse()
local destCFrame = (test*newRotationWorldSpace).Rotation + bone.CFrame.Position
local rx, ry, rz = destCFrame:ToOrientation()
local dx, dy, dz = math.deg(rx), math.deg(ry), math.deg(rz)
return Vector3.new(dx, dy, dz)
end
local function movePartsAndBones()
for i = 1, #baseParts do
local basePart = baseParts[i]
local bone = bones[i]
local defaultCFrame = rootPart.CFrame:Inverse() * bone.WorldCFrame
local offset = basePart.Rotation.Y
bone.Orientation = getWorldOrientation(bone, offset)
bone.WorldPosition = basePart.CFrame.Position
end
end
im not asking for a full script, im simply asking for a function or some sort of formula that points me in the right direction, as im am extremely confused
