Im trying to make this hand that follow you, and it basically should look like it crawls. It does that however when the player its following goes around in circles or it starts to juke the hand it starts to do weird rotations to its fingers. Im using IKControls to make the hand crawl, and I’ve also set the type to Position.
I’ve already tried adding things like HingeConstraints and other constraints however I’ve gotten no where with trying to fix the issue.
Video:

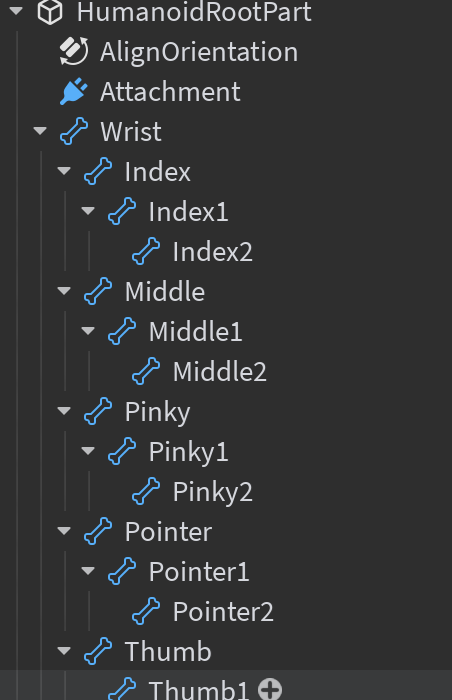

Bone Structure:
To do the walking part of the hand, Im just using an open-source module for now:
-- Author: Roox4
--[[
Example Usage:
////////////////////////////////////////////////////////////////
local ProceduralModule = require(/moduleLocation/.ProceduralModule)
local runService = game:GetService("RunService")
local enemy = script.Parent
local root = enemy:FindFirstChild("HumanoidRootPart")
local hum = enemy:FindFirstChild("Humanoid")
local alignOrientation = root:FindFirstChild("AlignOrientation")
local target = workspace:FindFirstChild("Target")
--// IkTargets
local ikTargets = enemy:FindFirstChild("IkTargets")
local leftFront_IkTarget = ikTargets:FindFirstChild("LeftFront_IkTarget")
local leftBack_IkTarget = ikTargets:FindFirstChild("LeftBack_IkTarget")
local rightFront_IkTarget = ikTargets:FindFirstChild("RightFront_IkTarget")
local rightBack_IkTarget = ikTargets:FindFirstChild("RightBack_IkTarget")
--// Raycast parts
local raycastParts = enemy:FindFirstChild("RaycastParts")
local leftFront_RaycastPart = raycastParts:FindFirstChild("LeftFront_RaycastPart")
local leftBack_RaycastPart = raycastParts:FindFirstChild("LeftBack_RaycastPart")
local rightFront_RaycastPart = raycastParts:FindFirstChild("RightFront_RaycastPart")
local rightBack_RaycastPart = raycastParts:FindFirstChild("RightBack_RaycastPart")
--// IKControls
local leftFront_IKControl = hum:FindFirstChild("LeftFront_IKControl")
local leftBack_IKControl = hum:FindFirstChild("LeftBack_IKControl")
local rightFront_IKControl = hum:FindFirstChild("RightFront_IKControl")
local rightBack_IKControl = hum:FindFirstChild("RightBack_IKControl")
leftFront_IKControl.Pole = root.LeftFront_Pole
leftBack_IKControl.Pole = root.LeftBack_Pole
rightFront_IKControl.Pole = root.RightFront_Pole
rightBack_IKControl.Pole = root.RightBack_Pole
--// RaycastParams
local rayCastParams = RaycastParams.new()
rayCastParams.FilterDescendantsInstances = {enemy}
rayCastParams.FilterType = Enum.RaycastFilterType.Exclude
for _,v: BasePart in ikTargets:GetChildren() do
v.Transparency = 1
end
for _,v: BasePart in raycastParts:GetChildren() do
v.Transparency = 1
end
coroutine.wrap(function()
while task.wait(0.25) do
hum:MoveTo(target.Position)
end
end)()
runService.Heartbeat:Connect(function()
local rayCast = workspace:Raycast(root.Position, -1000 * root.CFrame.UpVector, rayCastParams)
if rayCast then
local rotateToFloorCFrame = ProceduralModule:getRotationBetween(root.CFrame.UpVector, rayCast.Normal)
local floorOrientedCFrame = rotateToFloorCFrame * CFrame.new(root.Position)
local dz = (root.Position.Z - target.Position.Z)
local dx = (root.Position.X - target.Position.X)
local horizontalAngle = math.atan2(dx, dz)
alignOrientation.CFrame = floorOrientedCFrame.Rotation * CFrame.fromOrientation(0, horizontalAngle, 0)
end
end)
while true do
ProceduralModule:IkLegStep(leftFront_IkTarget, leftFront_RaycastPart, enemy.PrimaryPart, 2, 2, 1, 0.05, rayCastParams)
ProceduralModule:IkLegStep(rightBack_IkTarget, rightBack_RaycastPart, enemy.PrimaryPart, 2, 2, 1, 0.05, rayCastParams)
task.wait(0.1)
ProceduralModule:IkLegStep(rightFront_IkTarget, rightFront_RaycastPart, enemy.PrimaryPart, 2, 2, 1, 0.05, rayCastParams)
ProceduralModule:IkLegStep(leftBack_IkTarget, leftBack_RaycastPart, enemy.PrimaryPart, 2, 2, 1, 0.05, rayCastParams)
task.wait(0.1)
end
////////////////////////////////////////////////////////////////
--]]
local ProceduralModule = {}
--// Returns a CFrame rotation between two vectors
--// Credit: @EgoMoose (Roblox)
function ProceduralModule:getRotationBetween(u, v)
local randomAxis = Vector3.new(1, 0, 0)
local dot = u:Dot(v)
if (dot > 0.99999) then
return CFrame.new()
elseif (dot < -0.99999) then
return CFrame.fromAxisAngle(randomAxis, math.pi)
end
return CFrame.fromAxisAngle(u:Cross(v), math.acos(dot))
end
--[[
Parameters:
ikTarget -> A reference to the IK target of a leg
ikRayPart -> A reference to the raycast part of a leg
root -> The root part of a model
stepDistance -> A number that specifies a distance a model has to travel before this function executes
stepForward -> A number that specifies a length of a step
stepHeight -> A number that specifies a maximum height the leg reaches when stepping
stepWait -> A number that specifies a how long the step takes (should be a small value like 0.05)
rayCastParams -> A reference to the RaycastParams
--]]
--// Calculates the position of a leg
function ProceduralModule:IkLegStep(ikTarget: BasePart, ikRayPart: BasePart, root: BasePart, stepDistance: number, stepForward: number, stepHeight: number, stepWait: number, rayCastParams: RaycastParams)
stepWait = stepWait or 0.05
stepForward = stepForward or 0
stepHeight = stepHeight or 2
local rayCast = workspace:Raycast(ikRayPart.Position, Vector3.new(0, -1000, 0), rayCastParams)
if rayCast then
if not ikTarget:GetAttribute("PreviousPos") then
ikTarget:SetAttribute("PreviousPos", Vector3.new(0, 0, 0))
end
local previousFootPos = ikTarget:GetAttribute("PreviousPos")
local defaultFootPos = rayCast.Position
local diff = (defaultFootPos - previousFootPos).Magnitude
--// Do a step
if diff > stepDistance then
local finalFootPos = rayCast.Position + root.CFrame.LookVector * stepForward
local middleFootPos = ((finalFootPos - previousFootPos) * 0.5 + previousFootPos) + Vector3.new(0, stepHeight, 0)
coroutine.wrap(function()
ikTarget.Position = middleFootPos
task.wait(stepWait)
ikTarget.Position = finalFootPos
ikTarget:SetAttribute("PreviousPos", ikTarget.Position)
end)()
end
end
end
return ProceduralModule
