How to make GUI audio visualizer

[VastMajorPie]

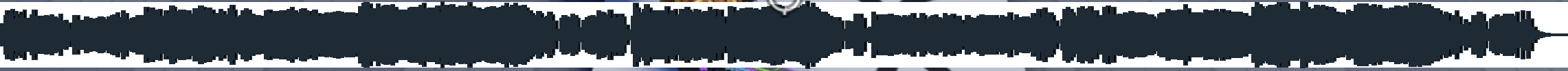

I want to visualize the audio but all the things I find are for the live audio I want something like in the roblox moments game:

basically get the level of audio at certain time periods (NOT the live audio)

[athony2025 (heymar2025)]

sound.PlaybackLoudness should help you, however i’m not into acoustic coding so someone who’s more experienced in it can probably help you in a more in-depth explanation.

[VastMajorPie]

Yeah I saw that but am not sure how to integrate it 100%

[athony2025 (heymar2025)]

roblox themselves provided a solid example, not sure if it’s what you’re going for but should put you in the right direction

-- to be placed in StarterPlayer > StarterPlayerScripts

local Players = game:GetService("Players")

-- wait for local player PlayerGui
local LocalPlayer = Players.LocalPlayer
local playerGui = LocalPlayer:WaitForChild("PlayerGui")

-- create a ScreenGui
local screenGui = Instance.new("ScreenGui")
screenGui.Parent = playerGui

-- create a holder for our bar
local frame = Instance.new("Frame")
frame.AnchorPoint = Vector2.new(0.5, 0.5)
frame.Position = UDim2.new(0.5, 0, 0.5, 0)
frame.Size = UDim2.new(0.3, 0, 0.05, 0)
frame.Parent = screenGui

-- create a bar
local bar = Instance.new("Frame")
bar.Position = UDim2.new(0, 0, 0, 0)
bar.Size = UDim2.new(1, 0, 1, 0)
bar.BackgroundColor3 = Color3.new(0, 1, 0)
bar.Parent = frame

-- create a sound
local sound = Instance.new("Sound")
sound.SoundId = "rbxassetid://9120386436"
sound.Looped = true
sound.Parent = screenGui
sound:Play()

-- define a max loudness
local maxLoudness = 30

-- animate the amplitude bar
while true do
	local amplitude = math.clamp(sound.PlaybackLoudness / maxLoudness, 0, 1)
	bar.Size = UDim2.new(amplitude, 0, 1, 0)
	wait(0.05)
end

basically it gives you a value from 0-1000 on how loud the current sound is based on what time position you called it from.

[VastMajorPie]

okay i did some stuff but it still takes a while to show as it has to get the volume of the sound at each point… takes like 10 seconds at 20x playback speed

[athony2025 (heymar2025)]

reason is that roblox doesn’t load the sounds as soon as the game starts, so it might take some time as soon as you start playing it. this won’t be a problem since you aren’t going to be using this a lot buut just so you know, you may want to consider preloading if you want to actually use this, just to make it seamless.
