Model Orientation Problems!

[naderbocker2 (Nate)]

I’m having a little bit of struggles with scripting and a model orientation. I’m new to scripting and don’t know what am doing wrong. I’ve been working on this for about an hour now and now I give up. It might be very simple to fix but again I’m new and don’t know much about scripting. Hopefully I don’t make this too complicated by basically…

I have a local script in StarterPlayerScripts.

And in that script is a few lines of code:

local Part = game.Workspace.Camera:WaitForChild("Ladder")
local Part2 = game.Workspace.Ladder2
local Open = game.Workspace.Button
local Sound = game.ReplicatedStorage.Music
local Destination = CFrame.new(-164.062, 16.655, -133.394)
local Destination2 = CFrame.new(-121.401, -2.24, -37.726)

function onClicked()
	Sound:Play()
	Part2:SetPrimaryPartCFrame(Destination2)
	Part:SetPrimaryPartCFrame(Destination)
	Part.CFrame = Destination * CFrame.fromEulerAnglesXYZ(0,123,120)
	Open.CFrame = CFrame.new(-164.478, -13.578, -40.731)
end
workspace.Button.ClickDetector.MouseClick:connect(onClicked)

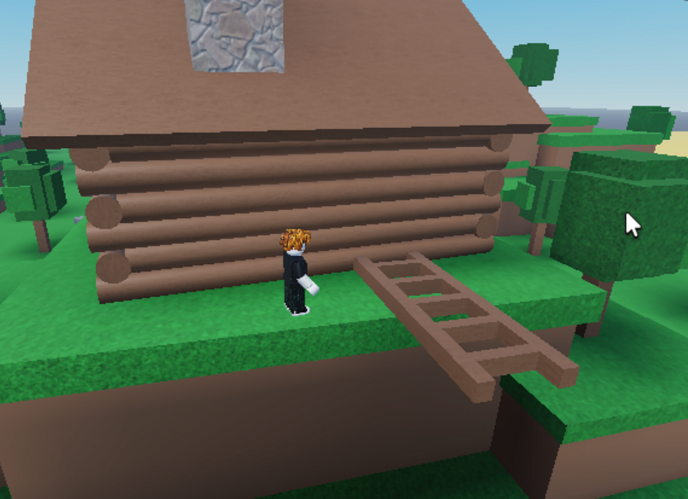

I also have a ladder model in Lighting. I want the Orientation of the ladder to look something like this:

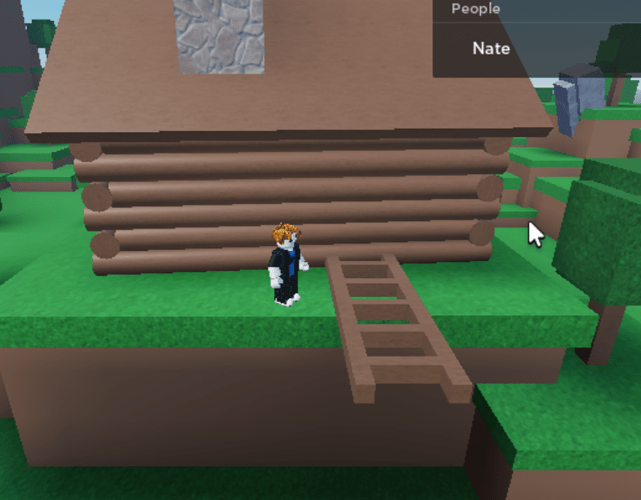

But for some reason whenever I join and set everything up the ladder Orientation looks like this which is what I dont want:

So basically the ladder position is perfect but the orientation is way off and I don’t know how to fix this. Thanks and sorry if I made it a little complicated.

[black1shadow1048 (Darve)]

@naderbocker2

Part.CFrame = Destination * CFrame.fromEulerAnglesXYZ(0,123,120)

Try to use Part:SetPrimaryPartCFrame(CFrame.new(Destination * CFrame.fromEulerAnglesXYZ(0,123,0)))

[naderbocker2 (Nate)]

Still stuck in same position.

[naderbocker2 (Nate)]

Im using a local script because the ladder is supposed to be a local part.

[black1shadow1048 (Darve)]

@naderbocker2

I also have a ladder model in Lighting. I want the Orientation of the ladder to look something like this:

Is the ladder supposed to be like this when you press the button or all the time? if so then what are the original orientation of the model?

[naderbocker2 (Nate)]

Yes I want the ladder to only show when I click the button. And right now the origin of the ladder is (85, -175, 180).

[black1shadow1048 (Darve)]

try this one:

local part = script.Parent

part:PivotTo(part.PrimaryPart:GetPivot() * CFrame.Angles(0,0,math.rad(90)))

Make sure that the Orientation is set to 0,0,0 for it to work

[naderbocker2 (Nate)]

Ok well good news its something new happened, it kinda changed rotation but I want it upright.

[black1shadow1048 (Darve)]

Maybe this one?

CFrame.Angles(0,math.rad(90),0)

[naderbocker2 (Nate)]

Ok it works alright now, its facing upright. Thanks a lot and sorry for the struggles.

[naderbocker2 (Nate)]

Oh well, now there are problems. Ok im really sorry but this is the line I put down:

	Part:PivotTo(Part.PrimaryPart:GetPivot() * CFrame.Angles(math.rad(75),math.rad(0),math.rad(0)))

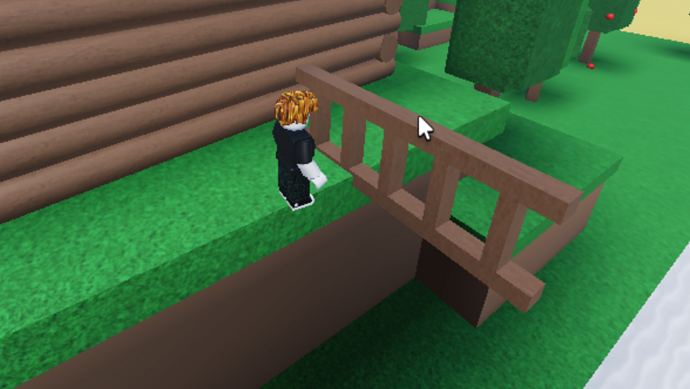

And it makes the ladder like this:

I want it rotated 180 degrees to the right so it looks like its connecting to the house.

[naderbocker2 (Nate)]

I mean that’s what I did and it doesn’t work. Oh well, I’ll see what I can do thanks.
