Models created in 3ds Max show flipped normals and incorrect vertex colors on mirrored geometry after import into Studio

Bug Reports Studio Bugs
,
1

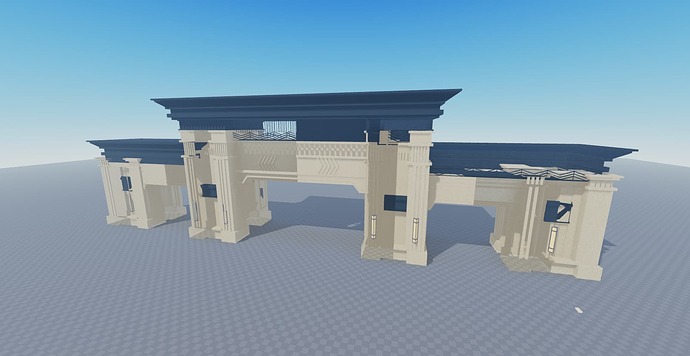

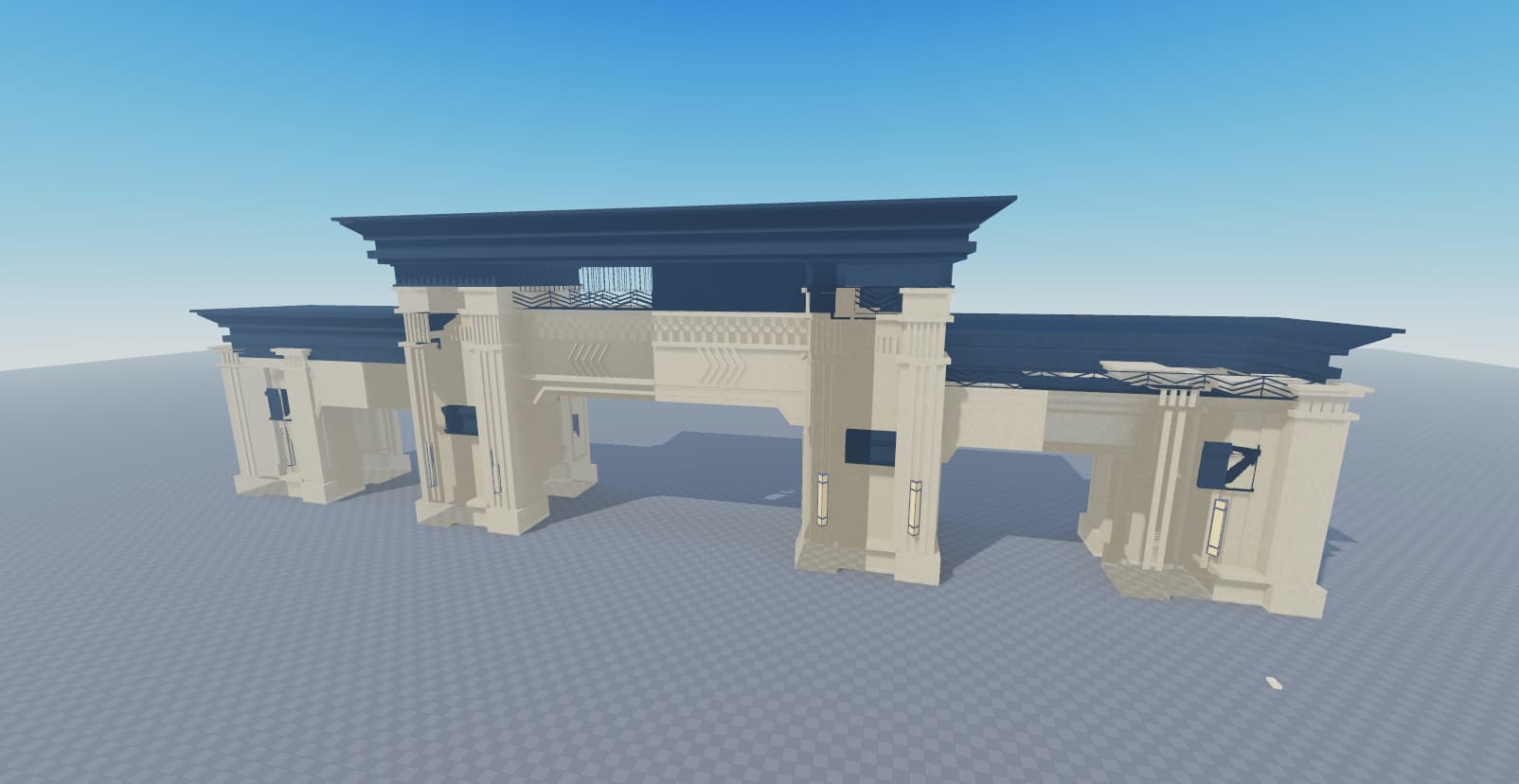

RobloxScreenShot20261003_104259492
RobloxScreenShot20261003_1042594921604×828 58.3 KB

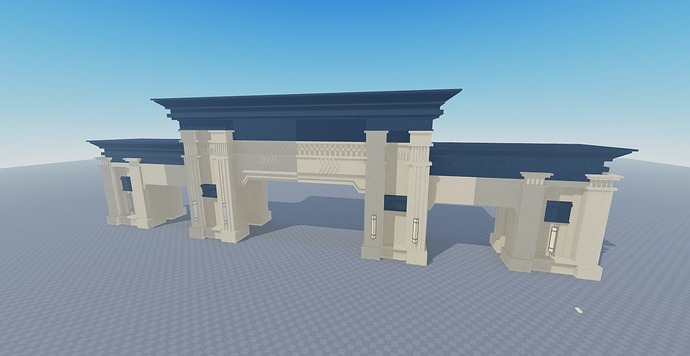

RobloxScreenShot20261003_104558734
RobloxScreenShot20261003_1045587341604×828 51.5 KB

After importing a 3ds Max model into Roblox Studio, the mirrored half comes in with flipped normals and missing vertex colors, while the original half is fine.

Expected behavior

I’d like the imported model to come in exactly as it looks in 3ds Max — no flipped normals, no odd vertex colors, just a plain white mesh. Importing as OBJ isn’t an option, because it drops the groups I’ve set up in 3ds Max.

A private message is associated with this bug report

1 Like
2

I had a similar issue but with Blender. The solution was to apply all transformations.

Does something like that exist in 3ds Max?

3

Yes after I applied Reset XForm, the mirrored part came back to normal.
