I’m working on placement system, which it works fine.

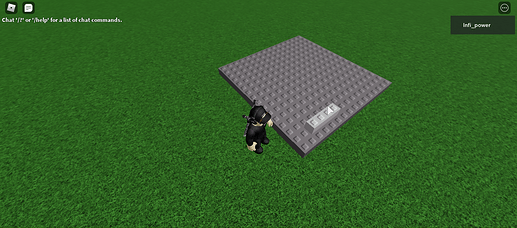

But the issue is, some parts doesn’t align properly when part’s rotation is 90 or -90 degrees.
And here is the code: (it’s really big)
local playerMouse = game.Players.LocalPlayer:GetMouse()
local UIS = game:GetService("UserInputService")
local Runner = game:GetService("RunService")
local SampleBlock
local ctr = 1
local deg = 0
function createsampleblock(dir)
if SampleBlock then
SampleBlock:Destroy()
SampleBlock = nil
end
SampleBlock = dir:Clone()
for i,v in ipairs(SampleBlock:GetChildren()) do
if v.Name ~= "Base" then
v.Transparency = 0.3
v.CanCollide = false
end
end
SampleBlock.Parent = workspace
end
function calculate_ray_pos(Gridsize,Building_Limit,Ignored_Parts)
local ray = Ray.new(playerMouse.UnitRay.Origin,playerMouse.UnitRay.Direction * Building_Limit) --Creates a 3D Based Ray With Looking Direction
local hit,position,nposition = workspace:FindPartOnRayWithIgnoreList(ray,Ignored_Parts) --Calculates The Position
--Return As Vector3 Type Variable--
local pos = position + nposition * 0.5
--Using The Grid Formula--
return CFrame.new(
math.floor((pos.X/Gridsize + 0.5)*Gridsize)-(SampleBlock.Size.X/2),
math.floor((pos.Y/Gridsize + 0.5)*Gridsize),
math.floor((pos.Z/Gridsize + 0.5)*Gridsize)-(SampleBlock.Size.Z/2)
)
end
---------------------------------------------------------------------------
UIS.InputBegan:Connect(function(key)
if key.KeyCode == Enum.KeyCode.E then
if ctr < 4 then
ctr += 1
createsampleblock(game.ReplicatedStorage.Bricks:GetChildren()[ctr])
end
end
if key.KeyCode == Enum.KeyCode.Q then
if ctr > 1 then
ctr -= 1
createsampleblock(game.ReplicatedStorage.Bricks:GetChildren()[ctr])
end
end
if key.KeyCode == Enum.KeyCode.R then
deg += 90
end
if key.UserInputType == Enum.UserInputType.MouseButton1 then
--if #workspace:FindPartsInRegion3WithIgnoreList( Region3.new(SampleBlock.Position - Vector3.new(2,2,2),SampleBlock.Position + Vector3.new(2,2,2)) ,{SampleBlock,game.Players.LocalPlayer.Character}, 500) < 1 then
game.ReplicatedStorage.Communicators.PlaceBlock:FireServer(game.ReplicatedStorage.Bricks:GetChildren()[ctr],SampleBlock.CFrame)
script.Pop:Play()
--end
end
end)
createsampleblock(game.ReplicatedStorage.Bricks:GetChildren()[ctr])
Runner.Heartbeat:Connect(function()
SampleBlock.CFrame = calculate_ray_pos(1,64,{SampleBlock,game.Players.LocalPlayer.Character})
SampleBlock.CFrame = SampleBlock.CFrame * CFrame.Angles(0,math.rad(deg),0)
end)
