Plugin: UnUnionify
made a tiny plugin called ununionify.

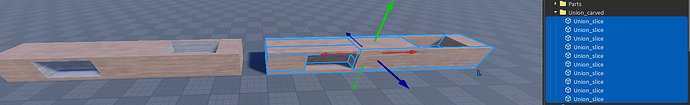

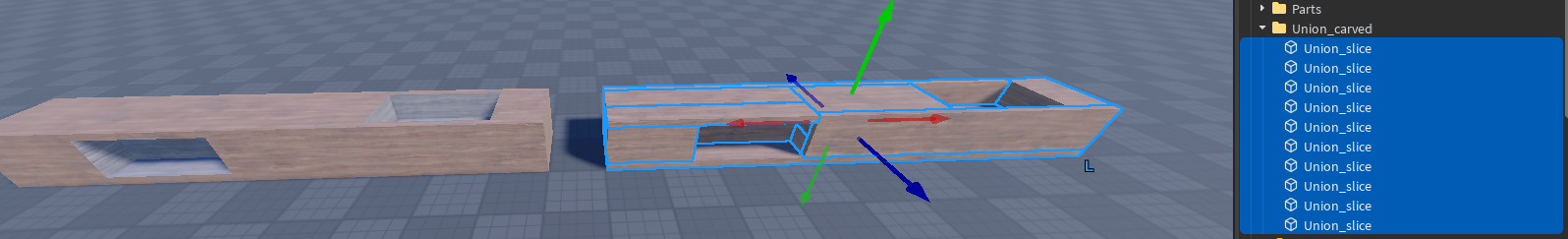

basically it takes a union, splits it back into parts, and also carves out the negatives so you don’t have to redo everything by hand.
there’s a variable in ServerStorage.Plugins where you can change the grid size – smaller grid sizes work better for some shapes, but they take longer to process.
that’s pretty much it. helps if you ever regret unioning something
So you mean, a Union to Part convertor? That’s insane
Seems good, but please just rename it to Union2Part or something
what happens if you use this on a sphere that has a hole in it
Seems cool, if you don’t mind, can we get the source code? I wanna see how it works.
-- Optimized Carve Unions Plugin (spatial indexing + union-local checks)
-- Paste into a Plugin Script in Studio. Select UnionOperation(s) and click the toolbar button.
local serverStorage = game:GetService('ServerStorage')
local Selection = game:GetService("Selection")
local Workspace = game:GetService("Workspace")
-- Settings (tune)
local GRID_SIZE = 0.25 -- voxel size
local PROBE_FACTOR = 0.5
local POSITIVE_THRESHOLD = 0.35
local CORNER_EPS = 1e-4
local SAMPLE_SUBDIV = false -- 3x3x3 per voxel (slow)
local MIN_PART_SIZE = 0.25 -- do not spawn parts smaller than this on any axis
local toolbar = plugin:CreateToolbar("CSG Tools")
local btn = toolbar:CreateButton("Carve Unions (Optimized)", "Voxel-carve selected unions", "rbxassetid://123955089457539", "Carve Unions (Optimized)")
-- helpers
local function clamp(i, a, b) if i < a then return a elseif i > b then return b else return i end end
-- safe wrapper for plugin:Separate
local function safeSeparate(obj)
local ok, res = pcall(function() return plugin:Separate({obj}) end)
if not ok then return nil, res end
return res
end
-- sample points for small fallback checks (used only for heuristic negative detection)
local function samplePointsForPart(part)
if not part or not part:IsA("BasePart") then return {} end
local pts = {}
local size = part.Size
local half = size * 0.5
-- center
table.insert(pts, part.CFrame.Position)
-- face centers
local offs = {
Vector3.new( half.X, 0, 0), Vector3.new(-half.X, 0, 0),
Vector3.new(0, half.Y, 0), Vector3.new(0, -half.Y, 0),
Vector3.new(0, 0, half.Z), Vector3.new(0, 0, -half.Z),
}
for _, off in ipairs(offs) do table.insert(pts, part.CFrame:PointToWorldSpace(off)) end
-- quarter corners
local quarter = Vector3.new(half.X * 0.5, half.Y * 0.5, half.Z * 0.5)
local cornerOffsets = {
Vector3.new( quarter.X, quarter.Y, quarter.Z),
Vector3.new(-quarter.X, quarter.Y, quarter.Z),
Vector3.new( quarter.X, -quarter.Y, quarter.Z),
Vector3.new( quarter.X, quarter.Y, -quarter.Z),
}
for _, off in ipairs(cornerOffsets) do table.insert(pts, part.CFrame:PointToWorldSpace(off)) end
return pts
end
-- separate clone fully and collect basepart clones
local function separateCloneFullyAndCollect(clonedRoot, tempFolder)
local queue = { clonedRoot }
local collected = {}
while #queue > 0 do
local cur = table.remove(queue, 1)
if not cur then break end
local parts, err = safeSeparate(cur)
if not parts then
if cur:IsA("BasePart") then
local okc, clone = pcall(function() return cur:Clone() end)
if okc and clone then clone.Parent = tempFolder; table.insert(collected, clone)
else cur.Parent = tempFolder; table.insert(collected, cur) end
else
warn("Separate failed:", tostring(cur), err)
end
else
for _, p in ipairs(parts) do
if p:IsA("UnionOperation") then
local okc, clone = pcall(function() return p:Clone() end)
if okc and clone then clone.Parent = tempFolder; table.insert(queue, clone) end
elseif p:IsA("BasePart") then
local okc, clone = pcall(function() return p:Clone() end)
if okc and clone then clone.Parent = tempFolder; table.insert(collected, clone) end
end
end
end
end
return collected
end
-- geometry helpers used by core algorithm
local function voxelCornersWorldFromLocal(cframe, localMin, localMax)
local corners = {}
for ix = 0,1 do
for iy = 0,1 do
for iz = 0,1 do
local lx = (ix == 0) and localMin.X or localMax.X
local ly = (iy == 0) and localMin.Y or localMax.Y
local lz = (iz == 0) and localMin.Z or localMax.Z
table.insert(corners, cframe:PointToWorldSpace(Vector3.new(lx, ly, lz)))
end
end
end
return corners
end
local function voxelExtraSamplePointsWorld(cframe, localMin, localMax)
local pts = {}
local fx = (localMax.X + localMin.X) * 0.5
local fy = (localMax.Y + localMin.Y) * 0.5
local fz = (localMax.Z + localMin.Z) * 0.5
local faces = {
Vector3.new(localMin.X, fy, fz),
Vector3.new(localMax.X, fy, fz),
Vector3.new(fx, localMin.Y, fz),
Vector3.new(fx, localMax.Y, fz),
Vector3.new(fx, fy, localMin.Z),
Vector3.new(fx, fy, localMax.Z),
}
for _, lf in ipairs(faces) do table.insert(pts, cframe:PointToWorldSpace(lf)) end
local edges = {
Vector3.new(localMin.X, localMin.Y, fz),
Vector3.new(localMin.X, localMax.Y, fz),
Vector3.new(localMax.X, localMin.Y, fz),
Vector3.new(localMax.X, localMax.Y, fz),
Vector3.new(localMin.X, fy, localMin.Z),
Vector3.new(localMin.X, fy, localMax.Z),
Vector3.new(localMax.X, fy, localMin.Z),
Vector3.new(localMax.X, fy, localMax.Z),
Vector3.new(fx, localMin.Y, localMin.Z),
Vector3.new(fx, localMax.Y, localMin.Z),
Vector3.new(fx, localMin.Y, localMax.Z),
Vector3.new(fx, localMax.Y, localMax.Z),
}
for _, le in ipairs(edges) do table.insert(pts, cframe:PointToWorldSpace(le)) end
if SAMPLE_SUBDIV then
for sx = 0,2 do for sy = 0,2 do for sz = 0,2 do
local lx = localMin.X + (localMax.X - localMin.X) * (sx / 2)
local ly = localMin.Y + (localMax.Y - localMin.Y) * (sy / 2)
local lz = localMin.Z + (localMax.Z - localMin.Z) * (sz / 2)
table.insert(pts, cframe:PointToWorldSpace(Vector3.new(lx, ly, lz)))
end end end
end
return pts
end
local function partWorldAABB(part)
local half = part.Size * 0.5
local localMin = -half
local localMax = half
local corners = voxelCornersWorldFromLocal(part.CFrame, localMin, localMax)
local minv = Vector3.new(1e9, 1e9, 1e9)
local maxv = Vector3.new(-1e9, -1e9, -1e9)
for _, c in ipairs(corners) do
minv = Vector3.new(math.min(minv.X, c.X), math.min(minv.Y, c.Y), math.min(minv.Z, c.Z))
maxv = Vector3.new(math.max(maxv.X, c.X), math.max(maxv.Y, c.Y), math.max(maxv.Z, c.Z))
end
return minv, maxv
end
local function aabbOverlap(minA, maxA, minB, maxB)
if maxA.X < minB.X or minA.X > maxB.X then return false end
if maxA.Y < minB.Y or minA.Y > maxB.Y then return false end
if maxA.Z < minB.Z or minA.Z > maxB.Z then return false end
return true
end
local function worldPointInsidePart(worldPoint, part, eps)
eps = eps or CORNER_EPS
local localP = part.CFrame:PointToObjectSpace(worldPoint)
local hx, hy, hz = part.Size.X * 0.5 + eps, part.Size.Y * 0.5 + eps, part.Size.Z * 0.5 + eps
return math.abs(localP.X) <= hx and math.abs(localP.Y) <= hy and math.abs(localP.Z) <= hz
end
-- cheap union probe on sample points using GetPartBoundsInBox
local function voxelIntersectsUnionSamples(union, sampleWorldPoints)
if not union or not union:IsA("UnionOperation") then return false end
local uSize = union.Size or Vector3.new(1,1,1)
local probe = math.max(0.09, math.max(uSize.X, uSize.Y, uSize.Z) * PROBE_FACTOR)
for _, p in ipairs(sampleWorldPoints) do
local found = Workspace:GetPartBoundsInBox(CFrame.new(p), Vector3.new(probe, probe, probe))
for _, f in ipairs(found) do
if f == union then return true end
end
end
return false
end
-- spawn part, respects MIN_PART_SIZE
local function spawnPartFromUnionLocalBox(union, minLocal, maxLocal, parentFolder)
local size = maxLocal - minLocal
if size.X < MIN_PART_SIZE or size.Y < MIN_PART_SIZE or size.Z < MIN_PART_SIZE then return nil end
local p = Instance.new("Part")
p.Size = size
p.CFrame = union.CFrame * CFrame.new((minLocal + maxLocal) * 0.5)
if union:IsA("BasePart") then
p.Color = union.Color
p.Material = union.Material
p.Transparency = union.Transparency
end
p.Anchored = true
p.CanCollide = true
p.Name = union.Name .. "_slice"
p.Parent = parentFolder or union.Parent
return p
end
-- GREEDY MERGE (unchanged)
local function greedyMergeCells(cells)
if #cells == 0 then return {} end
local map = {}
local minX, minY, minZ = math.huge, math.huge, math.huge
local maxX, maxY, maxZ = -math.huge, -math.huge, -math.huge
for _, c in ipairs(cells) do
local key = string.format("%d_%d_%d", c.x, c.y, c.z)
map[key] = true
minX = math.min(minX, c.x); minY = math.min(minY, c.y); minZ = math.min(minZ, c.z)
maxX = math.max(maxX, c.x); maxY = math.max(maxY, c.y); maxZ = math.max(maxZ, c.z)
end
local visited = {}
local out = {}
for x = minX, maxX do
for y = minY, maxY do
for z = minZ, maxZ do
local key = string.format("%d_%d_%d", x,y,z)
if map[key] and not visited[key] then
local endX = x
while true do
local k = string.format("%d_%d_%d", endX+1, y, z)
if not map[k] or visited[k] then break end
endX = endX + 1
end
local endY = y
local okY = true
while okY do
for xx = x, endX do
local kk = string.format("%d_%d_%d", xx, endY+1, z)
if not map[kk] or visited[kk] then okY = false; break end
end
if okY then endY = endY + 1 end
end
local endZ = z
local okZ = true
while okZ do
for xx = x, endX do
for yy = y, endY do
local kk = string.format("%d_%d_%d", xx, yy, endZ+1)
if not map[kk] or visited[kk] then okZ = false; break end
end
if not okZ then break end
end
if okZ then endZ = endZ + 1 end
end
for xx = x, endX do
for yy = y, endY do
for zz = z, endZ do
visited[string.format("%d_%d_%d", xx,yy,zz)] = true
end
end
end
table.insert(out, { min = Vector3.new(x,y,z), max = Vector3.new(endX+1, endY+1, endZ+1) })
end
end
end
end
return out
end
-- KEY: carve using spatial index (neg map) and union-local AABBs
local function carveUnionGloballyOptimized(union, negatives, gridSize, outFolder)
gridSize = gridSize or GRID_SIZE
local size = union.Size
if size.X < gridSize or size.Y < gridSize or size.Z < gridSize then
spawnPartFromUnionLocalBox(union, -size/2, size/2, outFolder)
return
end
local slicesX = math.floor(size.X / gridSize)
local slicesY = math.floor(size.Y / gridSize)
local slicesZ = math.floor(size.Z / gridSize)
if slicesX <= 0 or slicesY <= 0 or slicesZ <= 0 then
spawnPartFromUnionLocalBox(union, -size/2, size/2, outFolder)
return
end
local gridExtentX = slicesX * gridSize
local gridExtentY = slicesY * gridSize
local gridExtentZ = slicesZ * gridSize
local startX = -gridExtentX / 2
local startY = -gridExtentY / 2
local startZ = -gridExtentZ / 2
-- 1) Precompute negatives in union-local coordinates and build occupancy map (voxel -> negatives list)
local negLocalAABBs = {} -- negPart -> {min = Vector3, max = Vector3}
local occupancy = {} -- keyed by "ix_iy_iz" -> {neg, neg, ...}
for _, neg in ipairs(negatives) do
if neg and neg:IsA("BasePart") then
-- compute neg corners world -> transform into union local
local corners = voxelCornersWorldFromLocal(neg.CFrame, -neg.Size*0.5, neg.Size*0.5)
local localMin = Vector3.new(1e9,1e9,1e9)
local localMax = Vector3.new(-1e9,-1e9,-1e9)
for _, wc in ipairs(corners) do
-- union CFrame: PointToObjectSpace maps world -> union-local
local lc = union.CFrame:PointToObjectSpace(wc)
localMin = Vector3.new(math.min(localMin.X, lc.X), math.min(localMin.Y, lc.Y), math.min(localMin.Z, lc.Z))
localMax = Vector3.new(math.max(localMax.X, lc.X), math.max(localMax.Y, lc.Y), math.max(localMax.Z, lc.Z))
end
negLocalAABBs[neg] = { min = localMin, max = localMax }
-- compute which voxels this negative overlaps (in union-local voxel indices)
local ixMin = math.floor((localMin.X - startX) / gridSize)
local iyMin = math.floor((localMin.Y - startY) / gridSize)
local izMin = math.floor((localMin.Z - startZ) / gridSize)
local ixMax = math.floor((localMax.X - startX) / gridSize)
local iyMax = math.floor((localMax.Y - startY) / gridSize)
local izMax = math.floor((localMax.Z - startZ) / gridSize)
ixMin = clamp(ixMin, 0, slicesX-1); iyMin = clamp(iyMin, 0, slicesY-1); izMin = clamp(izMin, 0, slicesZ-1)
ixMax = clamp(ixMax, 0, slicesX-1); iyMax = clamp(iyMax, 0, slicesY-1); izMax = clamp(izMax, 0, slicesZ-1)
for ix = ixMin, ixMax do
for iy = iyMin, iyMax do
for iz = izMin, izMax do
local key = ix.."_"..iy.."_"..iz
local list = occupancy[key]
if not list then
list = {}
occupancy[key] = list
end
table.insert(list, neg)
end
end
end
end
end
-- 2) Iterate voxels; only check negatives listed in occupancy map for that voxel.
local keepCells = {}
local smallVoxelCenterOnly = (gridSize <= 0.25) -- heuristic: small voxels use center-only sampling
for ix = 0, slicesX-1 do
for iy = 0, slicesY-1 do
for iz = 0, slicesZ-1 do
local localMin = Vector3.new(startX + ix*gridSize, startY + iy*gridSize, startZ + iz*gridSize)
local localMax = localMin + Vector3.new(gridSize, gridSize, gridSize)
-- build minimal sample set:
local samples = {}
local centerLocal = (localMin + localMax) * 0.5
table.insert(samples, union.CFrame:PointToWorldSpace(centerLocal))
if not smallVoxelCenterOnly then
-- add corners and faces/edges (fewer than before)
for _, v in ipairs(voxelCornersWorldFromLocal(union.CFrame, localMin, localMax)) do table.insert(samples, v) end
for _, v in ipairs(voxelExtraSamplePointsWorld(union.CFrame, localMin, localMax)) do table.insert(samples, v) end
end
-- quick test: does this voxel intersect the union at all?
local intersectsUnion = voxelIntersectsUnionSamples(union, samples)
if not intersectsUnion then
-- skip voxel entirely
else
-- compute occupancy key and candidate negatives
local key = ix.."_"..iy.."_"..iz
local candidates = occupancy[key] -- could be nil (fast common case)
local intersectsNeg = false
if candidates then
-- compute voxel AABB in union-local (fast)
local vmin = localMin
local vmax = localMax
-- test candidates only
for _, neg in ipairs(candidates) do
local negA = negLocalAABBs[neg]
if negA and aabbOverlap(vmin, vmax, negA.min, negA.max) then
-- fine tests: check any sample point in negative (use part.CFrame:PointToObjectSpace)
for _, sp in ipairs(samples) do
if worldPointInsidePart(sp, neg) then intersectsNeg = true; break end
end
if intersectsNeg then break end
-- also test if neg corners fall inside voxel (covers tiny negatives)
local negCorners = voxelCornersWorldFromLocal(neg.CFrame, -neg.Size * 0.5, neg.Size * 0.5)
for _, nc in ipairs(negCorners) do
-- nc is world; transform to union-local and compare to vmin..vmax
local nloc = union.CFrame:PointToObjectSpace(nc)
if nloc.X >= vmin.X and nloc.X <= vmax.X and nloc.Y >= vmin.Y and nloc.Y <= vmax.Y and nloc.Z >= vmin.Z and nloc.Z <= vmax.Z then
intersectsNeg = true; break
end
end
if intersectsNeg then break end
end
end
end
if not intersectsNeg then
table.insert(keepCells, { x = ix, y = iy, z = iz })
end
end
end
end
end
-- 3) Merge and spawn
local merged = greedyMergeCells(keepCells)
for _, m in ipairs(merged) do
local minLocal = Vector3.new(startX + m.min.X * gridSize, startY + m.min.Y * gridSize, startZ + m.min.Z * gridSize)
local maxLocal = Vector3.new(startX + m.max.X * gridSize, startY + m.max.Y * gridSize, startZ + m.max.Z * gridSize)
spawnPartFromUnionLocalBox(union, minLocal, maxLocal, outFolder)
end
-- rim slabs both sides (respect MIN_PART_SIZE)
local gridExtentX, gridExtentY, gridExtentZ = slicesX * gridSize, slicesY * gridSize, slicesZ * gridSize
local marginX = size.X - gridExtentX
local marginY = size.Y - gridExtentY
local marginZ = size.Z - gridExtentZ
-- left / right along X
if (marginX/2) >= MIN_PART_SIZE then
spawnPartFromUnionLocalBox(union, Vector3.new(-size.X/2, -size.Y/2, -size.Z/2), Vector3.new(startX, size.Y/2, size.Z/2), outFolder)
spawnPartFromUnionLocalBox(union, Vector3.new(startX + gridExtentX, -size.Y/2, -size.Z/2), Vector3.new(size.X/2, size.Y/2, size.Z/2), outFolder)
end
-- bottom / top along Y
if (marginY/2) >= MIN_PART_SIZE then
spawnPartFromUnionLocalBox(union, Vector3.new(-size.X/2, -size.Y/2, -size.Z/2), Vector3.new(size.X/2, startY, size.Z/2), outFolder)
spawnPartFromUnionLocalBox(union, Vector3.new(-size.X/2, startY + gridExtentY, -size.Z/2), Vector3.new(size.X/2, size.Y/2, size.Z/2), outFolder)
end
-- back / front along Z
if (marginZ/2) >= MIN_PART_SIZE then
spawnPartFromUnionLocalBox(union, Vector3.new(-size.X/2, -size.Y/2, -size.Z/2), Vector3.new(size.X/2, size.Y/2, startZ), outFolder)
spawnPartFromUnionLocalBox(union, Vector3.new(-size.X/2, -size.Y/2, startZ + gridExtentZ), Vector3.new(size.X/2, size.Y/2, size.Z/2), outFolder)
end
end
-- process a union: clone -> separate -> collect negatives -> carve
local function processUnion(union)
if not union or not union:IsA("UnionOperation") then return end
print("Processing union:", union:GetFullName())
local temp = Instance.new("Folder")
temp.Name = "_separate_temp_" .. union.Name .. "_" .. tostring(math.random(1,9999))
temp.Parent = Workspace
local okClone, cloneUnion = pcall(function() return union:Clone() end)
if not okClone or not cloneUnion then warn("Clone failed", union.Name); if temp.Parent then temp:Destroy() end; return end
cloneUnion.Parent = temp
local clones = separateCloneFullyAndCollect(cloneUnion, temp)
print("Separated parts count (from clone):", #clones)
-- collect negatives by name
local negatives = {}
for _, c in ipairs(clones) do
if c and c:IsA("BasePart") and c.Name == "NegativePart" then
table.insert(negatives, c)
end
end
print(("Detected %d negative parts"):format(#negatives))
-- heuristic fallback if none named negative
if #negatives == 0 then
local heur = {}
for _, piece in ipairs(clones) do
local pts = samplePointsForPart(piece)
local inside = 0
for _, sp in ipairs(pts) do
if voxelIntersectsUnionSamples(union, {sp}) then inside = inside + 1 end
end
local frac = inside / math.max(1, #pts)
if frac < POSITIVE_THRESHOLD then table.insert(heur, piece) end
end
negatives = heur
print(("Heuristic negatives found: %d"):format(#negatives))
end
local out = Instance.new("Folder")
out.Name = union.Name .. "_carved"
out.Parent = union.Parent
-- carve with optimized function
carveUnionGloballyOptimized(union, negatives, GRID_SIZE, out)
-- cleanup
if union and union.Parent then union:Destroy() end
if temp and temp.Parent then
for _, c in ipairs(temp:GetChildren()) do c:Destroy() end
temp:Destroy()
end
print("Done carving:", union.Name)
end
-- Use serverStorage float for grid size if present (your existing mechanism)
local function gridSizeCheck()
if not serverStorage:FindFirstChild('Plugins') then
local folder = Instance.new('Folder')
folder.Name = 'Plugins'
folder.Parent = serverStorage
end
if serverStorage.Plugins:FindFirstChild('GRID_SIZE_UNUNIONIFY') then
GRID_SIZE = serverStorage.Plugins.GRID_SIZE_UNUNIONIFY.Value
else
local floatValue = Instance.new('NumberValue')
floatValue.Name = 'GRID_SIZE_UNUNIONIFY'
floatValue.Parent = serverStorage.Plugins
floatValue.Value = GRID_SIZE
end
end
-- toolbar click
btn.Click:Connect(function()
gridSizeCheck()
local sel = Selection:Get()
if #sel == 0 then warn("Select union(s) in Explorer") return end
for _, obj in ipairs(sel) do
if obj and obj:IsA("UnionOperation") then
processUnion(obj)
-- small yield so Studio remains responsive for big jobs
task.wait(0.05)
else
warn("Skipping non-union:", tostring(obj))
end
end
print("All selected unions processed.")
end)
So, what does this do better than just using Separate in the Solid Modeling tab apart from keeping the negative holes?
Like don’t get me wrong keeping the holes made from negative parts is really useful, I just struggle to see what’s exactly better.
Hey, how possible would it be to repurpose this into a “mesh to (part collection to) union tool”?
I’ve got a weird use case that requires that, but changing “UnionOperation” to “MeshPart” in here before using it on a mesh causes what might be a memory leak. Any ideas?
