Problem With A Bar UI

[lilmazen1234 (MazenEz)]

Hello Developers,

Currently I’m making a Bar UI that tracks a currency. Everything is working fine except for the Ui it self. Currently I’m using image labels however when the Bar gets scaled on the X axis it becomes stretched in a weird size. I know about ScaleType = fit however this wouldn’t work as the ImageLabel needs to be stretched.

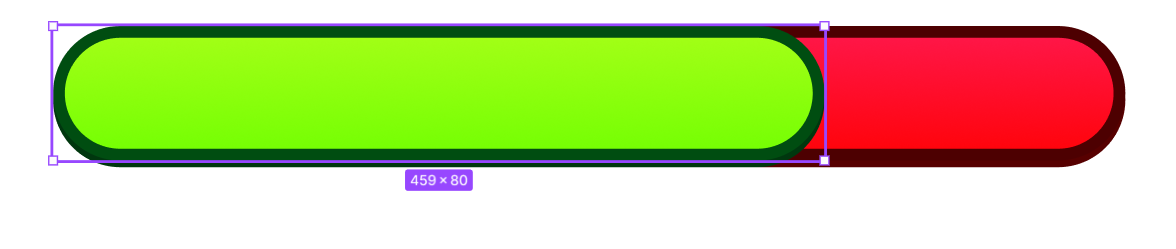

In Figma:

In Game:

If any could help by providing me a line of code that updates a property when it gets scaled then that would be very helpful.

[happya_x (Happya)]

you need to use slice scaling and then adjust slice center as needed so that the middle part gets reused and the end parts stay the same

[lilmazen1234 (MazenEz)]

Hi, I tried that out and got a pretty neat result however would I need to update the slice center whenever I change the size of the bar mid-game? and would this also scale up for all devices?

[lilmazen1234 (MazenEz)]

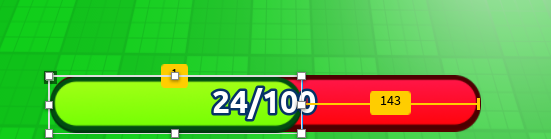

For example here, it is perfect

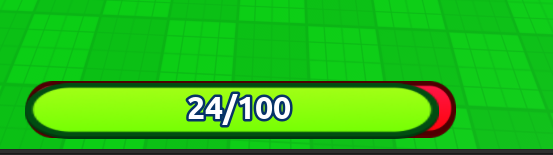

while at the start its just like this

This is the size of the bar if you need it
{0.176, 0},{1, 0}
Slice Center: 40, 35, 50, 35
Slice Scale: 1

Edit: Played around with it and it worked! Thank you for your help @happya_x
