I have troubles trying to determine if a 2D particle / frame should be visible (depending on if something is in front of the ray)
Here is my code:
function update()
local vec1, visible = camera:WorldToScreenPoint(part1.Position)
local vec2, visible2 = camera:WorldToScreenPoint(part2.Position)
local x = vec1.X
local y = vec1.Y
local z = vec1.Z
local x2 = vec2.X
local y2 = vec2.Y
local z2 = vec2.Z
local ratio = 500
if (visible or visible2) then
trace.Visible = true
p1.Visible = true
p2.Visible = true
else
trace.Visible = false
p1.Visible = false
p2.Visible = false
end
local dist = math.sqrt(math.pow((x2 - x), 2) + (math.pow((y2 - y), 2)))
trace.Size = UDim2.new(0, dist, 0, ratio/((z+z2)/2))
p1.Position = UDim2.new(0, x, 0, y)
p2.Position = UDim2.new(0, x2, 0, y2)
p1.Size = UDim2.new(0, ratio/z, 0, ratio/z)
p2.Size = UDim2.new(0, ratio/z2, 0, ratio/z2)
--number math.atan2(number y, number x)
--(x2 + x1) / 2, (y2 + y1) / 2
trace.Position = UDim2.new(0, (x2 + x)/2, 0, (y2 + y)/2)
local rotation = math.atan2((y2-y), (x2-x))
rotation = rotation * 180
rotation = rotation / math.pi
rotation = rotation
print(rotation)
trace.Rotation = rotation
end
Anyways, how can I determine if there is anything “blocking” the ray from the ray to the player’s camera view?

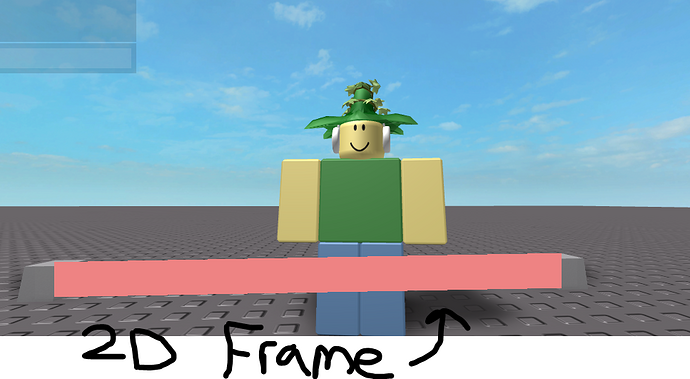

(In this example, the ray should not be visible because it is technically behind the player)
*note: within my code, I don’t have any method of determining whether or not the frame should be visible… I was hoping that someone could help me with the logic.
