I want to make a gui for a vehicle (out of the toolbox) which shows up objects near the car. Its not working correctly, position is, rotation isnt.

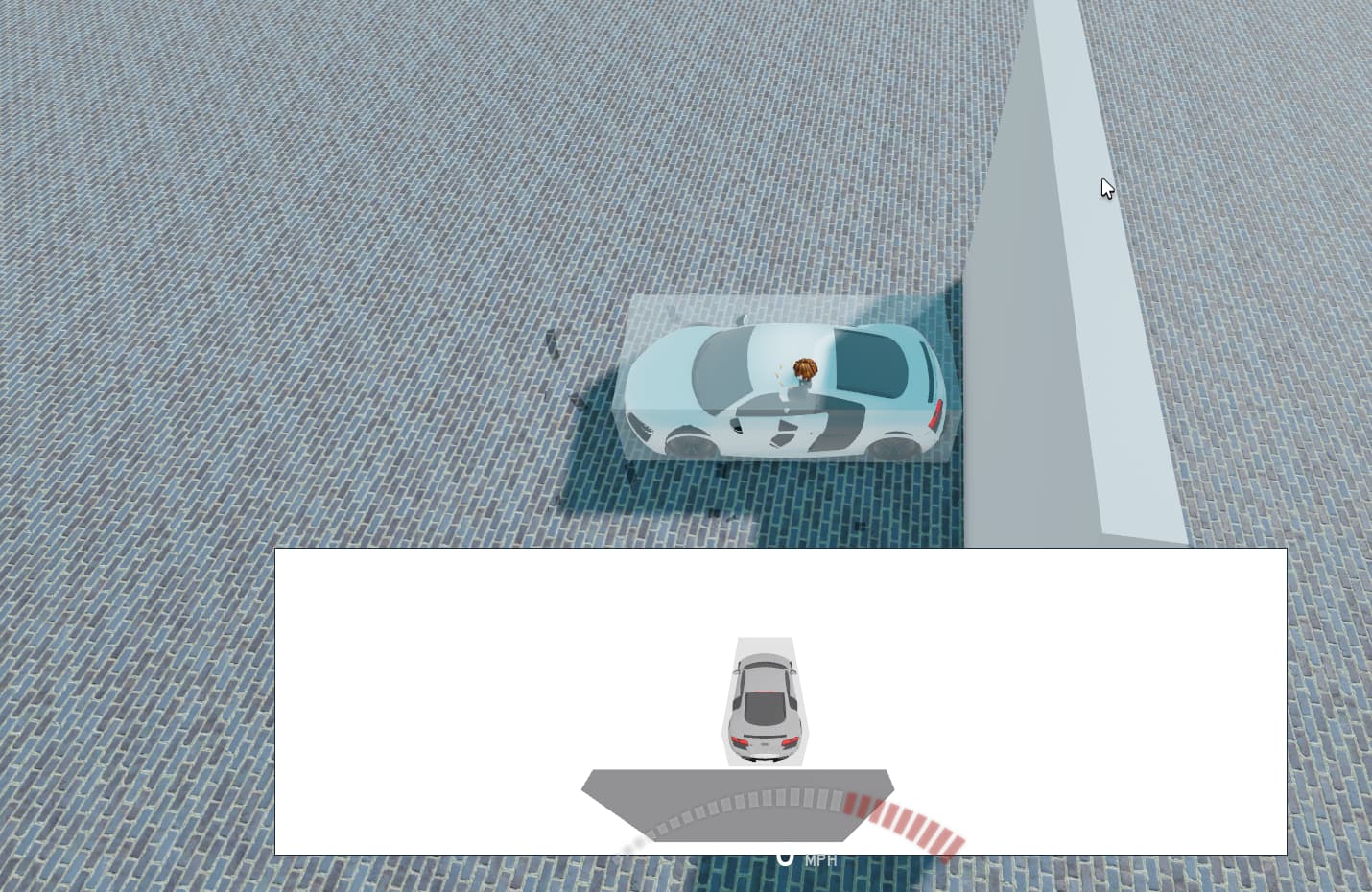

Screenshot with Wall 1:
Screenshot with Wall 1:

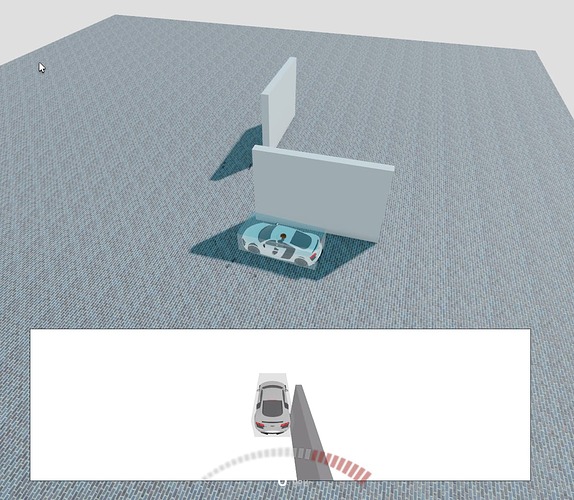

Screenshot with Wall 2:
I already tried multiple things. You can see them in the code below (variables that are defined but not used (anymore))
local player = game.Players.LocalPlayer
local shouldUpdate = true
function debugPart(pos)
local part = Instance.new("Part", workspace.Debug)
part.Anchored = true
part.CanCollide = false
part.Position = pos
end
function updateRays(carClone)
local car = player.Character.Humanoid.SeatPart.Parent.Parent
local raycastParam = RaycastParams.new()
raycastParam.FilterType = Enum.RaycastFilterType.Blacklist
while task.wait(0.1) and shouldUpdate do
local partsInViewportFrame = {}
for _, part in script.Parent.ViewportFrame:GetChildren() do
if part == carClone then continue end
if part:IsA("Model") or part:IsA("BasePart") or part:IsA("Folder") then
part:Destroy()
end
end
for _, attachment in car.HitBox:GetChildren() do
if not attachment:IsA("Attachment") then continue end
if #string.split(attachment.Name, " ") == 3 then continue end
local endPosRay = car.HitBox:FindFirstChild(attachment.Name.." Pos")
raycastParam.FilterDescendantsInstances = {car, workspace.Debug}
local origin = attachment.WorldPosition
local destination = endPosRay.WorldPosition
local direction = destination - origin
local ray = workspace:Raycast(attachment.WorldPosition, direction, raycastParam)
if not ray then continue end
if table.find(partsInViewportFrame, ray.Instance) then continue end
table.insert(partsInViewportFrame, ray.Instance)
local part = ray.Instance:Clone()
part.Parent = script.Parent.ViewportFrame
local relativePositionOfPart = car:GetPivot().Position - part.Position
local relativeRotationOfPart = car:GetPivot().Rotation - part.Rotation
local rotationX, rotationY, rotationZ = car:GetPivot().Rotation.X - part.Rotation.X, car:GetPivot().Rotation.Y - part.Rotation.Y, car:GetPivot().Rotation.Z - part.Rotation.Z
part.CFrame = CFrame.new(relativePositionOfPart) * CFrame.Angles(math.rad(rotationX), math.rad(rotationY), math.rad(rotationZ))
end
end
carClone:Destroy()
end
script.Parent.Parent:GetPropertyChangedSignal("Enabled"):Connect(function()
if script.Parent.Parent.Enabled == false then
shouldUpdate = false print("ended thread")
return
end
local char = player.Character
local carClone = char.Humanoid.SeatPart.Parent.Parent:Clone()
carClone.Parent = script.Parent.ViewportFrame
carClone:PivotTo(CFrame.new(0,0,0)*CFrame.Angles(math.rad(180),math.rad(180),math.rad(180)))
local cam = script.Parent.ViewportFrame:FindFirstChildWhichIsA("Camera") or Instance.new("Camera", script.Parent.ViewportFrame)
cam.CFrame = CFrame.new(Vector3.new(-14.129, 15.402, 24.707), carClone:GetPivot().Position)
shouldUpdate = true
updateRays(carClone)
end)
The part where the problem is in the for-loop inside the while-loop inside the updateRays() function.
Thanks for reading!
