Slope detection?

Help and Feedback Scripting Support
1

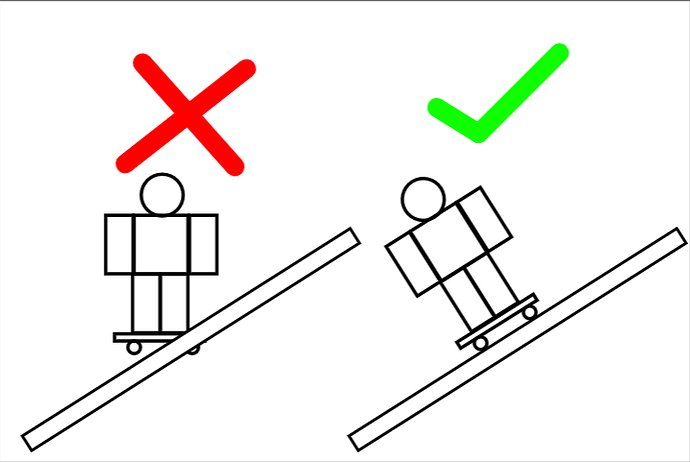

so I’m making a skating game and when you skate up a slope you stay upright but I want to detect if you’re going up a slope and rotate you on the Z axis to match the slope so it looks like you are going up it and not just sliding, how would i do this?

image718×481 32.3 KB

1 Like
2

you’d use a raycast down from the player so you can get the normal of the surface and then some maths to determine the angle, or something with CFrames

3 Likes
3

Hey there! This is really general, but perhaps this tutorial on a sliding system may help with your skateboarding system.

4

ok, so I think I figured out how I might do this, at 9:12 on the video the guy talks about checking the previous Y value based on the new one to see where if the player is going up or down a slope, I think I might try this.

5

Ok, wait this video might be more helpful:
Slope
Character Orientation

1 Like
6

A simple idea that comes to mind is casting two raycasts really close to eachother and then computing the derivative/rate of change.

7

I think computing the slope via the surface normal is far easier, more optimized, and will also allow for that correct rotation on the slope.

8

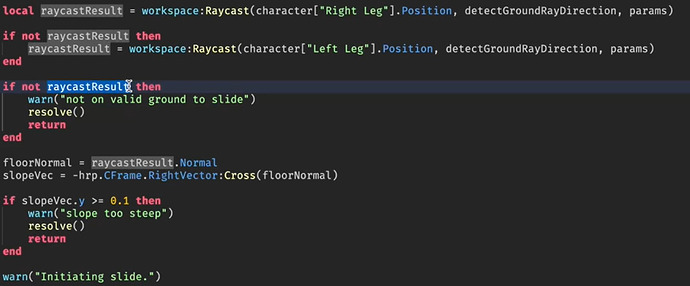

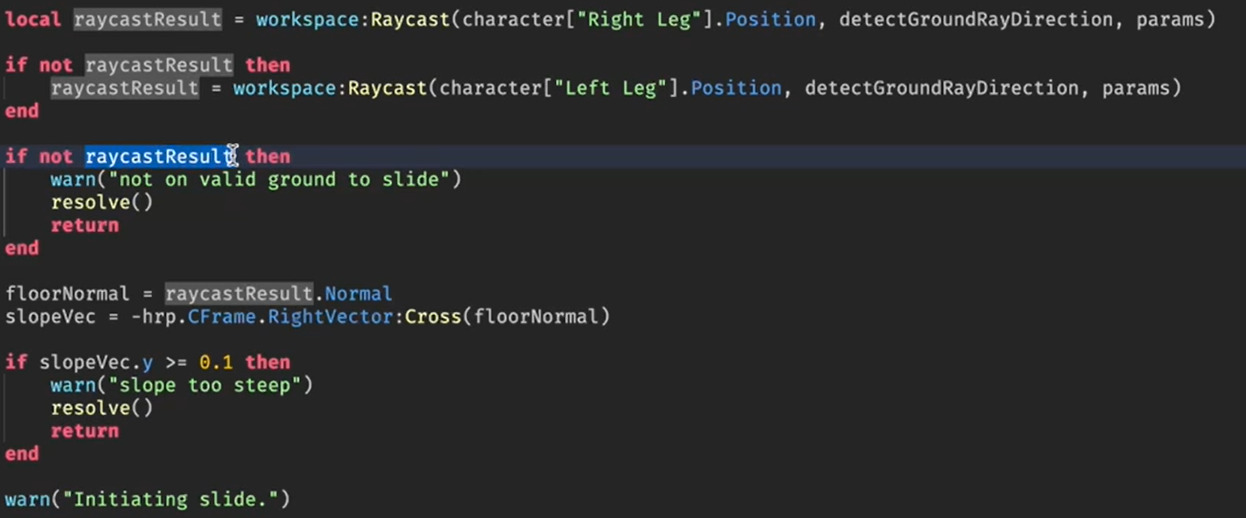

Alright @TheRealBoiAnimates. I found this snippet of code from the latest video I linked:

image1246×518 80.5 KB

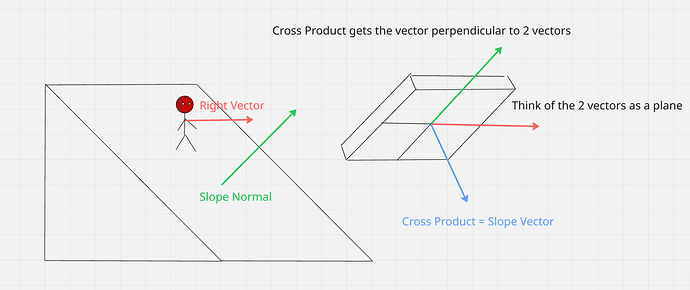

This essentially uses the cross product of the slope normal and the character right vector. This will not only find the slope, but it will return it relative to the character in the form of a Vector3. Here’s a diagram I made:
image1677×705 47.2 KB

1 Like
9


(ignore how its bugging out)

code i used
local slopePart = workspace:WaitForChild("SlopePart")
local block = workspace:WaitForChild("Block")

local plane = workspace:WaitForChild("Plane")

local raycastParams = RaycastParams.new()
raycastParams.FilterType = Enum.RaycastFilterType.Exclude
raycastParams.FilterDescendantsInstances = {plane, block}

local function visualizeVector(vector: Vector3)
	local vectorPart = Instance.new("Part")
	vectorPart.Size = Vector3.new(0.2, 0.2, vector.Magnitude)
	vectorPart.CFrame = CFrame.lookAt(block.Position + vector/2, block.Position + vector * 1.5)
	vectorPart.Anchored = true
	vectorPart.CanCollide = false
	vectorPart.BrickColor = BrickColor.new("Bright red")
	vectorPart.Parent = workspace
	return vectorPart
end

local normalVisual, rightVisual, slopeVisual, downVisual
while true do
	local raycastResult = workspace:Raycast(block.Position, Vector3.yAxis * -100, raycastParams)
	local rightVector = block.CFrame.RightVector

	if raycastResult then
		local normal = raycastResult.Normal
		local slopeVector = normal:Cross(rightVector)
		if slopeVector:Dot(block.CFrame.LookVector) < 0 then
			slopeVector = -slopeVector
		end

		local _, _ = pcall(function()
			normalVisual:Destroy()
			rightVisual:Destroy()
			slopeVisual:Destroy()
			downVisual:Destroy()
		end)

		normalVisual = visualizeVector(normal * 5)
		rightVisual = visualizeVector(rightVector * 5)
		slopeVisual = visualizeVector(slopeVector * 5)
		downVisual = visualizeVector(Vector3.yAxis * -5)

		plane.CFrame = CFrame.lookAt(block.Position, block.Position + slopeVector)
	end

	task.wait()
end
