You can write your topic however you want, but you need to answer these questions:
-
What do you want to achieve? Keep it simple and clear!
I want to check if the distance between a part (whose Y is ALWAYS 0.5) and 0,0.5,0. If the distance is 0, then clone a model and use :PivotTo() to position it at the part.Spawn : : Part (2 colons define the Class of an object). But for some reason, it does not seem to be working. -
What is the issue? Include screenshots / videos if possible!
local DefaultStructures = script.Structures["Default Structures"] -- default structures (starter house at 0m, car barn at 0m)
local Structures = script.Structures.Structures
workspace.DescendantAdded:Connect(function(des) -- something got added to workspace
if des:IsDescendantOf(workspace.RoadsFolder) and des:IsA("Model") then -- descendant is a road
print(des.ClassName, des.Name)
local clone = DefaultStructures["Starter House"]:Clone()
clone.Parent = workspace
print(des.Road.Position)
if (Vector3.new(0,0.5,0) - des.Road.Position).Magnitude == 0 then -- road is the first one to be generated (aka its at 0m)
clone:PivotTo(des:FindFirstChild("Road"):FindFirstChild("Spawn2").CFrame)
--elseif
end
end
end)
-
What solutions have you tried so far? Did you look for solutions on the Developer Hub?
I tried subtracting the position of the part from 0,0,0 instead, still nothing. Mind you that this is pairing with a Road Generation script to generate structures beside roads. The roads generate in the -Z direction from 0,0,0. If it helps, here’s the Road Generation script as well:
local roadLength = 35 -- Length of each road segment
local totalSegments = math.huge -- Total number of segments
local roadWidth = 65 -- Width of the road (default 65)
local roadHeight = 10 -- Thickness/height of the road part
local maxTurnAngle = 6 -- Maximum turn angle in degrees per segment for smooth curves
local maxDeviation = 20 -- Maximum allowed cumulative deviation before forcing a correction
local cumulativeTurn = 0 -- Track cumulative turns to correct large deviations
local correctionMode = false -- To determine if we're in correction mode
local correctionTarget = 0 -- The target to correct the cumulative turn
local lastRoad = 1 -- DO NOT CHANGE TO 2 OR STRUCTURE GENERATION SCRIPT WILL BREAK
-- Store the last placed road's CFrame for precise positioning
local lastCFrame = CFrame.new(Vector3.new(0, -.5, 0), Vector3.new(0, -.5, -1)) -- Initially pointing along negative Z-axis
local segmentCount = 0 -- Keep track of how many segments have been created
local unionParts = {} -- Table to store primary parts for unioning
local currentIndex = 0
-- Create a function to generate the road
local function createRoad()
for i = 1, totalSegments do
local roadSegment
if lastRoad == 1 then
lastRoad = 2
roadSegment = script.Road:Clone()
else
lastRoad = 1
roadSegment = script.Road2:Clone()
end
currentIndex += 1
roadSegment.Parent = workspace.RoadsFolder
roadSegment.Name = "Road " .. currentIndex
for _, v in roadSegment:GetChildren() do
v.Anchored = true
wait()
end
local turnAngle = 0
if correctionMode then
turnAngle = math.clamp(-cumulativeTurn, -maxTurnAngle, maxTurnAngle)
cumulativeTurn = cumulativeTurn + turnAngle
if math.abs(cumulativeTurn) <= 0.1 then
correctionMode = false
cumulativeTurn = 0
end
else
local shouldCurve = math.random(1, 6) == 1
if shouldCurve then
turnAngle = math.random(-maxTurnAngle, maxTurnAngle)
cumulativeTurn = cumulativeTurn + turnAngle
end
if math.abs(cumulativeTurn) > maxDeviation then
correctionMode = true
end
end
-- Apply the turn angle to the road segment
local newCFrame = lastCFrame * CFrame.Angles(0, math.rad(turnAngle), 0)
newCFrame = newCFrame + newCFrame.LookVector * roadLength -- Move forward by road length
-- Set the road segment's CFrame to align it properly
roadSegment:SetPrimaryPartCFrame(newCFrame)
lastCFrame = newCFrame -- Update lastCFrame to this road segment's CFrame
-- Add the PrimaryPart of the road segment to the table for unioning
table.insert(unionParts, roadSegment.PrimaryPart)
-- After 5 parts, union them together and set the pivot to the last road segment
segmentCount = segmentCount + 1
if segmentCount % 2 == 0 then
local basePart = unionParts[1] -- Use the last (5th) road's primary part as the base for the union
local unionedPart = nil
pcall(function()
-- Create the union with the pivot set to the last part
unionedPart = basePart:UnionAsync({unpack(unionParts, 1, 1)}) -- Union the first 4 parts with the 5th
end)
-- If union is successful, configure and parent the unioned part
if unionedPart then
unionedPart.Parent = workspace.RoadsFolder
unionedPart.Anchored = true
-- Move the unioned part to the position of the last road segment (5th part's CFrame)
unionedPart.CFrame = basePart.CFrame
-- Clean up the original parts
for _, part in ipairs(unionParts) do
part.Parent:Destroy() -- Remove the entire model that contains the PrimaryPart
end
-- Set the lastCFrame to the pivot of the unioned part to continue the correct positioning
lastCFrame = unionedPart.CFrame
end
-- Clear the unionParts table for the next batch
unionParts = {}
end
end
end
-- Call the function to generate the road
createRoad()
Note: The structure generation script throws this error:
Postion is not a valid member of Part "Workspace.RoadsFolder.Road 2.Road"

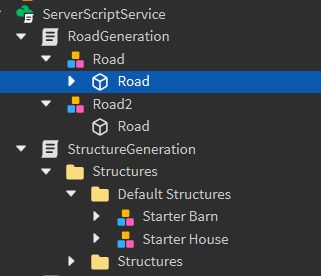

Also, by the error i’m sure you can probably tell but even though the lastroad variable in the Road generation script is 1 (which is supposed to clone the road model called Road and not Road2 (not to be confused with Road 2, Road2 (with no space) is the name of the second type of road model while Road 2 with a space, here 2 is the number of roads generated. I’m not sure why it thinks that there are 2 roads generated where it’s supposed to be Road 1 (no model called Road 1 gets created).
Thank you in advance to anyone who can solve these few problems!
