BlueprintRobloxEditor

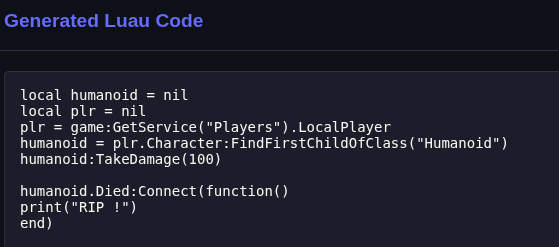

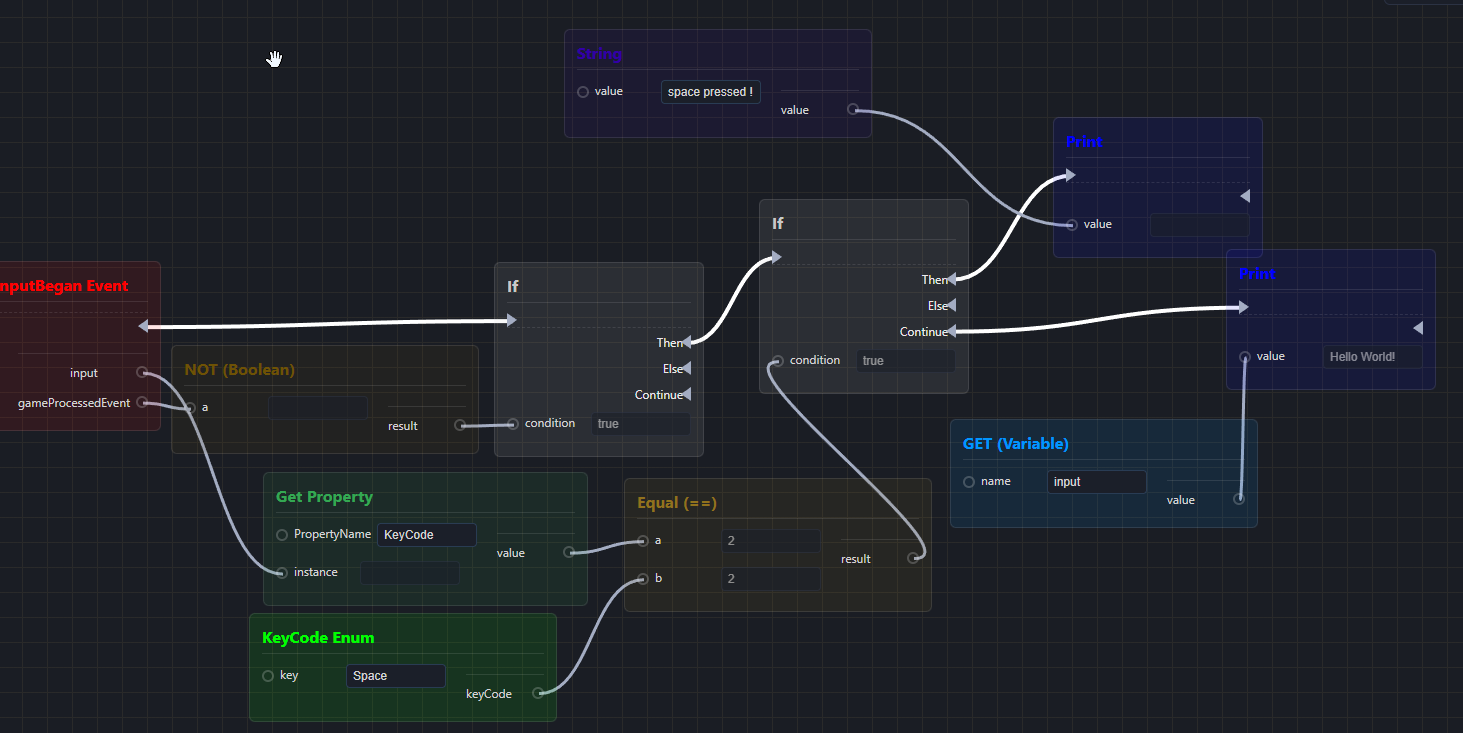

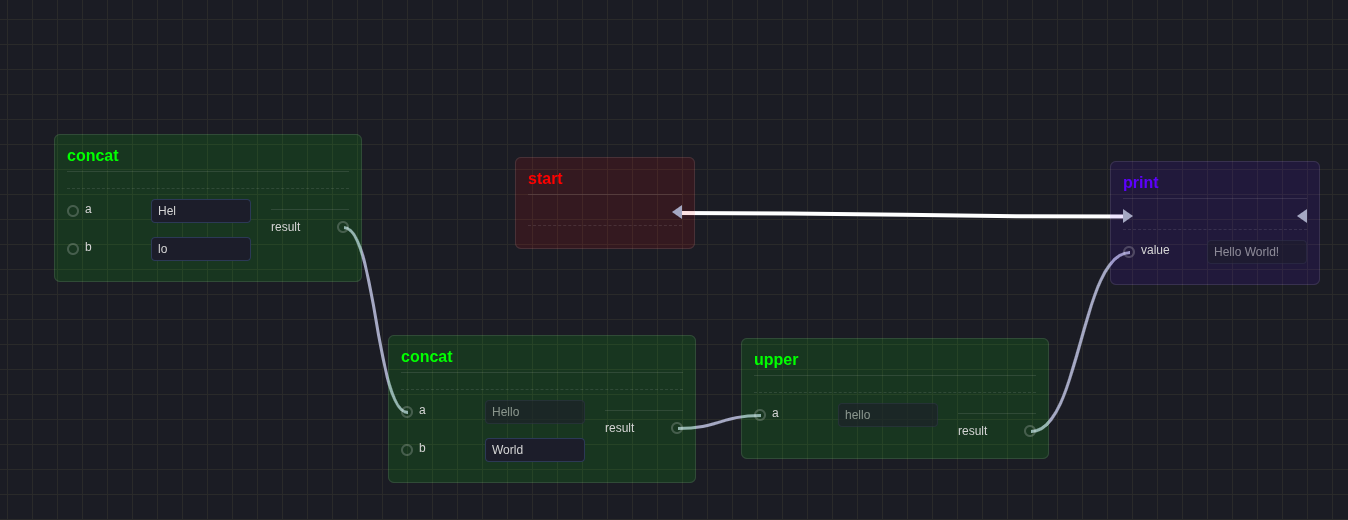

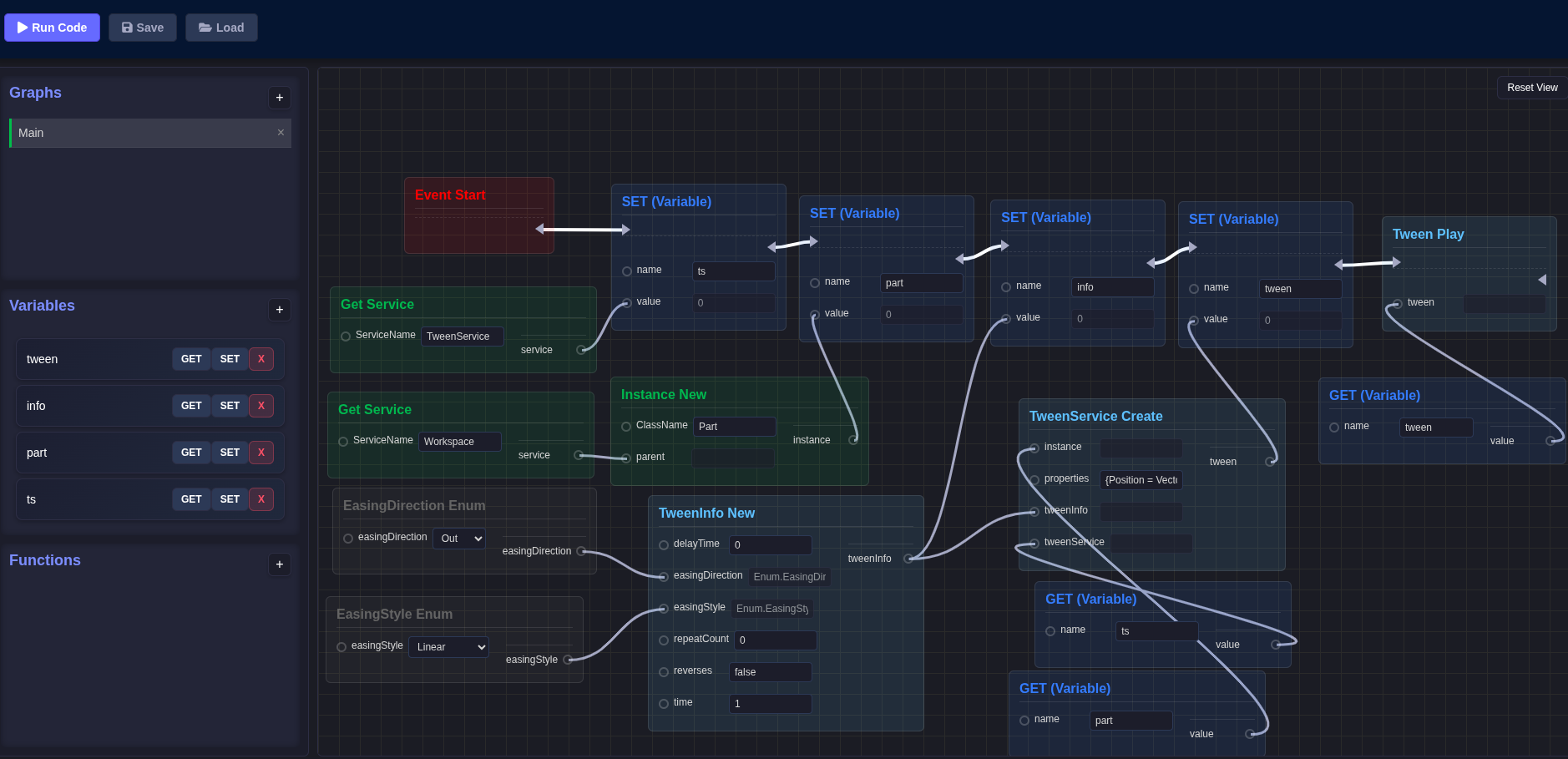

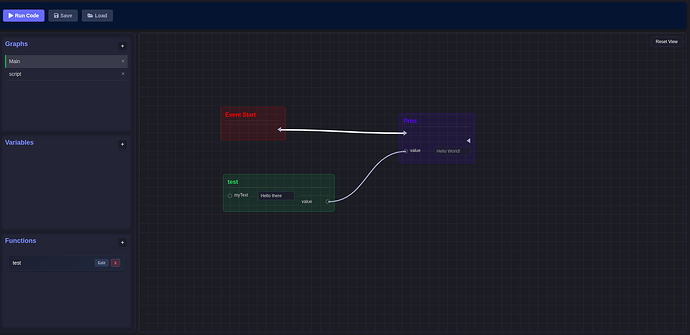

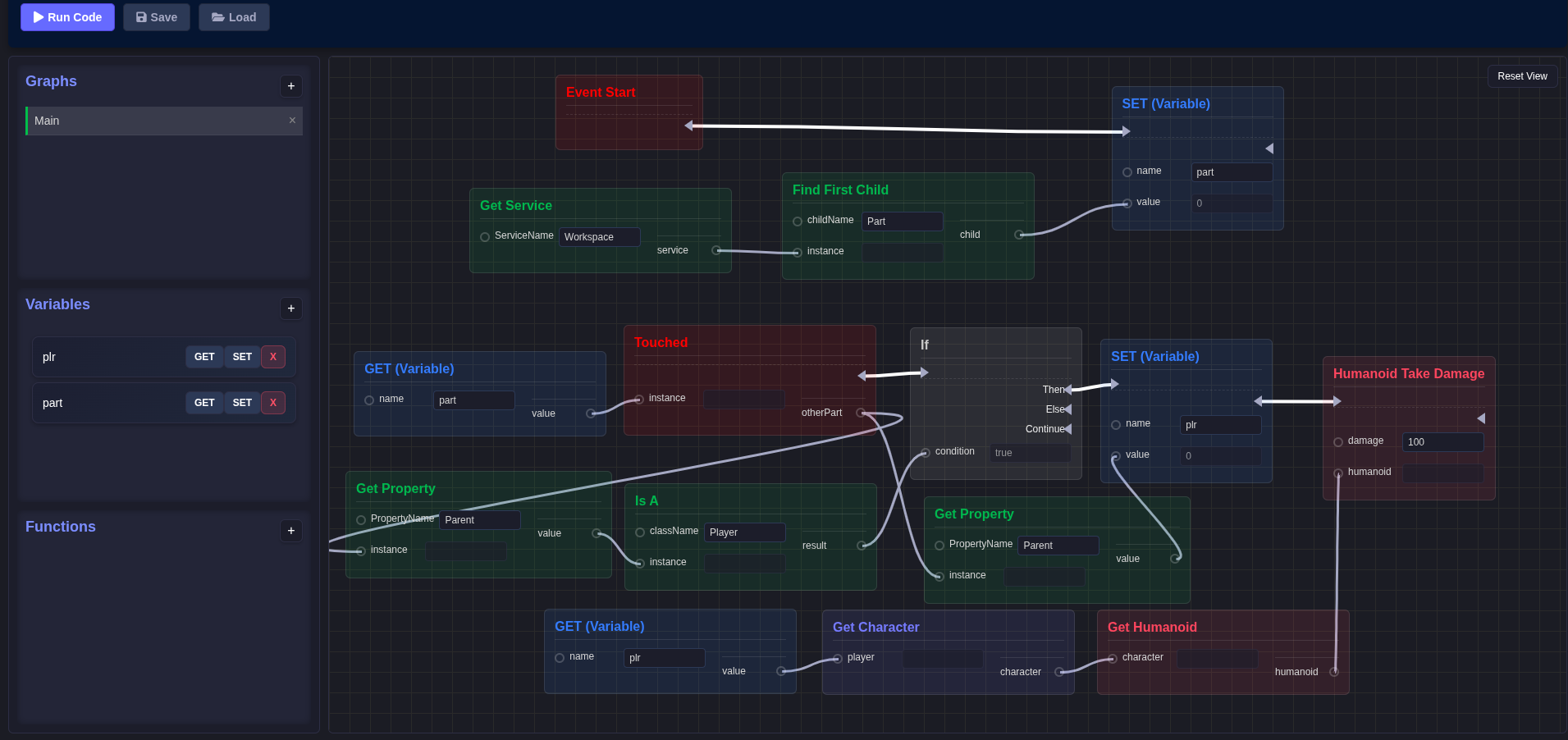

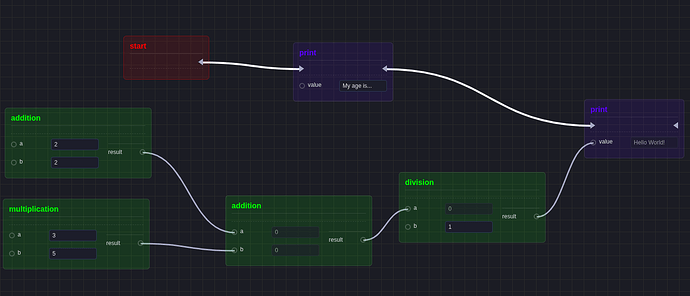

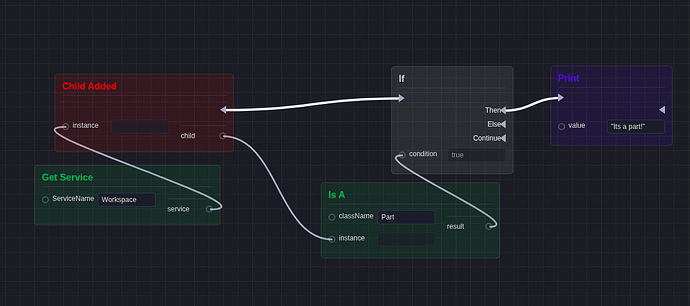

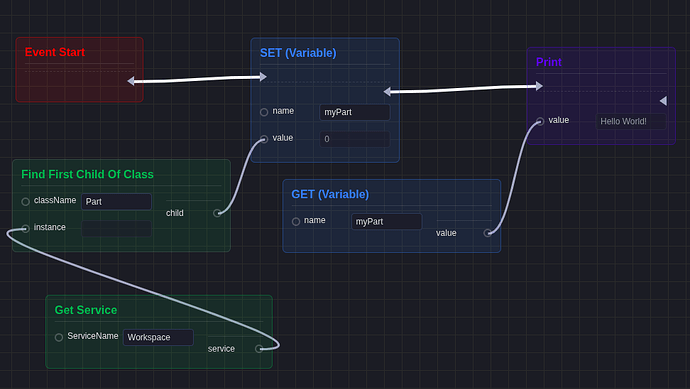

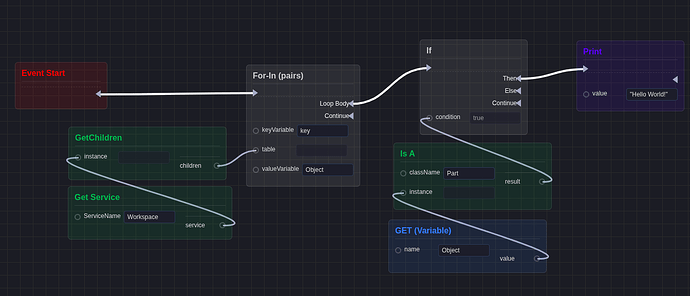

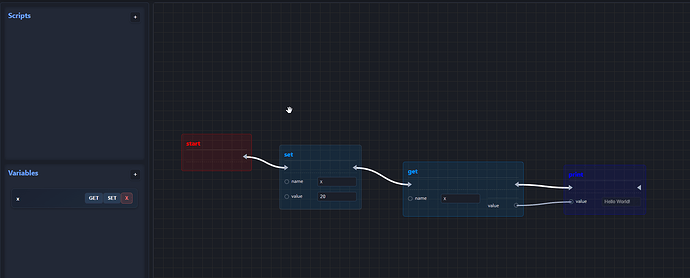

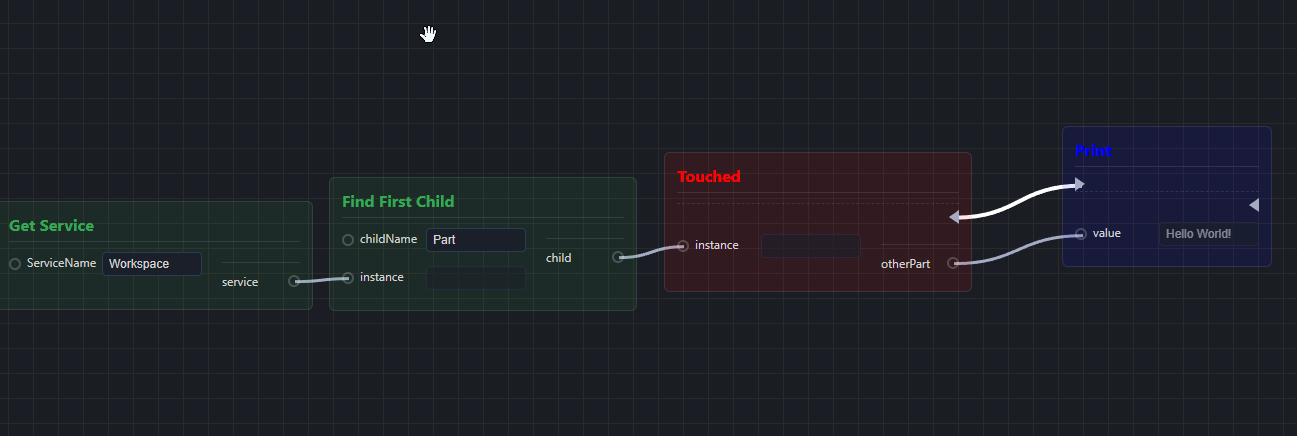

BRE (Blueprint Roblox Editor) is a blueprint editor for creating Roblox games using a plugin within Roblox Studio.
The project uses Rojo, a VS Code extension for managing Roblox projects.
DevForum post: [V2.0] Blueprint Roblox Editor : Visual programming tools for Luau
Latest release: https://github.com/Program132/BlueprintRobloxEditor/releases/tag/V2.0
Installation
You can clone the repository and build the plugin yourself:
git clone https://github.com/Program132/BlueprintRobloxEditor.git
cd BlueprintRobloxEditor
rojo build -o BlueprintRobloxEditor.rbxmx
You can also download the latest release!
Once you have the plugin, copy it to your Roblox plugins folder:
Windows (PowerShell):
Copy-Item "BlueprintRobloxEditor.rbxmx" "$env:LOCALAPPDATA\Roblox\Plugins\BlueprintRobloxEditor.rbxmx"
- Windows path:
%LOCALAPPDATA%\Roblox\Plugins\ - Mac path:
/Users/$USER/Library/Application Support/Roblox/Versions/<version>/Plugins

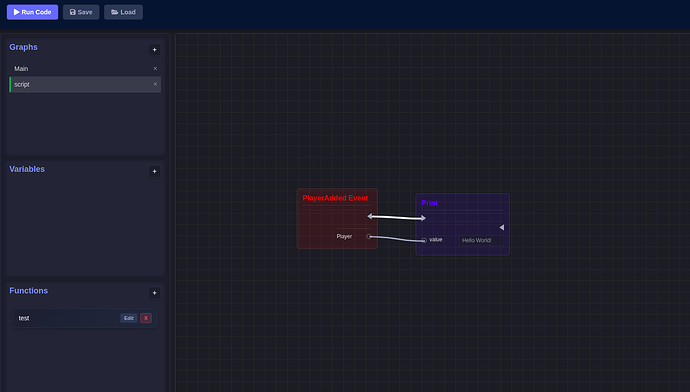

Managing Projects
Roblox plugins have limited access to your local file system, so project management works slightly differently:
Saving a Project
- Click the Save Project button in the top bar.
- The plugin will automatically save your state inside Roblox Studio’s local plugin settings so you don’t lose progress if you close Studio.
- For backing up to an actual file: The plugin creates a StringValue named __BlueprintExport under the Workspace.
- Select __BlueprintExport in the Explorer, go to the Properties panel, and copy the text in the Value property.
- Paste this text into a new text file and save it as my_project.json on your computer.
Loading a Project
- To load an external project file, click Open Project in the top bar.
- A native file dialog will appear. Select your .json project file.
- The Blueprint Editor will now load and render the project!

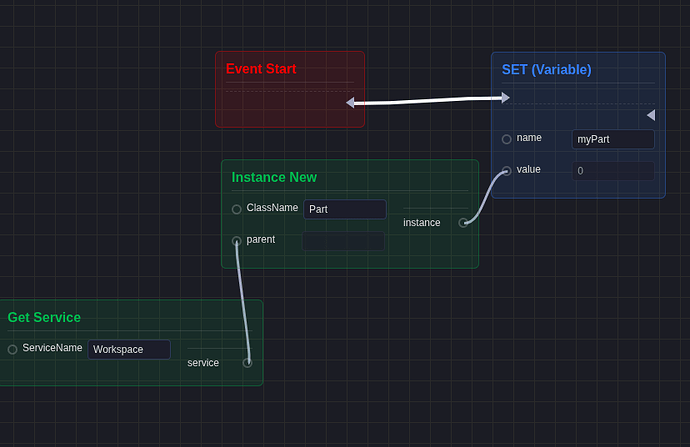

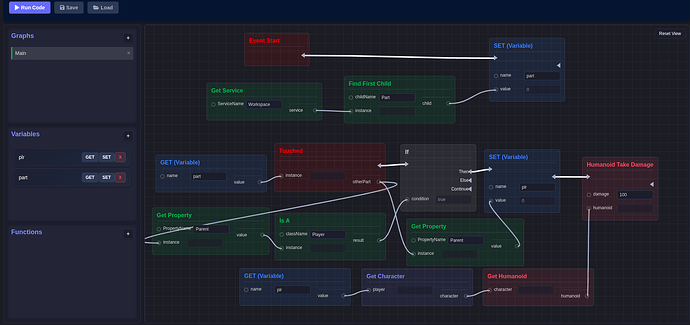

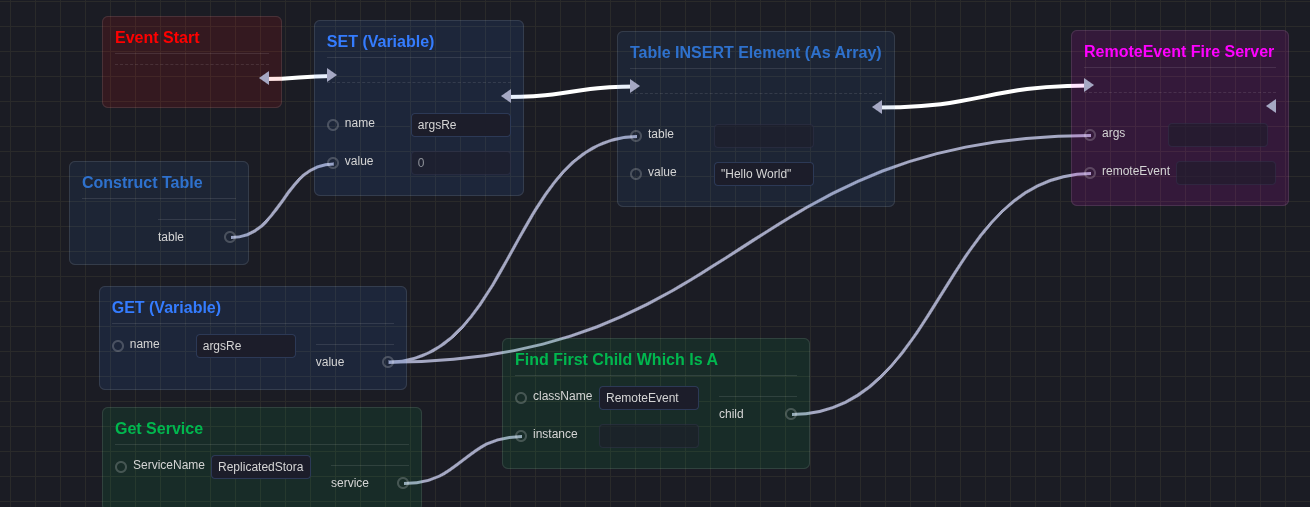

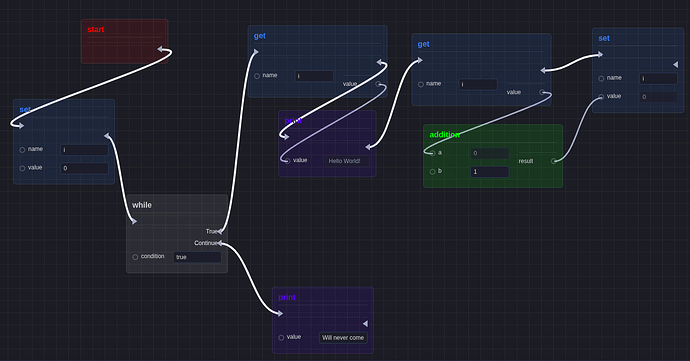

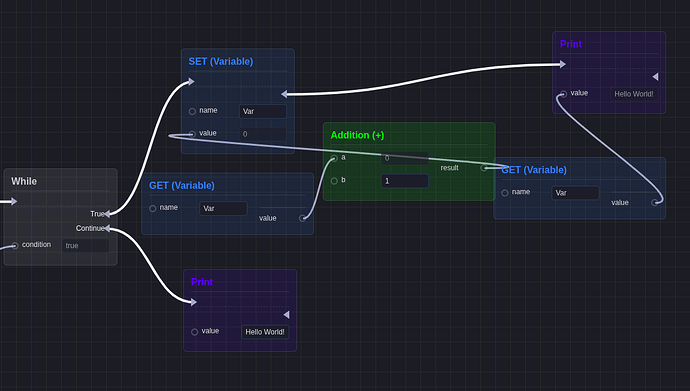

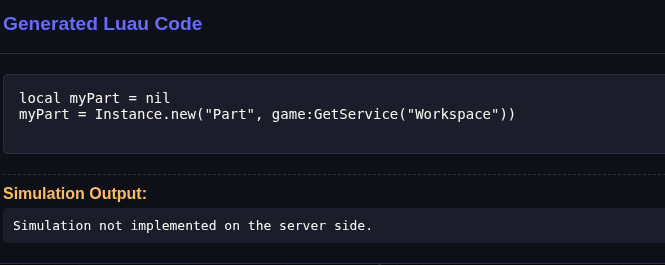

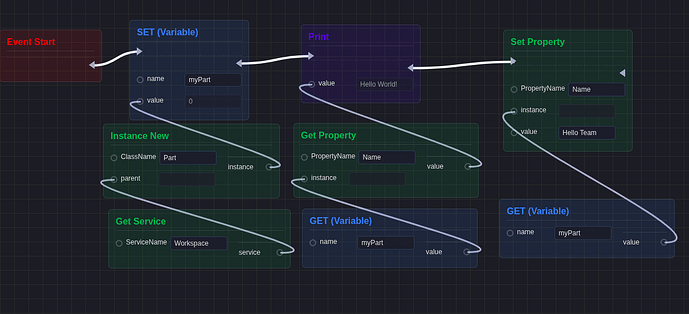

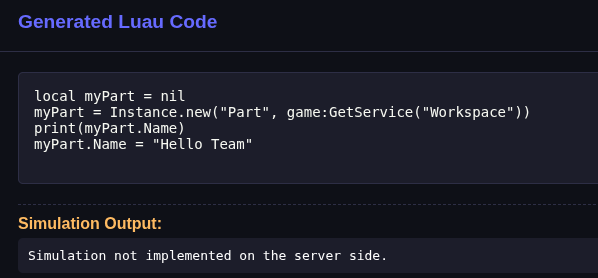

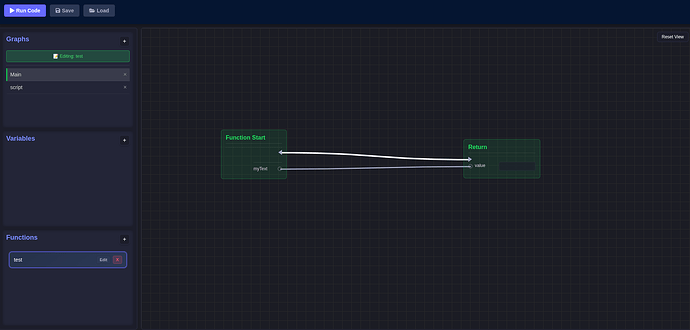

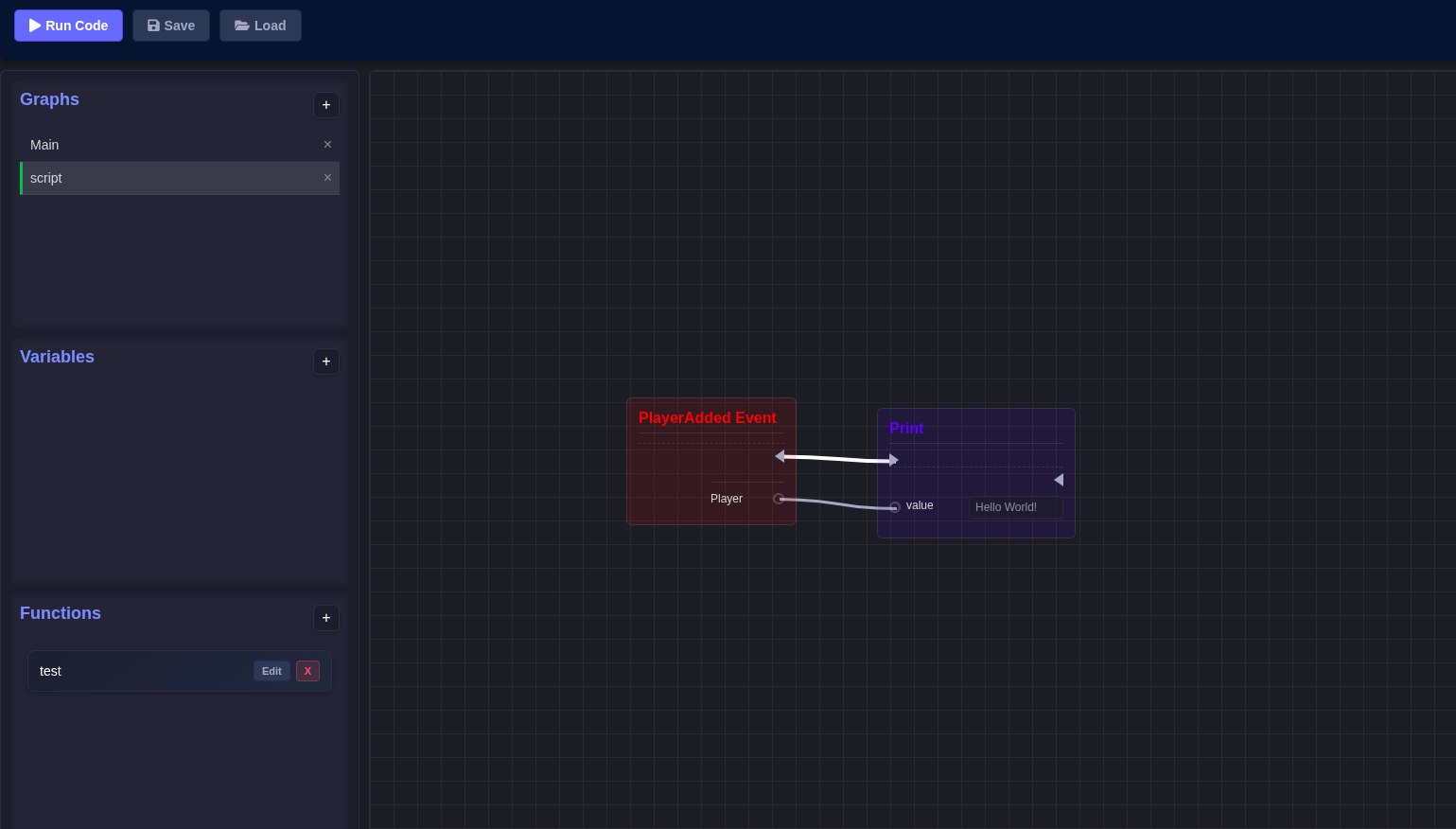

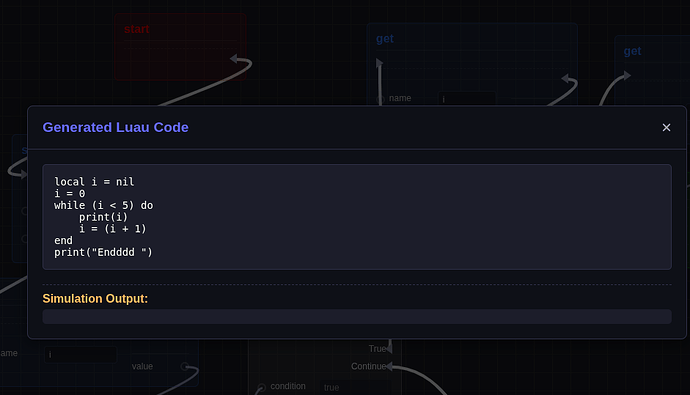

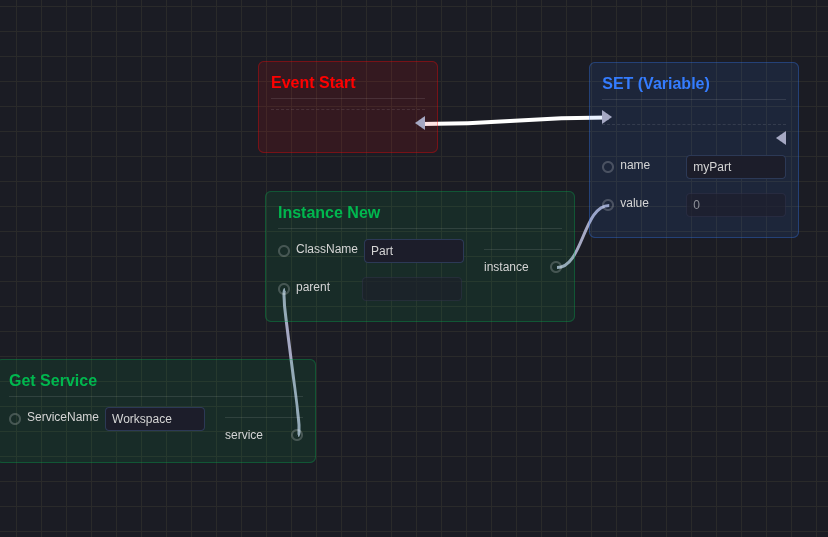

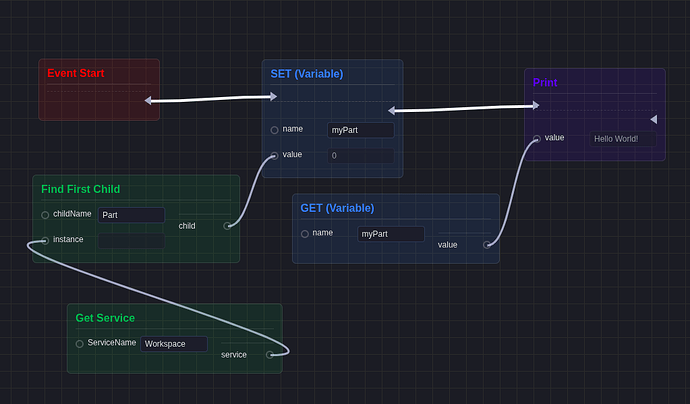

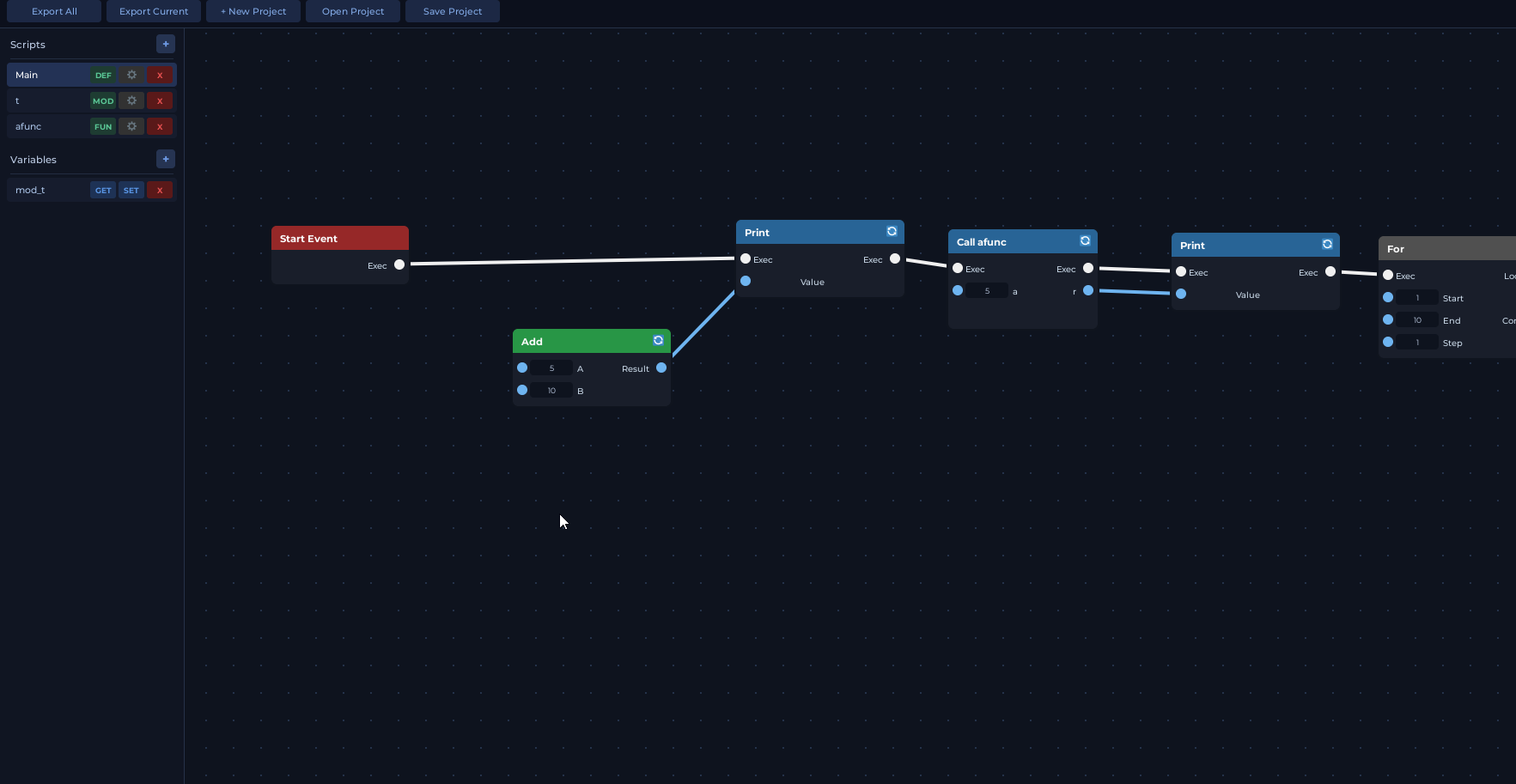

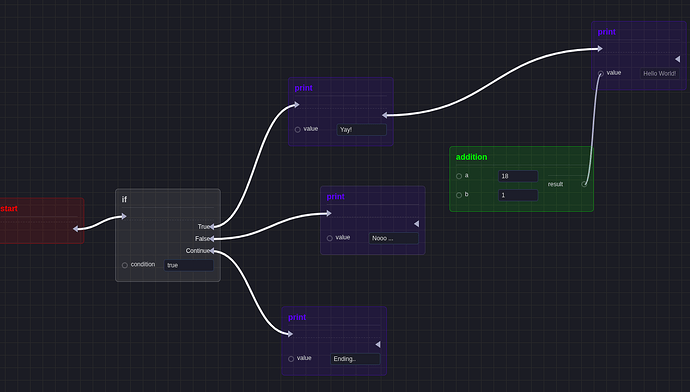

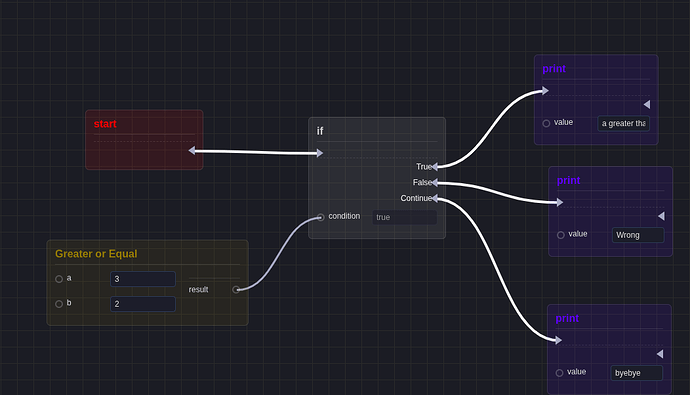

Controls & Shortcuts
| Action | Control |
|---|---|
| Add Node | Right-click on the canvas to open the node menu. |
| Move Node | Drag the header of any node. |
| Connect Pins | Drag from an output pin to an input pin. |
| Delete Node | Hover over a node and press Delete or Backspace. |
| Pan Canvas | Right-click or Middle-click and drag the background. |
| Zoom | Use the Mouse Wheel to zoom in/out. |

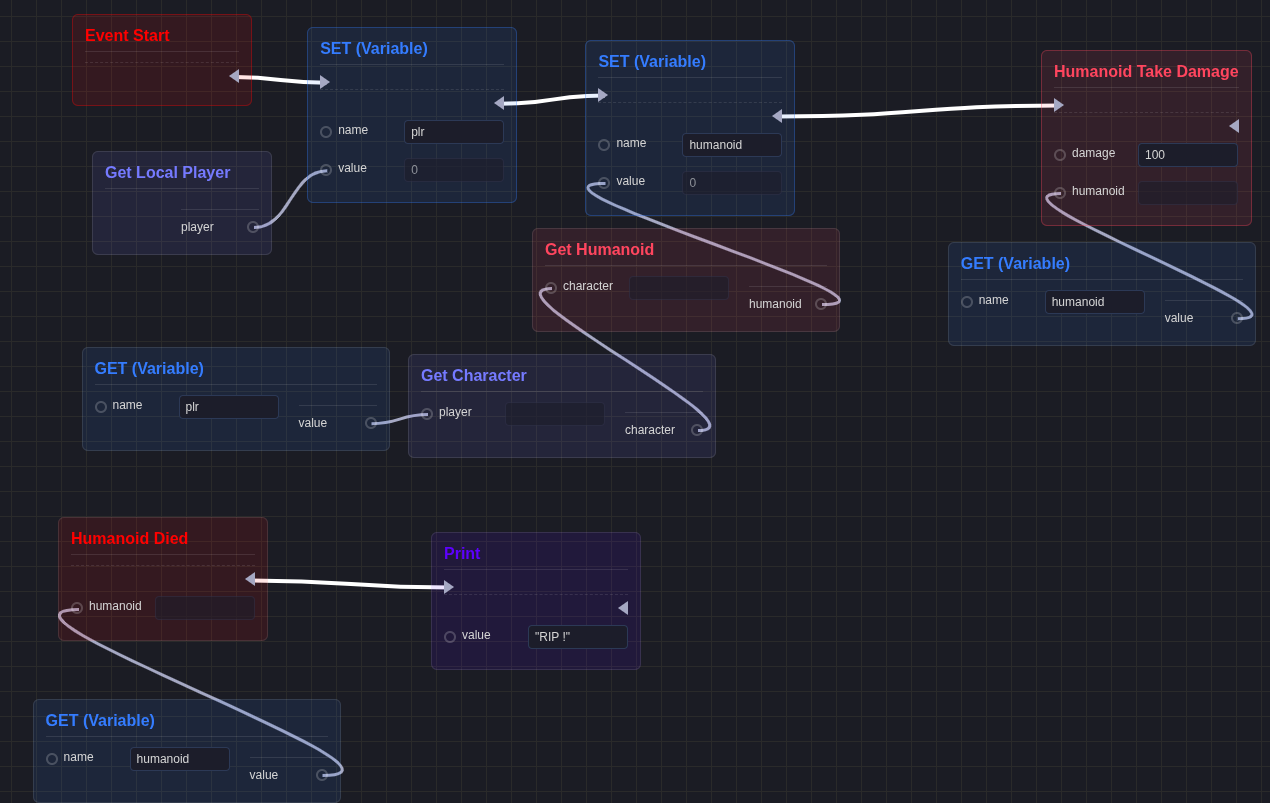

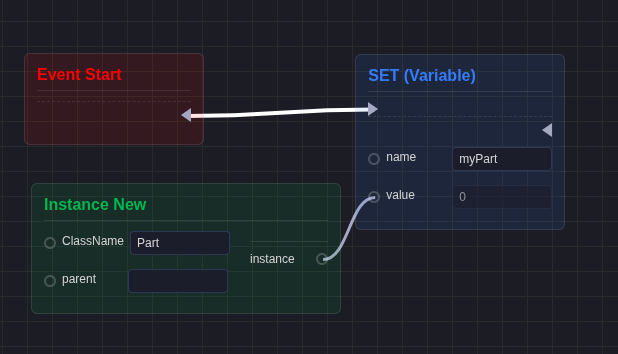

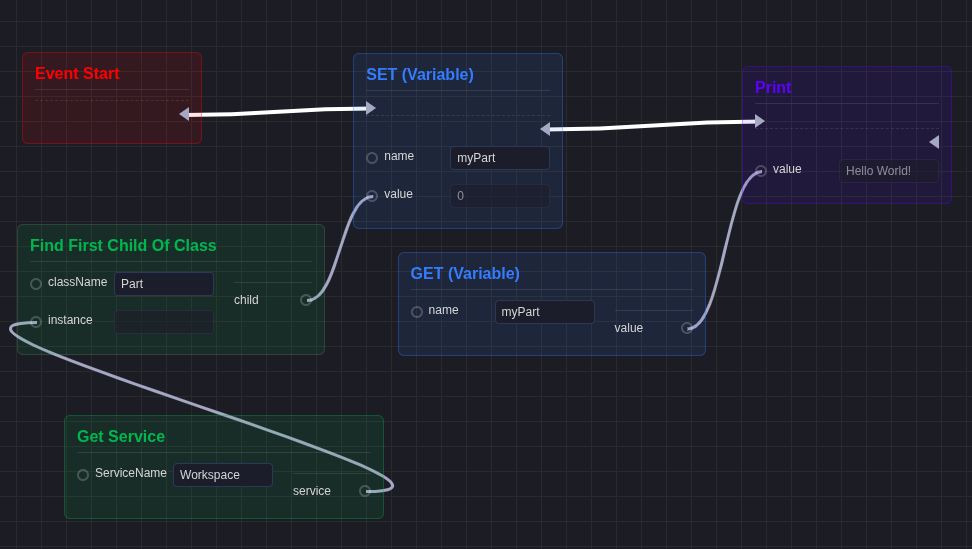

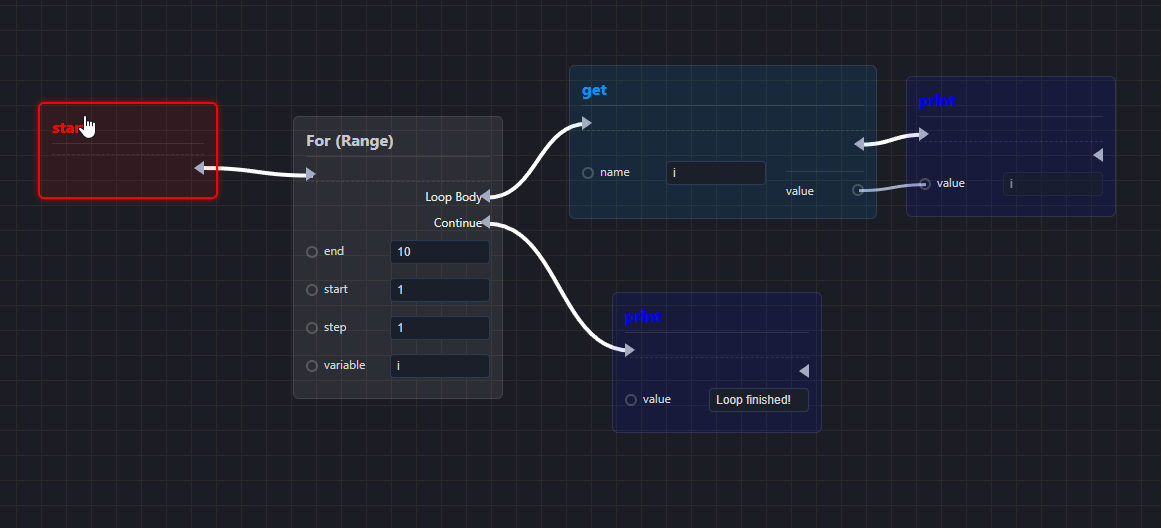

Creating Custom Nodes
Adding a new node to the editor is simple. Each node is a Luau module located in src/shared/nodes/.
1. Node Structure
Create a new file (e.g., MyNode.luau) and follow this template:
local Node = require(script.Parent.Parent.Node) -- Adjust path
local NodeType = require(script.Parent.Parent.NodeType)
local IO = require(script.Parent.Parent.IO)
local MyNode = {}
MyNode.__index = MyNode
setmetatable(MyNode, Node)
function MyNode.new()
-- NodeType.METHOD for nodes with Exec pins, NodeType.FUNCTION for pure data nodes
local self = Node.new("My Node Name", NodeType.METHOD)
setmetatable(self, MyNode)
-- Customize appearance
self:editColor(Color3.fromRGB(100, 150, 200))
-- Add pins
self:addInput(IO.Input.new("Exec", "")) -- Exec pin
self:addInput(IO.Input.new("Text", '"Hello"'))
self:addOutput(IO.Output.new("Exec", ""))
return self
end
2. Examples
Example A: Print (Method Node)
A node that performs an action and has execution flow.
function MyNode.new()
local self = Node.new("Print", NodeType.METHOD)
setmetatable(self, MyNode)
self:addInput(IO.Input.new("Exec", ""))
self:addInput(IO.Input.new("Text", '"Hello"'))
self:addOutput(IO.Output.new("Exec", ""))
return self
end
function MyNode:toLuau()
local text = self:getInput("Text").Value
return `print({text})\n`
end

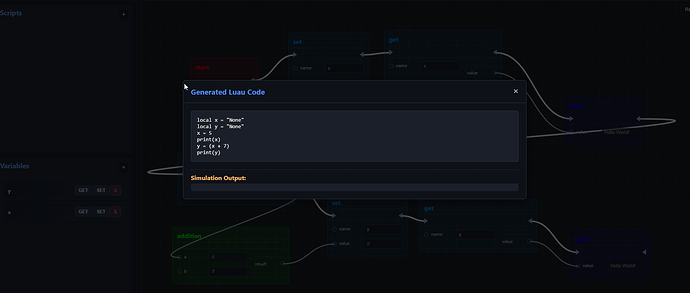

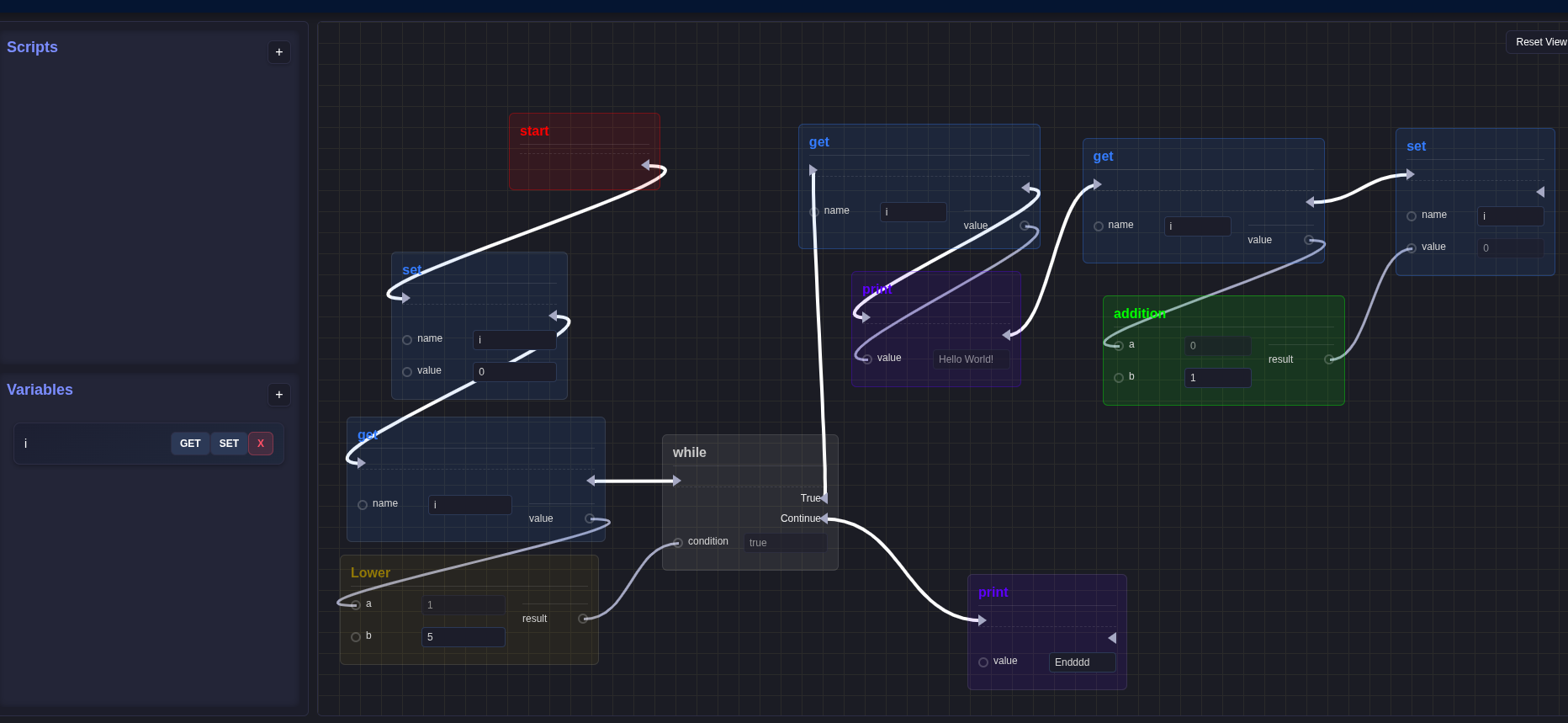

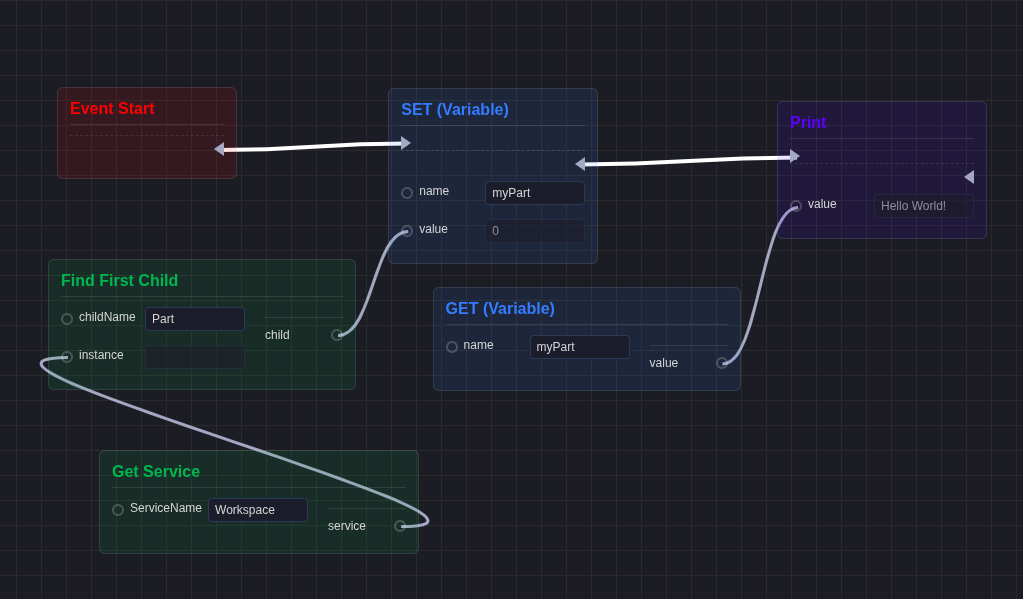

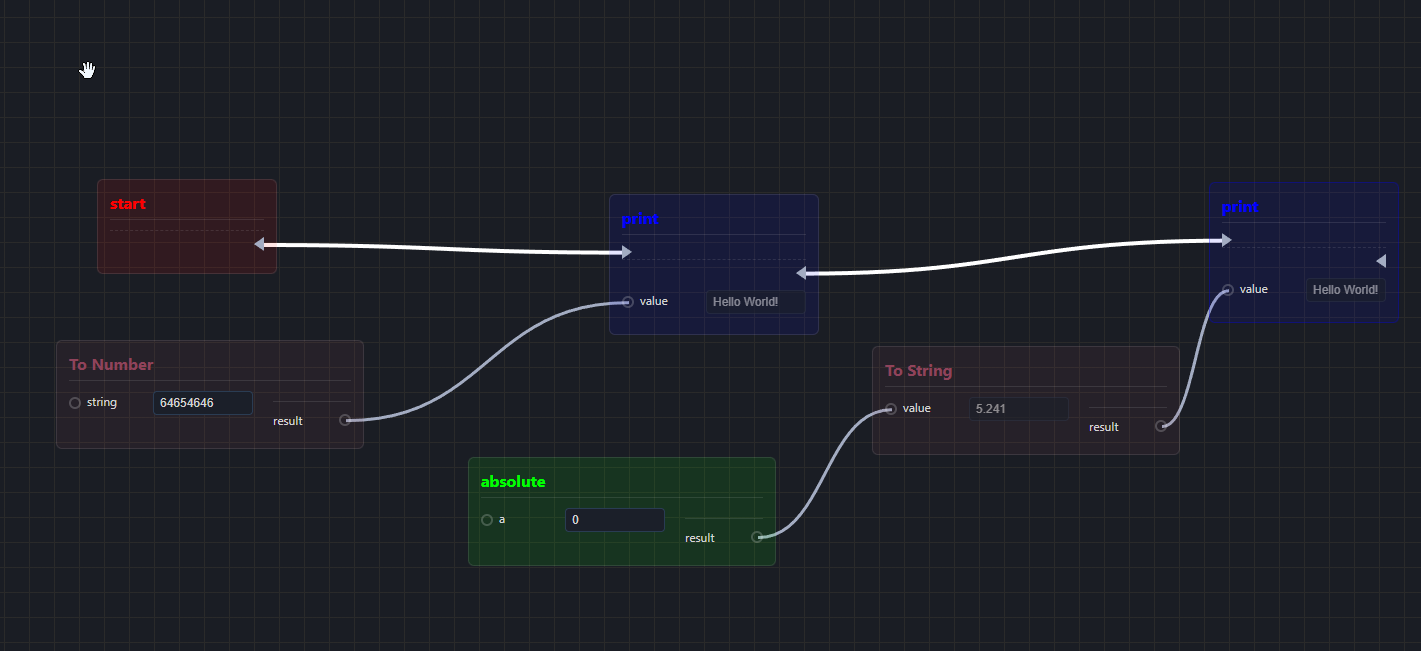

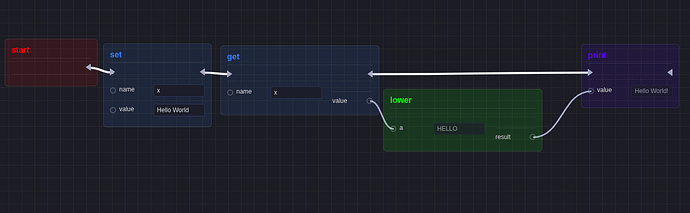

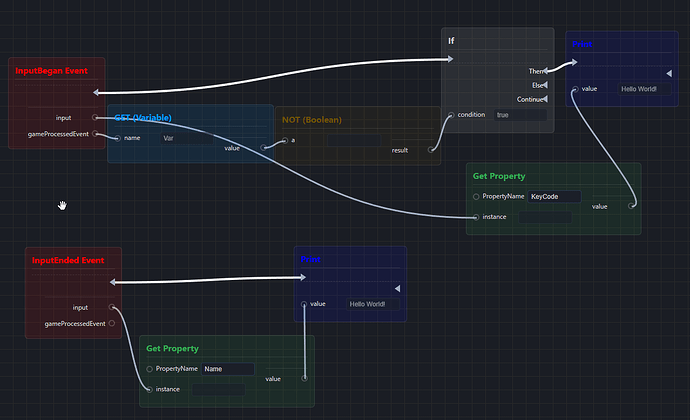

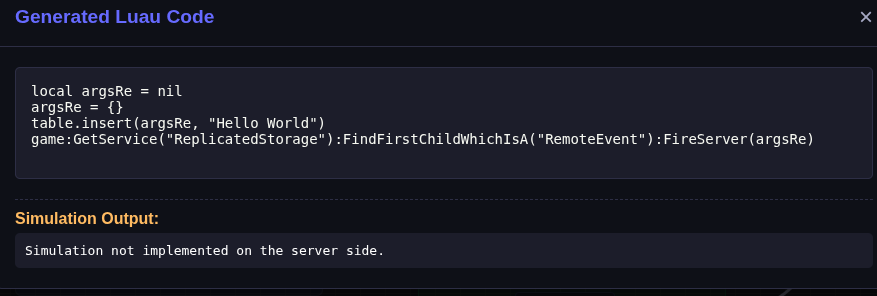

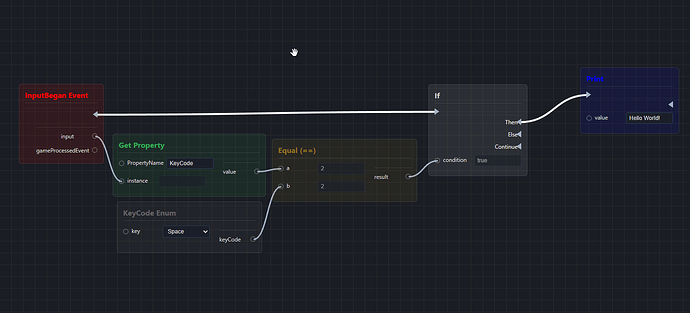

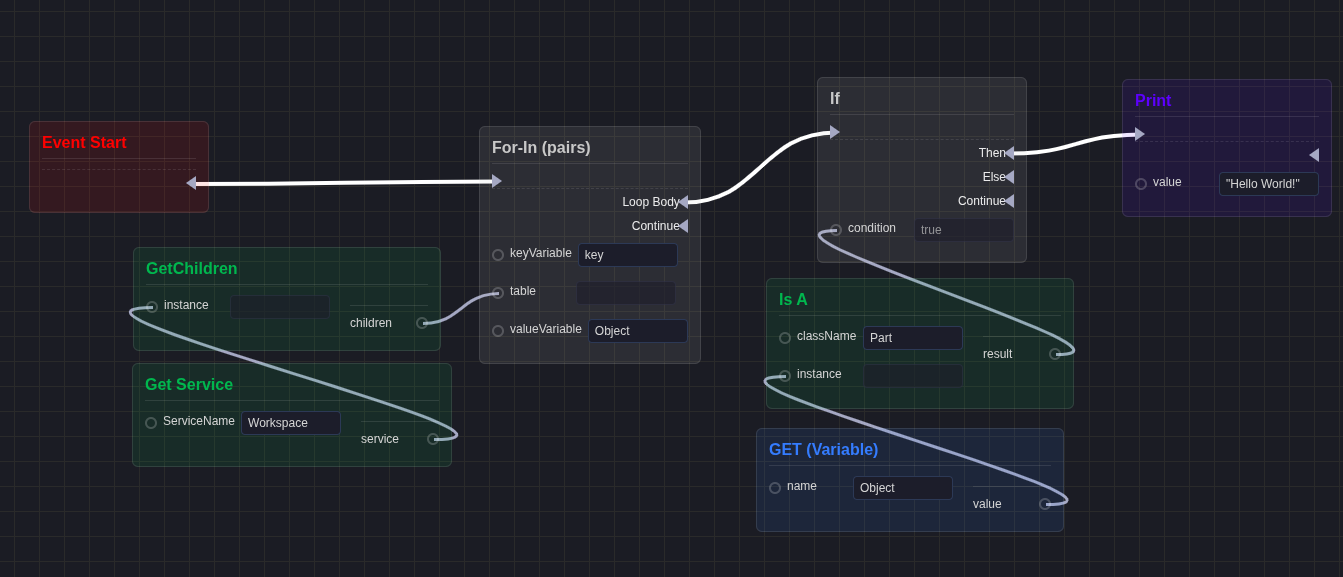

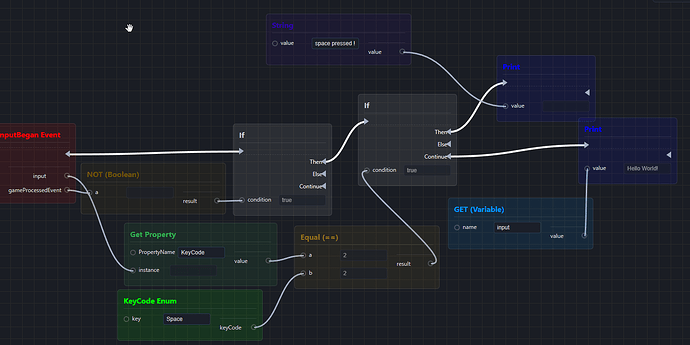

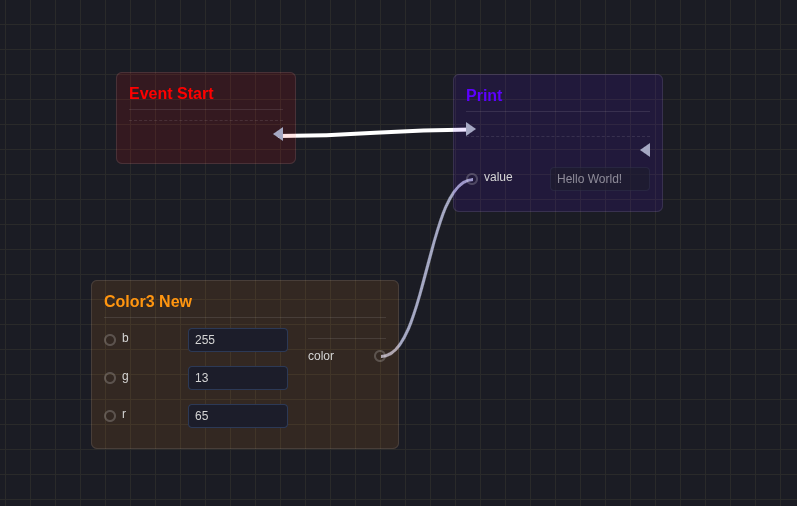

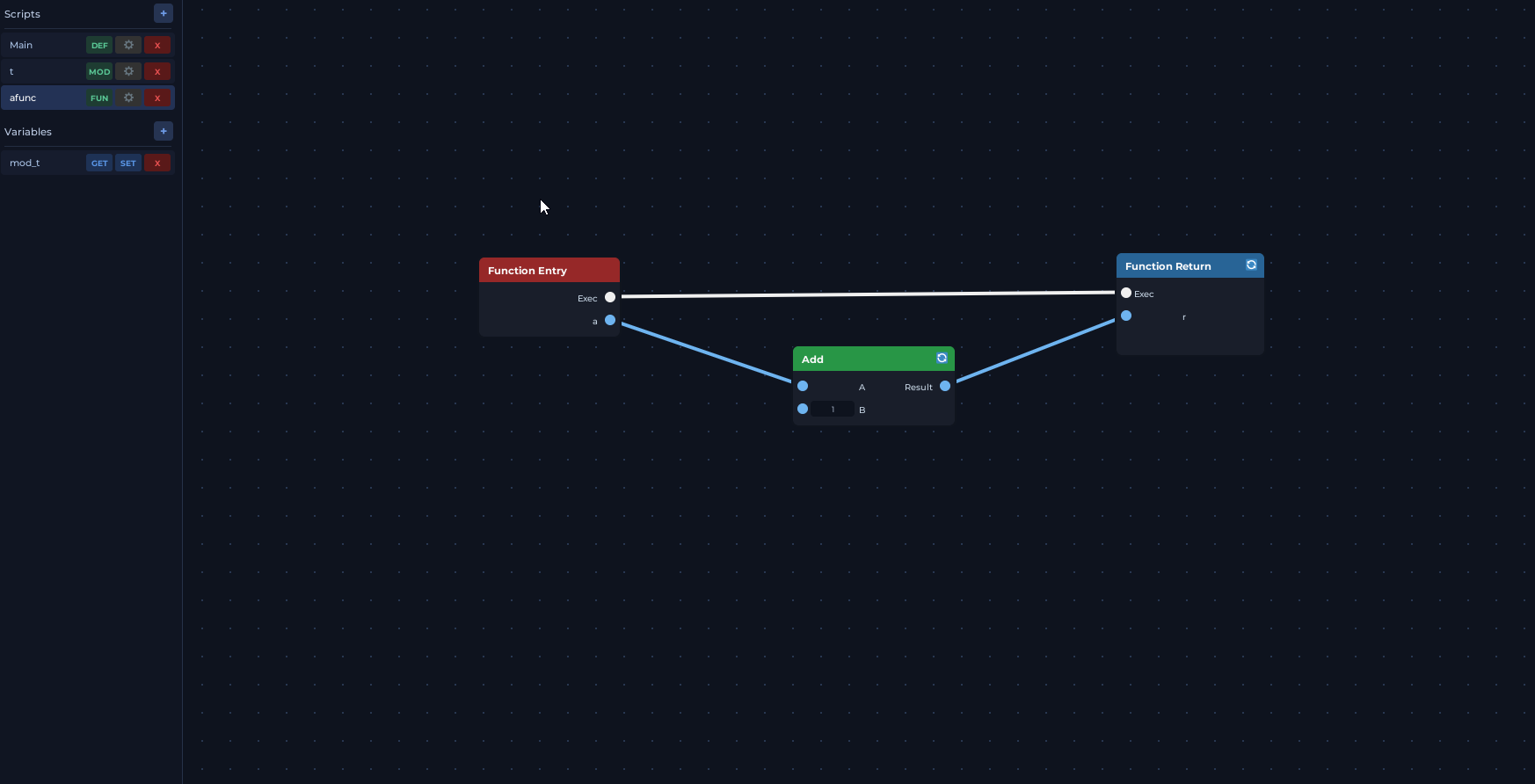

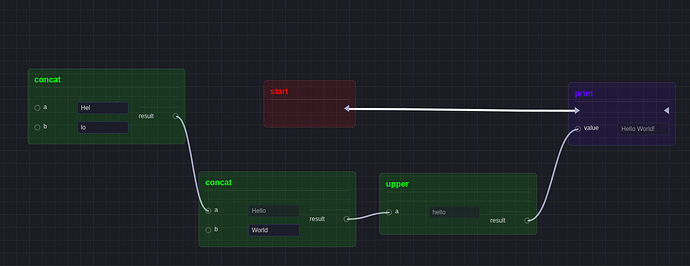

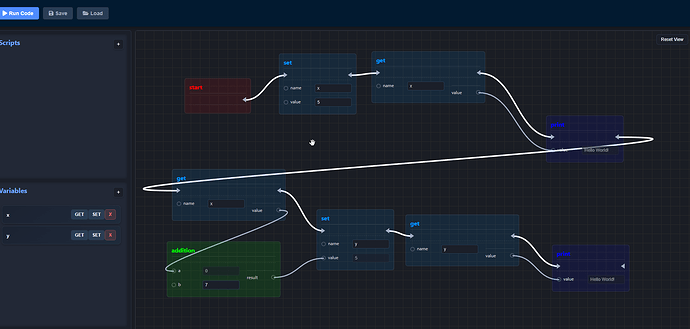

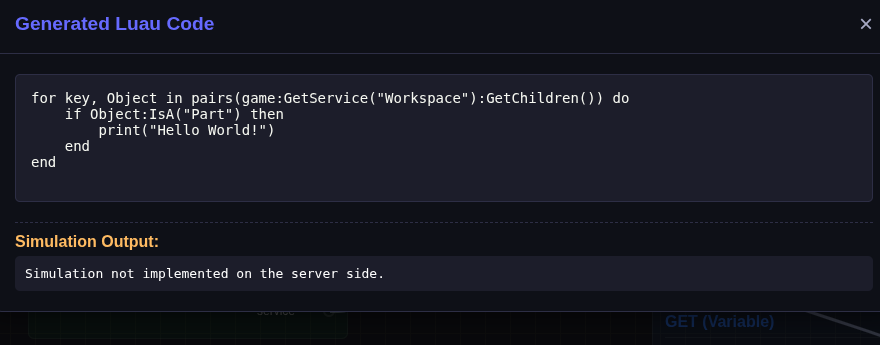

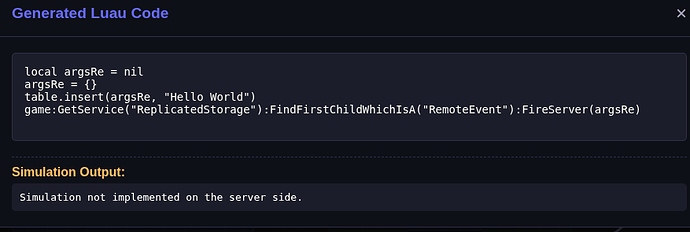

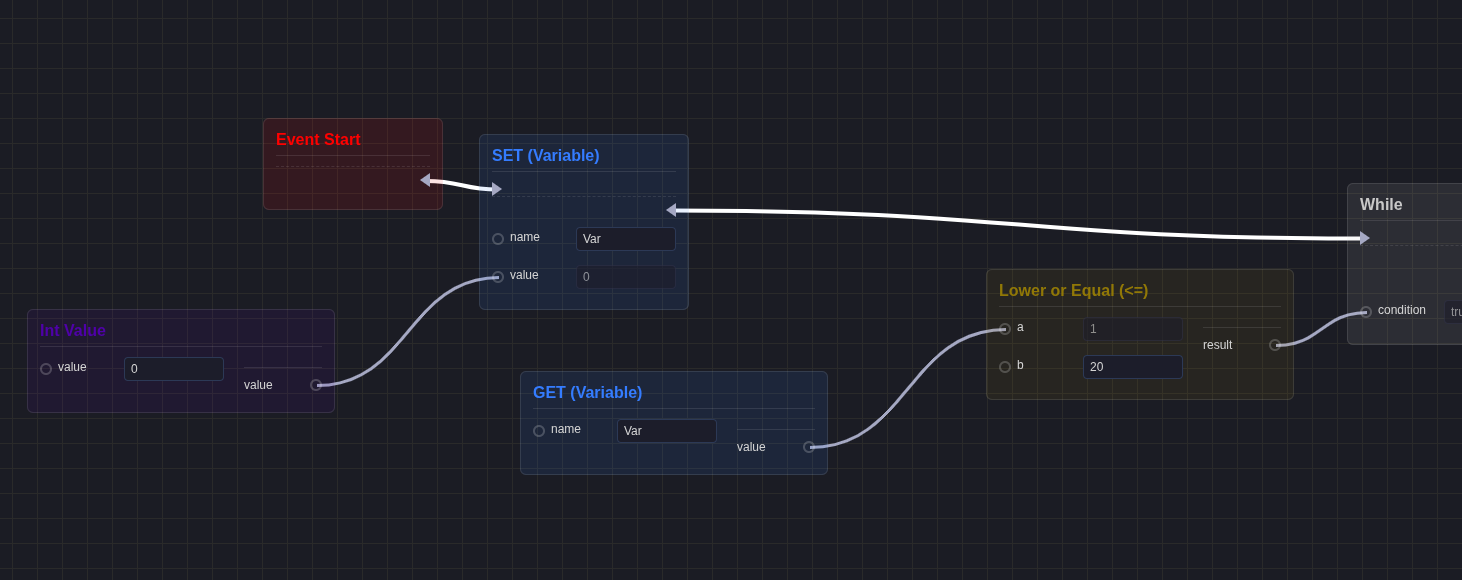

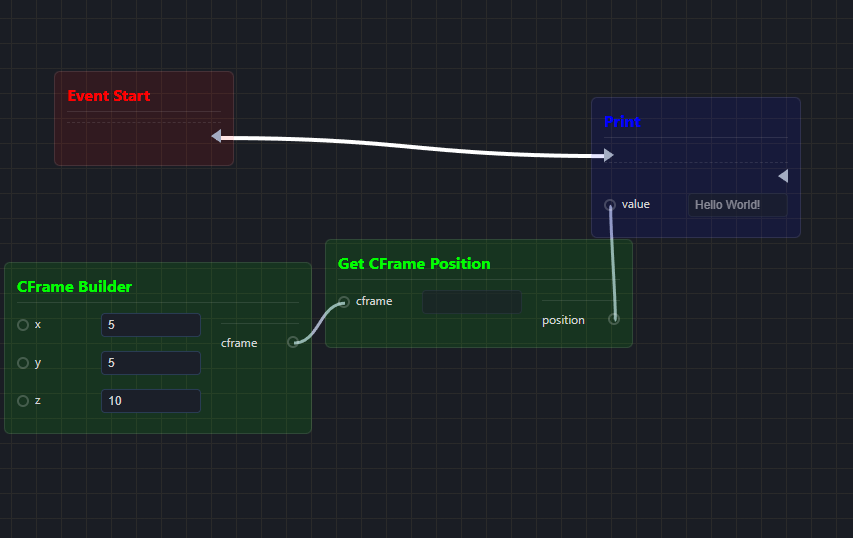

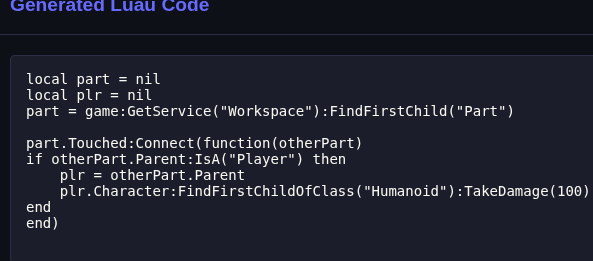

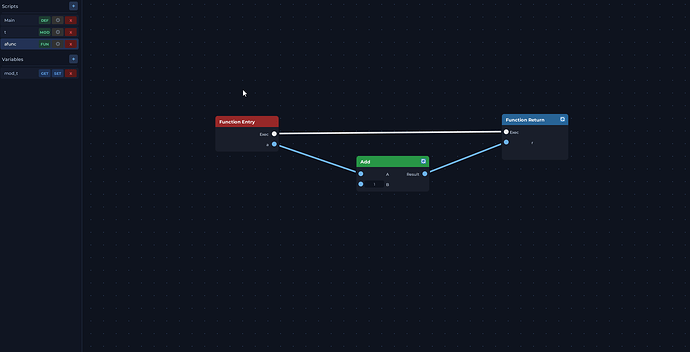

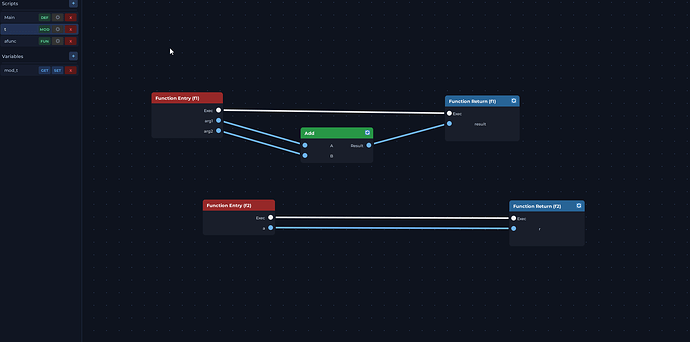

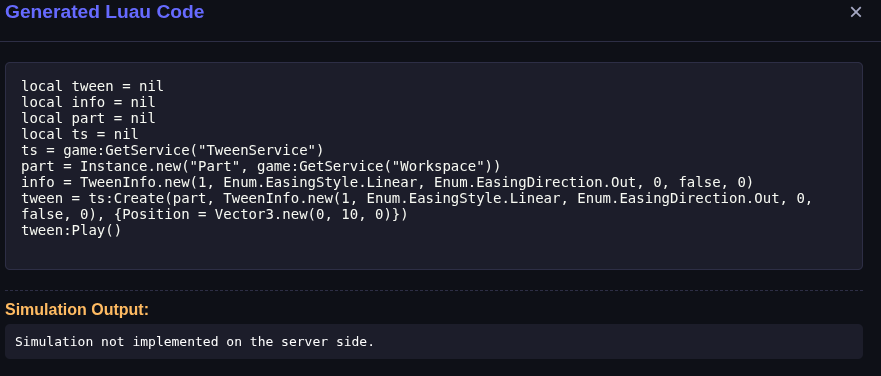

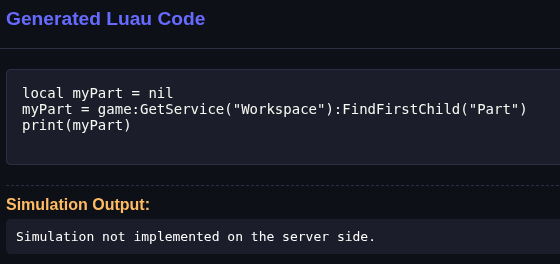

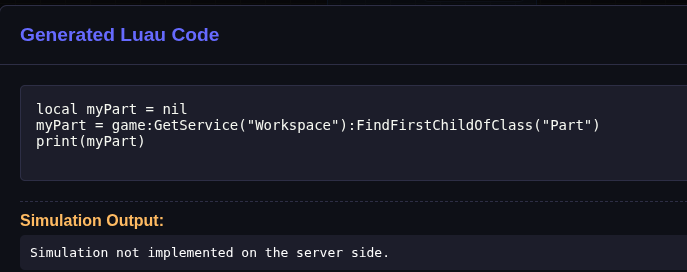

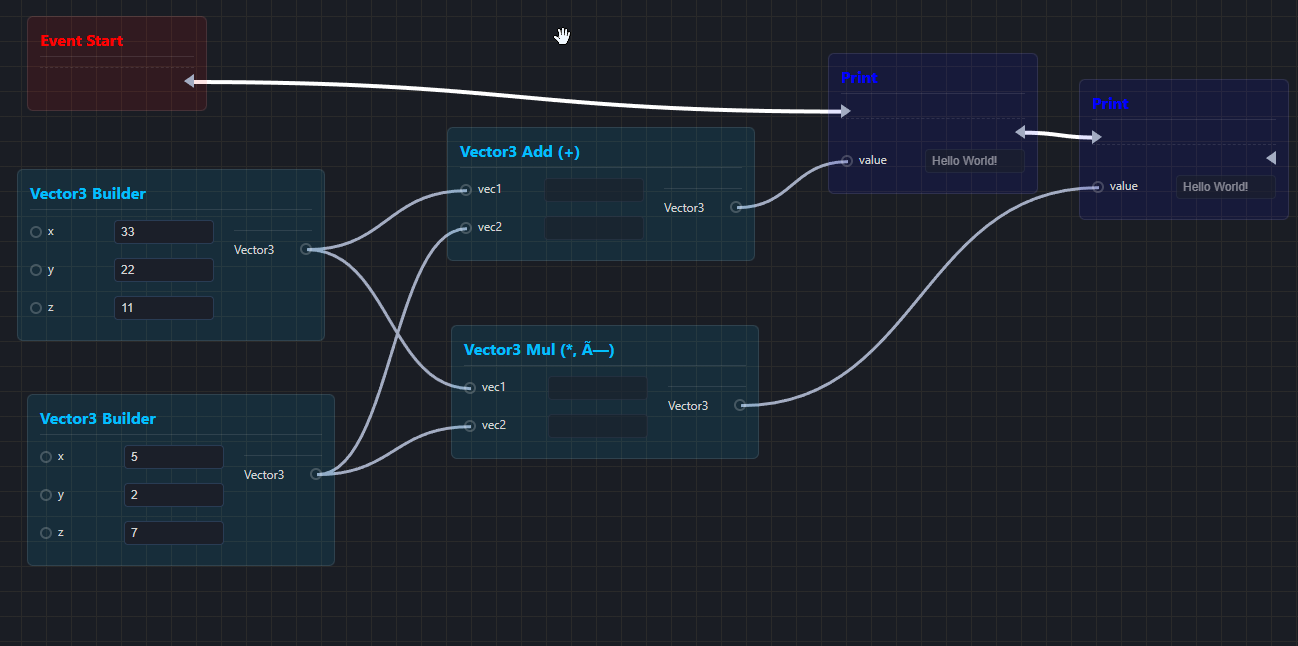

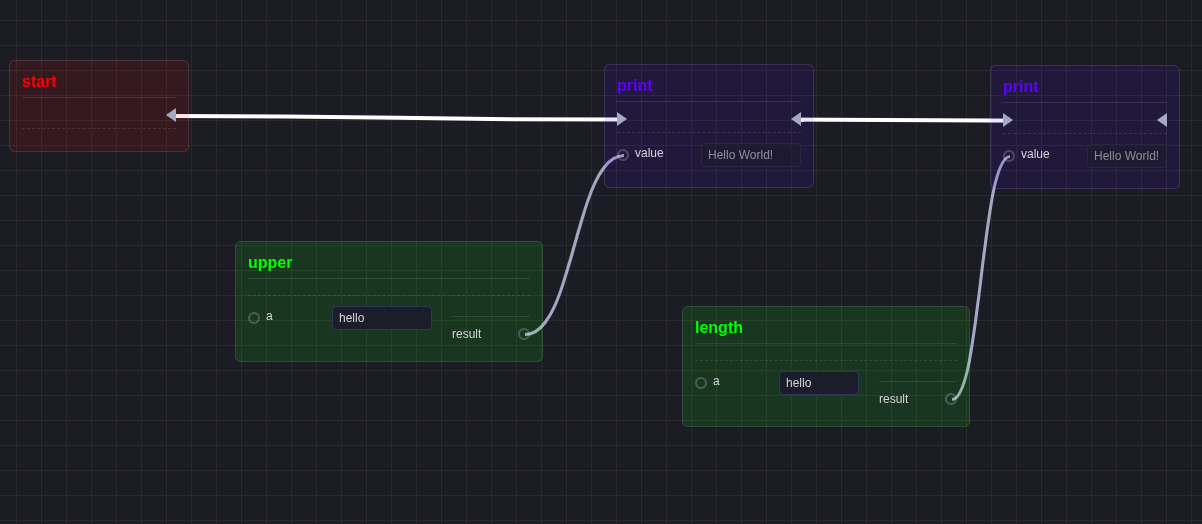

Example B: Add (Pure Data Node)
A node that returns a value to be used by other nodes, without execution pins.
function Add.new()
local self = Node.new("Add", NodeType.FUNCTION)
setmetatable(self, Add)
self:addInput(IO.Input.new("A", "0"))
self:addInput(IO.Input.new("B", "0"))
self:addOutput(IO.Output.new("Result", "0"))
return self
end
function Add:toLuau()
local a = self:getInput("A").Value
local b = self:getInput("B").Value
-- We store the expression in the output so other nodes can use it
self:getOutput("Result").Value = `({a} + {b})`
-- Pure data nodes usually return an empty string because
-- they don't generate a standalone line of code.
return ""
end
3. Registering the Node
Once created, you must register it in src/plugin/init.server.luau and src/plugin/ui/NodeMenu.luau.
In init.server.luau:
Add your node to the Nodes table:
local Nodes = {
...
["My Node Name"] = require(Shared.nodes.MyNode),
}
In NodeMenu.luau:
Add it to the NODES_DATA table so it appears in the right-click menu:
local NODES_DATA = {
{
category = "My Category",
color = Color3.fromRGB(100, 150, 200),
items = {
{ id = "My Node Name", name = "My Custom Node", type = "Method" }
}
},
...
}
! I’m happy some people find it useful :>
