Why does IKControl Arm bend like this?

SharkRayMaster · July 20, 2025, 6:35am

I’m making a simple “Aim System” and using IKControls for it.

At first I was using the Position mode, and had this issue, so I thought I’d use Transform and rotate the Attachment through the script to fix the arm rotation I wanted, but it didn’t change anything.

I’m also pretty certain this isn’t a Pole issue, as I’ve tried with no good results

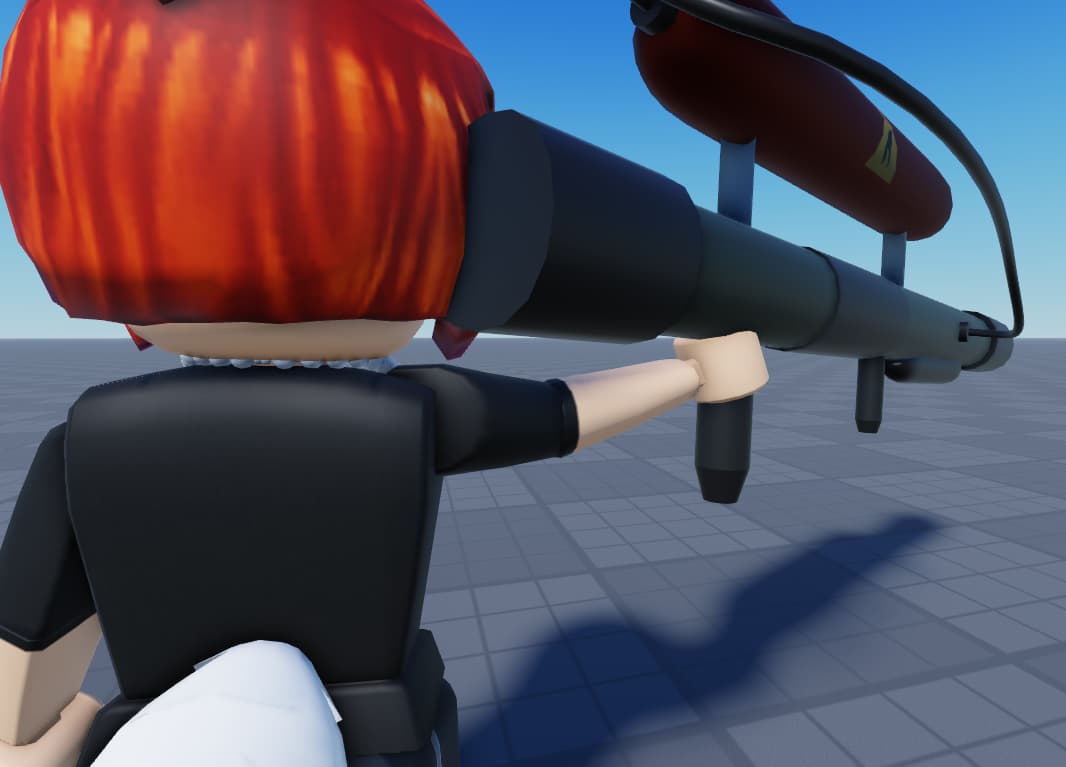

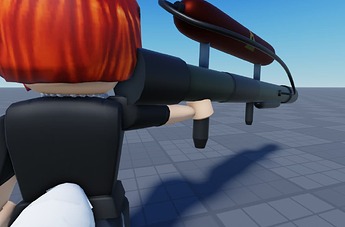

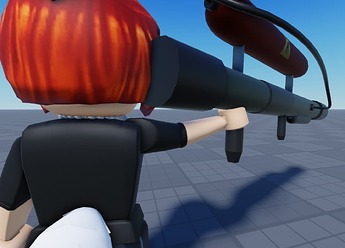

Here you can see the lower arm in the correct rotation, but the upper arm looks horrible tilted like that.

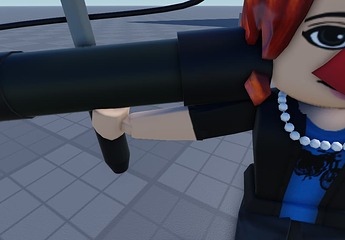

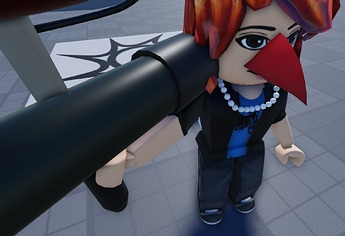

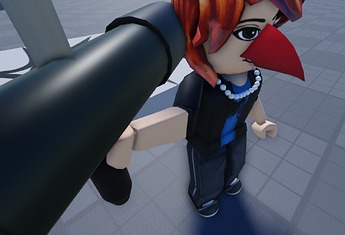

It is more noticeable from this angle

I don’t think this is an issue with the code either but just incase here’s my approach

Att.WorldCFrame = CFrame.new(Mouse.Hit.Position) * (CFrame.Angles(CFrame.lookAt(IK.EndEffector.Position, Mouse.Hit.Position).Rotation:ToEulerAnglesXYZ()) * CFrame.Angles(math.rad(90), 0, 0))

Is this just an issue with Roblox IK?

SubtotalAnt8185 · July 22, 2025, 11:41pm

The effector’s and target’s rotations are taken into account. Are you sure that CFrame is pointing up, which is the same direction as what the hand should be?

SubtotalAnt8185 · July 23, 2025, 5:54pm

Not really. You can’t really “twist” your elbow like as shown in the video. I heard something about constraints for IK, but I forgot all about them.

Every other part makes sense.

SharkRayMaster · July 24, 2025, 6:37am

Don’t mind him.

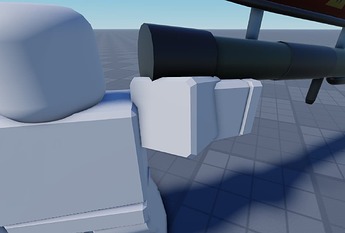

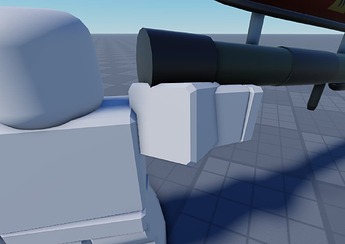

So far it looks like it’s a package issue, here you can see it doesn’t happen the same using the woman package.

An interesting note is that it DOES also happen with the woman package if you only use the UpperArm and LowerArm but NOT the Hand . If you include the Hand it works just fine.
