You can write your topic however you want, but you need to answer these questions:
I am a bad scripter and i do not know how to do this
I checked yt and the forums but no one made a topic about this
I do not ask for you to design entire systems, i just want a general explanation on how to do this. And (if you want) you can script it but all i would want is a general idea

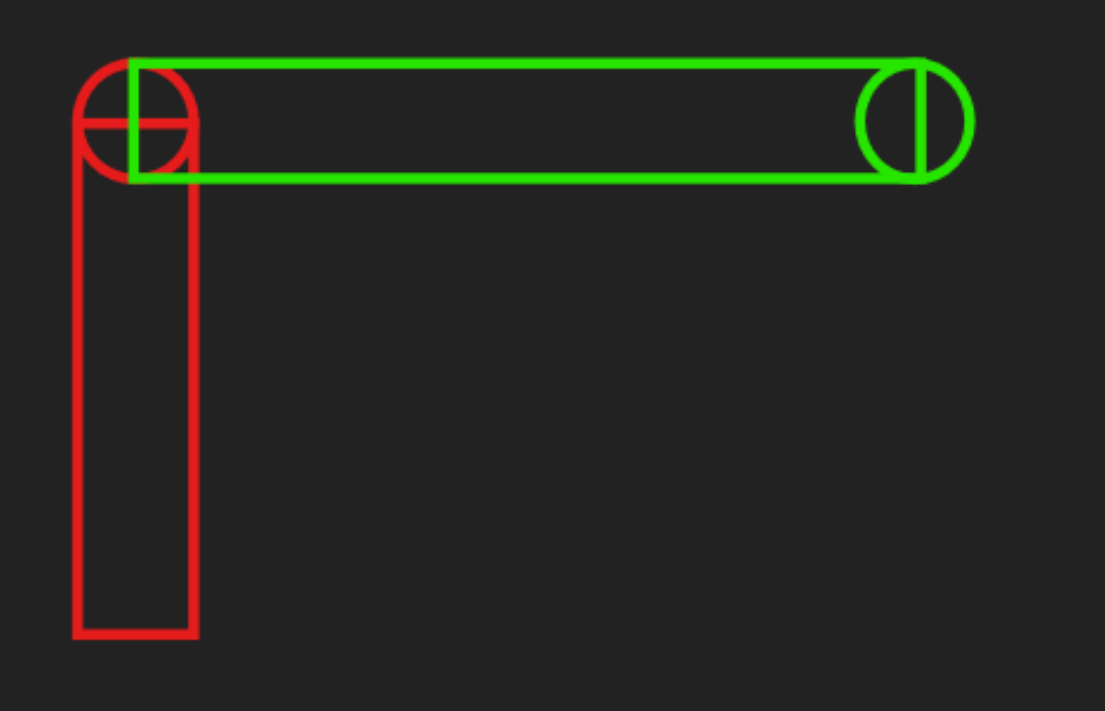

try to make the first cylinder first on a position that has attachments to each end. Using those attachments make another cylinder which one of its attachments are in the same position of the last and rotate the cylinder randomly. Then repeat how many times you want i think
Hey so I made this script here
-- Enhanced version with continuous animation
local PipeScreensaver = {}
function PipeScreensaver:Start()
self.pipeColors = {
Color3.fromRGB(255, 0, 0), -- Red
Color3.fromRGB(0, 255, 0), -- Green
Color3.fromRGB(0, 0, 255), -- Blue
Color3.fromRGB(255, 255, 0), -- Yellow
Color3.fromRGB(255, 0, 255), -- Magenta
Color3.fromRGB(0, 255, 255), -- Cyan
}
self.boundarySize = Vector3.new(50, 30, 50) -- Area where pipes can generate
self.currentPosition = Vector3.new(0, 15, 0)
self.currentDirection = Vector3.new(1, 0, 0)
self.currentColorIndex = 1
self.pipeCount = 0
self.colorChangeFrequency = 5
self.isRunning = true
-- Clean up old pipes
self:Cleanup()
-- Start the pipe generation loop
self:GeneratePipes()
end
function PipeScreensaver:Stop()
self.isRunning = false
end
function PipeScreensaver:Cleanup()
for _, obj in ipairs(workspace:GetChildren()) do
if obj.Name == "PipeSegment" or obj.Name == "PipeJoint" then
obj:Destroy()
end
end
end
function PipeScreensaver:CreatePipeSegment(startPos, endPos, color)
local length = (endPos - startPos).Magnitude
local centerPos = (startPos + endPos) / 2
local pipe = Instance.new("Part")
pipe.Name = "PipeSegment"
pipe.BrickColor = BrickColor.new(color)
pipe.Material = Enum.Material.Neon
pipe.Size = Vector3.new(0.4, 0.4, length)
pipe.Anchored = true
pipe.CanCollide = false
pipe.CFrame = CFrame.lookAt(centerPos, endPos) * CFrame.Angles(math.pi/2, 0, 0)
pipe.Parent = workspace
return pipe
end
function PipeScreensaver:CreateJointSphere(position, color)
local sphere = Instance.new("Part")
sphere.Name = "PipeJoint"
sphere.Shape = Enum.PartType.Ball
sphere.BrickColor = BrickColor.new(color)
sphere.Material = Enum.Material.Neon
sphere.Size = Vector3.new(0.6, 0.6, 0.6)
sphere.Anchored = true
sphere.CanCollide = false
sphere.Position = position
sphere.Parent = workspace
return sphere
end
function PipeScreensaver:GetRandomDirection(currentDir)
local possibleDirections = {
Vector3.new(1, 0, 0), -- Right
Vector3.new(-1, 0, 0), -- Left
Vector3.new(0, 0, 1), -- Forward
Vector3.new(0, 0, -1), -- Backward
Vector3.new(0, 1, 0), -- Up
Vector3.new(0, -1, 0) -- Down
}
-- Remove opposite direction
local validDirections = {}
for _, dir in ipairs(possibleDirections) do
if dir ~= -currentDir then
table.insert(validDirections, dir)
end
end
return validDirections[math.random(1, #validDirections)]
end
function PipeScreensaver:IsWithinBounds(position)
local halfSize = self.boundarySize / 2
return math.abs(position.X) <= halfSize.X and
math.abs(position.Y - 15) <= halfSize.Y and
math.abs(position.Z) <= halfSize.Z
end
function PipeScreensaver:GeneratePipes()
-- Create initial joint
self:CreateJointSphere(self.currentPosition, self.pipeColors[self.currentColorIndex])
while self.isRunning do
local pipeLength = math.random(3, 10)
local proposedEnd = self.currentPosition + (self.currentDirection * pipeLength)
-- If out of bounds, change direction
if not self:IsWithinBounds(proposedEnd) then
self.currentDirection = self:GetRandomDirection(self.currentDirection)
proposedEnd = self.currentPosition + (self.currentDirection * pipeLength)
end
-- Create pipe and joint
self:CreatePipeSegment(self.currentPosition, proposedEnd, self.pipeColors[self.currentColorIndex])
self:CreateJointSphere(proposedEnd, self.pipeColors[self.currentColorIndex])
-- Update state
self.currentPosition = proposedEnd
self.currentDirection = self:GetRandomDirection(self.currentDirection)
-- Handle color cycling
self.pipeCount = self.pipeCount + 1
if self.pipeCount % self.colorChangeFrequency == 0 then
self.currentColorIndex = (self.currentColorIndex % #self.pipeColors) + 1
end
wait(0.2) -- Adjust speed here
end
end
-- Start the screensaver
PipeScreensaver:Start()
-- Optional: Stop after 30 seconds
-- wait(30)
-- PipeScreensaver:Stop()
but it just does this:
any way you can help?
That is an AI generated script.
You just need to tell whatever AI model you’re using that the rotation/sizing is wrong. It’s probably because cylinders are flipped in Roblox, the XYZ direction don’t correlate correctly to how they actually look. I can’t remember the exact difference, but if you mention it, the model may be able to work it out.
I have asked it to do exactly what you said but it just gave this:
sorry if i sound like im asking for too much
Stop back with your script. I’ll be more than happy to help YOU.
im sorry for using ai im not a really good scripter
but i made a new script:
local cylinder = game.Workspace.wait.Cylinder
local attachment = game.Workspace.wait.Circle.Attachment
local circle = game.Workspace.wait.Part
local startattachment = game.Workspace.wait.StartAttachment
function createNewCircle(bottomOrTop)
bottomOrTop = bottomOrTop or "bottom"
local newCircle = cylinder:Clone()
newCircle.Name = "NewCircle"
newCircle.Parent = game.Workspace
newCircle.Shape = Enum.PartType.Cylinder
local cylinderLength = newCircle.Size.Y
local offset = Vector3.new(0, 0, 0)
if bottomOrTop == "top" then
offset = Vector3.new(0, -cylinderLength/2, 0)
else
offset = Vector3.new(0, cylinderLength/2, 0)
end
newCircle.Position = circle.Position + offset
return newCircle
end
function createCircleOnTop(cylinderPart)
local newCircle = circle:Clone()
newCircle.Name = "newsphere"
newCircle.Parent = game.Workspace
local circleRadius = newCircle.Size.Y/2
newCircle.Position = cylinderPart.Position + Vector3.new(0, cylinderPart.Size.Y/2 + circleRadius - 0.5, 0)
return newCircle
end
for i = 1, 5 do
local newCylinder = createNewCircle("bottom")
local circleOnTop = createCircleOnTop(newCylinder)
circle = circleOnTop
wait()
end
that makes a new cylinder and circle but i dont know how i can make them rotate randomly 90 degrees with the circle being offset in the correct position
try CFrame.Angles() and math.rad() like
CFrame.Angles(math.rad(90), 0, 0) -- rotate 90 degrees to X axis
try replacing
newCircle.Position = cylinderPart.Position + Vector3.new(0, cylinderPart.Size.Y/2 + circleRadius - 0.5, 0)
with
newCircle.CFrame = CFrame.new(cylinderPart.Position + Vector3.new(0, cylinderPart.Size.Y/2 + circleRadius - 0.5, 0)) * CFrame.Angles(math.rad(math.floor(math.random(-180, 180) * 10)), math.rad(math.floor(math.random(-180, 180) * 10) ), math.rad(math.floor(math.random(-180, 180) * 10) ))
not sure if this works
it works but what difference does this make what was it supposed to do
The pain of grind pays off, if you just keep at it..
You hardly need to apologize to me. Just keep at it.
Thanks where can i learn but i just need help on this topic if you dont mind

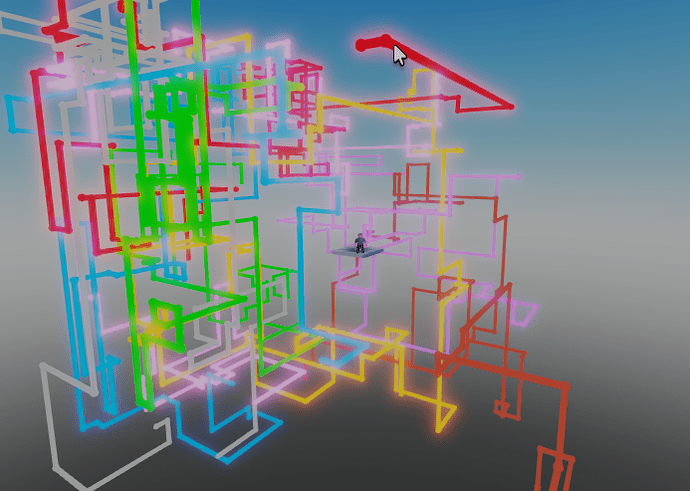

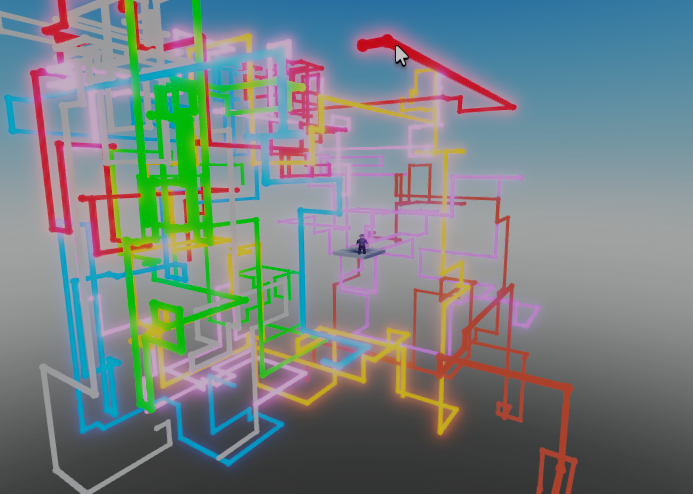

Made a few compromises to make this a bit easier.
Multiple angle on cylinders is a bit harder than I thought.
--ServerScript in ServerScriptService
--Or LocalScript in a local location
local RESTART = true
local PIPE_COUNT = 8
local GRID_SIZE = 16
local CELL_SIZE = 4
local TURN_PROBABILITY = 0.3
local UPDATE_INTERVAL = 0.05
local RESTART_INTERVAL = 30
local DIRECTIONS = {
Vector3.new(1, 0, 0),
Vector3.new(-1, 0, 0),
Vector3.new(0, 1, 0),
Vector3.new(0, -1, 0),
Vector3.new(0, 0, 1),
Vector3.new(0, 0, -1),
}
local COLORS = {
Color3.fromRGB(31, 119, 180),
Color3.fromRGB(255, 127, 14),
Color3.fromRGB(44, 160, 44),
Color3.fromRGB(214, 39, 40),
Color3.fromRGB(148, 103, 189),
Color3.fromRGB(140, 86, 75),
Color3.fromRGB(227, 119, 194),
Color3.fromRGB(127, 127, 127),
Color3.fromRGB(23, 190, 207),
}
local function makePositionKey(position)
return position.X .. "," .. position.Y .. "," .. position.Z
end
local Pipe = {}
Pipe.__index = Pipe
function Pipe.new(occupiedPositions, color)
local self = setmetatable({}, Pipe)
self.occupied = occupiedPositions
self.color = color
self.parts = {}
self.hasStarted = false
self.isStuck = false
local startPos
local attempts = 0
while true do
startPos = Vector3.new(
math.random(-GRID_SIZE, GRID_SIZE) * CELL_SIZE,
math.random(-GRID_SIZE, GRID_SIZE) * CELL_SIZE,
math.random(-GRID_SIZE, GRID_SIZE) * CELL_SIZE
)
local key = makePositionKey(startPos)
if not occupiedPositions[key] then
occupiedPositions[key] = true
break
end
attempts = attempts + 1
if attempts > 100 then
startPos = Vector3.new(0, 0, 0)
break
end
end
self.position = startPos
self.direction = DIRECTIONS[math.random(1, #DIRECTIONS)]
self:createSphere(startPos)
self.hasStarted = true
return self
end
function Pipe:createSphere(position)
local sphere = Instance.new("Part")
sphere.Name = "PipeSphere"
sphere.Shape = Enum.PartType.Ball
sphere.Size = Vector3.new(1.75, 1.75, 1.75) --2,2,2
sphere.Position = position
sphere.Anchored = true
sphere.CanCollide = false
sphere.Material = Enum.Material.Neon
sphere.Color = self.color
sphere.Parent = workspace
table.insert(self.parts, sphere)
return sphere
end
function Pipe:createBlockSegment(startPos, endPos)
local middle = (startPos + endPos) / 2
local direction = (endPos - startPos).Unit
local length = (startPos - endPos).Magnitude
local segment = Instance.new("Part")
segment.Name = "PipeSegment"
segment.Shape = Enum.PartType.Block
segment.Anchored = true
segment.CanCollide = false
segment.Material = Enum.Material.Neon
segment.Color = self.color
if math.abs(direction.X) > 0.9 then
segment.Size = Vector3.new(length, 1, 1)
elseif math.abs(direction.Y) > 0.9 then
segment.Size = Vector3.new(1, length, 1)
else
segment.Size = Vector3.new(1, 1, length)
end
segment.Position = middle
segment.Parent = workspace
table.insert(self.parts, segment)
return segment
end
function Pipe:findValidDirection()
local directionsToTry = {}
for i = 1, #DIRECTIONS do
directionsToTry[i] = DIRECTIONS[i]
end
for i = #directionsToTry, 2, -1 do
local j = math.random(1, i)
directionsToTry[i], directionsToTry[j] = directionsToTry[j], directionsToTry[i]
end
if math.random() > TURN_PROBABILITY then
for i = 1, #directionsToTry do
if directionsToTry[i] == self.direction then
table.remove(directionsToTry, i)
break
end
end
table.insert(directionsToTry, 1, self.direction)
end
for i = 1, #directionsToTry do
local direction = directionsToTry[i]
local newPos = self.position + (direction * CELL_SIZE)
if math.abs(newPos.X) > GRID_SIZE * CELL_SIZE then
elseif math.abs(newPos.Y) > GRID_SIZE * CELL_SIZE then
elseif math.abs(newPos.Z) > GRID_SIZE * CELL_SIZE then
else
local key = makePositionKey(newPos)
if not self.occupied[key] then
return direction, newPos
end
end
end
return nil, nil
end
function Pipe:update()
if self.isStuck then
return false
end
local direction, newPos = self:findValidDirection()
if direction and newPos then
local oldPos = self.position
local key = makePositionKey(newPos)
self.occupied[key] = true
self:createBlockSegment(oldPos, newPos)
if direction ~= self.direction then
self:createSphere(oldPos)
end
self.position = newPos
self.direction = direction
return true
else
if RESTART then
self:createSphere(self.position)
self:restart()
return true
else
self:createSphere(self.position)
self.isStuck = true
return false
end
end
end
function Pipe:restart()
for i = 1, #self.parts do
if self.parts[i] and self.parts[i].Parent then
self.parts[i]:Destroy()
end
end
self.parts = {}
self.isStuck = false
local newPos
local attempts = 0
while true do
newPos = Vector3.new(
math.random(-GRID_SIZE, GRID_SIZE) * CELL_SIZE,
math.random(-GRID_SIZE, GRID_SIZE) * CELL_SIZE,
math.random(-GRID_SIZE, GRID_SIZE) * CELL_SIZE
)
local key = makePositionKey(newPos)
if not self.occupied[key] then
self.occupied[key] = true
break
end
attempts = attempts + 1
if attempts > 100 then
newPos = Vector3.new(0, 0, 0)
break
end
end
self.position = newPos
self.direction = DIRECTIONS[math.random(1, #DIRECTIONS)]
self:createSphere(newPos)
end
function Pipe:cleanup()
for i = 1, #self.parts do
if self.parts[i] and self.parts[i].Parent then
self.parts[i]:Destroy()
end
end
self.parts = {}
self.isStuck = false
end
local PipeSystem = {}
PipeSystem.__index = PipeSystem
function PipeSystem.new()
local self = setmetatable({}, PipeSystem)
self.occupiedPositions = {}
self.pipes = {}
self.lastUpdate = tick()
self.lastRestart = tick()
self.isRunning = true
self.stuckCount = 0
self.totalPipes = PIPE_COUNT
self.folder = Instance.new("Folder")
self.folder.Name = "PipeSystem"
self.folder.Parent = workspace
for i = 1, PIPE_COUNT do
local colorIndex = ((i - 1) % #COLORS) + 1
local pipe = Pipe.new(self.occupiedPositions, COLORS[colorIndex])
table.insert(self.pipes, pipe)
end
return self
end
function PipeSystem:updateAll()
local activePipes = 0
for i = 1, #self.pipes do
local pipe = self.pipes[i]
if pipe:update() then
activePipes = activePipes + 1
end
end
if not RESTART then
local stuckPipes = 0
for i = 1, #self.pipes do
if self.pipes[i].isStuck then
stuckPipes = stuckPipes + 1
end
end
if stuckPipes == #self.pipes then
self.isRunning = false
end
end
return activePipes
end
function PipeSystem:restartAll()
if not RESTART then
return
end
for i = 1, #self.pipes do
self.pipes[i]:cleanup()
end
self.occupiedPositions = {}
self.pipes = {}
for i = 1, PIPE_COUNT do
local colorIndex = ((i - 1) % #COLORS) + 1
local pipe = Pipe.new(self.occupiedPositions, COLORS[colorIndex])
table.insert(self.pipes, pipe)
end
self.stuckCount = 0
end
local system = PipeSystem.new()
local RunService = game:GetService("RunService")
local connection
connection = RunService.Heartbeat:Connect(function()
local currentTime = tick()
if not system.isRunning and not RESTART then
return
end
if RESTART then
if currentTime - system.lastRestart >= RESTART_INTERVAL then
system.lastRestart = currentTime
system:restartAll()
end
end
if currentTime - system.lastUpdate >= UPDATE_INTERVAL then
system.lastUpdate = currentTime
system:updateAll()
end
end)
Delete the Baseplate.
Drop the script in wherever.
This looks complicated! Thanks for taking your time to help me dude! Very much thanks
My first attempts at programming were spinning a box.
It was in assembly, but still. Start with smaller projects and work your way up.
Hit those tutorials if you want to get to know things faster.
I suggest doing everything on this page.. AlvinBlox
It may take you 6 months, but you will have skills.
This topic was automatically closed 14 days after the last reply. New replies are no longer allowed.
