I am working with on a system to align an airplane model with the camera. I am using an AlignOrientation.
I have run into a problem with the way that the internal interpolation works on the AlignOrientation.
Basically I have 3 values that represent the yaw, pitch, and bank of the plane. If I only apply the yaw and pitch, it works just fine.

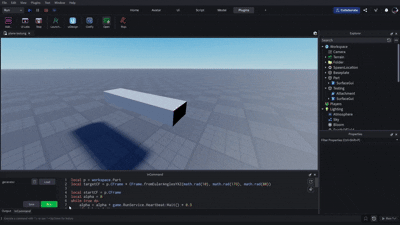

Here is an example of the Arching interpolation that is not desired:
local p = workspace.Part
local targetCF = p.CFrame * CFrame.fromEulerAnglesYXZ(math.rad(10), math.rad(175), math.rad(80))
local startCF = p.CFrame
local alpha = 0
while true do
alpha = alpha + game.RunService.Heartbeat:Wait() * 0.5
if alpha > 1 then
break
end
local newCF = startCF:Lerp(targetCF, alpha)
p.CFrame = newCF
end
and here is the same code, but I apply the roll separately.
local p = workspace.Part
local targetCF = p.CFrame * CFrame.fromEulerAnglesYXZ(math.rad(10), math.rad(175), 0)
local targetRoll = CFrame.Angles(0, 0, math.rad(80))
local startCF = p.CFrame
local alpha = 0
while true do
alpha = alpha + game.RunService.Heartbeat:Wait() * 0.5
if alpha > 1 then
break
end
local newCF = startCF:Lerp(targetCF, alpha) * CFrame.new():Lerp(targetRoll, alpha)
p.CFrame = newCF
end
and the result:
I want to have the results of that second one, but I am not sure the best way to achieve this using the AlignOrientation as it seems to apply all three rotations together, messing up what I want.
Here is the code I use to apply that orientation to an AlignOrientation with Mode TwoAttachment and AllAxes AlignType.
local yawPitch = CFrame.fromEulerAnglesYXZ(math.rad(CameraModule.yRot), math.rad(CameraModule.xRot * CameraModule._yawSign), 0)
local roll = CFrame.Angles(0, 0, math.rad(bankAngle))
self._alignAttachment.CFrame = yawPitch
* roll
* CFrame.Angles(0, math.pi, 0)
How can I change the way the rotations are applied?
