BitoLog’s ProgressBar Thing:
to use it you need:

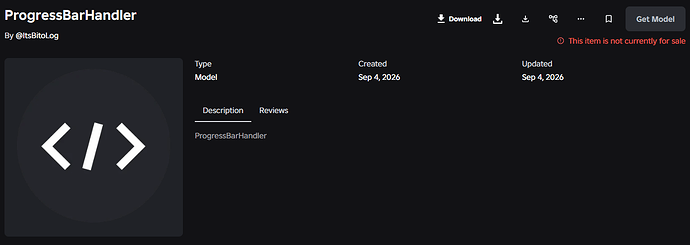

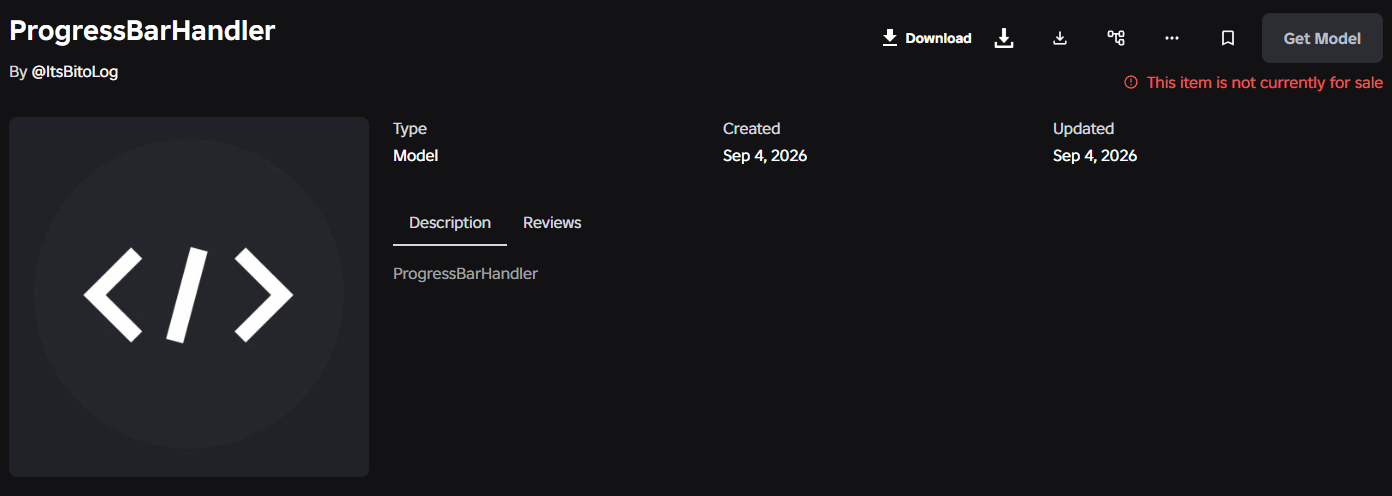

- Place the Module script that you got from the link in StarterPlayerScripts
-
- (Its not required to place it exactly there, its just prefered location)
- require the Module script
- use .New function on required Module script with Config and Style as a tables
Example script: (for Attribute type; any other type is simular)
local plr = game.Players.LocalPlayer
local PBH = require(plr.PlayerScripts.ProgressBarHandler)
local Config = {
Type = "Attribute",
MaxValue = 25,
ValueName = "Attribute",
Value = tool,
}
local Style = {
ProgressBar = {YScale = 1, ...},
Text = {Text = "Attribute", ...},
Background = {Color = Color3.new(0,0,0), ...}
}
local Bar = PBH.New(Config, Style)
additional example use: (you can see the result in the fits screenshot)
local PBH = require(game.Players.LocalPlayer.PlayerScripts.ProgressBarHandler)
script:SetAttribute("Attribute", 4)
local Config = {
Type = "Attribute",
MaxValue = 10,
ValueName = "Attribute",
Value = script,
}
local Style = {
ProgressBar = {
YScale = 0.5,
Color = Color3.new(0.333333, 0, 0.498039),
Transparency = 0,
Direction = "Center",
},
Text = {
Text = "BitoLog's ProgressBar Thing",
TextTransparency = 0.1,
TextSize = 14,
Color = Color3.new(1, 1, 1),
TextAlignment = "Center",
},
Background = {
Color = Color3.new(0, 0, 0),
Transparency = 0,
},
}
local bar = PBH.New(Config, Style)
Additionally you can use other function as a
Bar:Hide(Bool) Hides the ui and pauses it/Unhides and unpauses ui if set to false
to pause ui without hiding it you can give the ui “Pause” tag with :AddTag() function on the ui
use Bar:Destroy() to fully remove the bar
All Config and Style settings
Config:
Type = "String" --REQUIRED [Attribute; Property; IntValue; NumberValue.]
MaxValue = number --REQUIRED ; needed to be more than 0;
--^isnt used in Property if sayd Property isnt a number but still required
ValueName = "String", --REQUIRED in using Attribute or Property as a type
Value = Instance, --REQUIRED for all supported types
--^for IntValue or NumberValue use a IntValue/NumberValue itself
--^^ for Attribute or Property use the the Instance that the Attribute/Property will get the value from
OnCompletionFunction = function() --runs when Bar Compliting its work (aka value >= MaxValue)
--^does not work if type is Property and if sayd Property isnt a number
OnUpdate = function() --runs every time when Value get updated
Module script will pass Ui to OnCompletionFunction and OnUpdate functions
but additionally Modulescript will pass Percent to OnUpdate function
Example:
OnCompletionFunction = function(ui)
ui.Bar.BackgroundColor3 = Color3.new(1,0,0)
--turns the Bar color to red when compliting
--things that this function do is permanent if OnUpdate function wasnt provided
end,
OnUpdate = function(ui, percent)
ui.Bar.BackgroundColor3 = Color3.new(percent)
--sets the Bar color to percent value
end,
Style:
ProgressBar:
YScale = number --from 0 to 1; used for Y Scale in ProgressBar
Color = Color3 -- Used for BackgroundColor3 in ProgressBar
Transparency = number --from 0 to 1; BackgroundTransparency in ProgressBar duh
Direction = "String" --[LeftToRight; RightToLeft; FromCenter] you can add custom Directions
--by adding new value in "ProgressBarDirection"
--for example: ["LeftToRight"] = {Vector2.new(0,0.5), UDim2.new(0,0,0.5,0)}
--^(1st value must be vector2 used for AnchorPoint; 2nd must be UDim2 used for Position)
Text:
Text = "String" --Basic Text for TextLable
TextTransparency = number --from 0 to 1
TextSize = number
TextScale = boolean -- will overwrite TextSize if set to true
TextAlignment = "String" --uses Roblox's basic TextXAlignment [Center; Left; Right.]
Color = Color3 -- you can use RichText formating
TextType = "String" --[Static; Percent; Dynamic.]
--v required for Dynamic TextType
DynamicType = "String" --[Attribute; Property] works like Type in a config table
ValueName = "String",
Value = Instance,
--v required for PercentTextType
PercentOpener = "String"
PercentCloser = "String"
--Text.." "..PercentOpener..Percent..PercentCloser
Background:
Color = Color3 -- used for BackgroundColor3 in Background ui
Transparency = number -- from 0 to 1; used for BackgroundTransparencyin Background ui
Planned:
Add Bar:SetStyle() function
Heres the module:
--[[
= BitoLog's ProgressBar Thing =
For documentation see: https://devforum.roblox.com/t/bitologs-progressbar-thing/4850007
]]
local _Debug = true
local plr = game.Players.LocalPlayer
local ProgressBar = {}
local ProgressBarMethods = {}
ProgressBarMethods.__index = ProgressBarMethods
local Gui = nil
local TempUi = nil
local StandartStyle = {
ProgressBar = {
YScale = 0.65,
Color = Color3.new(1, 1, 1),
Transparency = 0,
Direction = "LeftToRight",
},
Text = {
Text = "",
TextTransparency = 0,
TextSize = 20,
TextAlignment = "Center",
Color = Color3.new(0.5,0,1),
TextType = "Static",
PercentOpener = "",
PercentCloser = "",
Value = nil,
ValueName = "",
},
Background = {
Color = Color3.new(0,0,0),
Transparency = 0,
},
}
local ProgressBarDirection = {
["LeftToRight"] = {Vector2.new(0,0.5), UDim2.new(0,0,0.5,0)},
["RightToLeft"] = {Vector2.new(1,0.5), UDim2.new(1,0,0.5,0)},
["FromCenter"] = {Vector2.new(0.5,0.5), UDim2.new(0.5,0,0.5,0)},
}
function ProgressBar.New(Config:{}, Style:{})
if not Gui or not TempUi then error("Module wasnt initialized, please refer to documentation for the init script") return end
if typeof(Config) ~= "table" then if _Debug then warn("Provided Config isn't a table") end return end
if typeof(Config.Type) ~= "string" then if _Debug then warn("Provided Type isn't a string") end return end
if typeof(Config.MaxValue) ~= "number" then if _Debug then warn("Provided MaxValue isn't a number") end return end
if Config.MaxValue <= 0 then if _Debug then warn("Provided MaxValue must be greater than 0") end return end
if Config.OnCompletionFunction and typeof(Config.OnCompletionFunction) ~= "function" then if _Debug then warn("\"OnCompletionFunction\" is not a function") end return end
if Config.OnUpdate and typeof(Config.OnUpdate) ~= "function" then if _Debug then warn("\"OnUpdate\" is not a function") end return end
if Config.Type == "Attribute" or Config.Type == "Property" then
if not Config.ValueName or typeof(Config.ValueName) ~= "string" then if _Debug then warn("\"ValueName\" is nil or not a string") end return end
if typeof(Config.Value) ~= "Instance" then if _Debug then warn("Provided Value isn't a Instance") end return end
elseif Config.Type == "IntValue" or Config.Type == "NumberValue" then
if typeof(Config.Value) ~= "Instance" then if _Debug then warn("Provided Value isn't a Instance") end return end
else if _Debug then warn(string.format("Type: \"%s\" is not supported", tostring(Config.Type))) end return end
if Style ~= nil and typeof(Style) ~= "table" then if _Debug then warn("Provided Style isn't a table") end return end
if not Style or next(Style) == nil then Style = StandartStyle else
if Style.ProgressBar and not Style.ProgressBar.YScale then Style.ProgressBar.YScale = StandartStyle.ProgressBar.YScale end end
if Style.Text and Style.Text.TextType and Style.Text.TextType == "Dynamic" then
if not Style.Text.Value or typeof(Style.Text.Value) ~= "Instance" then if _Debug then warn("Provided Value isn't a Instance") end return end
if not Style.Text.ValueName or typeof(Style.Text.ValueName) ~= "string" then if _Debug then warn("\"ValueName\" is nil or not a string") end return end
if not Style.Text.DynamicType or typeof(Style.Text.DynamicType) ~= "string" then if _Debug then warn("\"DynamicType\" is nil or not a string") end return end
end
local InternalConfig = table.clone(Config)
local self = setmetatable({
Config = InternalConfig,
Style = Style,
UpdateConnection = nil,
TextConnection = nil,
Ui = TempUi:Clone()
}, ProgressBarMethods)
self.Ui.Parent = Gui.MainFrame
self.Ui.Name = InternalConfig.Value.Name
self:UpdateStyle()
if InternalConfig.Type == "Attribute" then
self.UpdateConnection = InternalConfig.Value:GetAttributeChangedSignal(InternalConfig.ValueName):Connect(function() self:Update() end)
elseif InternalConfig.Type == "Property" then
self.UpdateConnection = InternalConfig.Value:GetPropertyChangedSignal(InternalConfig.ValueName):Connect(function() self:Update() end)
elseif InternalConfig.Type == "IntValue" or InternalConfig.Type == "NumberValue" then
self.UpdateConnection = InternalConfig.Value:GetPropertyChangedSignal("Value"):Connect(function() self:Update() end)
end
if Style.Text.TextType == "Dynamic" then
self.TextConnection = self.Style.Text.Value:GetAttributeChangedSignal(self.Style.Text.ValueName):Connect(function() self:Update() end)
end
self:Update()
return self
end
function ProgressBarMethods:Destroy()
if self.UpdateConnection then self.UpdateConnection:Disconnect() self.UpdateConnection = nil end
if self.TextConnection then self.TextConnection:Disconnect() self.TextConnection = nil end
if self.Ui then self.Ui:Destroy() self.Ui = nil end
if self.Config then self.Config = nil end
if self.Style then self.Style = nil end
end
function ProgressBarMethods:Hide(Hide)
if Hide then
self.Ui.Parent = script.Hide
self.Ui:AddTag("Pause")
else
self.Ui.Parent = Gui.MainFrame
self.Ui:RemoveTag("Pause")
self:Update()
end
end
function ProgressBarMethods:Update()
if self.Ui:HasTag("Pause") then if _Debug then print("Ui is Paused; use \"self:Hide(false)\" to unpause") end return end
local a = 0
local b = self.Config.MaxValue
if self.Config.Type == "Attribute" then
a = self.Config.Value:GetAttribute(self.Config.ValueName)
elseif self.Config.Type == "Property" then
a = self.Config.Value[self.Config.ValueName]
if typeof(a) ~= "number" then a = 1 end
elseif self.Config.Type == "IntValue" or self.Config.Type == "NumberValue" then
a = self.Config.Value.Value
end
local Percent = math.min(1, math.clamp(a,0,math.huge)/b)
local Y = StandartStyle.ProgressBar.YScale
if self.Style.ProgressBar and self.Style.ProgressBar.YScale then Y = self.Style.ProgressBar.YScale end
self.Ui.Bar.Size = UDim2.new(Percent,0,math.clamp(Y,0,1),0)
if Percent >= 1 and self.Config.OnCompletionFunction ~= nil then
self.Config.OnCompletionFunction(self.Ui)
self.Config.OnCompletionFunction = nil
end
if self.Config.OnUpdate ~= nil then
self.Config.OnUpdate(self.Ui, Percent)
end
local _newText = self.Style.Text.Text
if self.Style.Text.TextType == "Static" then
elseif self.Style.Text.TextType == "Percent" then
_newText = _newText.." "..(self.Style.Text.PercentOpener or StandartStyle.Text.PercentOpener)..string.sub(tostring(Percent*100),0,4)..(self.Style.Text.PercentCloser or StandartStyle.Text.PercentCloser)
elseif self.Style.Text.TextType == "Dynamic" then
if self.Style.Text.DynamicType == "Attribute" then
_newText = _newText.." "..(self.Style.Text.Value:GetAttribute(self.Style.Text.ValueName) or "")
elseif self.Style.Text.DynamicType == "Property" then
_newText = _newText.." "..(tostring(self.Style.Text.Value[self.Style.Text.ValueName]) or "")
else
if _Debug then
warn(string.format("Your \"DynamicType\" (%s) isn't supported; please read documentation or ReadMe file", self.Style.Text.DynamicType))
end
end
end
self.Ui.TextLabel.Text = _newText
end
function ProgressBarMethods:UpdateStyle()
local Style = self.Style
local Ui = self.Ui
if Style.ProgressBar then
Ui.Bar.BackgroundColor3 = Style.ProgressBar.Color or StandartStyle.ProgressBar.Color
Ui.Bar.BackgroundTransparency = Style.ProgressBar.Transparency or StandartStyle.ProgressBar.Transparency
if ProgressBarDirection[Style.ProgressBar.Direction] ~= nil then
local PBD = ProgressBarDirection[Style.ProgressBar.Direction]
Ui.Bar.AnchorPoint = PBD[1]
Ui.Bar.Position = PBD[2]
else
local PBD = ProgressBarDirection.LeftToRight
Ui.Bar.AnchorPoint = PBD[1]
Ui.Bar.Position = PBD[2]
end
end
if Style.Text then
Ui.TextLabel.Text = Style.Text.Text or StandartStyle.Text.Text
Ui.TextLabel.TextTransparency = Style.Text.TextTransparency or StandartStyle.Text.TextTransparency
if Style.Text.TextScale ~= nil and Style.Text.TextScale == true then
Ui.TextLabel.TextScaled = true
else
Ui.TextLabel.TextSize = Style.Text.TextSize or StandartStyle.Text.TextSize
end
Ui.TextLabel.TextXAlignment = Style.Text.TextAlignment or StandartStyle.Text.TextAlignment
Ui.TextLabel.TextColor3 = Style.Text.Color or StandartStyle.Text.Color
end
if Style.Background then
Ui.BackgroundColor3 = Style.Background.Color or StandartStyle.Background.Color
Ui.BackgroundTransparency = Style.Background.Transparency or StandartStyle.Background.Transparency
end
end
function ProgressBar.Init(PBUi, TempBar)
Gui = PBUi
TempUi = TempBar
if _Debug then print("Got Ui", Gui, TempUi) end
if _Debug then print("Initializing \"ProgressBarHandler\"") end
Gui.Parent = plr.PlayerGui
end
return ProgressBar
and a Init script:
if not game:IsLoaded() then game.Loaded:Wait() end
local PBUi = Instance.new("ScreenGui")
PBUi.IgnoreGuiInset = true
PBUi.Name = "ProgressBarUi"
PBUi.Parent = script.Parent
local MF = Instance.new("Frame")
MF.Name = "MainFrame"
MF.Size = UDim2.new(0.08,0,0.2,0)
MF.Position = UDim2.new(0.5,0,0.65,0)
MF.AnchorPoint = Vector2.new(0.5,0.5)
MF.BackgroundTransparency = 1
MF.Parent = PBUi
local UiList = Instance.new("UIListLayout")
UiList.Padding = UDim.new(0,3)
UiList.Parent = MF
local TempBar = Instance.new("Frame")
TempBar.Name = "TemplateBar"
TempBar.Style = Enum.FrameStyle.Custom
TempBar.BorderSizePixel = 0
TempBar.BackgroundColor3 = Color3.new(1,1,1)
TempBar.Size = UDim2.new(1,0,0.15,0)
TempBar.Parent = script.Parent
local Bar = Instance.new("Frame")
Bar.Name = "Bar"
Bar.Style = Enum.FrameStyle.Custom
Bar.BorderSizePixel = 0
Bar.BackgroundColor3 = Color3.new(1,1,1)
Bar.AnchorPoint = Vector2.new(0.5,0.5)
Bar.Position = UDim2.new(0.5,0,0.5,0)
Bar.Size = UDim2.new(1,0,0.65,0)
Bar.Parent = TempBar
local Text = Instance.new("TextLabel")
Text.Size = UDim2.new(1,0,1,0)
Text.BackgroundTransparency = 1
Text.Parent = TempBar
Text.TextSize = 14
local Hide = Instance.new("Folder")
Hide.Name = "Hide"
Hide.Parent = script.Parent
require(script.Parent).Init(PBUi, TempBar)
Bouth of them is required, place Main module in StarterPlayer.ProgressBarHandler and the init into the module it self
The Module script isnt very tested so if you have any ideas/errors with the module it self/adviсes you can reply to the topic, i will happely help you or add the things that you want
(my english isnt that good, so if you see any tyops turn a blind eye on it please)
