Hello, I need to make procedural generation in my game but it doesnt work normally

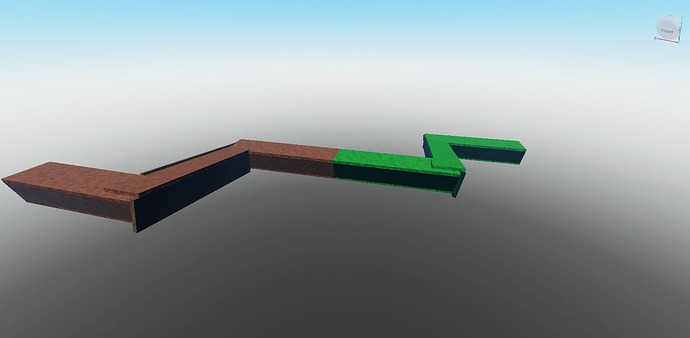

For some reason, the rooms spawn under each other
I tried use other metods like: SetPrimaryPartCFrame, Moveto and other but it doesnt work.
local rs = game:GetService("ReplicatedStorage")
local GameRooms = workspace.GameValues.GameRooms
local Rooms = workspace.Rooms
local NewRoom
local OldRoom = workspace.Rooms.Corridor1
local function spawn_room()
print("Trying")
local rooms = rs.Rooms:GetChildren()
local randomRoom = rooms[math.random(1, #rooms)]
print("RandomRoom")
NewRoom = rs.Rooms.Corridor1:Clone() -- randomRoom:Clone()
NewRoom.Parent = Rooms
print("Clone")
NewRoom:PivotTo(OldRoom.SpawnPart.CFrame)
print("Pivot")
GameRooms.Value += 1
OldRoom = NewRoom
end
while GameRooms.Value <= 1000 do
task.wait(1)
spawn_room()
end
Is the pivot point of the new room set correctly? If the point was its default (center of model), then the center of the new room will be moved directly onto the previous spawn part. If the spawn location has a lower position than the previous room pivot, the rooms will keep spawning in a downwards fashion.
You’re not doing any calculations to change NewRoom and then reset OldRoom to that position. There should be something calculating the NewRoom’s new Position and Orientation and placing it, then resetting the OldRoom to NewRoom, and doing the same calculation above for the next placement of the cloned NewRoom.
Don’t use simple prints like print("Clone") which only tell you if something worked or not. Usually that’s not enough information.
Try
print("Cloned, OldRoom.SpawnPart.CFrame = ", OldRooom.SpawnPart.CFrame)
to let you know the information that’s being used for the issue you’re having.
Also, don’t Parent an item until you’ve got all it’s parameters and Propeties set.
Your script just keeps placing them at the starting Position since there’s no calculation.
Place the 2 hallways together like in your first image.
Figure out the Position of the first hallway SpawnPart. Lets say it starts a 100, 0, 100 to make it easy.
Figure out the Position of the second hallway SpawnPartwhen it’s placed properly. Let’s say the new Position is 140, 0, 140.
Subtract the first Position from the second which in this example would be 40, 0, 40 which means every new room would be placed in increments of those values.
Add that value (NewRoom) to the current Position (OldRoom) every time you place the next one. In this example the next room would be placed at 180, 0, 180. The next would be 220, 0, 220 and so on.
local rs = game:GetService("ReplicatedStorage")
local GameRooms = workspace.GameValues.GameRooms
local Rooms = workspace.Rooms
local NewRoom
local OldRoom = workspace.Rooms.Corridor1
local position
local function spawn_room()
local rooms = rs.Rooms:GetChildren()
local randomRoom = rooms[math.random(1, #rooms)]
NewRoom = randomRoom:Clone()
position = OldRoom.SpawnPart.CFrame - NewRoom.SpawnPart.CFrame
print("Cloned, NewRoom:PivotTo",position)
NewRoom:PivotTo(position)
GameRooms.Value += 1
OldRoom = NewRoom
OldRoom.Name = GameRooms.Value
NewRoom.Parent = Rooms
NewRoom = nil
end
while GameRooms.Value <= 1000 do
task.wait(1)
spawn_room()
end
If you read the error it tells you what’s wrong.
A Position is a Vector3 value made up of 3 numbers separated by commas (your X, Y, Z).
A CFrame is an array of values that tells you the Position and Orientation of the item.
Either use Position for all the items in your calculation, CFrames for all the items, or convert your CFrame to Vector3 Position.
