as I said, it makes it easier for me to make dynamic effects for the hotbar.
My bad, I didn’t see that line the first time. Your code looks fine so maybe the problem is with the positioning of hotbarFrame? It could be miss-aligned.
no problem, it has also happened to me. Good idea, this may be one of the causes, currently the frame properties are as follows:
local emotes = Instance.new("Frame")
emotes.Name = "Emotes"
emotes.AnchorPoint = Vector2.new(0.5, 0.5)
emotes.BackgroundTransparency = 1
emotes.Position = UDim2.fromScale(0.5, 0.94)
emotes.Size = UDim2.fromScale(0.485, 0.0881)
emotes.Parent = mainGui
The properties of a button are as follows
local template = Instance.new("ImageButton")
template.Name = emoteName or "NaN"
template.AnchorPoint = Vector2.new(0.5, 0.5)
template.BackgroundColor3 = Color3.fromRGB(25, 25, 25)
template.BackgroundTransparency = 0.25
template.BorderSizePixel = 0
template.Position = UDim2.fromScale(0.0706, 0.406)
template.Size = if isPhone then UDim2.fromScale(.176, 1.749) else UDim2.fromScale(0.146, 1.18)
Within each button there is a list of instances but I doubt very much that this is the cause.
the properties of the button on the left are as follows
local leftButton = Instance.new("ImageButton")
leftButton.Name = "0"
leftButton.Image = "rbxassetid://12974423379"
leftButton.AnchorPoint = Vector2.new(0.5, 0.5)
leftButton.BackgroundColor3 = Color3.fromRGB(25, 25, 25)
leftButton.BackgroundTransparency = 0.25
leftButton.BorderSizePixel = 0
leftButton.Size = UDim2.fromScale(0.0898, 0.725)
local uICorner = Instance.new("UICorner")
uICorner.CornerRadius = UDim.new(0.1, 0)
uICorner.Parent = leftButton
local LeftuIAspectRatioConstraint = Instance.new("UIAspectRatioConstraint")
LeftuIAspectRatioConstraint.AspectRatio = 0.988
LeftuIAspectRatioConstraint.Parent = leftButton
to get my function to update in the order I want the buttons, I insert the buttons manually in the table
for _, obj in ipairs(hotbarFrame:GetChildren()) do
result[#result + 1] = obj
end
rightButton.Parent = hotbarFrame
leftButton.Parent = hotbarFrame
table.insert(result, 1, leftButton)
result[#result + 1] = rightButton
this information could be useful to identify the problem, I will test different sizes for the hotbar.
emotes.Size = UDim2.fromScale(0.200, 0.0881)
emotes.Size = UDim2.fromScale(0.300, 0.0881)
emotes.Size = UDim2.fromScale(0.400, 0.0881)
apparently it is not the size of the hotbar, neither is the position because the hotbar has an open and close function.
Could you show the hierachy of the whole emote ui
Sure, here it is
Whats with the NaN for the the buttons names? Is that too see which one is currently selected? Also did you write that code yourself?
I only put NaN for testing purposes; I’ve been doing the code since yesterday, and I don’t have a list of emotes yet to create the buttons in the list. Yes, this code was made by me; it’s a slightly more updated version of this post.
Well that post successfully had it working, what exactly are you doing differently here?
I use the same logic, here are the differences between the previous code and this one and why.
since I don’t use any property on the Y axis of the hotbar, I removed any variable that has to do with the Y axis
- containerHeight
- cellHeight
- centerYOffset
Are the variables that I eliminated because they were of no use.
I also redirected the first loop to only one line of code, giving me the same results
for _, cell in ipairs(HotbarFrame:GetChildren()) do
local cellWidth = cell.AbsoluteSize.X
local cellHeight = cell.AbsoluteSize.Y
totalCellsWidth = totalCellsWidth + cellWidth
maxCellHeight = math.max(maxCellHeight, cellHeight)
end
also, the maxCellHeight variable would not be used because it was for Y axis.
for _, cell in ipairs(children) do
totalCellsWidth = totalCellsWidth + cell.AbsoluteSize.X
end
and the rest of the code remains almost the same as the original code
Maybe try adding extra spacing to the first element but then the first will have the default, this way it’ll stop the 1st element from looking like it’s right against that arrow ui
Try this
local numChild = #children
local spacing = 10
local extraSpacingForFirst = 1
local containerWidth = hotbarFrame.AbsoluteSize.X
local totalCellsWidth = 0
for _, cell in ipairs(children) do
totalCellsWidth = totalCellsWidth + cell.AbsoluteSize.X
end
local offsetX = (containerWidth - totalCellsWidth - (numChild - 1) * spacing - extraSpacingForFirst) / 2
local halfCellWidth = .5 * totalCellsWidth / numChild
for _, cell in ipairs(children) do
local cellWidth = cell.AbsoluteSize.X
local cellResult = offsetX + halfCellWidth
cell.Position = UDim2.new(0, cellResult, .5, 0)
offsetX += cellWidth + spacing
extraSpacingForFirst = 0
task.wait(.01)
end
gives practically the same results

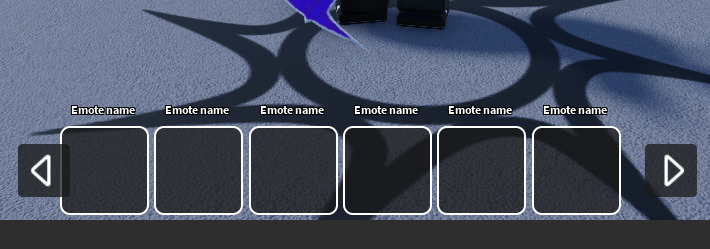

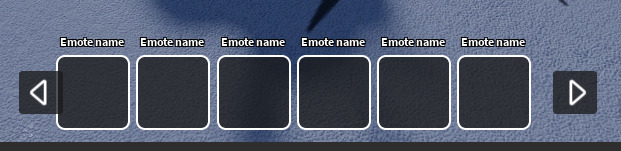

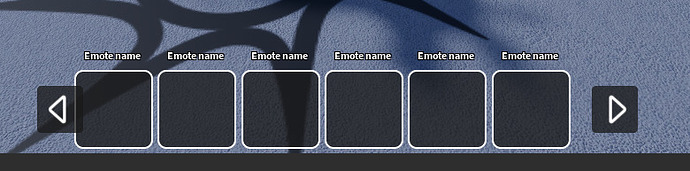

these are the different test i maded with the extraSpacingForFirst variable
with 1
with 10
with 30
with 100
Are the arrow buttons in another UI, cause they aren’t in the heirachy you sent earlier
The arrows are the ImageButtons called 1 and 0
I will try putting the arrows on a different frame
Are you taking into a account the arrows when you are doing your calculations for the hotbar?
Why dont you have a frame that has the arrows in them and then have that anchor point at the center and then do your calculations for the hotbar inside of that frame?
Are you taking into a account the arrows when you are doing your calculations for the hotbar?
Yes.
Why dont you have a frame that has the arrows in them and then have that anchor point at the center and then do your calculations for the hotbar inside of that frame?
Yes, the properties of the buttons and arrows are in a post above
Position seems correct here. Maybe the problem is with the arrows buttons? I can’t find where u edited the position of them (Ig the “leftButton” is one of them but the position of it isn’t edited so yea)
Maybe the function is not very friendly to calculate the spaces between objects that are not the same size; both the left and right buttons are changed in position in the updateHotbar() function. Yesterday I tried making the separation separately, and it only makes things complicated. I will make the arrows the same size as the other buttons.
Are you sure that the problem isn’t in these arrows? Run the game, check the position of the frame that holds the buttons and see if it’s closer to one of the arrows, if it is then you found the problem, if not, I can’t really find any issues with the code.
