Hello, I’m currently having a problem with viewports and positioning either the model or the camera. I’m trying to make a menu with a ton of swords displayed inside viewports, but I’m not sure how. Here’s what I’ve accomplished so far:
Images

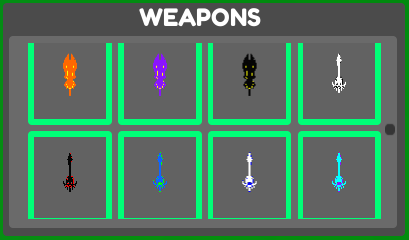

You can see that the swords do appear in the viewports, but they’re all oriented differently. In the first image, you can see that the swords are facing downwards towards the camera. In the second image, containing different sword models, they’re facing upwards (the swords are positioned from the same script).
What I’m currently trying to figure out is how to get them all to face the camera in the correct orientation. Here’s the code I used to create what I have now:
Code
local sword = weaponsDict[tostring(currentSword)]
local newSwordSlot = swordSlot:Clone()
local viewportFrame = newSwordSlot.SwordViewport
local viewportCamera = Instance.new("Camera", viewportFrame)
viewportCamera.CameraType = Enum.CameraType.Scriptable
viewportFrame.CurrentCamera = viewportCamera
local viewportSword = getModel(sword, "Handle") -- Returns a model version of the sword where PrimaryPart is the handle.
-- Basically just takes all the baseparts in an object and returns them within a model.
local viewportPoint = Vector3.new(0, 0, 0)
viewportSword:SetPrimaryPartCFrame(CFrame.new(viewportPoint))
viewportSword.Parent = viewportFrame
local rotCon
rotCon = runService.Heartbeat:Connect(function()
local cframe, size = viewportSword:GetBoundingBox()
local max = math.max(size.X, size.Y, size.Z)
local dist = (max/math.atan(math.rad(viewportCamera.FieldOfView))) * .5
local currentDist = (max/2) + dist
local currentRot = 0
if currentRot >= 360 then
currentRot = 0
end
currentRot += 1
viewportCamera.CFrame = CFrame.Angles(0, math.rad(currentRot), 0) * CFrame.new(viewportPoint + Vector3.new(0, currentDist*.6, currentDist), viewportPoint)
end)
table.insert(rotateConnections, rotCon)
newSwordSlot.Parent = swordFrame
When I paste the swords into the workspace, they all appear to be oriented the same way, so I’m not sure how this happened. Please let me know if you have any suggestions!
