Creating Buttes in Roblox Studio using MaterialVariant and TerrainDetails

Hey Creators!

I wanted to do a quick write up showing how we made the rocky buttes in the Racing Template using some custom textures, the MaterialVariant system, and the Terrain Details feature. Buttes are geological formations with steep flat-topped hills and are commonplace in semi-arid environments. The technique to create buttes can apply to various types of immersive terrain elements, both for playable areas and background fixtures.

If you’d like to start from scratch, follow the Setup instructions below. Otherwise, open the Sample Placefile and skip to the Technique Section below.

Setup Section

To make buttes like those created for the Racing Template, we will need to make a new MaterialVariant that uses the Terrain Details feature. This setup will be done in the Material Manager.

First, we will want to get our custom textures ready, so we can apply them to a new MaterialVariant in the MaterialManager.

Here are the textures:

Racing_Buttes_B General Terrain Details
Description Shale Textures Butte Face Textures
ColorMap rbxassetid://15178076413 rbxassetid://15154564397
NormalMap rbxassetid://15121734759 rbxassetid://15154564928
RoughnessMap rbxassetid://16370709161 rbxassetid://15154564645

Now that we have our textures listed, we can start creating the MaterialVariants in the Material Manager by plugging those rbxassetids into the ColorMap, NormalMap, and RoughnessMap slots. Since these aren’t metallic materials, we’ll leave the MetalnessMap slot empty, and use the default value there.

Creating the Material Variant

  1. In the MaterialManager, create a new MaterialVariant

  2. In the “General” Section:

    • Set the name to: Racing_Buttes_B
    • Set the Base Material to: Ground
  3. Insert the Texture Maps as follows:

    ColorMap rbxassetid://15178076413
    NormalMap rbxassetid://15121734759
    RoughnessMap rbxassetid://16370709161
  4. Set as Override: Enabled

  5. Set Studs Per Tile to: 20

  6. Pattern: Regular

  7. In the “Terrain Details” Section, set the Name to: ButteSides

  8. Insert the Texture Maps as follows:

    ColorMap rbxassetid://15178076413
    NormalMap rbxassetid://15121734759
    RoughnessMap rbxassetid://16370709161
  9. Set Studs Per Tile to: 60

  10. Pattern: Regular

That’s it! This material will now display the Shale textures on the top/bottom of any terrain, and show the Butte textures on the sides.

Technique Section

Now that we’ve either opened up the Sample Placefile, or created this material from scratch in our own scene, let’s use this material to sculpt a Butte!

  1. In the Terrain Editor, select the “Draw” tool, and in the Brush Settings, choose:

    • Brush Mode: Add
    • Brush Shape: Cube
    • Base Size: 5
    • Height: 5
    • Pivot Position: Bot
  2. Then select the “ground” material in Material Settings, which we have overridden with our MaterialVariant “Racing_Buttes_B”

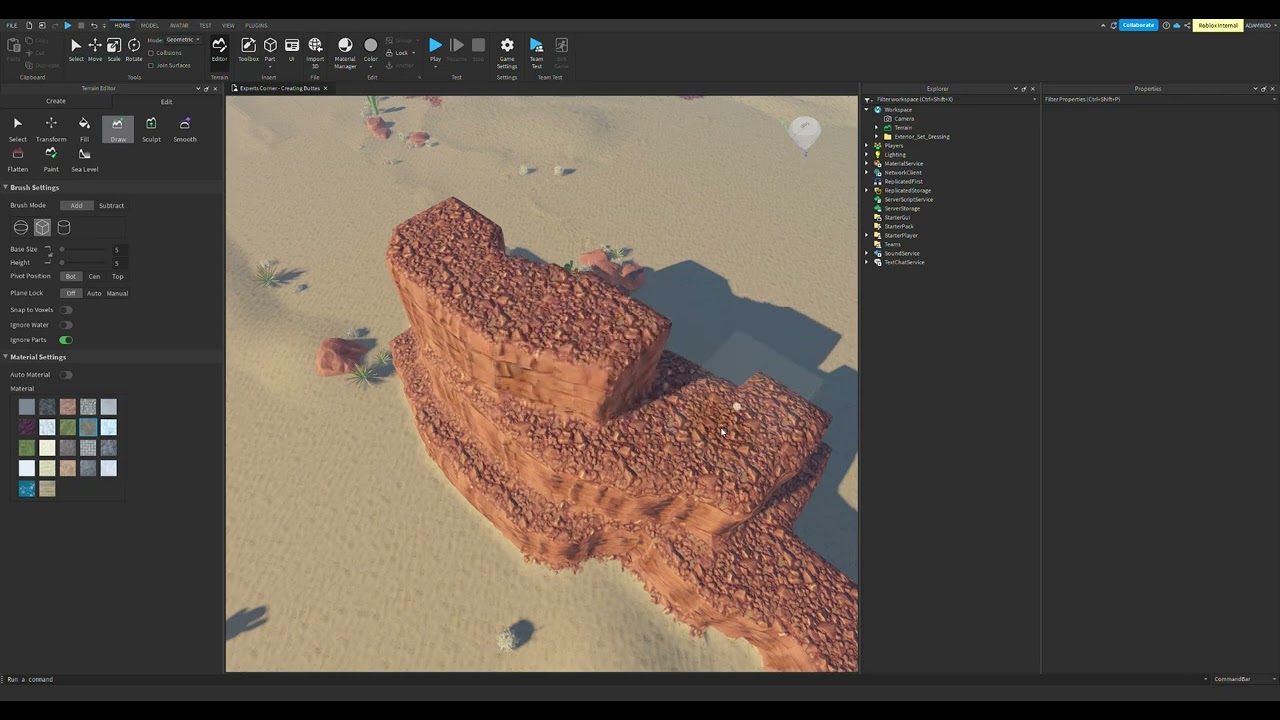

Navigate the 3d viewport to an open area of your placefile and begin stamping down some tall, thin rectangles of “ground” material, to block in the butte shape.

Usually, Buttes have tall, blade-like forms, with towers and column-like shapes buffering throughout. So let’s stamp down a wider base, and build up the form until it is about 20 studs tall. The base should be larger than the top.

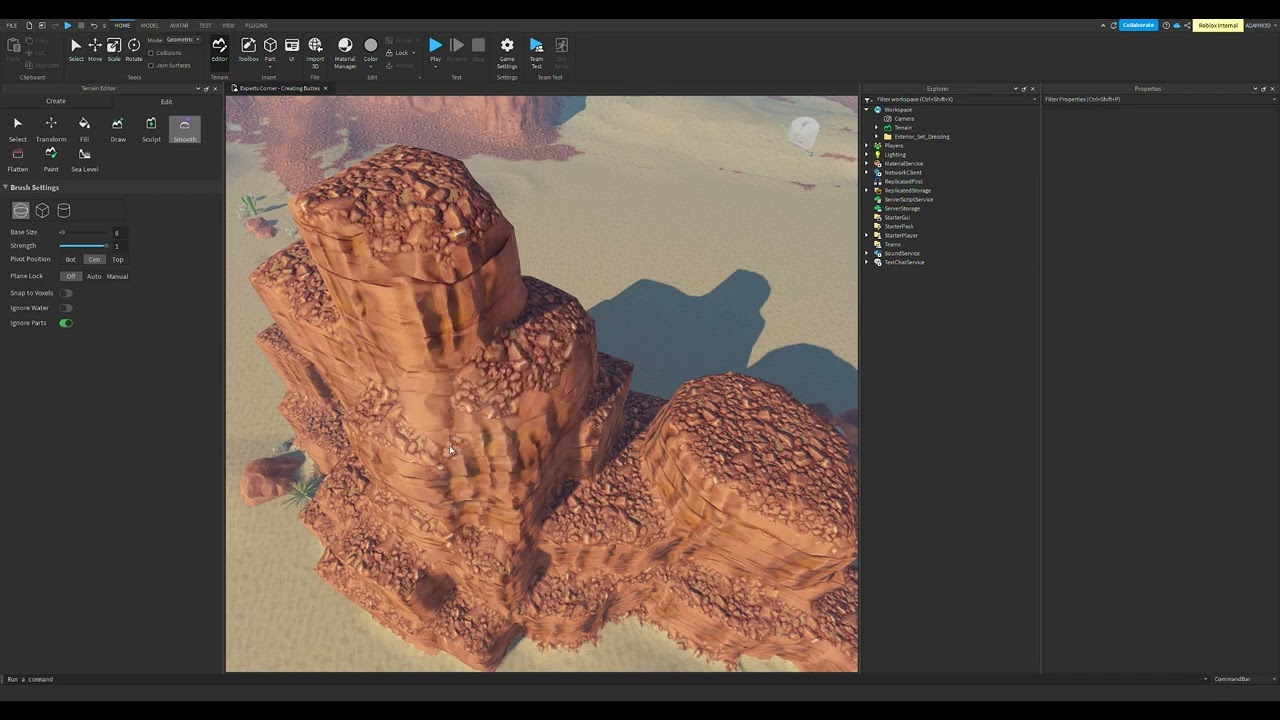

  1. Next, let’s switch to the “Smooth” brush and use its default settings to smooth out some of these forms to reduce the harsh rectilinearity of the blocky forms we just created.

Now we want to create the massive shale field at the bottom of the butte. When a butte is formed, they tend to have massive skirts of shale rock at the bottom, from the stone structure crumbling over eons.

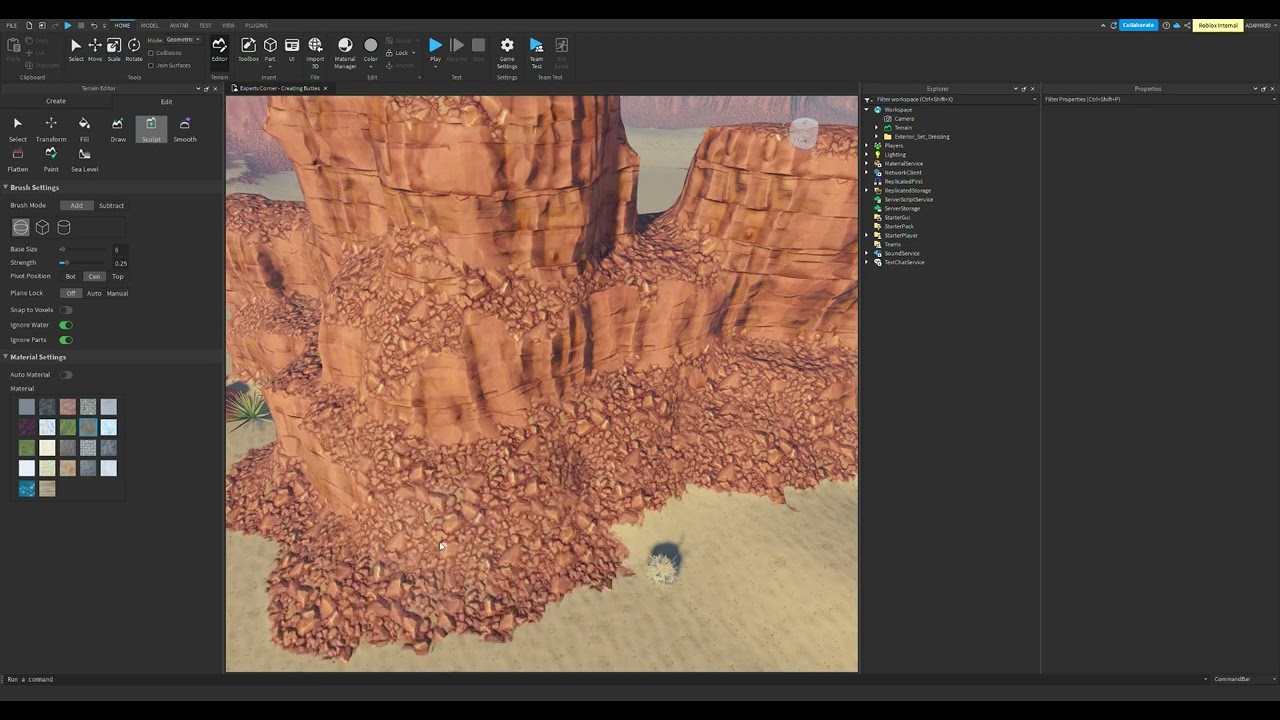

  1. To create the shale skirt, lets switch to the “Sculpt” brush
    • Strength: 0.25.
    • Material: Ground

Then, sculpt in the skit form around the base of your new Buttes.

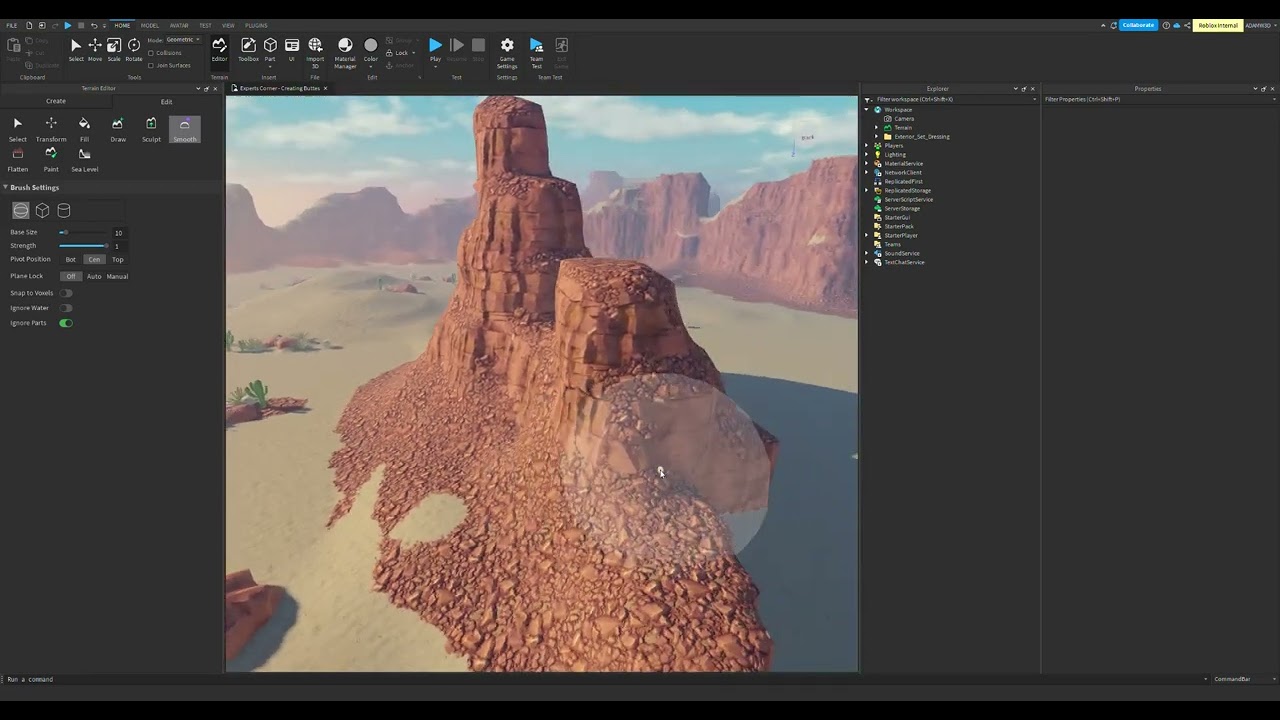

  1. With the same settings on your sculpt brush, go back into the main form of the Butte and sculpt in some more forms to refine the shape of the butte. Remember, the materialVariant we’re using will automatically put the shale on horizontal surfaces, and the vertical surfaces will display butte-rock faces.

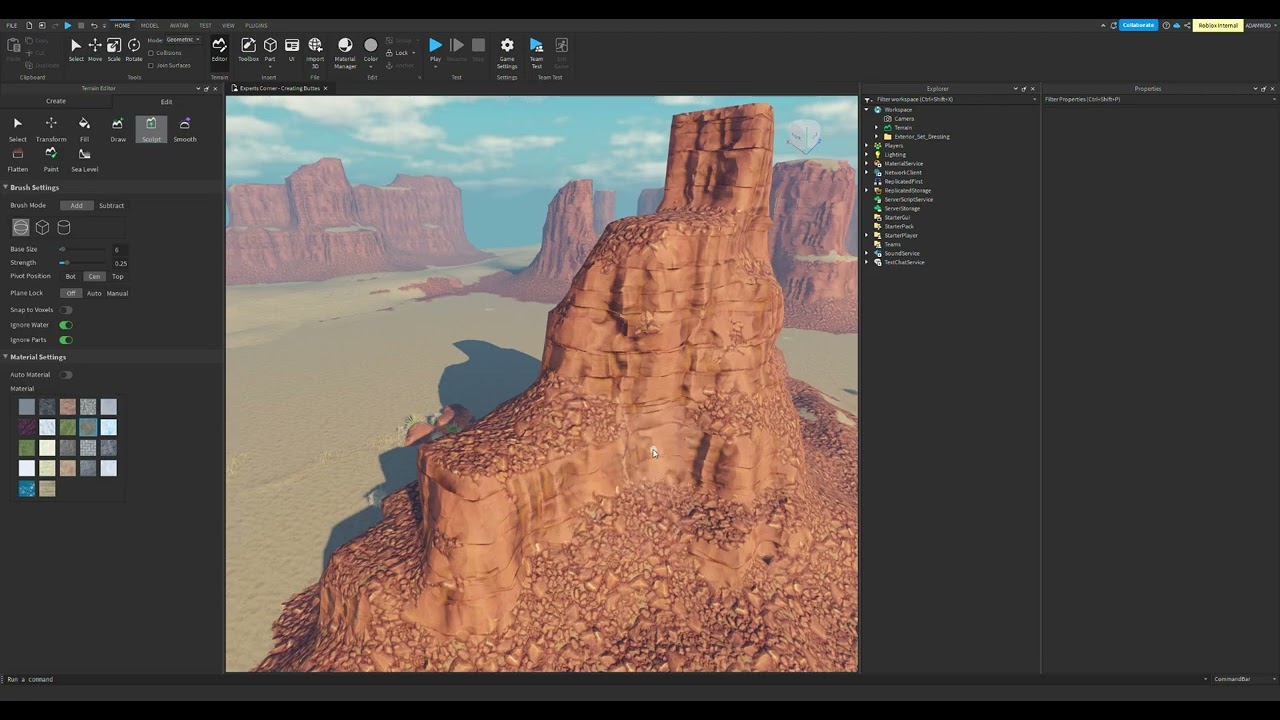

Now switch back to the smooth brush and smooth out any areas where the voxel terrain is pinching, or you’d like to see more sloped forms.

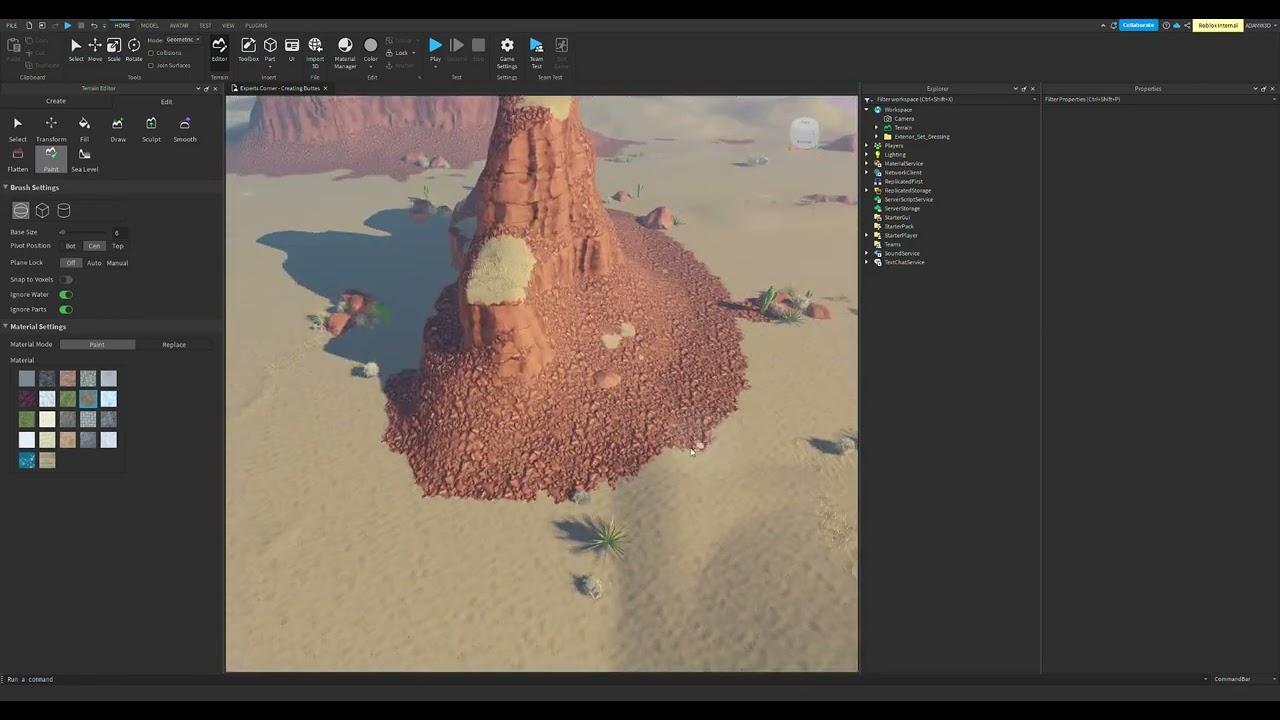

  1. As a final step, switch to the “Paint” brush and paint some grass on the tops, or use other MaterialVariants to break up the repeating surface of the buttes, and expand the shale skirt.

And there we have it! Try messing around with different shapes and forms to make some truly MASSIVE Buttes and mesas! Enjoy!
