Custom tweening

[ys3741]

I made a custom TweenService for fun and learning. Here’s the module script:

local easingStyles = {}
-- Contains a bunch of functions which input a number from 0 to 1, and outputs a similar number based on the curve
-- Each function also inputs a direction for the curve

local function inOut(i:number,style:(number,EnumItem) -> number,...):number
	if i < .5 then
		return style(i * 2,Enum.EasingDirection.In,...) / 2
	else
		return style((i - .5) * 2,Enum.EasingDirection.Out,...) / 2 + .5
	end
end

local function createPolynomialFunction(degree:number): (number,EnumItem) -> number
	local polynomialFunction
	polynomialFunction = function(i:number,direction:EnumItem):number
		i = math.clamp(i,0,1)
		if direction == Enum.EasingDirection.In then
			return i ^ degree
		elseif direction == Enum.EasingDirection.Out then
			return i ^ (1 / degree)
		elseif direction == Enum.EasingDirection.InOut then
			return inOut(i,polynomialFunction)
		end
	end
	return polynomialFunction
end

easingStyles.Linear = createPolynomialFunction(1)
easingStyles.Quadratic = createPolynomialFunction(2)
easingStyles.Cubic = createPolynomialFunction(3)
easingStyles.Quartic = createPolynomialFunction(4)
easingStyles.Quintic = createPolynomialFunction(5)
easingStyles.Exponential = function(i:number,direction:EnumItem):number
	i = math.clamp(i,0,1)
	if direction == Enum.EasingDirection.In then
		return 2 ^ (10 * (i - 1))
	elseif direction == Enum.EasingDirection.Out then
		return 1 - 2 ^ (-10 * i)
	elseif direction == Enum.EasingDirection.InOut then
		return inOut(i,easingStyles.Exponential)
	end
end
easingStyles.Sine = function(i:number,direction:EnumItem):number
	i = math.clamp(i,0,1)
	local halfPi = math.pi / 2
	if direction == Enum.EasingDirection.In then
		return math.sin((i - 1) * halfPi) + 1
	elseif direction == Enum.EasingDirection.Out then
		return math.sin(i * halfPi)
	elseif direction == Enum.EasingDirection.InOut then
		return inOut(i,easingStyles.Sine)
	end
end
easingStyles.Circular = function(i:number,direction:EnumItem):number
	i = math.clamp(i,0,1)
	if direction == Enum.EasingDirection.In then
		return 1 - math.sin(math.acos(i))
	elseif direction == Enum.EasingDirection.Out then
		return math.sin(math.acos(i + (.5 - i) * 2))
	elseif direction == Enum.EasingDirection.InOut then
		return inOut(i,easingStyles.Circular)
	end
end
easingStyles.Back = function(i:number,direction:EnumItem,steepness:number):number
	i = math.clamp(i,0,1)
	steepness = steepness or 1.3
	local max = steepness ^ .2
	if direction == Enum.EasingDirection.In then
		local subtraction = (steepness - 1) * i
		return (i * max) ^ 5 - subtraction
	elseif direction == Enum.EasingDirection.Out then
		local subtraction = (steepness - 1) * (1 - i)
		return 1 - ((max - i * max) ^ 5 - subtraction)
	elseif direction == Enum.EasingDirection.InOut then
		return inOut(i,easingStyles.Back,steepness)
	end
end

local function create(object:Instance,time:number,properties:{[string]:any},style:() -> number,...)
	local startValues = {}
	for name,_ in properties do
		startValues[name] = object[name]
	end

	local function updateProperties(alpha:number)
		for name,endValue in properties do
			local propertyType = typeof(endValue)
			if typeof(object[name]) ~= propertyType then return end
			local startValue:number = startValues[name]
			local newValue:any
			local lerpingTypes = {"CFrame","Vector2","Vector3","Color3","UDim2"}
			if propertyType == "number" then
				object[name] = math.lerp(startValue,endValue,alpha)
			elseif table.find(lerpingTypes,propertyType) then
				object[name] = startValue:Lerp(endValue,alpha)
			elseif propertyType == "UDim" then
				local as,ao = startValue.Scale,startValue.Offset
				local bs,bo = endValue.Scale,endValue.Offset
				object[name] = UDim.new(math.lerp(as,bs,alpha),math.lerp(ao,bo,alpha))
			end
		end
	end

	local total = 0
	repeat
		total += task.wait()
		updateProperties(style(total / time,...))
	until total >= time

	updateProperties(1)
end


return {
	EasingStyle = easingStyles,
	Tween = create
}

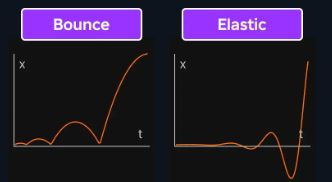

I left out 2 styles, Bounce and Elastic, because they’re more complex.

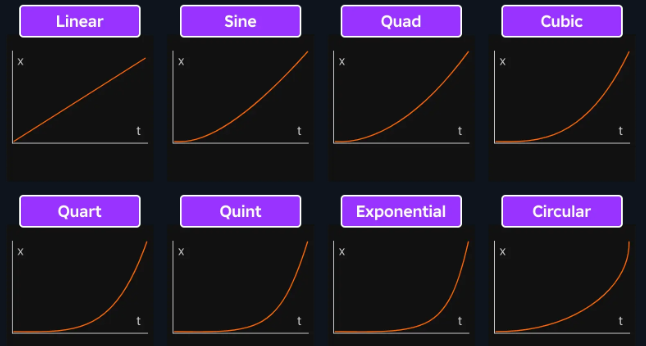

Compared to the other styles, which are just lines with a simple curve:

Does anyone have ideas for how I can add Bounce and Elastic?

[kaanture36448 (Christmas_Jerry)]

check this github:

GitHub - EmmanuelOga/easing: Easing functions implemented in lua (Functions...

[index_self]

Here’s my functions for every easing style. They’re as close as possible to their TweenService counterparts (with the largest delta documented per each). I also took a good deal in benchmarking and making them as performant as possible.

For numerical stability, I haven’t fully checked if they all hold any correctness properties like monotonicity, but I can guarantee you they are exact (F(0) == 0 and F(1) == 1) which should be good enough for most cases.

--!strict
--!native
--!optimize 2

-- Note: All constants (like math.pi * 2) are constant-folded
-- at level 2 optimizations (live games)

-- Delta: 7.953643921254638e-08
local function QuadIn(Value: number): number
	return Value ^ 2
end

-- Delta: 9.290313685017537e-08
local function QuadOut(Value: number): number
	return Value * 2 - Value ^ 2
end

-- Delta: 8.506011894837684e-08
local function QuadInOut(Value: number): number
	if Value < 0.5 then
		return Value ^ 2 * 2
	end

	return 1 - (2 - Value * 2) ^ 2 / 2
end


-- Delta: 9.810449030922541e-08
local function CubicIn(Value: number): number
	return Value ^ 3
end

-- Delta: 1.0041937237303955e-07
local function CubicOut(Value: number): number
	return 1 - (1 - Value) ^ 3
end

-- Delta: 1.1605999650221577e-07
local function CubicInOut(Value: number): number
	if Value < 0.5 then
		return Value ^ 3 * 4
	end

	return 1 - (2 - Value * 2) ^ 3 / 2
end


-- Delta: 1.2738682553248282e-07
local function QuartIn(Value: number): number
	local Base = Value ^ 2
	return Base * Base
end

-- Delta: 1.2738682264590295e-07
local function QuartOut(Value: number): number
	local Base = (1 - Value) ^ 2
	return 1 - Base * Base
end

-- Delta: 1.2579216368546753e-07
local function QuartInOut(Value: number): number
	if Value < 0.5 then
		local Base = Value ^ 2
		return Value * Value * 8
	end

	local Base = (2 - 2 * Value) ^ 2
	return 1 - Base * Base / 2
end


-- Delta: 1.504616977676676e-07
local function QuintIn(Value: number): number
	return Value * Value * Value * Value * Value
end

-- Delta: 1.5046169454802083e-07
local function QuintOut(Value: number): number
	local Base = 1 - Value
	return 1 - Base * Base * Base * Base * Base
end

-- Delta: 1.5110067619339418e-07
local function QuintInOut(Value: number): number
	if Value < 0.5 then
		return Value * Value * Value * Value * Value * 16
	end

	local Base = 2 - 2 * Value
	return 1 - Base * Base * Base * Base * Base / 2
end


-- Delta: 4.357429542745095e-07
local function CircularIn(Value: number): number
	return 1 - (1 - Value ^ 2) ^ 0.5
end

-- Delta: 4.3574297162868314e-07
local function CircularOut(Value: number): number
	return (1 - (Value - 1) ^ 2) ^ 0.5
end

-- Delta: 2.061581554357872e-07
local function CircularInOut(Value: number): number
	if Value < 0.5 then
		return (1 - (1 - 4 * Value ^ 2) ^ 0.5) / 2
	end

	return (1 + (1 - (2 - 2 * Value) ^ 2) ^ 0.5) / 2
end


-- Delta: 2.0641033593449265e-07
local function ExponentialIn(Value: number): number
	if Value == 0 then
		return 0
	end

	return 2 ^ (10 * Value - 10)
end

-- Delta: 2.0641033138257825e-07
local function ExponentialOut(Value: number): number
	if Value == 1 then
		return 1
	end

	return 1 - 2 ^ (Value * -10)
end

-- Delta: 1.7445670108529043e-07
local function ExponentialInOut(Value: number): number
	if Value == 0 then
		return 0
	end

	if Value == 1 then
		return 1
	end

	if Value < 0.5 then
		return 2 ^ (20 * Value - 11)
	end

	return 1 - 2 ^ (9 - 20 * Value)
end


-- Delta: 6.874036007076256e-08
local function SineIn(Value: number): number
	if Value == 1 then
		return 1
	end

	return 1 - math.cos(Value * (math.pi / 2))
end

-- Delta: 8.671046580754904e-08
local function SineOut(Value: number): number
	return math.sin(Value * (math.pi / 2))
end

-- Delta: 8.216054458998201e-08
local function SineInOut(Value: number): number
	return 0.5 - math.cos(Value * math.pi) / 2
end


-- Note: The Constants in Back are Fine-Tuned so Value = 1 Results in 1 Without Branching
-- and also Having a Small Delta

-- Delta: 2.2366793106520788e-07
local function BackIn(Value: number): number
	return Value ^ 3 * 2.7015799999999999 - Value ^ 2 * 1.7015799999999999
end

-- Delta: 2.236679272904496e-07
local function BackOut(Value: number): number
	local Base = Value - 1
	return 1 + Base ^ 3 * 2.7015799999999999 + Base ^ 2 * 1.7015799999999999
end

-- Delta: 1.716145916486056e-07
local function BackInOut(Value: number): number
	if Value < 0.5 then
		return Value ^ 3 * 10.80632 - Value ^ 2 * 3.40316
	end

	return Value * 25.61264 - Value ^ 2 * 29.0158 - 6.40316 + Value ^ 3 * 10.80632
end


-- Delta: 1.4909839396448632e-07
local function BounceIn(Value: number): number
	if Value < 1 / 11 then
		return 0.015625 - (7.5625 * (1 / 22 - Value) ^ 2)
	end

	if Value < 3 / 11 then
		return 0.0625 - (7.5625 * (2 / 11 - Value) ^ 2)
	end

	if Value < 7 / 11 then
		return 0.25 - (7.5625 * (5 / 11 - Value) ^ 2)
	end

	return 1 - (7.5625 * (1 - Value) ^ 2)
end

-- Delta: 2.535781873369558e-07
local function BounceOut(Value: number): number
	if Value < 4 / 11 then
		return 7.5625 * Value ^ 2
	end

	if Value < 8 / 11 then
		return 7.5625 * (Value - 6 / 11) ^ 2 + 0.75
	end

	if Value < 10 / 11 then
		return 7.5625 * (Value - 9 / 11) ^ 2 + 0.9375
	end

	return 7.5625 * (Value - 21 / 22) ^ 2 + 0.984375
end

-- Note: For Bounce InOut, the function call is faster than trying to inline the formula

-- Delta: 1.6928482327038807e-07
local function BounceInOut(Value: number): number
	if Value < 0.5 then
		return (1 - BounceOut(1 - 2 * Value)) / 2
	end

	return (1 + BounceOut(2 * Value - 1)) / 2
end


-- Delta: 4.4274472726923975e-07
local function ElasticIn(Value: number): number
	if Value == 0 then
		return 0
	end

	return -2 ^ (10 * Value - 10) * math.sin(math.pi * 6.5 * Value - math.pi * 7)
end

-- Delta: 4.7254703794408215e-07
local function ElasticOut(Value: number): number
	return 1 + 2 ^ (-10 * Value) * math.sin(math.pi * -6.5 * Value - math.pi / 2)
end

-- Delta: 4.167113005770773e-07
local function ElasticInOut(Value: number): number
	if Value == 0 then
		return 0
	end

	if Value < 0.5 then
		return -2 ^ (10 * (2 * Value - 1)) * math.sin(math.pi * 13 * Value - math.pi * 7) / 2
	end

	return 1 - 2 ^ (-10 * (2 * Value - 1)) * math.sin(math.pi * 13 * Value - math.pi * 6) / 2
end

[ys3741]

Thanks, this is what I already wrote:

easingStyles.Bounce = function(i:number,direction:EnumItem,bounciness:number):number
	i = math.clamp(i,0,1)
	bounciness = (bounciness and math.clamp(bounciness,0,math.huge)) or 1
	if direction == Enum.EasingDirection.In then
		local function getHeightAndCosine():(number,number)
			if i < .1 then
				return .05 * bounciness, i * 20 - 1
			elseif i < .3 then
				return .1 * bounciness, (i - .1) * (20 / 2) - 1
			elseif i < .6 then
				return .3 * bounciness, (i - .3) * (20 / 3) - 1
			else
				return 1, (i - .6) * (20 / 8) - 1
			end
		end

		local height,cosine = getHeightAndCosine()
		return math.sin(math.acos(cosine)) * height
	elseif direction == Enum.EasingDirection.Out then
		return 1 - easingStyles.Bounce(1 - i,Enum.EasingDirection.In,bounciness)
	elseif direction == Enum.EasingDirection.InOut then
		return inOut(i,easingStyles.Bounce,bounciness)
	end
end
easingStyles.Elastic = function(i:number,direction:EnumItem,elasticity):number
	i = math.clamp(i,0,1)
	elasticity = (elasticity and math.clamp(elasticity,0,math.huge)) or 1
	if direction == Enum.EasingDirection.In then
		local directionIndex = i * 24
		local directionChangeTable = {
			{20,4,-.3 * elasticity,1},
			{16,4,.15 * elasticity,-.3 * elasticity},
			{13,3,-.04 * elasticity,.15 * elasticity},
			{10,3,.04 * elasticity,-.04 * elasticity},
			{8,2,-.02 * elasticity,.04 * elasticity},
			{0,8,0,-.02 * elasticity}
		}

		for _,info in directionChangeTable do
			local indexStart,maxIndexDifference,valueStart,valueEnd = unpack(info)
			if directionIndex >= indexStart then
				local alpha = (directionIndex - indexStart) / maxIndexDifference
				return math.lerp(valueStart,valueEnd,alpha)
			end
		end
	elseif direction == Enum.EasingDirection.Out then
		return 1 - easingStyles.Elastic(1 - i,Enum.EasingDirection.In)
	elseif direction == Enum.EasingDirection.InOut then
		return inOut(i,easingStyles.Elastic)
	end
end

Bounce is pretty similiar, but Elastic is very different because using my function it doesn’t curve, it’s just straight lines.
