Doom WAD Importing explained somewhat

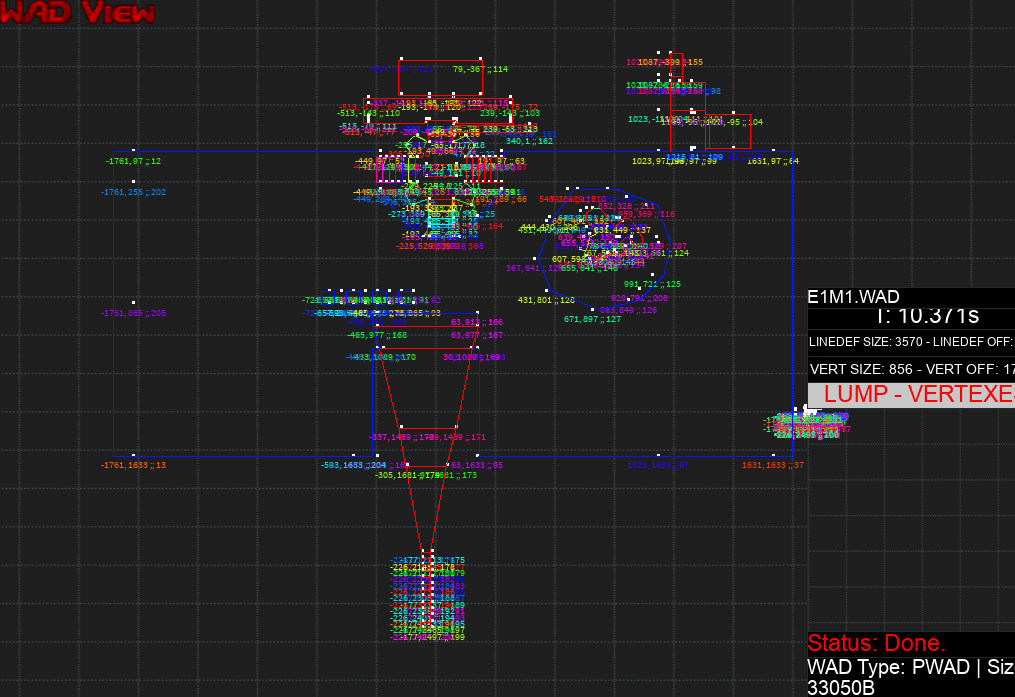

View of the Roblox plugin:

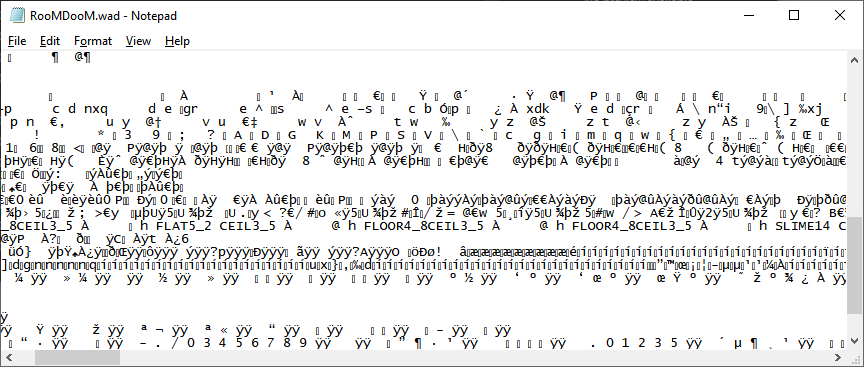

^raw WAD

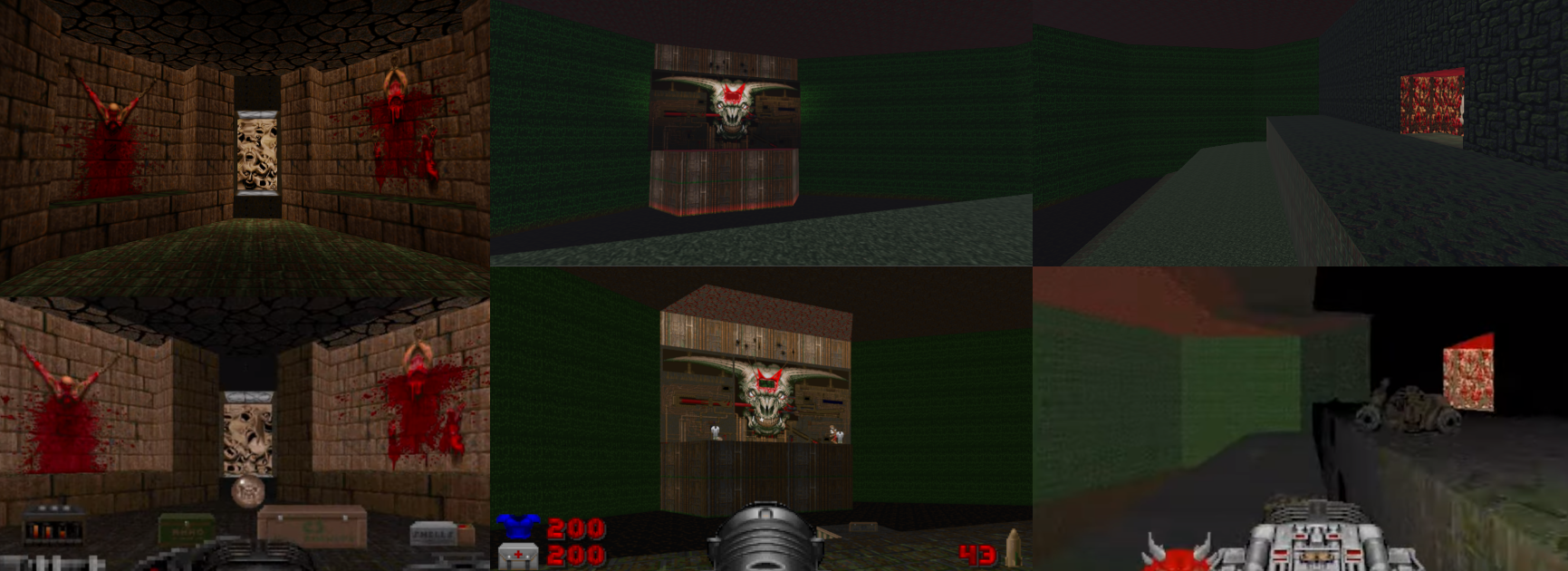

In the end, Doom WADs can now be imported to Roblox perfectly without much work.
Data such as actor and entity position is also readable and is being worked on

    lump = {}
    lump.__index = lump

    function lump:unpack16(index, endian) --unpack INT16, undecoded
        local result = ""
        for push = index,  index + (1*endian), endian do
            result = result
            .. string.format("%x", self.data:byte(index-math.max(0,endian)+push,index-math.max(0,endian)+push+1))
        end
        return tonumber("0x" .. result)
    end
    function lump:new(_name, _game, _file, _processed)
        local self = setmetatable({}, {
            header = function(_)
                for _1 in self.data:gmatch("[%a%d]+") do
                    if _1:len() == self.header_size then
                        local a, b = string.find(self.data, _1)
                        if not a then return end
                        if self.data:sub(a, b) == self.name then
                            self.header.Index = a
                            return self.header.Index
                        end
                    end
                end
            end;
        });
        self.name =                 _name;
        self.packet_size =          game_data[_game].packet_size
        self.header_size =          game_data[_game].header_size
        self.data =                 _file;
        self.header =               {};
        self.header.index, _ =      string.find(self.data, self.name)
        self.header.size_index =    self.data:sub(self.header.index-(dir.filepos),self.header.index-(dir.size))
        self.header.off_index =     self.data:sub(self.header.index-(dir.name), self.header.index-(dir.filepos))
        self.processed =            {}
        if typeof(_processed) == "table" then
            self.processed = _processed
        end
        return self;
    end
    --[[ example
    local vert = lump:new( "VERTEXES", "Doom", raw, {} )
    local v_off = vert:unpack16(vert.header.off_index, -1)
    for r = 0, vert:unpack16(vert.header.size_index, -1) - vert.packet_size, vert.packet_size do
        table.insert(vert.processed,
        {x = vert:unpack16(v_off+r+2), y = vert:unpack16(v_off+r+4)})
    --]]
    function lump:unpack32(index, endian) --unpack INT32, undecoded
        local result = ""
        for push = index,  index + (3*endian), endian do
            result = result
            .. string.format("%x", self.data:byte(index-math.max(0,endian)+push,index-math.max(0,endian)+push+1))
        end
        return tonumber("0x" .. result)
    end

    dir = { size = 0, filepos = 4, name = 8}
    game_data = {
        Doom = {
            packet_size = 16,
            vertex_size = 4,
            linedef_size = 14,
            sidedef_size = 30,
            sector_size = 26,
            header_size = 16,
        },
    }```
