Hello! I have a problem where the target is right in front of the entity, yet it makes a dumb path to reach the target, then fails.

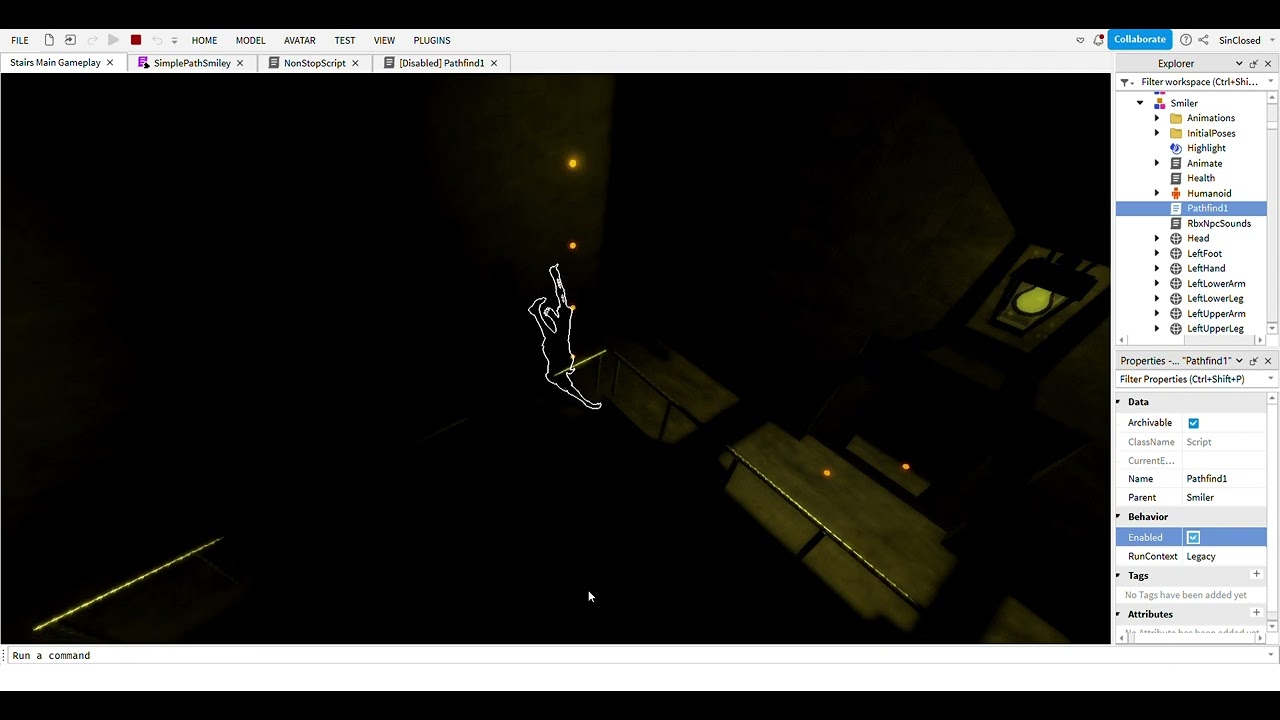

Here’s what I mean:
Right now I have this module:
--[[
-------------------------------------------------------------------
Created by: @V3N0M_Z
Reference: https://v3n0m-z.github.io/RBLX-SimplePath/
License: MIT
---------------------------------------------------------------------
]]
local DEFAULT_SETTINGS = {
TIME_VARIANCE = 0.07;
COMPARISON_CHECKS = 1;
JUMP_WHEN_STUCK = true;
}
---------------------------------------------------------------------
local PathfindingService = game:GetService("PathfindingService")
local Players = game:GetService("Players")
local function output(func, msg)
func(((func == error and "SimplePath Error: ") or "SimplePath: ")..msg)
end
local Path = {
StatusType = {
Idle = "Idle";
Active = "Active";
};
ErrorType = {
LimitReached = "LimitReached";
TargetUnreachable = "TargetUnreachable";
ComputationError = "ComputationError";
AgentStuck = "AgentStuck";
};
}
Path.__index = function(table, index)
if index == "Stopped" and not table._humanoid then
output(error, "Attempt to use Path.Stopped on a non-humanoid.")
end
return (table._events[index] and table._events[index].Event)
or (index == "LastError" and table._lastError)
or (index == "Status" and table._status)
or Path[index]
end
--Used to visualize waypoints
local visualWaypoint = Instance.new("Part")
visualWaypoint.Size = Vector3.new(0.3, 0.3, 0.3)
visualWaypoint.Anchored = true
visualWaypoint.CanCollide = false
visualWaypoint.Material = Enum.Material.Neon
visualWaypoint.Shape = Enum.PartType.Ball
--[[ PRIVATE FUNCTIONS ]]--
local function declareError(self, errorType)
self._lastError = errorType
self._events.Error:Fire(errorType)
end
--Create visual waypoints
local function createVisualWaypoints(waypoints)
local visualWaypoints = {}
for _, waypoint in ipairs(waypoints) do
local visualWaypointClone = visualWaypoint:Clone()
visualWaypointClone.Position = waypoint.Position
visualWaypointClone.Parent = workspace
visualWaypointClone.Color =
(waypoint == waypoints[#waypoints] and Color3.fromRGB(0, 255, 0))
or (waypoint.Action == Enum.PathWaypointAction.Jump and Color3.fromRGB(255, 0, 0))
or Color3.fromRGB(255, 139, 0)
table.insert(visualWaypoints, visualWaypointClone)
end
return visualWaypoints
end
--Destroy visual waypoints
local function destroyVisualWaypoints(waypoints)
if waypoints then
for _, waypoint in ipairs(waypoints) do
waypoint:Destroy()
end
end
return
end
--Get initial waypoint for non-humanoid
local function getNonHumanoidWaypoint(self)
--Account for multiple waypoints that are sometimes in the same place
for i = 2, #self._waypoints do
if (self._waypoints[i].Position - self._waypoints[i - 1].Position).Magnitude > 0.1 then
return i
end
end
return 2
end
--Make NPC jump
local function setJumpState(self)
pcall(function()
if self._humanoid:GetState() ~= Enum.HumanoidStateType.Jumping and self._humanoid:GetState() ~= Enum.HumanoidStateType.Freefall then
self._humanoid:ChangeState(Enum.HumanoidStateType.Jumping)
end
end)
end
--Primary move function
local function move(self)
if self._waypoints[self._currentWaypoint].Action == Enum.PathWaypointAction.Jump then
setJumpState(self)
end
self._humanoid:MoveTo(self._waypoints[self._currentWaypoint].Position)
end
--Disconnect MoveToFinished connection when pathfinding ends
local function disconnectMoveConnection(self)
self._moveConnection:Disconnect()
self._moveConnection = nil
end
--Fire the WaypointReached event
local function invokeWaypointReached(self)
local lastWaypoint = self._waypoints[self._currentWaypoint - 1]
local nextWaypoint = self._waypoints[self._currentWaypoint]
self._events.WaypointReached:Fire(self._agent, lastWaypoint, nextWaypoint)
end
local function moveToFinished(self, reached)
local isPathCompleted = false -- Flag to track if path completion event has been fired
--Stop execution if Path is destroyed
if not getmetatable(self) then return end
--Handle case for non-humanoids
if not self._humanoid then
if reached and self._currentWaypoint + 1 <= #self._waypoints then
invokeWaypointReached(self)
self._currentWaypoint += 1
elseif reached then
self._visualWaypoints = destroyVisualWaypoints(self._visualWaypoints)
self._target = nil
self._events.Reached:Fire(self._agent, self._waypoints[self._currentWaypoint])
else
self._visualWaypoints = destroyVisualWaypoints(self._visualWaypoints)
self._target = nil
declareError(self, self.ErrorType.TargetUnreachable)
end
return
end
if reached and self._currentWaypoint + 1 <= #self._waypoints then --Waypoint reached
if self._currentWaypoint + 1 < #self._waypoints then
invokeWaypointReached(self)
end
self._currentWaypoint += 1
move(self)
elseif reached then --Target reached, pathfinding ends
disconnectMoveConnection(self)
self._status = Path.StatusType.Idle
self._visualWaypoints = destroyVisualWaypoints(self._visualWaypoints)
self._events.Reached:Fire(self._agent, self._waypoints[self._currentWaypoint])
else --Target unreachable
disconnectMoveConnection(self)
self._status = Path.StatusType.Idle
self._visualWaypoints = destroyVisualWaypoints(self._visualWaypoints)
declareError(self, self.ErrorType.TargetUnreachable)
end
if reached and self._currentWaypoint == #self._waypoints then
if not isPathCompleted then
-- Simulating the completion of the entire pathfinding
print("Pathfinding is done!")
Path.Done:Fire() -- Fire the 'Done' event when the entire path is completed
isPathCompleted = true -- Set the flag to true indicating path completion
end
elseif reached then
-- Move to the next waypoint
self._currentWaypoint += 1
move(self)
else
-- Handle other cases as needed
end
end
--Refer to Settings.COMPARISON_CHECKS
local function comparePosition(self)
if self._currentWaypoint == #self._waypoints then return end
self._position._count = ((self._agent.PrimaryPart.Position - self._position._last).Magnitude <= 0.07 and (self._position._count + 1)) or 0
self._position._last = self._agent.PrimaryPart.Position
if self._position._count >= self._settings.COMPARISON_CHECKS then
if self._settings.JUMP_WHEN_STUCK then
setJumpState(self)
end
declareError(self, self.ErrorType.AgentStuck)
end
end
--[[ STATIC METHODS ]]--
function Path.GetNearestCharacter(fromPosition)
local character, dist = nil, math.huge
for _, player in ipairs(Players:GetPlayers()) do
if player.Character and (player.Character.PrimaryPart.Position - fromPosition).Magnitude < dist then
character, dist = player.Character, (player.Character.PrimaryPart.Position - fromPosition).Magnitude
end
end
return character
end
--[[ CONSTRUCTOR ]]--
function Path.new(agent, agentParameters, override)
if not (agent and agent:IsA("Model") and agent.PrimaryPart) then
output(error, "Pathfinding agent must be a valid Model Instance with a set PrimaryPart.")
end
-- Modify or create agentParameters with the desired settings
local agentParameters = {
AgentRadius = 4.85, -- Adjust the radius according to the size of the dummy
AgentCanJump = false, -- Enable the agent to jump over obstacles
AgentCanTraversePath = true, -- Allow the agent to navigate through parts
AgentCanUseClosedPaths = true, -- Allow the agent to use closed paths
AgentCanSlide = true, -- Allow the agent to slide along surfaces
AgentCanClimb = true, -- Allow the agent to climb obstacles
-- Other properties you might need to adjust
}
local self = setmetatable({
_settings = override or DEFAULT_SETTINGS;
_events = {
Reached = Instance.new("BindableEvent");
WaypointReached = Instance.new("BindableEvent");
Blocked = Instance.new("BindableEvent");
Error = Instance.new("BindableEvent");
Stopped = Instance.new("BindableEvent");
};
_agent = agent;
_humanoid = agent:FindFirstChildOfClass("Humanoid");
_path = PathfindingService:CreatePath(agentParameters);
_status = "Idle";
_t = 0;
_position = {
_last = Vector3.new();
_count = 0;
};
}, Path)
--Configure settings
for setting, value in pairs(DEFAULT_SETTINGS) do
self._settings[setting] = self._settings[setting] == nil and value or self._settings[setting]
end
--Path blocked connection
self._path.Blocked:Connect(function(...)
if (self._currentWaypoint <= ... and self._currentWaypoint + 1 >= ...) and self._humanoid then
setJumpState(self)
self._events.Blocked:Fire(self._agent, self._waypoints[...])
end
end)
return self
end
--[[ NON-STATIC METHODS ]]--
function Path:Destroy()
for _, event in ipairs(self._events) do
event:Destroy()
end
self._events = nil
if rawget(self, "_visualWaypoints") then
self._visualWaypoints = destroyVisualWaypoints(self._visualWaypoints)
end
self._path:Destroy()
setmetatable(self, nil)
for k, _ in pairs(self) do
self[k] = nil
end
end
function Path:Stop()
if not self._humanoid then
output(error, "Attempt to call Path:Stop() on a non-humanoid.")
return
end
if self._status == Path.StatusType.Idle then
output(function(m)
warn(debug.traceback(m))
end, "Attempt to run Path:Stop() in idle state")
return
end
disconnectMoveConnection(self)
self._status = Path.StatusType.Idle
self._visualWaypoints = destroyVisualWaypoints(self._visualWaypoints)
self._events.Stopped:Fire(self._model)
end
function Path:Run(target)
--Non-humanoid handle case
if not target and not self._humanoid and self._target then
moveToFinished(self, true)
return
end
--Parameter check
if not (target and (typeof(target) == "Vector3" or target:IsA("BasePart"))) then
output(error, "Pathfinding target must be a valid Vector3 or BasePart.")
end
--Refer to Settings.TIME_VARIANCE
if os.clock() - self._t <= self._settings.TIME_VARIANCE and self._humanoid then
task.wait(os.clock() - self._t)
declareError(self, self.ErrorType.LimitReached)
return false
elseif self._humanoid then
self._t = os.clock()
end
--Compute path
local pathComputed, _ = pcall(function()
self._path:ComputeAsync(self._agent.PrimaryPart.Position, (typeof(target) == "Vector3" and target) or target.Position)
end)
--Make sure path computation is successful
if not pathComputed
or self._path.Status == Enum.PathStatus.NoPath
or #self._path:GetWaypoints() < 2
or (self._humanoid and self._humanoid:GetState() == Enum.HumanoidStateType.Freefall) then
self._visualWaypoints = destroyVisualWaypoints(self._visualWaypoints)
task.wait()
declareError(self, self.ErrorType.ComputationError)
return false
end
--Set status to active; pathfinding starts
self._status = (self._humanoid and Path.StatusType.Active) or Path.StatusType.Idle
self._target = target
--Set network owner to server to prevent "hops"
pcall(function()
self._agent.PrimaryPart:SetNetworkOwner(nil)
end)
--Initialize waypoints
self._waypoints = self._path:GetWaypoints()
self._currentWaypoint = 2
--Refer to Settings.COMPARISON_CHECKS
if self._humanoid then
comparePosition(self)
end
--Visualize waypoints
destroyVisualWaypoints(self._visualWaypoints)
self._visualWaypoints = (self.Visualize and createVisualWaypoints(self._waypoints))
--Create a new move connection if it doesn't exist already
self._moveConnection = self._humanoid and (self._moveConnection or self._humanoid.MoveToFinished:Connect(function(...)
moveToFinished(self, ...)
end))
--Begin pathfinding
if self._humanoid then
self._humanoid:MoveTo(self._waypoints[self._currentWaypoint].Position)
elseif #self._waypoints == 2 then
self._target = nil
self._visualWaypoints = destroyVisualWaypoints(self._visualWaypoints)
self._events.Reached:Fire(self._agent, self._waypoints[2])
else
self._currentWaypoint = getNonHumanoidWaypoint(self)
moveToFinished(self, true)
end
return true
end
Path.Done = Instance.new("BindableEvent")
Path.Done.Name = "Done"
-- Placeholder function to simulate pathfinding completion
local function simulatePathCompleted()
-- Simulating the completion of pathfinding
print("Pathfinding is done!")
Path.Done:Fire() -- Fire the 'Done' event when pathfinding is completed
end
return Path
Script that calls the module:
--Import the module so you can start using it
local ServerStorage = game:GetService("ServerStorage")
local SimplePath = require(ServerStorage.SimplePathSmiley)
--Define npc
local dummy = script.Parent
-- Define a part called "Goal"
local Goal = dummy.Parent.The_One
--Create a new Path using the Dummy
local Path = SimplePath.new(dummy)
--Helps to visualize the path
Path.Visualize = true
Path.Done.Event:Connect(function()
--script.Enabled = false
end)
while true do
Path:Run(Goal)
end
The call script is inside of the dummy (Its parent is the dummy)
I’ve tried changing the agent radius:
-- Modify or create agentParameters with the desired settings
local agentParameters = {
AgentRadius = 4.85, -- Adjust the radius according to the size of the dummy
AgentCanJump = false, -- Enable the agent to jump over obstacles
AgentCanTraversePath = true, -- Allow the agent to navigate through parts
AgentCanUseClosedPaths = true, -- Allow the agent to use closed paths
AgentCanSlide = true, -- Allow the agent to slide along surfaces
AgentCanClimb = true, -- Allow the agent to climb obstacles
-- Other properties you might need to adjust
}
This does not seem to work.
Someone please help! Thanks.
