Heya!

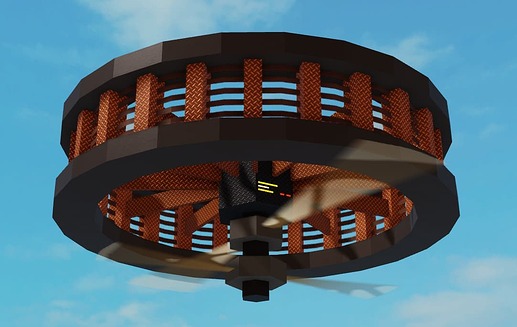

I decided to make a model based on the floating fan platforms from the Sega Sonic series’ Wing Fortress / Flying Battery levels.
I made it for practice at first, but I think it can benefit other people, so I made it public.
The functionality is purely local, so if you want it to work with server-related things like NPCs, I recommend setting up a script for that.
Finished in 2 days, hope you enjoy!
> Marketplace
> Test place
Wow, I mean… WOW!
I absolutely love this!
I tested it out in my game (Works very well), but I DID want to ask 1 question.
I know that the script is local inside of workspace. But I use Knit framework and was wondering if you could help me figure out why it isnt working.
--//Services
local ReplicatedStorage = game:GetService("ReplicatedStorage")
local CollectionService = game:GetService("CollectionService")
local RunService = game:GetService("RunService")
local FloatingFansFolder = workspace.FloatingFans
--//Modules
local Modules = ReplicatedStorage.Modules
--//Assets
local Assets = ReplicatedStorage:WaitForChild("Assets")
local Animations = Assets.Animations
local Sounds = Assets.Sounds
--//Animations
local FloatingFanAnimations = Animations.Universal.Interaction.FloatingFan
local DiveAnimation = FloatingFanAnimations.Dive
local FloatAnimation = FloatingFanAnimations.Float
--//Sounds
local FloatingFanSounds = Sounds.Universal.Interaction.FloatingFan
local CloseSound = FloatingFanSounds.Close
local FarSound = FloatingFanSounds.Far
local WindSound = FloatingFanSounds.Wind
--//Variables
local DEBUG = false
local FLOAT_ACCELERATION = 100
local INITIAL_FALLING_VELOCITY = -30
local ROTATIONS_PER_SECOND = 3
--//Setup
local initial_time = 0
local anchor_parts = {}
local rotors = {}
local float_areas = {}
local vector_force: VectorForce = script.VectorForce
local current_float_area: BasePart
--//Main
local Knit = require(ReplicatedStorage.Packages.Knit)
--//Module
local FloatingFanController = Knit.CreateController {
Name = "FloatingFanController",
}
--//Start
function FloatingFanController:KnitStart()
vector_force.Attachment0 = Knit.Player.Character.HumanoidRootPart:WaitForChild("RootAttachment")
for i, rotor: BasePart in CollectionService:GetTagged("FloatingFanRotor") do
AddRotor(rotor)
end
CollectionService:GetInstanceAddedSignal("FloatingFanRotor"):Connect(AddRotor)
Knit.Player.Character.Humanoid.StateChanged:Connect(StateChanged)
RunService.PreRender:Connect(PreRender)
for i, fan: Model in FloatingFansFolder:GetChildren() do
local float_area: BasePart = fan:WaitForChild("FloatArea")
float_area.Transparency = DEBUG and 0 or 1
local anchor_part: BasePart = fan:WaitForChild("AnchorPart")
local destination: Vector3 = anchor_part:GetAttribute("MoveDelta")
if destination then
anchor_part:SetAttribute("INITIAL_CFRAME", anchor_part.CFrame)
end
CloneSound(CloseSound, anchor_part)
CloneSound(FarSound, anchor_part)
CloneSound(WindSound, float_area)
table.insert(float_areas, float_area)
table.insert(anchor_parts, anchor_part)
end
end
--//Methods
function CloneSound(sound: Sound, parent: BasePart)
sound = sound:Clone()
sound.TimePosition = math.random(10, 100) / 10
sound.Playing = true
sound.Parent = parent
end
function StateChanged(old_state: Enum.HumanoidStateType, new_state: Enum.HumanoidStateType)
if new_state ~= Enum.HumanoidStateType.Freefall and Knit.GetController("AnimationController"):IsPlaying(FloatAnimation) == true and not current_float_area then
Knit.GetController("AnimationController"):StopAnimation(FloatAnimation)
end
end
function AddRotor(rotor: BasePart)
table.insert(rotors, rotor)
rotor.Orientation += Vector3.new(0, 0, initial_time * 360 * ROTATIONS_PER_SECOND * rotor:GetAttribute("SpinMark") + math.random(0, 360))
end
function IsRootPartInCylinder(cylinder: BasePart)
return (Vector2.new(Knit.Player.Character.HumanoidRootPart.Position.X, Knit.Player.Character.HumanoidRootPart.Position.Z) - Vector2.new(cylinder.Position.X, cylinder.Position.Z)).Magnitude <= cylinder.Size.Z / 2 and Knit.Player.Character.HumanoidRootPart.Position.Y <= cylinder.Position.Y + cylinder.Size.Y / 2 and Knit.Player.Character.HumanoidRootPart.Position.Y >= cylinder.Position.Y - cylinder.Size.Y / 2
end
function PreRender(delta_time: number)
local Character: Model = Knit.Player.Character
local RootPart = Knit.Player.Character.HumanoidRootPart
local Humanoid: Humanoid = Knit.Player.Character.Humanoid
local Animator: Animator = Knit.Player.Character.Humanoid.Animator
initial_time += delta_time
for i, anchor_part: BasePart in anchor_parts do
local initial_cframe: CFrame = anchor_part:GetAttribute("INITIAL_CFRAME")
if initial_cframe then
anchor_part.CFrame = initial_cframe:Lerp(initial_cframe + anchor_part:GetAttribute("MoveDelta"), (math.sin((workspace.DistributedGameTime + anchor_part:GetAttribute("MoveTimeOffset")) * anchor_part:GetAttribute("MoveSpeed")) + 1) * 0.5)
end
end
for i, rotor: BasePart in rotors do
rotor.Orientation += Vector3.new(0, 0, delta_time * 360 * ROTATIONS_PER_SECOND * rotor:GetAttribute("SpinMark"))
end
if Knit.GetController("AnimationController"):IsPlaying(FloatAnimation) == true then
Knit.GetController("AnimationController"):AdjustSpeed(FloatAnimation, 1 + (math.clamp(math.abs(RootPart.AssemblyLinearVelocity.Y), 0, 100) / 100) * 1.5)
end
if RootPart then
vector_force.Force = Vector3.new(0, RootPart.AssemblyMass * (workspace.Gravity + FLOAT_ACCELERATION), 0)
if current_float_area then
if IsRootPartInCylinder(current_float_area) and Humanoid.Health > 0 then
return
end
current_float_area = nil
vector_force.Enabled = false
Humanoid.HipHeight = Humanoid.RigType == Enum.HumanoidRigType.R15 and 2 or 0
end
for i, float_area: BasePart in float_areas do
if IsRootPartInCylinder(float_area) then
current_float_area = float_area
Humanoid.HipHeight = Humanoid.RigType == Enum.HumanoidRigType.R15 and 0 or -2
if Knit.GetController("AnimationController"):IsPlaying(FloatAnimation) == false then
Knit.GetController("AnimationController"):PlayAnimation(FloatAnimation)
Knit.GetController("AnimationController"):PlayAnimation(DiveAnimation)
end
if RootPart.AssemblyLinearVelocity.Y < 0 then
RootPart.AssemblyLinearVelocity = Vector3.new(RootPart.AssemblyLinearVelocity.X, INITIAL_FALLING_VELOCITY, RootPart.AssemblyLinearVelocity.Z)
end
vector_force.Enabled = true
break
end
end
end
end
return FloatingFanController
If you have any questions let me know!
I do plan to modularize it to only use collection service and some other adjustments + possible performance improvements (If I can).
I didnt want to mess around too much since you would obviously know more about this then me.
I haven’t heard about Knit before, but I assume it takes care of character-related stuff. The issue could be that it doesn’t update the variables properly, like the vector force’s Attachment0 being set to RootAttachment only when :KnitStart() is called.
The script can be placed anywhere you want, as long as it’s not cloned again and it has access to the fan models, because it should only set them up once. You just have to make sure the needed variables reset when the player gets a new character.
Also, does it print any errors in the output?
No, thankfully.
Knit handles updates internally, this isnt the issue and I checked it thankfully.
It seems that the line that sets the vector force’s Attachment0 property only runs once, though. Every time the player resets, it needs to change to the new attachment. That also includes the Humanoid’s StateChanged event. It stops firing its signal once the Humanoid is destroyed, which is why the StateChanged function needs to be relinked.
Ah I see, I will try this once I can.
I was thinking of using Zone Instead of the “IsRootPartInCylinder” function to highly increase performance.
Ah sorry, it seems that I forgot to mention what the bug even was.
Everything is in order… The animation playing, detecting when the character has landed and stopping the animation. And the parenting of said vector force. However the character doesnt go up. It seems that velocity or force isnt being changed or something.
Are u using a custom character or starter character?
Startercharacter, R6 with standard humanoid
Got it working, turns out the problem was that the vectorforce didnt exist in workspace so its behaviour was changed. All you have to do is parent it to the rootattachment and it works perfectly.
Ill work on increasing performance (Especially detecting if the player is inside the floating fan radius’s. Using zone and a couple of adjusments to the code itself.
Thank you for your help!
If the zone will increase performance let me know, I might integrate it or make something similar!
pretty awesome!!!
Yes, trying to implement it as we speak.
I’m (saintimmor on my phone)
So problem.
I haven’t used zone in a long time. Turns out since its last update was in (sep 9 2021). It’s basically completely broken.
Trying to create my own module would take way too much time. So for now I will wait for someone to eventually create an alternative.
Until then I will work on modularizing the code. And increasing the performance of other parts of code.
I’m a rotating blade of this resource.
(Fan)
This is infact me lol.
As I said, zone isnt currently working.
However, I found an alternative method that doesnt require a module. Will be using it now haha.
Zone has a significant memory leak ever look at it via the script profiler? Also it uses a lot of CPU compared to other methods, I’ve used it, tested Zone, implemented it and had to rip it out because it doesn’t scale very well either. The memory leak is an array called ‘userData’ . It also declares the entire Enum library as a local variable. Issues like that I noticed from looking at the memory usage and script CPU percentages.
Also, Concerning this post, I would suggest this change to the local script code to prevent memory leaks starting at line 105.
--// Rotor spinning
local function AddRotor(rotor: BasePart)
table.insert(rotors, rotor)
local i=#rotor
rotor.Orientation += Vector3.new(0, 0, initial_time * 360 * ROTATIONS_PER_SECOND * rotor:GetAttribute("SpinMark") + math.random(0, 360))
rotor:SetAttribute("Index",i)
end
local function RemoveRotor(rotor: BasePart)
local index=rotor:GetAttribute("Index")
if index then
table.remove(rotors,index)
end
end
COLLECTION_SERVICE:GetInstanceRemovedSignal("FloatingFanRotor"):Connect(AddRotor)
COLLECTION_SERVICE:GetInstanceAddedSignal("FloatingFanRotor"):Connect(AddRotor)
This would make your fans compatible with streaming enabled.
The modules run in a local enviroment.
Anything I could use to replace it? Ive been trying but I havent been able to
.
Depends on what you use it for. What I did is just code actual functions to do the thing I need it to do. I was using it for my Renderer because I thought it was supposed to be efficient but it had significant CPU usage issues so I just wrote in the distance checks starting with larger zones so there is a grid of areas which it queries first to find the closest part (make for a lot less distance queries) then, those objects in that localized area are checked for distance and if it is in view of the camera.
Hm I see.
My use case is checking if the player is inside the floating fan platforms zone.
I use a variable InFloatingFanCylinder: Boolean to check if the animations and velocity should be active in a renderstepped loop:
local Character: Model = Knit.Player.Character
local RootPart = Knit.Player.Character.HumanoidRootPart
local Humanoid: Humanoid = Knit.Player.Character.Humanoid
local Animator: Animator = Knit.Player.Character.Humanoid.Animator
initial_time += delta_time
for i, anchor_part: BasePart in anchor_parts do
local initial_cframe: CFrame = anchor_part:GetAttribute("INITIAL_CFRAME")
if initial_cframe then
anchor_part.CFrame = initial_cframe:Lerp(initial_cframe + anchor_part:GetAttribute("MoveDelta"), (math.sin((workspace.DistributedGameTime + anchor_part:GetAttribute("MoveTimeOffset")) * anchor_part:GetAttribute("MoveSpeed")) + 1) * 0.5)
end
end
for i, rotor: BasePart in rotors do
rotor.Orientation += Vector3.new(0, 0, delta_time * 360 * ROTATIONS_PER_SECOND * rotor:GetAttribute("SpinMark"))
end
if Knit.GetController("AnimationController"):IsPlaying(FloatAnimation) == true then
Knit.GetController("AnimationController"):AdjustSpeed(FloatAnimation, 1 + (math.clamp(math.abs(RootPart.AssemblyLinearVelocity.Y), 0, 100) / 100) * 1.5)
end
if RootPart then
vector_force.Force = Vector3.new(0, RootPart.AssemblyMass * (workspace.Gravity + FLOAT_ACCELERATION), 0)
if InFloatingFanCylinder == true then
Humanoid.HipHeight = Humanoid.RigType == Enum.HumanoidRigType.R15 and 0 or -2
if Knit.GetController("AnimationController"):IsPlaying(FloatAnimation) == false then
Knit.GetController("AnimationController"):PlayAnimation(FloatAnimation)
Knit.GetController("AnimationController"):PlayAnimation(DiveAnimation)
end
if RootPart.AssemblyLinearVelocity.Y < 0 then
RootPart.AssemblyLinearVelocity = Vector3.new(RootPart.AssemblyLinearVelocity.X, INITIAL_FALLING_VELOCITY, RootPart.AssemblyLinearVelocity.Z)
end
vector_force.Enabled = true
elseif InFloatingFanCylinder == false then
if Humanoid.Health > 0 then
return
end
vector_force.Enabled = false
Humanoid.HipHeight = Humanoid.RigType == Enum.HumanoidRigType.R15 and 2 or 0
end
end
I change this variable using zone
local CylinderZone = Zone.new(FloatingAreaTagged)
CylinderZone.localPlayerEntered :Connect(function()
InFloatingFanCylinder = true
print("ZoneEntered")
end)
CylinderZone.localPlayerExited:Connect(function()
InFloatingFanCylinder = false
print("ZoneExited")
end)
Think there is some sort of premade alternative to zone? Im a LITTLE to lazy to code something like it right now honestly.
