Grid System Placement

Help and Feedback Scripting Support
1

Hello DevForum users!

I made a placement system which uses a grid of 1.
But, the models with an uneven size like 5, offset by .5 in the X and Z axis.

(For some reasson in my computer Roblox dosent allow me to login so ill take pictures via phone)

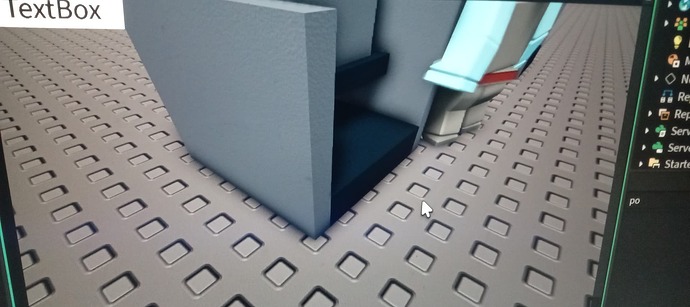

Model with size (5,5,5)

17671516859404488790731099637967
176715168594044887907310996379671920×857 92.6 KB

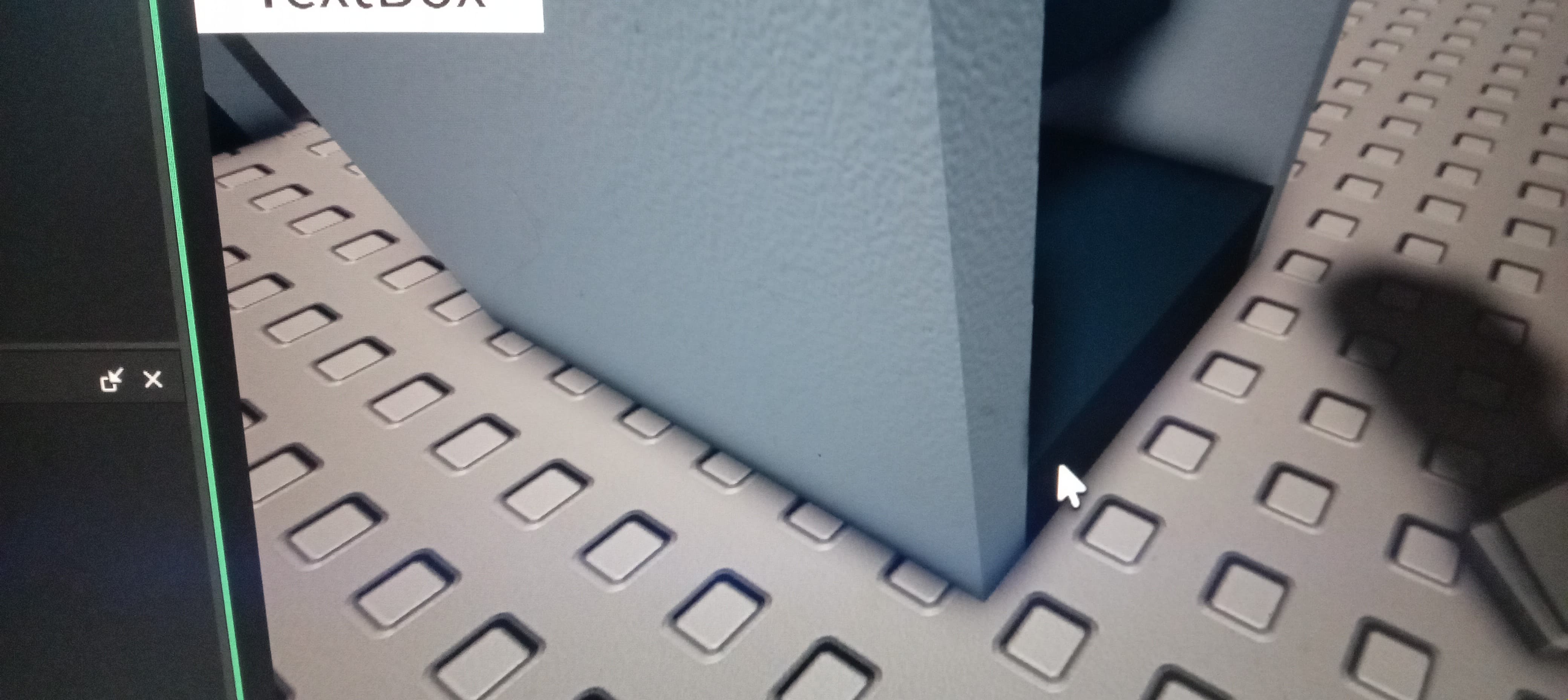

Model with size (5,5,6)

17671517793568999403586044361967
176715177935689994035860443619674160×1856 421 KB

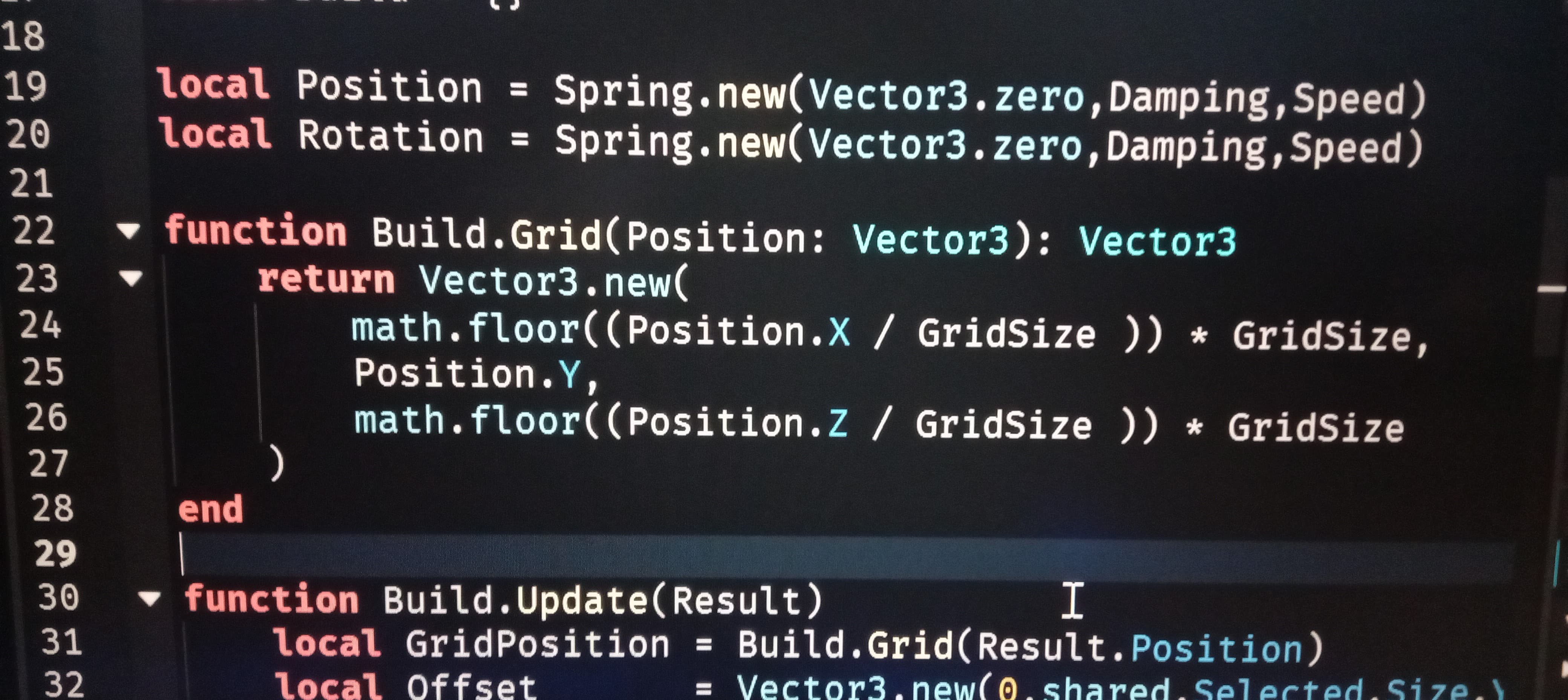

This is snapping code.

17671518396498491567463825952673
176715183964984915674638259526734160×1856 537 KB

2

Finally i could log in, if you need any info please just tell me!

3

So i did a fix that could work, but its not ideal, so if anyone still haves any idea i would appreciate it.

4

if it has an uneven size then there is no way to put it in the center without the 0.5 offset

I think the only two solutions are:

  1. Design every model with even stud size
  2. For X and Z, add 0.5 if the size is uneven, which would look like
if Size.X % 2 == 1 then
  Position.X += 0.5
end

if Size.Z % 2 == 1 then
  Position.Z += 0.5
end
2 Likes
5

I dont think this is a practical solution but maybe if the size is odd move it by half a stud

1 Like
6

Welp, if theres a way to not make it center based would be cool, ill try this tho
