Has anyone created an open-source Classic Voxel Terrain (2012-2016) plugin?

Hello! I’ve been trying to look around on the devforum and other chatting platforms alongside the toolbox for any open-source plugins that emulate old voxel terrain from the good old days. Unfortunately, every post I’ve found about such are closed and simply demos, and despite multiple people having made fully fleshed-out systems that even come packed with terrain destruction and generation, none of them were open source or even remotely used other than for demos.

After scouring the toolbox multiple times I couldn’t find any plugins that matched the use case, and the same goes for the devforum. Has anyone made one that I could use? I don’t know anything about terrain generation and I’ve never taken a crack at it as a scripter, and so I feel like that’s a very difficult hill to climb when it comes to my personal scripting skills, even with how long I’ve been scripting for.

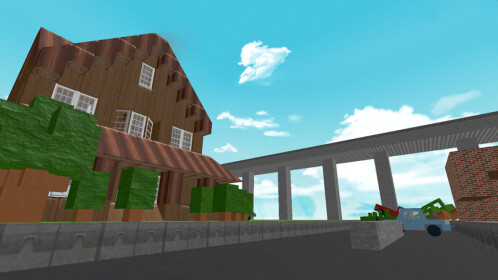

Heres some images of the old voxel terrain:


VoxelPNG
Terrain-1
Terrain-4

3 Likes

The best bet is to make it manually. Everyone, for no reason, gatekeeps any kind of these projects.

1 Like

Sadly I cant, its beyond my capabilities. I’ve tried doing something far simpler, a maze with preset rooms, and I couldn’t get it working properly, it was very buggy. That wasn’t too too long ago, so this seems to be the only option.

I’ve been down that rabbit hole too, so many demos & zero code you can actually pull into your game but I did find quite a few repo’s that are pretty useful :slight_smile:

we have a chunked, greedy meshing world with perlin terrain, async chunk loading, hidden-face culling and block destruction mineblox although a bit more complicated to set up.

or a pure-lua heightmap generator (rivers, lakes, forests) domain warped perlin noise RTerrainGenerator which is very simple.

If you wanna learn how to do it yourself, there are some examples.

Single Voxel example which shows you how to spit out a 4x4x4 voxel, create voxel terrain
SingleVoxel

or we could simply make our own with Roblox’s own WriteVoxel() function like in the previous example.


code for it, incase you are interested;

local region = Region3.new(
	Vector3.new(0, 0, 0),
	Vector3.new(64, 32, 64)
)

local function generateSuperMultiTerrain(regionInput)
	assert(typeof(regionInput) == "Region3", "Expected a Region3!")

	local RES   = 4
	local STEP  = 2

	local aligned = regionInput:ExpandToGrid(RES)
	local size    = aligned.Size / RES

	local mats, occs, water = {}, {}, {}
	for x = 1, size.X do
		mats[x], occs[x], water[x] = {}, {}, {}
		for y = 1, size.Y do
			mats[x][y], occs[x][y], water[x][y] = {}, {}, {}
		end
	end

	for sx = 1, size.X, STEP do
		for sy = 1, size.Y, STEP do
			for sz = 1, size.Z, STEP do
				local r = math.random()
				local mat
				if r < 0.25 then
					mat = Enum.Material.Sand
				elseif r < 0.50 then
					mat = Enum.Material.Cobblestone
				elseif r < 0.75 then
					mat = Enum.Material.Grass
				else
					mat = Enum.Material.Mud
				end
				local occ = 1

				for dx = 0, STEP-1 do
					for dy = 0, STEP-1 do
						for dz = 0, STEP-1 do
							local x, y, z = sx+dx, sy+dy, sz+dz
							if x <= size.X and y <= size.Y and z <= size.Z then
								mats[x][y][z]  = mat
								occs[x][y][z]  = occ
								water[x][y][z] = 0
							end
						end
					end
				end
			end
		end
	end

	return {
		SolidMaterial   = mats,
		SolidOccupancy  = occs,
		LiquidOccupancy = water,
	}
end

local content = generateSuperMultiTerrain(region)
workspace.Terrain:WriteVoxelChannels(region, 4, content)

I hope this helps you out to some extent, happy developing! :grin:

I actually am currently working on this exact thing. You can follow the progress in RetroStudio Discord server, it’s called LegacyTerrain Tools, you can find it in #retro-builds channel. It already has voxel generation with wedges, destruction and crater generation, each day is more and more accurate!
