I am trying to make a function that takes a part and splits it up into a grid. My code works for grid parts that are at either a 0deg, 90deg, 180deg, or 360deg rotation. How can I get my code to work for diagonal parts as well.

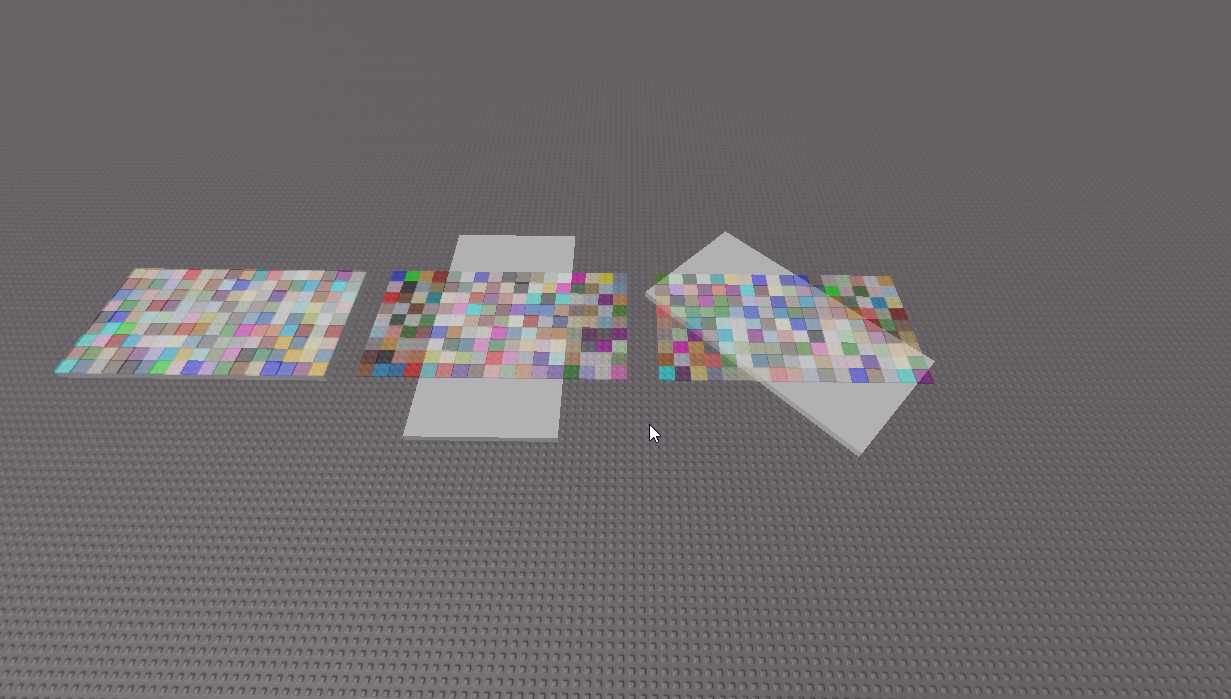

I will provide the code and an image of the current results.
local function CreateGrid(gridpart)
local TileSize = Vector3.new(2,0.25,2)
-- create folder for physical tiles
local TileFolder = Instance.new("Folder")
TileFolder.Name = "Tiles"
TileFolder.Parent = gridpart
-- calculate amount of grid tiles and position
local xAmount,xOffset
local zAmount,zOffset
xAmount = gridpart.Size.X / TileSize.X
zAmount = gridpart.Size.Z / TileSize.Z
if xAmount % 1 ~= 1 then
--if it doesnt divide equally
xOffset = (xAmount % 1)
xAmount = math.floor(xAmount)
else
xOffset = 0
xAmount = math.floor(xAmount)
end
if zAmount % 1 ~= 1 then
--if it doesnt divide equally
zOffset = (zAmount % 1)
zAmount = math.floor(zAmount)
else
zOffset = 0
zAmount = math.floor(zAmount)
end
-- add physical tiles to grid
for xCount = 0,xAmount-1,1 do
for zCount = 0, zAmount-1,1 do
--wait()
local Tile = Instance.new("Part")
Tile.Size = TileSize
Tile.Transparency = 0.6
Tile.Anchored = true
Tile.BrickColor = BrickColor.Random()
Tile.CFrame = CFrame.new( (((gridpart.Position.X) - (gridpart.Size.X / 2)) + (Tile.Size.X / 2) + (xOffset) + (xCount * Tile.Size.X)) , (gridpart.Size.Y + Tile.Size.Y / 2) , (((gridpart.Position.Z) - (gridpart.Size.Z / 2)) + (Tile.Size.Z / 2) + (zOffset) + (zCount * Tile.Size.Z)))
Tile.Parent = TileFolder
local Settings = Instance.new("Folder")
Settings.Name = "Settings"
Settings.Parent = Tile
end
end
end
CreateGrid(workspace.GridPart1)
CreateGrid(workspace.GridPart2)
CreateGrid(workspace.GridPart3)
Not sure if this could work, but you could do the exact thing that you’re doing, but group all of the parts into a model after they’re made and set the center part to the PrimaryPart of the model. Weld all of the other parts to the PrimaryPart and use :SetPrimaryPartCFrame to set the CFrame of the model to the CFrame of the bigger part.
Inefficient option, but depending on your use-case, performance might not matter at all. If you want to divide the bigger part into smaller ones while adjusting for rotation, you’d have to do some more complex math.
I’m trying to find how to do it with your code, but what my code was supposed to do was rotate the parts before moving it, so that it would be set in the right spot.
You could always set the PrimaryPart to a random part and do the same thing, but adjust the CFrame that you use for :SetPrimaryPartCFrame to account for the offset between the CFrame of the bigger part and the PrimaryPart.
