Greetings,

I have a script that manages a grid inventory system. At this time I can display an ImageLabel within the specified grid’s position, height and width.

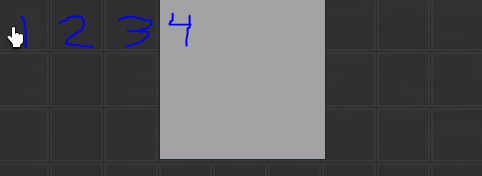

Example of 3x3 at position 4:
3x3

Example of 1x2 at position 12:

You may be wondering if this works fine then what is the issue? Anytime I attempt to set the width/height higher than 4 it’s like it just goes rogue.

Example of 4x5:

Module:

local modelUI = {}

-- All Items
local bloxCash = {
	ID = "$BLX",
	Description = "27413",
	Width = 4,
	Height = 5,
	Position = 3
}

-- Load all items into allItems dictionary
local allItems = {}

local function addItem(item)
	table.insert(allItems, item)
end

addItem(bloxCash)

-- Insert allItems dictionary into Module
table.insert(modelUI, allItems)



return modelUI

UI:


-- SERVICES
local ReplicatedStorage = game:GetService("ReplicatedStorage")
local ModuleUI = require(ReplicatedStorage:WaitForChild("UI"))

-- VARS
local allItems = ModuleUI[1]
stashMap = {}

local screenMain = script.Parent
local screenInventory = script.Parent:WaitForChild("Inventory")
local frameStash = screenInventory:WaitForChild("Stash")
local stashContainer = frameStash:WaitForChild("Container")
local selection = stashContainer:WaitForChild("selction")

-- Create stash tiles and save their position
local function loadStash()
	for i = 1, 150 do
		local grid = selection:Clone()
		grid.Visible = true
		grid.Name = i
		grid.Parent = stashContainer
		stashMap[i] = grid
	end
end

local function calculateGridPositionAndSize(position, width, height, stashMap, stashContainer, columns)
	-- Determine the top-left grid cell
	local startGrid = stashMap[position]
	if not startGrid then
		warn("Invalid grid position:", position)
		return UDim2.new(0, 0, 0, 0), UDim2.new(0, 0, 0, 0)
	end

	-- Determine the bottom-right grid cell based on width and height
	local endPosition = position + (width - 1) + ((height - 1) * columns)
	local endGrid = stashMap[endPosition]
	if not endGrid then
		warn("End grid cell out of bounds:", endPosition)
		return UDim2.new(0, 0, 0, 0), UDim2.new(0, 0, 0, 0)
	end

	-- Calculate top-left corner position relative to stashContainer
	local topLeftPos = startGrid.AbsolutePosition - stashContainer.AbsolutePosition

	-- Calculate total size in pixels
	local totalWidth = (endGrid.AbsolutePosition.X + endGrid.AbsoluteSize.X) - startGrid.AbsolutePosition.X
	local totalHeight = (endGrid.AbsolutePosition.Y + endGrid.AbsoluteSize.Y) - startGrid.AbsolutePosition.Y

	-- Convert to scale (UDim2)
	local positionScale = UDim2.new(0, topLeftPos.X, 0, topLeftPos.Y)

	local sizeScale

	if height == 1 then
		sizeScale = UDim2.new(0, totalWidth, 0, totalHeight)
	else
		local adjustX = 51

		sizeScale = UDim2.new(0, totalWidth-(adjustX*(height - 1)), 0, totalHeight)
	end



	return positionScale, sizeScale
end

local function addItemToStash(item)
	-- Access item data
	local position = item.Position
	local width = item.Width
	local height = item.Height

	-- Validate position
	if not stashMap[position] then
		warn("Invalid position:", position)
		return
	end

	-- Define grid layout parameters
	local columns = 10 -- Adjust based on your grid layout

	-- Calculate position and size
	local positionScale, sizeScale = calculateGridPositionAndSize(position, width, height, stashMap, stashContainer, columns)

	-- Create ImageLabel to represent the item visually
	local imageLabel = Instance.new("ImageLabel")
	imageLabel.Size = sizeScale
	imageLabel.Position = positionScale
	imageLabel.BackgroundTransparency = 0
	imageLabel.ZIndex = 2
	imageLabel.Parent = stashContainer:WaitForChild("ignoredItems")

	print("ImageLabel created with Size:", imageLabel.Size, "and Position:", imageLabel.Position)
end


loadStash()
addItemToStash(allItems[1])

You may notice that I have this section of code that adjusts the X value if the height is larger than 1. I did this because if you set the height higher than 2 it also adjusts the width by 1 which is not intended, so I used this to adjust it accordinly.

if height == 1 then
		sizeScale = UDim2.new(0, totalWidth, 0, totalHeight)
	else
		local adjustX = 51
		sizeScale = UDim2.new(0, totalWidth-(adjustX*(height - 1)), 0, totalHeight)
	end

I’m not sure if my method of calculating the size of the ImageLabel is the most efficient solution and I’m lost as to why it’s inconsistent, any and all help would be much appreciated!

Thanks.
