Help with raycasting from a specific angle

[volkan58341122]

I’ve been trying to improve my enemy AI for past few days, I’m working on a horror-obby game, where monsters detect players and then start chasing them, I have one problem that confuses me a lot

How I can raycast from a angle? I tried so many ways, using LookVector but it doesnt seem to be working

I want to raycast from an angle just like in this example picture I made to visualize what I’m talking about (red lines are raycast):

[metatablebased]

local numberOfRays = 20
local rayDistance = 20

local angleStep = 90 / (numberOfRays - 1)

local direction = humanoidRootPart.CFrame.LookVector
for i = 0, numberOfRays - 1 do
	local angle = -45 + (angleStep * i)
	local rotation = CFrame.Angles(0, math.rad(angle), 0)
	local rayDirection = (rotation * direction).Unit

	local rayOrigin = humanoidRootPart.Position + direction * 1.5

	local hit = workspace:Raycast(rayOrigin, rayDirection * rayDistance)

	if hit then
		print("Hit object: " .. hit.Instance.Name)
	else
		print("No hit")
	end
end

don’t forget to add raycastparams for the parts, otherwise they would be hitting each other

[volkan58341122]

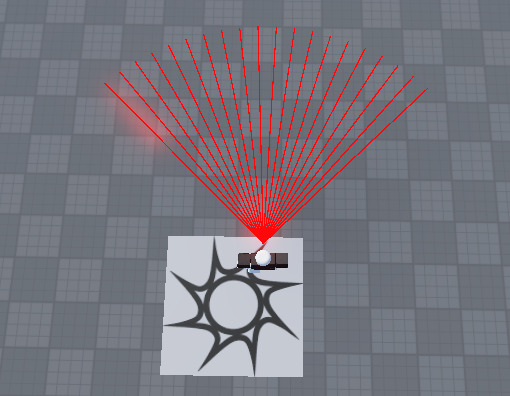

Thank you very much!! Is there any way on how can I visualize?

[metatablebased]

this is what i’ve used:

local function createRayPart(origin, direction)
    local rayPart = Instance.new("Part")
    rayPart.Size = Vector3.new(0.1, 0.1, rayDistance)
    rayPart.Anchored = true
    rayPart.CanCollide = false
    rayPart.Color = Color3.new(1, 0, 0)
    rayPart.Material = Enum.Material.Neon
    rayPart.CFrame = CFrame.new(origin + direction * (rayDistance / 2), origin + direction)
    rayPart.Parent = workspace
end

-- and in the for loop, just call it
createRayPart(rayOrigin, rayDirection)
