How can I allow a map to fall apart?

Help and Feedback Scripting Support
#1

I’m wanting to allow a map to naturally get destroyed as parts are removed/destroyed through gameplay.

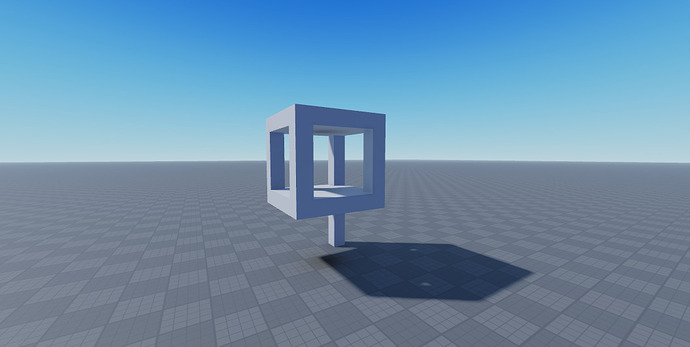

So say if I have a tower
and during the game, bottom 3 legs get destroyed. Naturally, it should topple right over.

image1056×532 64.7 KB

However I am unsure how to get this desired affect. I could un anchor all the parts, but then it’d fall from player interference/etc.

Tried this, but everything just ended up falling apart straight away

for _, part in MapClone.Destructable:GetDescendants() do
		if not part:IsA("BasePart") then
			continue
		end

		local TouchingParts = part:GetTouchingParts()
		for _, touchingPart in TouchingParts do
			local WeldConstraint = Instance.new("WeldConstraint")
			WeldConstraint.Part0 = part
			WeldConstraint.Part1 = touchingPart
			WeldConstraint.Parent = part
		end

		part.Anchored = false
	end
1 Like
#2

Could you show a video of what’s happening currently?

#3

I’m pretty sure :GetTouchingParts() doesn’t work for anchored parts. :GetTouchingParts() only works for overlapping parts, not for parts perfectly next to eachother.

You could replace it with :GetPartBoundsInBox() like so

local overlapParams = OverlapParams.new()
overlapParams.FilterType = Enum.RaycastFilterType.Blacklist
overlapParams.FilterDescendantsInstances = {part} -- ignore the part, so it doesn't weld to itself
local TouchingParts = workspace:GetPartBoundsInBox(
    part.CFrame,
    part.Size + Vector3.new(.01, .01, .01), -- add size so that it also finds parts that aren't overlapping
    overlapParams
)

However this will assume that every part is a cuboid, welding wedges and other shapes that aren’t touching.

#4

I need something that’ll weld any and all part types including meshes. If their bounding box is touching a part, it needs to weld

#5

Just tried this and it doesn’t work. Parts just collapsed straight away, and player can push parts over

#6

This is a very interesting topic, I’ve thought about it and came to a conclusion that using physics simulation is the best way. Try implementing everything without anchoring. Weld the model, then, if one “Leg” gets destroyed and It wont fall. In those disaster games they probably somehow mix the physics + anchoring/unanchoring. I can’t provide step by step guide, but think in that direction.
