How could i make the white lines around the range like tdx

Help and Feedback Scripting Support
#1


hello developers, im looking for someone to explain how the white lines can be created?

ive already created the range itself and i have no idea how to create the lines
i tried making them before but it seems unidentical

#2

heres my attempt in recreating it

#3

I’m assuming you can use a Selection Box.

#4

Do this but set the darker gray to transparency 1.

1 Like
#5

Some sort of formula i guess? has something to do with RangeRadius, 180 degrees part rotation, and Angles to position the part correctly
The easiest way would be creating a blender mesh and scaling it ingame to your radius

#6

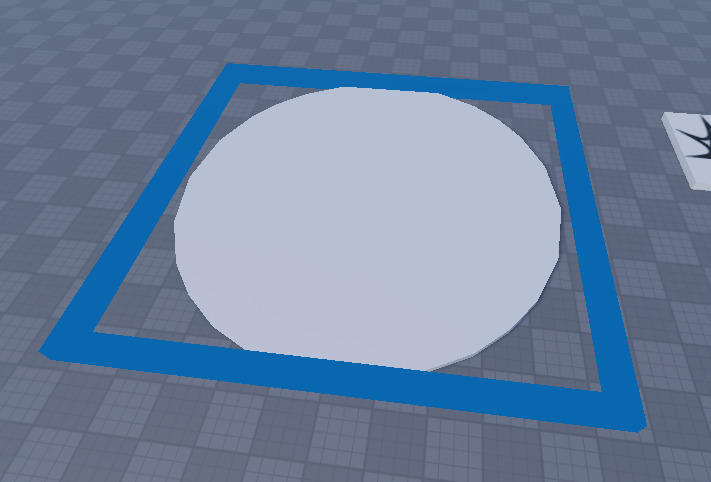

i dont think selection box works
unless im using it wrong

image711Ă—482 53.4 KB

#7

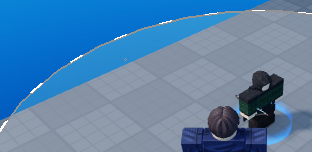

i dont think its just a single mesh being used
the amount of lines are created depend on the range

i was able to make something similar using unions
but im still not exactly sure if thats the solution

image730Ă—555 59.3 KB

#8

Formula is the solution as i said before

#9

just found out how its possible
thanks for all the help

#10

At the moment I am also developing a TD game and would really like to make a radius like in TDX. How did you manage to do this?

#11

image1280Ă—1024 162 KB

just made this

local RunService = game:GetService("RunService")
local Radius = 5

local function ReturnPart()
	local part = Instance.new("Part")
	part.Anchored = true
	part.Color =Color3.new(1, 1, 1)
	part.Material = Enum.Material.Neon
	part.Parent = workspace
	part.Size = Vector3.new(0.1,0.1,1)
	return part
end

local function DoubleDottedCircle(Radius)
	local LinePerRadiusX = 10
	local MinLines = Radius * 4
	local AllLines = math.floor(Radius/LinePerRadiusX)+MinLines/2
	for i = 1,AllLines do
		local part = ReturnPart()
		part.CFrame = CFrame.Angles(0,math.rad((360+(360/AllLines) - i * (360/(AllLines)))) + 360/AllLines,0) * CFrame.new(0,0,-Radius) * CFrame.Angles(0,math.rad(90),0)
	end
	for i = 1,AllLines do
		local part = ReturnPart()
		part.CFrame = CFrame.Angles(0,math.rad((360+(360/AllLines) - i * (360 -360/(AllLines))) + 360/AllLines ) ,0) * CFrame.new(0,0,-Radius) * CFrame.Angles(0,math.rad(90),0)
	end
end

local function DottedCircle(Radius)
	local LinePerRadiusX = 10
	local MinLines = Radius * 4
	local AllLines = math.floor(Radius/LinePerRadiusX)+MinLines/2
	for i = 1,AllLines do
		local part = ReturnPart()
		part.CFrame = CFrame.Angles(0,math.rad((360+(360/AllLines) - i * (360/(AllLines)))) + 360/AllLines,0) * CFrame.new(0,0,-Radius) * CFrame.Angles(0,math.rad(90),0)
	end
end


DoubleDottedCircle(5)
DottedCircle(10)

image1280Ă—1024 115 KB

#12

Quite a useful formula! But I still can’t figure out how to make the radius “limited” in the presence of obstacles. Is there any way to do this or is this not the right topic to discuss this? It would be very useful.

#13

The easiest way would be raycasting from lines to character, Creating a mesh of this shape, repositioning it, resizing it, and making a Union with a circle

The harder way would be making this circle an Editable mesh and knowing damn well you are doomed in formulas

#14

I think sooner or later I will find a way, thanks for some help.
