I was watching back to some of Aaroncy’s old berserker videos and I realised I really like the way the camera works and how it changes between in and out of combat and how it works in general. I understand how to make a change to the camera between combat and out of combat but from a general standpoint how would I make a camera system like that.
Here is a video for reference (warning there is swearing and blood):
Sorry for the late reply.
This looks like some simple lerps with a camera system
Is this what you are looking for?
Lerp time is a bit exaggerated for this example and the dot is placed for reference:
Sorry in advance for the not so great video quality, had to compress it.
You only wanted to know how the camera works so I didn’t bother adding a custom character system for locking character rotation, same goes for the camera combat state because you said you know how to implement that so I bound it to a key
Yes I think that would be pretty cloes for what I want to make but would this also do the quick snap of the camera for example when he dodges?
Oh could you also explain how character rotation is locked in that video too please
If I’m understanding this correctly then yes
Here’s a showcase with a rushed dodge mechanic
Is this what you are looking for?
I gave the lerp a more regular speed in this example and after doing a few small dodges I did a large dodge to show that the camera does go faster the further away you go from it
If this is correct then I would gladly write an explanation with the source code!
Yes! Thanks You. Is it possible you could show me a psuedocode for the camera system used in the 2 videos you sent?
Here’s the explanation, pseudocode and source!
Things to note:
In this case it would be nice to have a custom camera.
A custom camera would make it easy to write the lock on system.
For this I am going to expand upon a camera system that I made some time ago.
This camera uses spherical coordinates.
https://mathinsight.org/spherical_coordinates
You can read about that from a previous post I made:
Make sure you read the edit and not the outdated source
The person in the video probably used 2 look at functions.
One for the player and after getting the back, up and right vector he set the camera position and look at.
Of course this is just an assumption.
I propose a different approach.
In this solution I’m
In other words this approach keeps the view distance consistent.
Personally I prefer this approach but you can use the other one if you want.
All up to preferences ofcourse.
Apparently you can just use a CFrame lookAt without making movement janky if you disable AutoRotate.
Simply just make a look at and apply the CFrame to the root part.
Heres what I did:
character.Humanoid.AutoRotate = false
local LookAt = CFrame.lookAt(character.PrimaryPart.Position, targetPosition, Vector3.yAxis)
character.PrimaryPart.CFrame = CFrame.fromMatrix(LookAt.Position, Vector3.new(LookAt.RightVector.X, 0, LookAt.RightVector.Z), Vector3.yAxis)
Initialize services: Players, RunService, UserInputService
Get the current camera and set its type to Scriptable
Initialize variables:
subjectPosition, targetPosition as zero vectors
locked as true
lerpSensitivity, sensitivity, radius, theta, phi with given values
Define function SphericalCoordinate(r, theta, phi):
Calculate Position, Hat_r, Hat_theta, Hat_phi using trigonometric functions
Return a dictionary with Position, UpVector, LeftVector, FrontVector, DownVector, RightVector, BackVector
Define function LookAtSphericalCoordinate(r, eye, target, xOffset, yOffset):
Adjust r using the distance between eye and target
Calculate dx, dy, dz as differences between eye and target coordinates
Calculate theta and phi with offsets
Calculate Position, Hat_r, Hat_theta, Hat_phi using trigonometric functions
Return a dictionary with Position, UpVector, LeftVector, FrontVector, DownVector, RightVector, BackVector
On UserInputService.InputBegan:
If the input is processed, return
Toggle locked if L key is pressed
Move character right if E key is pressed
Move character left if Q key is pressed
If input is not MouseButton2, return
Lock mouse position
On UserInputService.InputEnded:
If the input is processed, return
If input is not MouseButton2, return
Set mouse behavior to default
On RunService.RenderStepped:
If there is no local player character, return
Get character and target
Get mouse delta for movement
Update theta and phi based on mouse delta
If locked:
Set targetPosition to target's position
Lerp subjectPosition towards character's head position
Disable character auto-rotate
Calculate LookAt CFrame for character to face the target
Set character's CFrame using LookAt matrix
Calculate spherical coordinates using LookAtSphericalCoordinate
Lerp camera's CFrame towards calculated spherical coordinates
Else:
Lerp subjectPosition towards character's head position
Enable character auto-rotate
Calculate spherical coordinates using SphericalCoordinate
Set camera's CFrame using spherical coordinates and subjectPosition
This is here for reference the code is a little rushed. Make sure you do some clean up before making it an integral part of your game/experience!

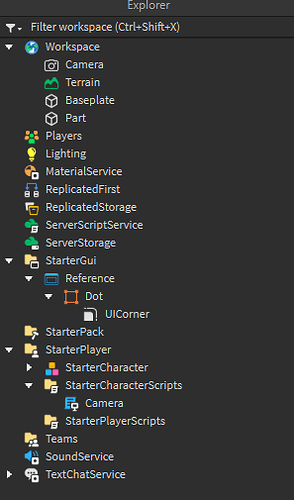

This is our showcase setup:
Inside the Camera local script:
local Players = game:GetService("Players")
local RunService = game:GetService("RunService")
local UserInputService = game:GetService("UserInputService")
local currentCamera = workspace.CurrentCamera
currentCamera.CameraType = Enum.CameraType.Scriptable
local subjectPosition = Vector3.zero
local targetPosition = Vector3.zero
local locked = true
local lerpSensetivity = 0.1
local sensitivity = 0.5
local radius = 10
local theta = 0
local phi = 0
function SphericalCoordinate(r: number, theta: number, phi: number)
local Position = Vector3.new(
r * math.sin(phi) * math.cos(theta),
r * math.cos(phi),
r * math.sin(phi) * math.sin(theta)
)
local Hat_r = Vector3.new(
math.sin(phi) * math.cos(theta),
math.cos(phi),
math.sin(phi) * math.sin(theta)
)
local Hat_theta = Vector3.new(
-math.sin(theta),
0,
math.cos(theta)
)
local Hat_phi = Vector3.new(
math.cos(phi) * math.cos(theta),
-math.sin(phi),
math.cos(phi) * math.sin(theta)
)
return {
Position = Position,
UpVector = -Hat_phi,
LeftVector = Hat_theta,
FrontVector = -Hat_r,
DownVector = Hat_phi,
RightVector = -Hat_theta,
BackVector = Hat_r
}
end
function LookAtSphericalCoordinate(r: number, eye: Vector3, target: Vector3, xOffset: number, yOffset: number)
r += (eye - target).Magnitude
local dx = eye.X - target.X
local dy = eye.Y - target.Y
local dz = eye.Z - target.Z
local theta = math.atan2(dz, dx) - xOffset * math.pi / 180
local phi = math.acos(dy / r) - yOffset * math.pi / 180
local Position = Vector3.new(
r * math.sin(phi) * math.cos(theta),
r * math.cos(phi),
r * math.sin(phi) * math.sin(theta)
)
local Hat_r = Vector3.new(
math.sin(phi) * math.cos(theta),
math.cos(phi),
math.sin(phi) * math.sin(theta)
)
local Hat_theta = Vector3.new(
-math.sin(theta),
0,
math.cos(theta)
)
local Hat_phi = Vector3.new(
math.cos(phi) * math.cos(theta),
-math.sin(phi),
math.cos(phi) * math.sin(theta)
)
return {
Position = Position,
UpVector = -Hat_phi,
LeftVector = Hat_theta,
FrontVector = -Hat_r,
DownVector = Hat_phi,
RightVector = -Hat_theta,
BackVector = Hat_r
}
end
UserInputService.InputBegan:Connect(function(input: InputObject, gameProcessedEvent: boolean)
if gameProcessedEvent then return end
if input.KeyCode == Enum.KeyCode.L then locked = not locked end
if input.KeyCode == Enum.KeyCode.E then
Players.LocalPlayer.Character.PrimaryPart.AssemblyLinearVelocity = Players.LocalPlayer.Character.PrimaryPart.CFrame.RightVector * 120
end
if input.KeyCode == Enum.KeyCode.Q then
Players.LocalPlayer.Character.PrimaryPart.AssemblyLinearVelocity = -Players.LocalPlayer.Character.PrimaryPart.CFrame.RightVector * 120
end
if input.UserInputType ~= Enum.UserInputType.MouseButton2 then return end
UserInputService.MouseBehavior = Enum.MouseBehavior.LockCurrentPosition
end)
UserInputService.InputEnded:Connect(function(input: InputObject, gameProcessedEvent: boolean)
if gameProcessedEvent then return end
if input.UserInputType ~= Enum.UserInputType.MouseButton2 then return end
UserInputService.MouseBehavior = Enum.MouseBehavior.Default
end)
RunService.RenderStepped:Connect(function()
if not Players.LocalPlayer.Character then
return
end
local character = Players.LocalPlayer.Character
local target = workspace.Part
local delta = UserInputService:GetMouseDelta()
theta = (theta + delta.X * sensitivity) % 360
phi = math.clamp((phi + -delta.Y * sensitivity), 0, 180)
if locked then
targetPosition = target.Position
subjectPosition = subjectPosition:Lerp(character.Head.Position, lerpSensetivity)
character.Humanoid.AutoRotate = false
local LookAt = CFrame.lookAt(character.PrimaryPart.Position, targetPosition, Vector3.yAxis)
character.PrimaryPart.CFrame = CFrame.fromMatrix(LookAt.Position, Vector3.new(LookAt.RightVector.X, 0, LookAt.RightVector.Z), Vector3.yAxis)
local sphericalCoordinate = LookAtSphericalCoordinate(
radius,
subjectPosition,
targetPosition,
15,
15
)
currentCamera.CFrame = currentCamera.CFrame:Lerp(CFrame.fromMatrix(
sphericalCoordinate.Position + targetPosition,
sphericalCoordinate.RightVector,
sphericalCoordinate.UpVector,
sphericalCoordinate.BackVector
), lerpSensetivity)
else
subjectPosition = subjectPosition:Lerp(character.Head.Position, lerpSensetivity)
character.Humanoid.AutoRotate = true
local sphericalCoordinate = SphericalCoordinate(
radius,
theta * math.pi / 180,
phi * math.pi / 180
)
currentCamera.CFrame = CFrame.fromMatrix(
sphericalCoordinate.Position + subjectPosition,
sphericalCoordinate.RightVector,
sphericalCoordinate.UpVector,
sphericalCoordinate.BackVector
)
end
end)
I hope this helped!
Have a nice day making games/experiences!
