How do viewportframes work?

Help and Feedback Scripting Support
1

Hello, this is my first time using viewportframes and i want to ask some basic questions. I have this viewport and i want it to display a model. I set a part named root that is the models exact center and made the viewport that position. This is my code:

local template = script.Parent.Parent.Template:Clone() -- the viewport
	local Info = string.split(info, " ")
	template.Parent = game.Players.LocalPlayer.PlayerGui.ScreenGui

	local part = game.Workspace.ImageInfo:FindFirstChild(Info[1]):Clone()
	part.Parent = workspace

	local viewportCamera = Instance.new("Camera")
	template.CurrentCamera = viewportCamera
	viewportCamera.Parent = template

	viewportCamera.CFrame = CFrame.new(Vector3.new(0, 2, 12), part:FindFirstChild("Root").Position)

however it only displays this from the code:

one thing I’m thinking is it’s displaying the root part which is about vector3.new(0.01,0.01,0.01) which would be to small to appear visible. If that’s the case how would i display a model with viewport if i cant get the models position?

1 Like
2

The part/model you want to render inside a viewport must be parented to that viewport.
change

local part = game.Workspace.ImageInfo:FindFirstChild(Info[1]):Clone()
part.Parent = workspace

to

local part = game.Workspace.ImageInfo:FindFirstChild(Info[1]):Clone()
part.Parent = template
3

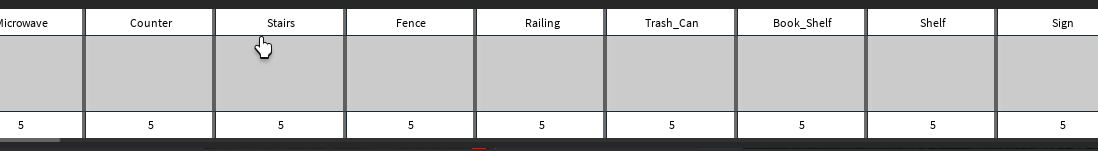

image1159Ă—133 5.75 KB

still the same…

I’m thinking it’s displaying the root part which is about vector3.new(0.01,0.01,0.01) which would be too small to appear visible. If that’s the case how would I display a model with viewport if I cant get the models position?

4

well your models have different sizes right?
edit:

viewportCamera.CFrame = CFrame.new(part:FindFirstChild("Root").Position + Vector3.new(0, 2, 12), part:FindFirstChild("Root").Position)
5

yes but the part of the code

viewportCamera.CFrame = CFrame.new(Vector3.new(0, 2, 12), part:FindFirstChild("Root").Position)

calls for a position which models don’t have
(I’m going off documentation… I have no idea how viewport works. maybe using position is just to get a size? even if that’s the case I can’t get the size of a model)

6

Model:GetBoundingBox() gives a cf and a size

local cf, size = Model:GetBoundingBox()
7

so like:

local cf, size = part:GetBoundingBox()
	viewportCamera.CFrame = CFrame.new(size, part:FindFirstChild("Root").Position)

(Doesn’t work)

image1098Ă—151 6.62 KB

8

The first argument to CFrame.new() should be a position and not a size, so this should work

viewportCamera.CFrame = CFrame.new(part:FindFirstChild("Root").Position, Vector3.new(0, 2, 12))

You will need to modify the second parameter to adapt it to best show the model

9

It works but may i ask what i am looking at?

10

That all depends on the correct positioning of the camera and as i said you will need to modify the second parameter to best frame the model, You will basically need to move the camera a bit behind the model’s position

11

i have 138 models I wont be able to correctly position the camera for all 138 models without making my code
A. look dog trash
and
B. take me like 9 hours

is there a way to automate this system

example: use

	local cf, size = part:GetBoundingBox()
12

You can calculate the distance of which the camera should be moved behind/up/down based on the model’s size

13

should i preform my calculations on the size or the position using the models size?

14

The first parameter to CFrame.new() will position the camera exactly at the center of the model/part so you will definitely need to move the camera behind (using the second parameter which is a lookAt Vector3) of half the model’s X size (if the camera frames the part from the X axis, if it frames the part form the Z axis you will need to move the camera behind of half the model’s Z size) but that will put it very near the model so you will need to add a bit more studs

15

Hey a lot of this looks good but i am having some trouble with things that are taller not fitting in the frame

16

just calculate the correct distance needed

local offset = Vector3.new(2, 2, 0)

local cf, size = part:GetBoundingBox()

local sizeX, sizeY, sizeZ = size.X, size.Y, size.Z

local halfFov = math.rad(viewportCamera.FieldOfView * 0.5)
local halfSize = math.max(sizeX, sizeY) * 0.5

local dist = (halfSize) / math.tan(halfFov) + (sizeZ * 0.5)

viewportCamera.CFrame = CFrame.new((cf * CFrame.new(Vector3.zAxis * dist + offset)).Position , cf.Position)
3 Likes
17

Okay, thanks. I’m being honest I don’t know what half of your math is but it works so thanks for saving me 9 hours of work and trash looking code

18

its using trigonometry to calculate the distance(b in the pick) using the fov(beta in pic) and size(c * 2 in pic)

1 Like
19

is there a way to automate this system

Here’s a one-liner I frequently use, doesn’t even require a camera.

local Size = Model:GetExtentsSize()
Model:PivotTo(CFrame.new(0, 0, -math.max(Size.X, Size.Y, Size.Z)) * CFrame.Angles(0, math.pi, 0))
2 Likes
