How to make a Smooth Drawing Canvas?

Help and Feedback Scripting Support
#1

I’m trying to let a player draw something on a canvas, but a while loop is too slow as well as mouse.Move and RenderStepped/Heartbeat.

How would I get the points to spawn faster and make it correct, or draw a line from point a to point b to make a line for each and every point? Thanks!

My code:

game:GetService("RunService").RenderStepped:Connect(function()

	if canvas.Visible == true and cursor.Visible == true then

		local x = math.abs(mouse.X - canvas.AbsolutePosition.X)
		local y = math.abs(mouse.Y - canvas.AbsolutePosition.Y)

		cursor.Position = UDim2.new(x/canvas.AbsoluteSize.X, 0, y/canvas.AbsoluteSize.Y, 0)
		cursor.Size = UDim2.new(0, currentSize, 0, currentSize)

		if mouseDown then

			local paint = script.Paint:Clone()

			paint.Position = UDim2.new(x/canvas.AbsoluteSize.X, 0, y/canvas.AbsoluteSize.Y, 0)
			paint.Size = UDim2.new(0, currentSize, 0, currentSize)

			paint.ImageColor3 = erasing and Color3.fromRGB(255, 255, 255) or currentColor

			paint.Parent = paintContainer
		end
	end
end)

This is how it looks like:

#2

unfortunately having lots of image labels can start to get slow if you have to many

the way I did this was to use a ViewportFrame | Documentation - Roblox Creator Hub

and use parts as pixels

image1562×1204 106 KB

2022-03-11 21_53_08
2022-03-11 21_53_081465×991 118 KB
RobloxScreenShot20220311_223710577
RobloxScreenShot20220311_2237105771920×1040 172 KB

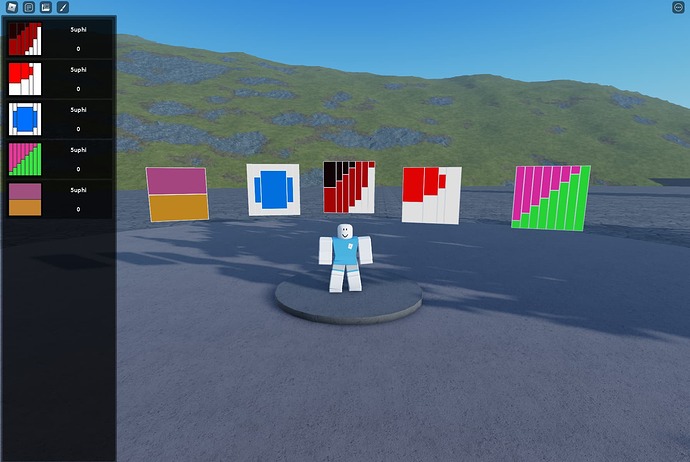

I also did greedy meshing to reduce part count so as you can see the image on the left only used 2 parts but this was done only after you saved the image not while you was drawing

image1790×1200 125 KB

here is a video showing how I greedy meshed the pixels

https://youtu.be/L6P86i5O9iU

and this video will show you how to position the camera of the ViewportFrame so the pixels fit perfectly
https://youtu.be/fsom_THrNhE

but if we look at how Free Draw - Roblox works what they do is use Beam | Documentation - Roblox Creator Hub but Beams dont work in ViewportFrames so it would only work if they was drawing in the workspace

since this message Roblox now has EditableImage | Documentation - Roblox Creator Hub
this is now the best option to draw images

7 Likes
#3

Alright, thanks :smiley: (Character limit)

#4

But I have a question - would I have to make the canvas myself and then use the greedy meshing to put the canvas art on a part?

#5

I don’t quite understand the minimap part.

#6

So you have a viewportframe

You can put this viewportframe anywhere you like on a part or in your normal GUI

Then you create parts and each part is 1 pixel and you colour each part depending on what colour you want that pixel to be

Then you can use greedy mesh to merge colours that are the same to reduce the amount of parts you have in the viewportframe

Your viewportframe has a camera and the camera needs to be zoomed out from the parts so you can see all the parts in the viewportframe

If you want to zoom the camera out so the pixels fit perfectly the formula for calculating the amount you need to zoom out is in the mini map video

#7

What if you found a way to use part unions in order to smooth out edges

One of the first steps might be creating four different edges, concave 90 degree angle, convex 90 degree angle, concave inverse 90 degree angle, and convex inverse 90 degree angle.

#8

Oh okay, thanks for your help :smile:
