How to measure distance between 2 places?

Help and Feedback Scripting Support
,
1

I want to measure distance between 2 points not in a straight line. How am I supposed to do this? Any ideas?

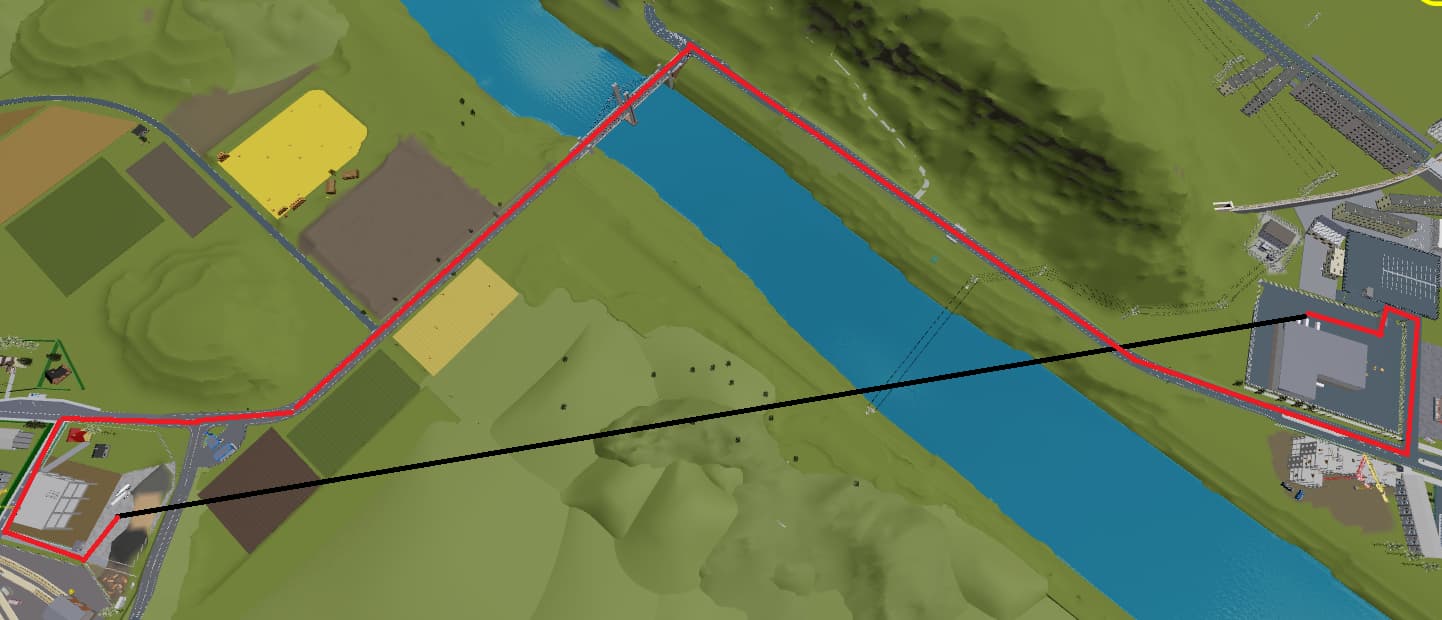

For example I want to track distance between those points within the red line, not the black one. I want a script which could automaticly find ways like that. Is a pathfinding system a solution? I’m an amateur in scripting. Please give me hints what tools it is the best to use for me.

image1442×620 68.9 KB

2

yes you could generate a path using PathfindingService and then calculate the distance between each waypoint and the previous waypoint, the total distance would be the sum of all of those.

2 Likes
4

You could give every material, except the one the road is made of, a ridiculous weight so the AI follows it. Or you could add invisible walls around the road. You could also just manually calculate the distance by making waypoints yourself and looping through those. Do you have other suggestions, or are you just here to bash other people?

2 Likes
5

I am making suggestions just that they take time because they are good

6

Place Attachment nodes at every turn/key point (put them under a folder like workspace.PathNodes). Let the player click nodes in order to form a route; the script sums the segment lengths (turns included) for the total distance.

How to use

  1. Create a Folder PathNodes in Workspace.
  2. Add Attachment objects at each turn/spot (they can be inside small Parts, that’s fine).
  3. Put the LocalScript below in StarterPlayerScripts.
  • Left-click: add the nearest node to your route.
  • Z: undo last node.
  • R: clear route.
  • Enter: print total distance (studs + meters).
-- LocalScript (StarterPlayerScripts)
local Players = game:GetService("Players")
local UIS = game:GetService("UserInputService")

local player = Players.LocalPlayer
local mouse = player:GetMouse()

local PATH_FOLDER = workspace:WaitForChild("PathNodes")
local SELECT_RADIUS = 12 -- studs; how close your click must be to a node

-- collect all Attachment nodes
local nodes = {}
for _, inst in ipairs(PATH_FOLDER:GetDescendants()) do
	if inst:IsA("Attachment") then
		table.insert(nodes, inst)
	end
end

-- selected route (array of Attachments)
local route = {}

local function nearestNode(worldPos: Vector3)
	local best, bestDist = nil, math.huge
	for _, att in ipairs(nodes) do
		local d = (att.WorldPosition - worldPos).Magnitude
		if d < bestDist then
			bestDist, best = d, att
		end
	end
	if bestDist <= SELECT_RADIUS then
		return best
	end
end

local function routeLengthStuds()
	local sum = 0
	for i = 2, #route do
		local a = route[i - 1].WorldPosition
		local b = route[i].WorldPosition
		sum += (b - a).Magnitude
	}
	return sum
end

local function printTotal()
	local studs = routeLengthStuds()
	local meters = studs * 0.28 -- approx. 1 stud ≈ 0.28 m
	print(string.format("Nodes: %d | Distance: %.1f studs (≈ %.1f m)", #route, studs, meters))
end

-- click to add nearest node
mouse.Button1Down:Connect(function()
	local hitPos = mouse.Hit and mouse.Hit.Position
	if not hitPos then return end
	local n = nearestNode(hitPos)
	if n then
		table.insert(route, n)
		print(("Added node: %s"):format(n.Name ~= "" and n.Name or tostring(n)))
		printTotal()
	else
		print("No node near click (try closer).")
	end
end)

-- Z to undo last, R to clear, Enter to print final
UIS.InputBegan:Connect(function(input, gp)
	if gp then return end
	if input.KeyCode == Enum.KeyCode.Z then
		if #route > 0 then
			local removed = table.remove(route)
			print(("Removed: %s"):format(removed.Name ~= "" and removed.Name or tostring(removed)))
			printTotal()
		end
	elseif input.KeyCode == Enum.KeyCode.R then
		table.clear(route)
		print("Route cleared.")
	elseif input.KeyCode == Enum.KeyCode.Return then
		printTotal()
	end
end)

That’s it—click nodes along the path you’d take (turns included), and the script totals the polyline length. If you later want auto-path distance (e.g., shortest path between two nodes), you can build on this by adding a small adjacency table (graph) and run Dijkstra; but for a quick, visible “turn-by-turn” distance, clickable Attachments work great.

2 Likes
7

Yeah no, PathfindingService would probably be one of the better and easier methods to do this. I’d personally roll with Pathfinding service over making an overly complicated system to do the exact same task.

2 Likes
8

Just add some parts and do some simple calculation. It would probably take less code than pathfinding and pathfinding is asynchronous

1 Like
9

Thanks, that’s helpful. I’ll probably try it.

10

i think you could add some waypoints, then calculate the magnitude of all these waypoints and add them all together, kinda like this

local distance = (waypoint1.Magnitude + waypoint2.Magnitude + waypoint3.Magnitude)
2 Likes
11

The way I would do it is indeed with pathfinding; but I wouldn’t use Roblox’. I would add convert the map into a graph. That means adding nodes to each bend of your road so that between any 2 points it’s straight. Then you can just use graph maths, A*, Dijkstra etc.

2 Likes
