So I am currently attempting to make a gun system. This is my first time doing so and seems like it will be a very tough task as it is.
However, I would love to inflict pain upon myself and incorporate inverse kinematics in the said gun system. It will be used when the player holds the gun to simulate accurate collisions with the environment. Sort of like in this clip Watch Deadline Gun IK | Streamable (Deadline).
So far, this is what I have but it feels completely incorrect Watch Gun IK Progress | Streamable. If someone can help me out and tell me the process I would need to execute to successfully make inverse kinematics for my gun, that would be amazing.

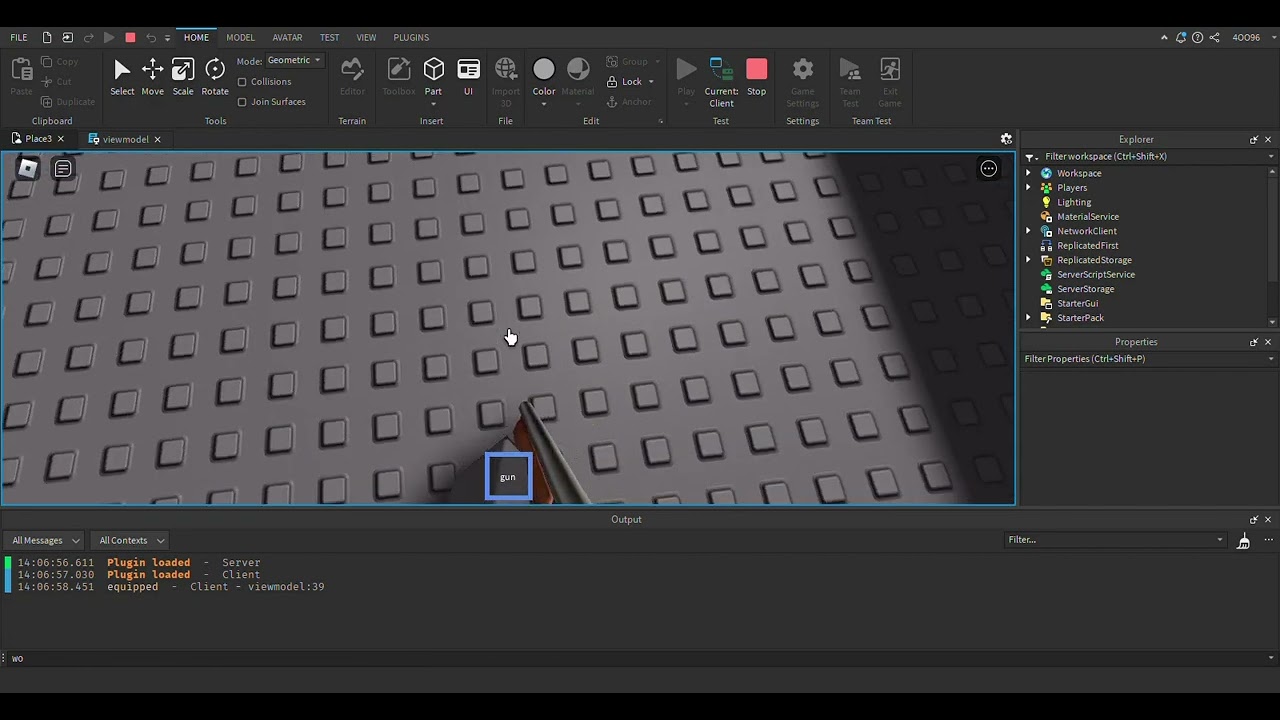

i donât think theyâre using inverse kinematics for this. iâve seen this ârealistic anti-wall clippingâ approach used in an ACS mod that i was tinkering with a few months ago. what they most likely did was raycast from the barrel of the viewmodelâs gun, and if it hit something, (like a wall) move the viewmodel backwards, and if youâre close enough to a wall, then hold the gun upwards (or have it be held close to the playerâs chest) and make u unable to shoot until u back up
Interesting. That seems about right as using IK would be very buggy and CPU intensive for running it every frame for every frame. But how would they position the arm viewmodels when the gun moves back?
to position the view models effectively, u can determine a target position that is slightly behind the current position of the model. once u have this target position, use linear interpolation to smoothly transition the view model from its current position to the new target position.
Thank you. But how would I position the arms dynamically so that itâs holding the gun, but still having realistic joint simulation, instead of the arms clipping through the player?
this is the limit of my knowledge. unfortunately, iâve only implemented anti-clipping measures for the viewmodel, not for the playerâs character itself.
No problem thanks a lot man. thats sick. you helped me a ton. hell i wouldâve been stuck tryna use inverse kinematics on the characters arms, then figuring out how to get the gun to not clip, then i would have to make the arms visible in fp, and then replicate all of this to the other clients⌠i probably wouldve just given up ngl. but you saved me . thanks dude
what distance buffer do and why do you need the averages?
local distance = result.Distance
-- smooth the distance using a buffer
table.insert(distanceBuffer, distance)
if #distanceBuffer > bufferSize then
table.remove(distanceBuffer, 1) -- remove oldest entry
end
-- calculate the average distance from the buffer
local averageDistance = 0
for _, d in ipairs(distanceBuffer) do
averageDistance = averageDistance + d
end
averageDistance = averageDistance / #distanceBuffer
if previousDistance == 0 then
previousDistance = averageDistance
else
previousDistance = previousDistance * 0.8 + averageDistance * 0.2
end
what are the target offset and current offset calculations?
local maxOffset = 5
local minDistance = 1 -- minimum distance to start increasing offset (to avoid division by zero)
local scale = 1
if previousDistance < minDistance then
targetOffset = maxOffset
else
targetOffset = math.clamp(maxOffset - (scale / previousDistance), 0, maxOffset)
end
end
-- use lerping on the current offset towards the target offset using deltaTime for smoother movement
local lerpFactor = 0.05 -- adjust for smoothing (between 0 and 1)
currentOffset = currentOffset + (targetOffset - currentOffset) * lerpFactor
iâm using a âdistance bufferâ to track of several distance values over time. it helps smooth out fluctuations in the distance measurement, so sudden changes donât cause jittery behavior. i add the latest distance to the buffer, and if the buffer exceeds a specified size (bufferSize), i remove the oldest distance. this keeps the buffer at a manageable length and makes sure it only contains recent measurements.
i calculate the average of the distances stored in the buffer. this average smooths out any extreme values and provides a more stable distance for further use.
the line previousDistance = previousDistance * 0.8 + averageDistance * 0.2 means:
iâm taking 80% of the previous smoothed distance and adding 20% of the new average distance.
this helps to gradually adjust previousDistance towards the new average without jumping too abruptly. the result is a smoother transition and less jitter when the distance changes.
then i calculate a targetOffset based on the previousDistance. if the previousDistance is less than minDistance, i set the targetOffset to maxOffset, which sets a maximum amount of movement.
now, if the previousDistance is greater than or equal to minDistance, i decrease the offset as the distance increases, ensuring the offset does not go below zero (thanks to math.clamp).
finally, for the lerping. lerpFactor is a small value used for interpolation (smoothing).
i update currentOffset by gradually moving it toward the targetOffset. this is done by taking the difference between targetOffset and currentOffset, multiplying by lerpFactor, and adding it to currentOffset.
tl;dr:
distance âbufferingâ helps smooth out fluctuations in distance measurements,
averages provide a stable reference to avoid sudden changes,
previous distance calculation uses exponential smoothing to make transitions gradual,
target offset calculation adjusts movement based on distance, making it feel more responsive,
and lerping smooths the movement of offsets over time for a more polished effect
. thanks dude
