Humanoid health bar & names do not appear when the Head's CollisionGroup is set to not collide with Default

[Secretum_Flamma]

Any humanoid model whose head is set to a CollisionGroup that does not collide with Default will have neither their health bar nor name UI appear.

This happens regardless of Humanoid.NameOcclusion, Humanoid.DisplayDistanceType, Humanoid.HealthDisplayType, Humanoid.HealthDisplayDistance, or Humanoid.NameDisplayDistance.

R6 dummy without name & health bar, despite settings that should show them:

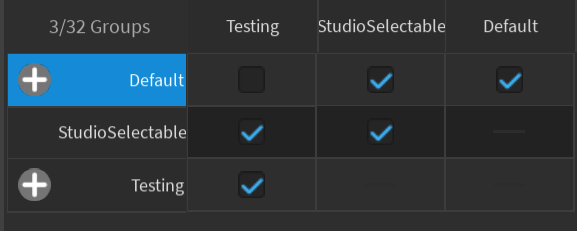

CollisionGroup that causes this:

This happens in both Studio testing and live games. Changing the Head’s CollisionGroup via a script toggles this as well, but I’ve noticed inconsistencies in Studio rendering it.

OS: Windows 11
CPU: AMD 5800X
GPU: NVIDIA 3070
RAM: 32GB of DDR4-3600

Reproduction File:
NameHealthBug.rbxl (58.7 KB)

I’ve included a script under the model’s head that toggles it’s CollisionGroup. When you join, you can clearly see it toggling on and off, despite its Humanoid’s name & health display settings set to always be on & never occlude.

Normal BillboardGuis parented to a model’s head are not affected by this.

Expected behavior

The CollisionGroup documentation and the Character Name/Health Display documentation make no mention of this. I expect that CollisionGroups shouldn’t affect these UIs, or that this behavior becomes documented.

[Focia19]

This is just an acknowledgment announcement!

We’ve filed a ticket into our internal database for this issue and will start investigating, we will update you when we have further information.

Thanks for flagging!

[Ethanthegrand14 (Ethanthegrand)]

Having this bug in studio, not quite sure if it happens on the client as well, but Humanoid.NameDisplayDistance doesn’t appear to work anymore. When I set it to 0, I expect the name to be hidden, but that doesn’t seem to work

[subcritical]

Thanks, we’ve reproduced and will be fixing in the next few releases.

[SamsonXVI (Samson)]

Any chance of fixxing Humanoid.NameOcclusion? I’m pretty sure NoOcclusion mode does not work at all and have seen several bug reports on it:

Name Occlusion - NoOcclusion not working

The NoOcclusion isn’t working NoOcclusion is suppose to set that humanoid’s Name and Health to be visible through walls Figure A. Without camera behind a wall [image] Figure B. When camera is behind a wall [image] Topics regarding this aren’t common so I ought to ask. Solutions I’ve tried so far myself are the following: Set the DisplayDistanceType to Subject Set HealthDisplayDistance and NameDisplayDistance to 1000 Set HealthDisplayType to Always On An only exception to this is …

NameOcclusion: NoOcclusion still occludes

I’m trying to make a tycoon button where the name is still visible when the player gets between some parts and the button. I’ve attempted setting the NameOcclusion to NoOcclusion on the button’s Humanoid, but this does not work; it still occludes. I’m creating the humanoid client-side with the following code: local h = Instance.new("Humanoid") h.NameOcclusion = Enum.NameOcclusion.NoOcclusion h.HealthDisplayType = Enum.HumanoidHealthDisplayType.AlwaysOff [image] Does anyone know about this?

NoOcclusion not working on humanoid

Humanoids “NameOcclusion” property’s “no occlusion” which is supposed to make the humanoids name visible trough walls doesnt do it what should i do to fix this is this a roblox bug that i cant fix (without making custom nametags) [image] [image]

I am also experiencing this issue myself today.

[subcritical]

Just a note that this should be fixed now.
