Lightspeed Shader System using EditableImage

:bulb: I’m not gonna waste your time. Straight to the point.

Do you want to make Music Visualizers, Backdrops, 3D Models, and more?


:1st_place_medal: This shader system can render anything upto 20X faster than manual calculation!

  • Interlaced Rendering
  • Dynamic Resolution
  • Precalculates Non-DeltaTime Math
  • Compiles To Machine Code With --!native
  • Shaders Return After Pixel Gets Filled
  • Object-Oriented & Organized
  • Optimized 3D Shader Of A Hat Included
    • Uses a clever lighting technique.
    • Dense 3D lines form the shape and texture.
    • Only primary colors to save table writes and math.
    • Has a black background to save writing dark pixels. (Just make the Blue/Red less bright.)
    • Cuts off the edges of the hat to add detail and save loops.
  • Partial GLSL library.
  • Custom shader inputs.

:nerd_face: Even more nerdy features coming soon…

  • Docs for the ShaderPlayer and Shader objects.
  • ShaderApplier object that will apply a shader once to some or many images without lag.

However, I didn’t think of everything.
If you have any ideas to further optimize the Rendering, leave and reply and I’ll implement it!


:framed_picture: Writing pixels is instant with the new EditableImage class!


A 3D hat being rendered in Real-Time at about 35 fps.


Craftmine running at 20 fps.

Simple shaders such as Visualizers, can hit 200 fps at the same resolution.
If your shader is horizontal only, you can hit 500 fps with heavy interlacing.


:thinking: Should I use CanvasDraw or write a Shader?

Shaders are extremely fast, but without math skills, you’re limited to what’s on Shadertoy.
CanvasDraw is more of a “2D Game Engine”, but is quite a bit laggier.

  • If you want to make Games Inside A GUI, CanvasDraw is better, although you’re stuck to low resolution.

  • For Backgrounds, VFX, Audio Visualizers, Ray-Tracing, etc at higher resolutions, this Shader System is better.

  • If you are clever, you could even use this Shader System to add expensive VFX to CanvasDraw projects.


:technologist: Uncopylocked Project
:movie_camera: Video Demo
:framed_picture: Cool Shaders You Can Port


Remember to enable native code compilation in Beta Features for a bonus 2X speed boost.

52 Likes

its just like canvas draw but with editable image, this is pretty cool!

6 Likes

This is not a canvas system.

It is a shader engine that writes to a canvas efficiently, using optimizations such as interlacing, pre-calculation, and low-precision math.

Using shader algorithms, you can create pretty much anything at high fps.
3D Models, Backdrops, Visualizers, etc…

You can actually use CanvasDraw with this shader system instead of EditableImage.
All you have to do is replace the line that says EditableImage:WritePixels()
Although using CanvasDraw just for mass-drawing pixel data might be silly.

2 Likes

Ah I see, Pretty cool resource, wonder what people will do with it.

1 Like

I think CanvasDraw is actually going to start using EditableImage soon.

I remember seeing @Ethanthegrand14 saying something about that.

I looked into CanvasDraw and yeah it’s probably gonna be better for people to make interactive stuff like “games in games”.

Shader code runs super fast, but at the end of the day it can only take a DeltaTime input.

This shader system will be faster and better for things like Backgrounds, Visualizers, Ray-Tracing, etc.

1 Like

This is true! CanvasDraw 4.0 uses EditableImage and will be far faster. I have managed to get 60 FPS on a 3D raycaster engine at 320x320 with it.

It will also have the ability to get pixels from roblox image assets too! This can be used for texturing.

I plan to release it on January 2024 as a studio only prerelease if EditableImage isn’t out by then

1 Like

A good idea would be to add an interlaced rendering option to CanvasDraw.

It’s a 3X speed boost for free on slow-moving scenes.
You can probably do 1024px Ray-Tracing by splitting frames in thirds.

That, along with pre-calculating non-DeltaTime math, are huge things you can use.

Btw, I totally want to get this shader up to 60FPS. What’s the best optimizations you applied to CanvasDraw that I could add?

2 Likes

Well aside from using !native, the first thing I have done is ensured the :WritePixels() method was only being used once per frame, which is easy enough, but then you have to figure out how to change each individual pixel, and to do that I used a 1D table of pure RGBA values in order.

I then made a :SetRGBA() method to set the individual pixels in the 1D array.

--!native (Gotta have this man)

local Grid = table.create(ResX * ResY * 4, 1) -- A blank grid of white pixels

-- Converts the X and Y into a 1D index for the grid
function GetGridIndex(X, Y)
	return (X + (Y - 1) * ResX) * 4 - 3 -- Not sure if this is the fastest formula
end

-- Sets the specified RGBA value in the 1D array
function SetRGBA(X, Y, R, G, B, A)
	local Index = GetGridIndex(X, Y)
	Grid[Index] = R
	Grid[Index + 1] = G
	Grid[Index + 2] = B
    Grid[Index + 2] = A
end

-- Draws the final image
function Render()
    EditableImage:WritePixels(Grid)
end

This is pretty well the barebone methods that the new canvas uses.

i haven’t really anything else for the rendering aside from having a manual :Render() method available to avoid doing it every frame.

The majority of my other optimisations have been for image processing, getting RGBA values, and texturing of polygons and other textured mapped things.

I actually have hardly ever heard the phrase in programming before, what does this method do? it’s not just a glorified v-sync thing? or is this something else I haven’t heard of before?

If so, how could I implement this?

CanvasDraw was originally designed just for this!

I use this on one of my main games.

I use :SetPixel/:SetRGB for every pixel on a popular roblox game of mine with the module and they work great. Super fast and simple code. Even for the UI gradient version the game uses.

Buuuut, i gotta admit, if your doing just per-pixel shader like stuff, then your better off using just the raw editable image lol

1 Like

Interlacing is where you render odd rows pixels on one frame, and even on the next.
This obviously speeds things up 2X.
On slow-moving scenes, it does not look worse.
In fact it made my hat shader look better by shuffing the gaps between the lines for a fabric effect.
In extreme cases, you can render even less rows of pixels per frame and still look good.
Modded Playstation 2’s achieved 1080p by using this technique.

1 Like

Ah. Okay yeah that does sound like a very useful option to have.

Could actually speed up a lot of my projects with less change in the rendered images, or even on my game.

Also had no idea the PS2 could even do 1080p, that’s really cool. I’ve just been using composite cables for like… ever

I just checked your powder game.
You can probably get away with rendering 1/4th of the vertical rows per frame lol.
It wouldn’t look weird because the powder rarely moves horizontally.

I’m gonna split up my pixel choosing algorithm into it’s own module today.
Probably something like this:

local pixelChooser = PixelChooser.new()
pixelChooser.InterlaceFactor = 4 --1/4th of rows will be rendered each frame
pixelChooser.EdgeFPSFactor = 2 --half fps at corners (added it for shader purposes)
pixelChooser.EdgePercent = 0.1 --farthest 10% of pixels will only be iterated half as much
--more optional optimizations will be added too

--render loop or whatever
while true do
 for x,row in pixelChooser:Next() do --returns pixels to render on each frame
  for y,_ in row do
   --shader code or whatever
  end
 end
end

Game dev ain’t a competition, so feel free to implement it if you give credit. : )

Hang on you added edge factor and fps? And for corners too? wow you went quite bit into this. And yeah ill be sure to credit you if I implement it!

Added you on Discord so I’ll let you know when it’s cooked.
And yeah it’s worth working on for my portfolio.
There’s something oddly appealing about making a fake RTX hat spin around like a hamster.

1 Like

Update: I sped up the system by another 2x using some “techniques”

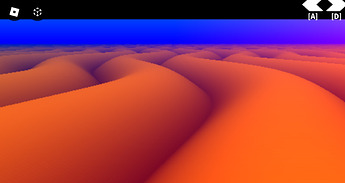

Now ray-marching and craftmine are possible!
I’ll remake this post with a link to proper documentation github page soon.


4 Likes

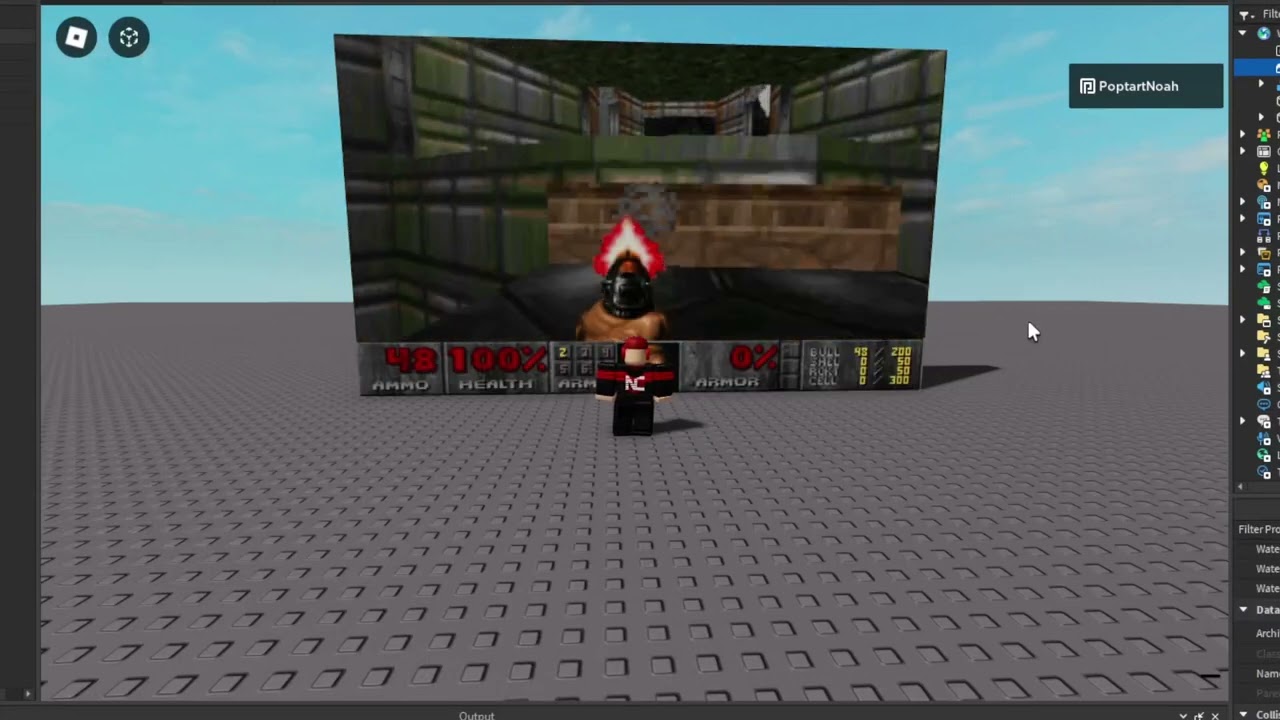

Now all that’s left is to run DOOM on it :thinking:

In all honesty though, this is actually extremely cool. I’ve been dying to make an outline shader for a long time, hopefully this will make it far faster!

2 Likes

Sorry for the late reply but yeah it’s probably possible lol.
