Model placement query

Help and Feedback Scripting Support
#1

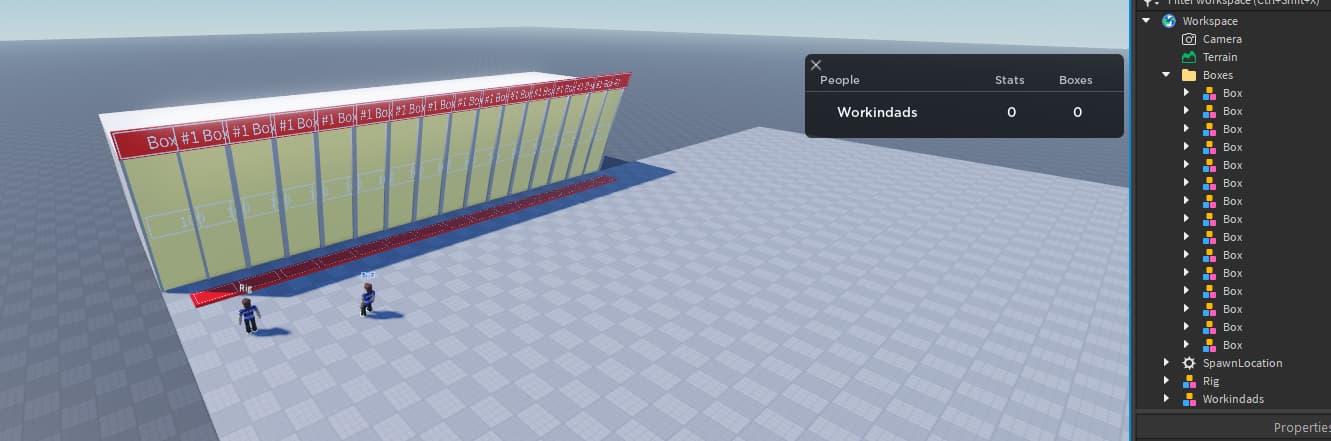

I have a model that I am attempting to clone beside each other. I’ve gotten so far as to get the models close to what I need but I am unsure how to complete the calculations so that each model is in the correct position. I intend to do this on all sides eventually but I want to get the first side complete. As you can see the first model is correctly located but when I try to loop more in they overlap.

image1331×441 48.5 KB

--//BOX PLACEMENT SCRIPT
	--This script should place the boxes along the side of the
	--starter area.
--//SERVICES
local RS = game:GetService("ReplicatedStorage")

--//VARIABLES
local boxFolder = RS:WaitForChild("BoxFolder")
local box = boxFolder:WaitForChild("Box")
local boxes = workspace.Boxes
local floorArea = workspace.FloorArea


--//FUNCTIONS
local function getStartCoord()
	--get the size of the placement area
	local floorSizeX = floorArea.Size.X
	local floorSizeY = floorArea.Size.Y
	local floorSizeZ = floorArea.Size.Z

	local setY = floorSizeY/2 + floorSizeY/2 --top of the floor area

	--get the corner position at the top of the floorarea
	local StartCornerA = Vector3.new(-floorSizeX/2, setY, -floorSizeZ/2)

	--local newPart = Instance.new("Part")
	--newPart.Size = Vector3.new(4,4,4)
	--newPart.Color = Color3.new(1,0,0)
	--newPart.Anchored = true
	--newPart.Position = StartCornerA
	--newPart.Parent = workspace

	return StartCornerA
end

local function getPlacementPosition()
	--get the position of each box position
	--loop through at least 10 boxes for one side
	--get the other sides after one side is correct
	local startSpot = getStartCoord()

	local floorSizeX = floorArea.Size.X
	local boxSizeX = box.BoxBase.Size.X

	local numberOfSpawns = math.floor(floorSizeX / boxSizeX)
	--print("The number of boxes that can spawn is: ", numberOfBoxes)


	--calculate first box position
	--local coordY = boxClone.PrimaryPart.Size.Y/2
	--local coordX = boxClone.BoxBase.Size.X / 2
	--local coordZ = Vector3.new(boxClone.BoxBase.CFrame.Z - boxClone.PrimaryPart.CFrame.Z).Magnitude
	--boxClone:PivotTo(CFrame.new(startSpot) + Vector3.new(coordX,coordY,coordZ - coordZ + 6))
	--boxClone.Parent = boxes --boxes folder in workspace

	for i = 1, numberOfSpawns do
		local boxClone = box:Clone()

		local coordY = boxClone.PrimaryPart.Size.Y/2
		local coordX = boxClone.BoxBase.Size.X / 2
		local coordZ = Vector3.new(boxClone.BoxBase.CFrame.Z - boxClone.PrimaryPart.CFrame.Z).Magnitude
		boxClone:PivotTo(CFrame.new(startSpot) + Vector3.new(coordX * i,coordY,coordZ - coordZ + 6))
		boxClone.Parent = boxes --boxes folder in workspace
		--how to fix boxClone overlapping?
	end

end

local function modifyBoxes()
	--modify box properties
	--set box mechanics
	--apply new texts and labels

end

getPlacementPosition()

I apologize for the formatting of the code (WIP)
